INTOS FNG 40 CNC A
Location:Brno, Czech Republic
Specifications
| Manufacturer | INTOS |
| Model | FNG 40 CNC A |
| Year | 2002 |
| Condition | Used |
| Stock Number | 9064 |

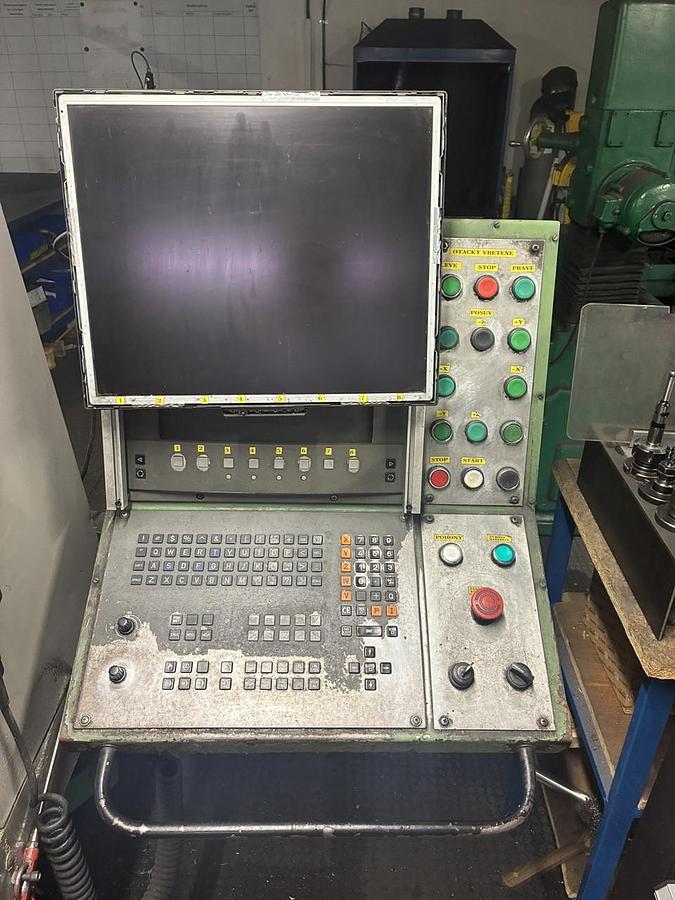

| Control system | Heidenhain TNC 430 |

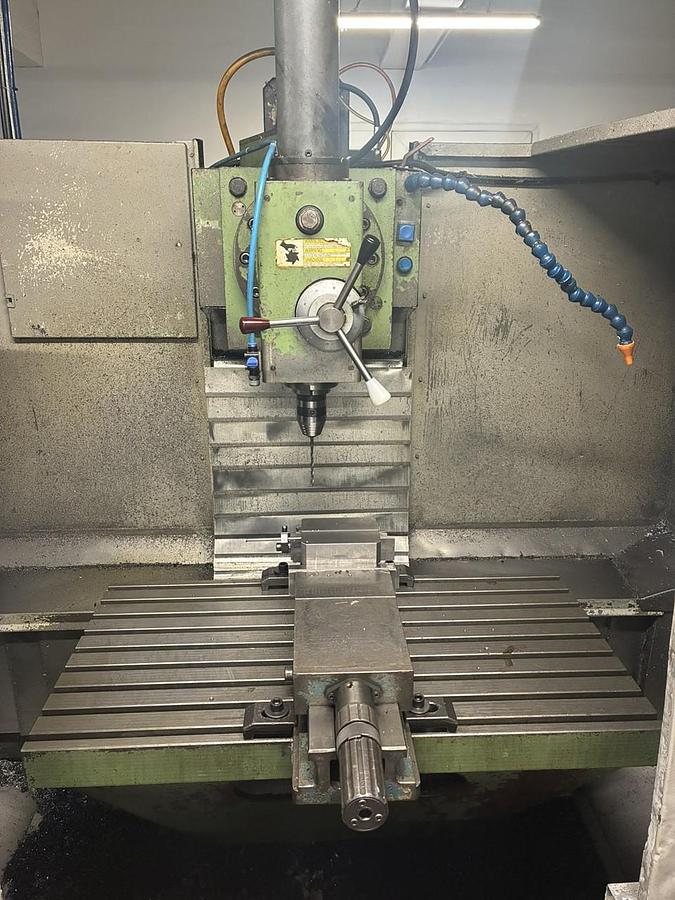

| Length of the working table | 800 mm |
| Width of the working table | 400 mm |
| Maximum table load (evenly distributed) | 300 kg |
| Power of the spindle drive | 5.5 kW |
| Maximum rotary speed of the vertical spindle | 4000 1/min |
| X-Axis travels | 500 mm |
| Y-Axis travels | 400 mm |
| Z-Axis travels | 400 mm |
| Taper | ISO 40 |
| Machine height | 1980 mm |
| Machine length | 2800 mm |
| Machine width | 2700 mm |
| Machine weight | 2600 kg |
