Sold

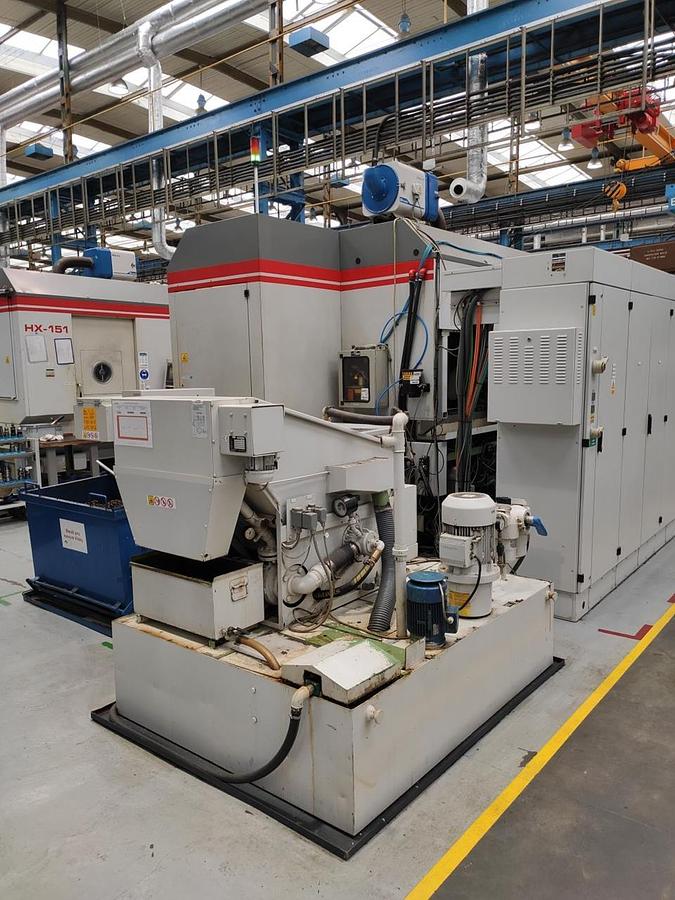

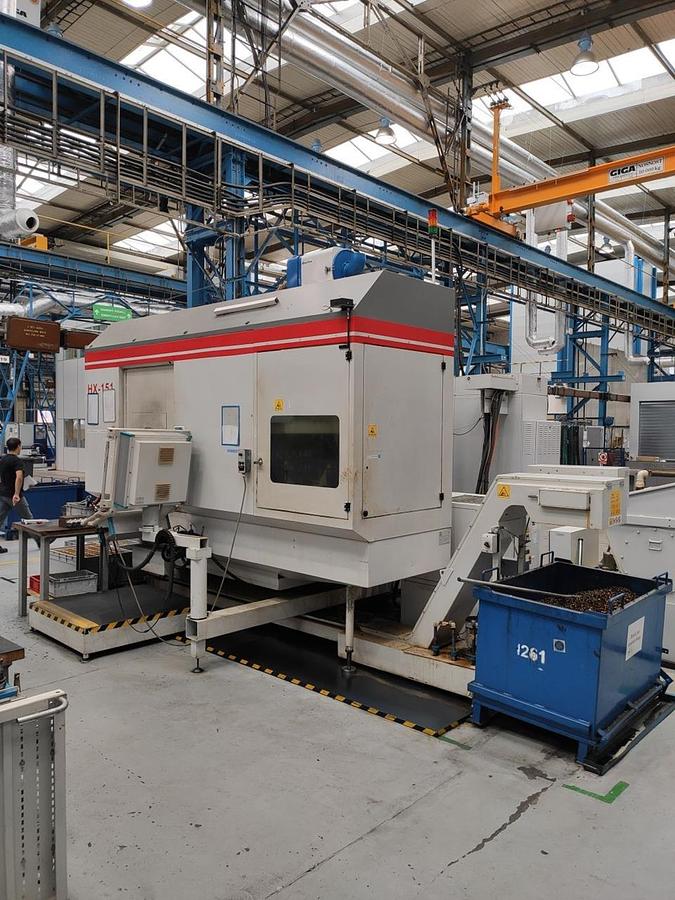

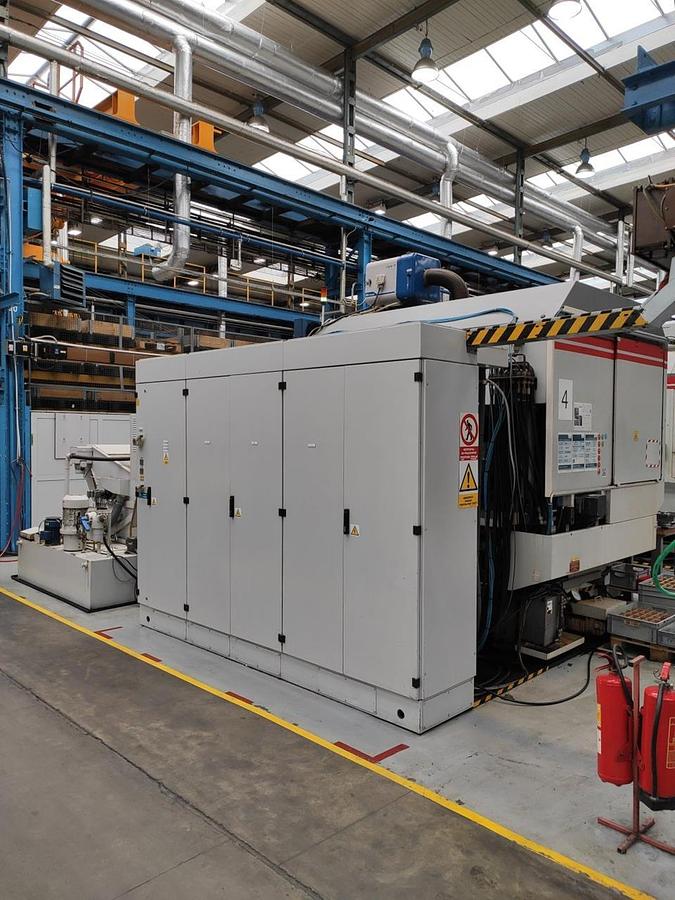

Starrag-Heckert HX-151
Location:Brno, Czech Republic
Specifications
| Manufacturer | Starrag-Heckert |
| Model | HX-151 |
| Year | 1997 |
| Condition | Used |
| Stock Number | 5061 |
| Power of the spindle drive | 24 kW |
| Number of synchronous axles | 5 pcs |
| Maximum rotary speed of the vertical spindle | 24000 1/min |
| Travel length X-axis (mechanical feed) | 1200 mm |
| Travel length Y-axis (mechanical feed) | 390 mm |
| Travel length Z-axis (mechanical feed) | 300 mm |
| Maximum feed rate in X-axis | 10 m/min |
| Maximum feed rate in Y-axis | 10 m/min |
| Maximum feed rate in Z-axis | 10 m/min |
| Tool taper | HSK 63A |
| Rapid traverse | 25 m/min |
