Sold
Strojtos Lipnik FGS 40 CNC
Location:Brno, Czech Republic
Description
Travel distances:
Equipment:

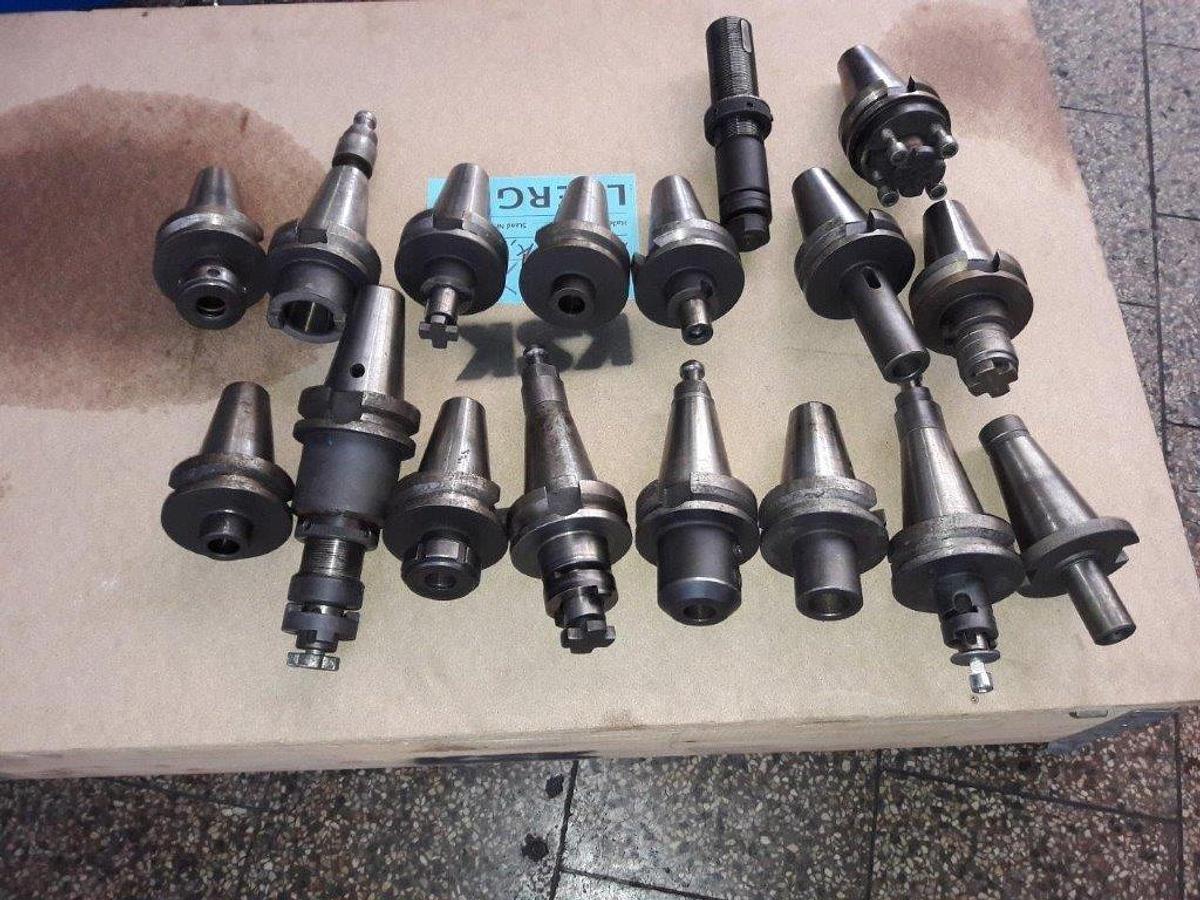

Tool holder
Specifications
| Manufacturer | Strojtos Lipnik |
| Model | FGS 40 CNC |
| Year | 2000 |
| Condition | Used |
| Stock Number | 2893 |

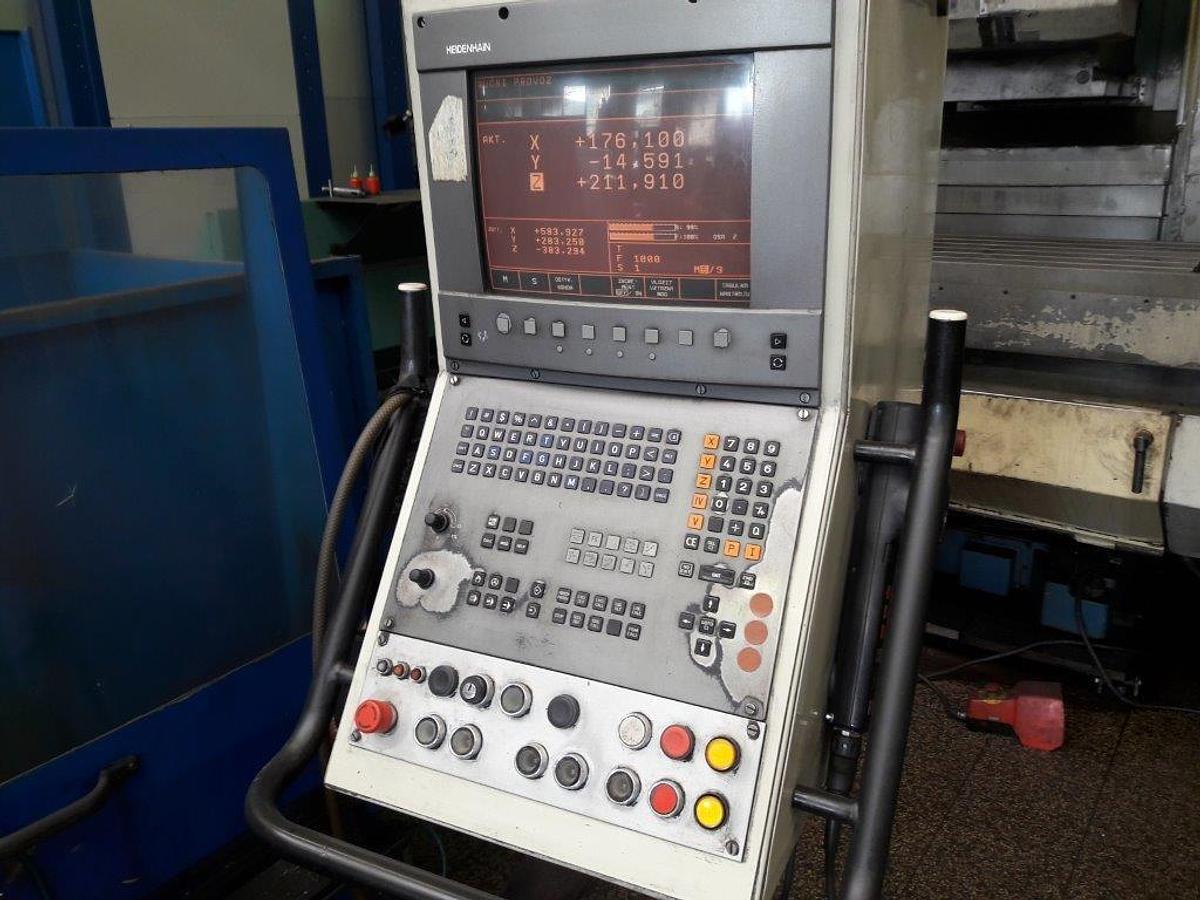

| Control system | Heidenhain TNC 410 MA |
| Clamping surface | 400 x 1120 mm |
| X | 900 mm |
| Y | 400 mm |
| Z | 450 mm |
| Tool holders | ISO 50 |
| Spindle speed | 5-1800 rpm |
| Working feed | 1-2000 mm / min |
| Rapid traverse | 5000 mm / min |
| Engine power | 11 kW |
| Distance between the spindle axis and the table | 75-525 mm |
| Max.workpiece weight | 600 kg |
| Electrical power consumption | 16 kVA |
| Machine dimensions | (LxWxH)3350 x 3280 x 2560 mm |
| Machine weight | 550 kg |
