Sold

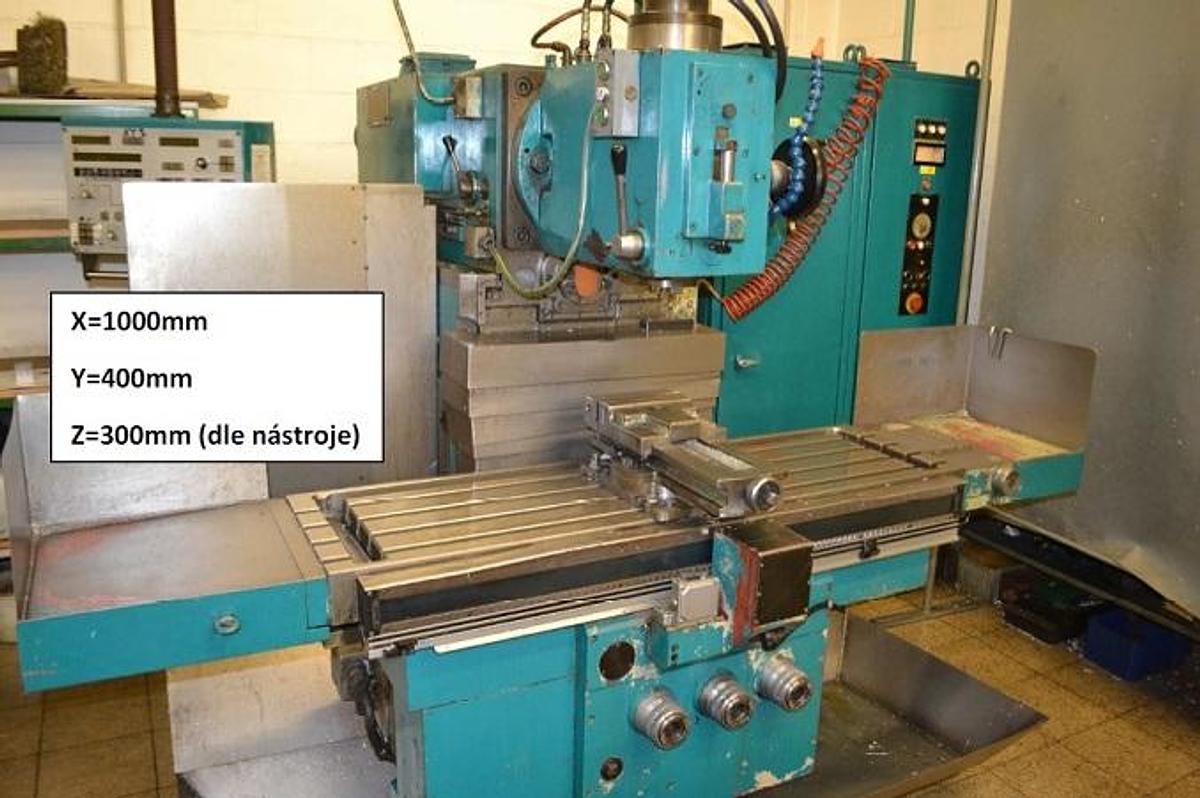

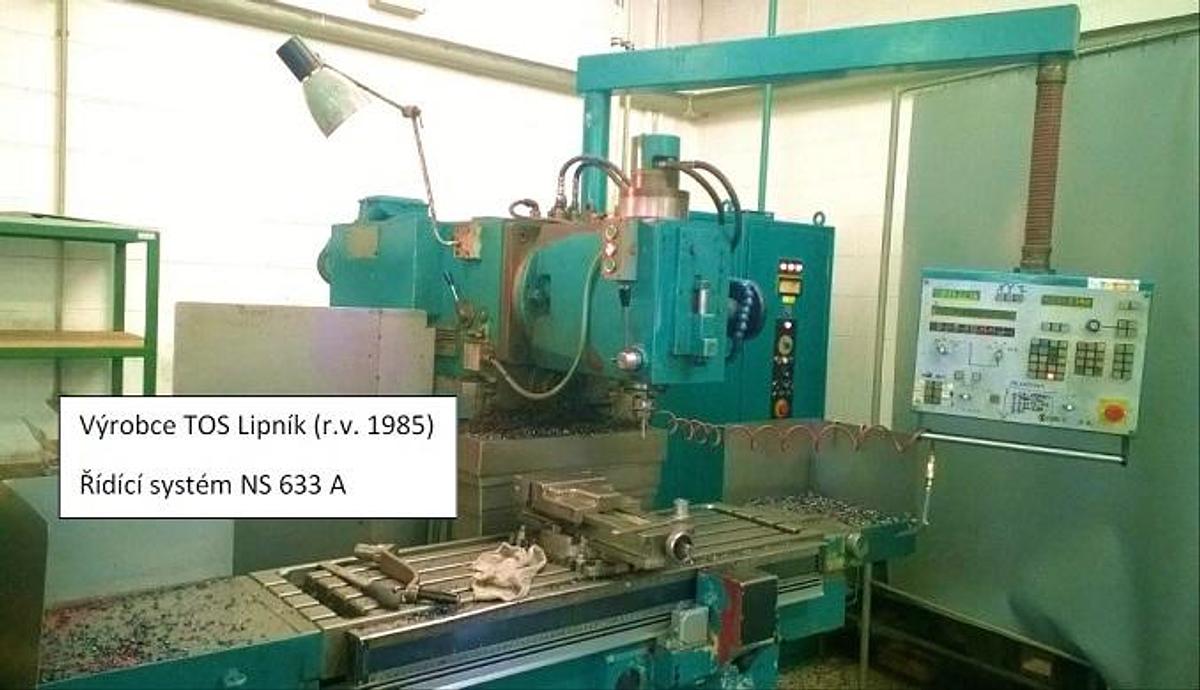

TOS FGS 32 NC
Location:Brno, Czech Republic
Description
Number of T grooves : 4
Width of T grooves : 18 mm
Travel distances:
Specifications
| Manufacturer | TOS |
| Model | FGS 32 NC |
| Year | 1985 |
| Condition | Used |
| Stock Number | 1985 |
| Table area | 320 x 1.400 mm |
| Gap of T grooves | 80 mm |
| Max load on table | 800 kg |
| Spindle tapper | ISO 50 |
| Continuous speed range | 28 - 1.800 U/min. |
| Spindle motor | 11 kW |
| X | 1000 mm |
| Y | 400 mm |
| Z | 300 mm |
| Rapid travel on axis | 4.000 x 4.000 x 1.000 mm/min |
| X- axis | 10 - 1.800 mm/min |
| Y- axis | 10 - 1.800 mm/min |
| Z- axis | 1.000 mm/min |
| Total connected load | 16 kW |
| Machine weight | 4.400 kg |
| Machine dimensions | 3180 x 3310 x 2400 mm |
