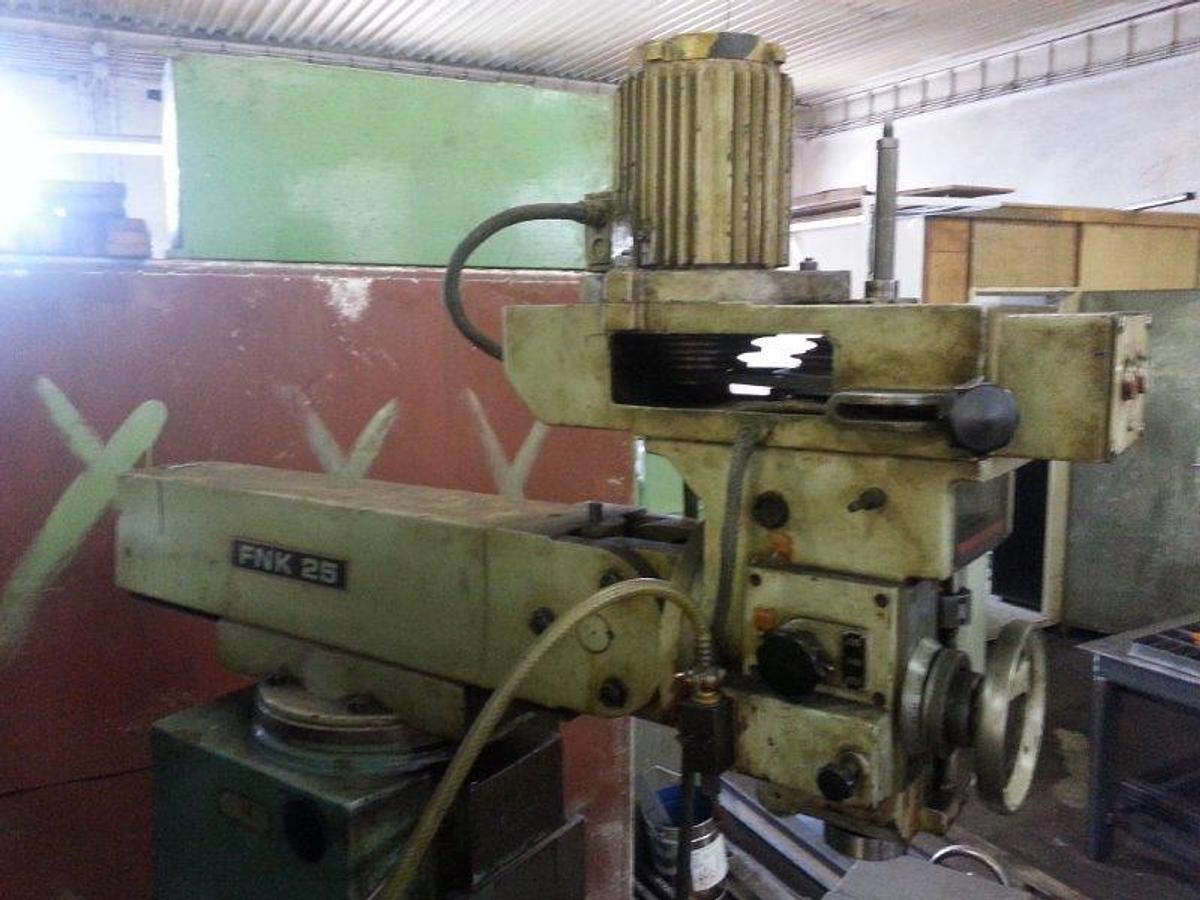

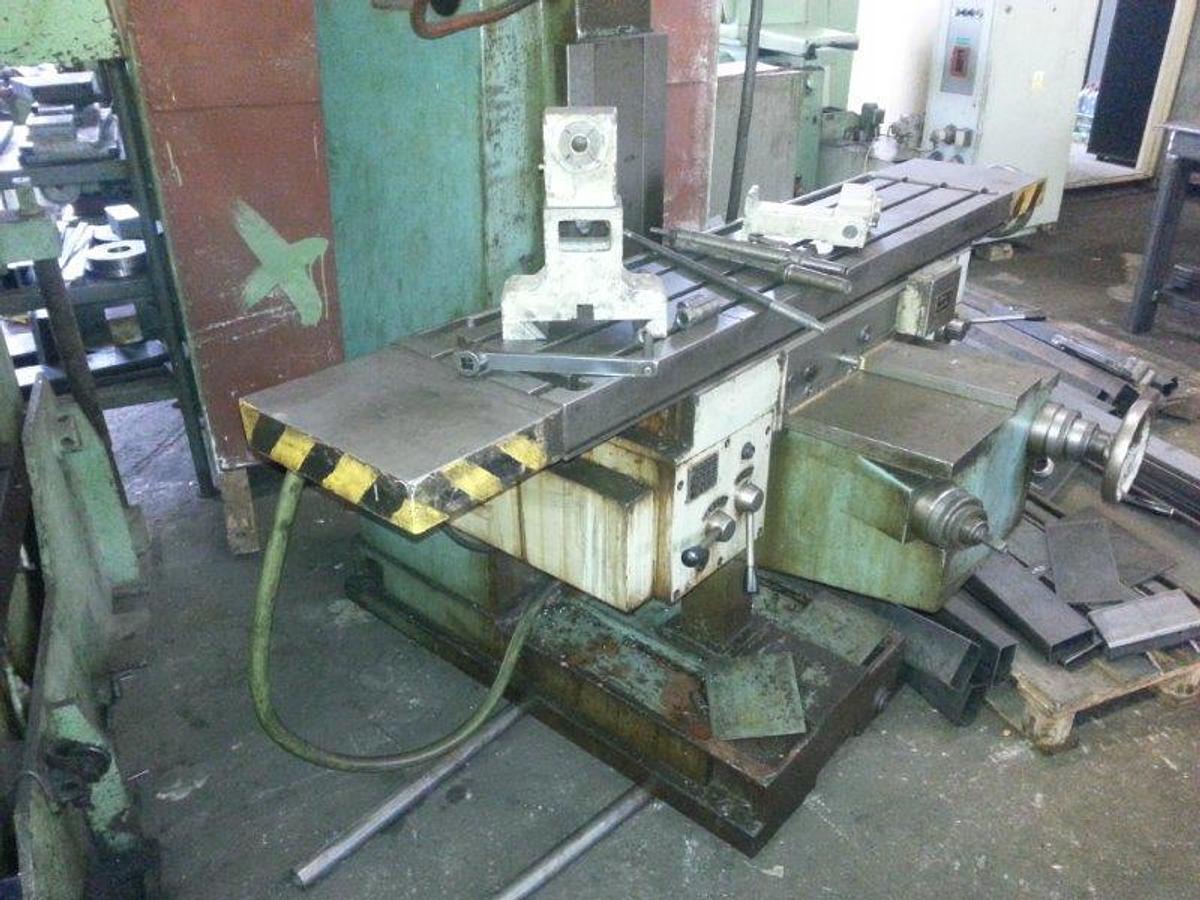

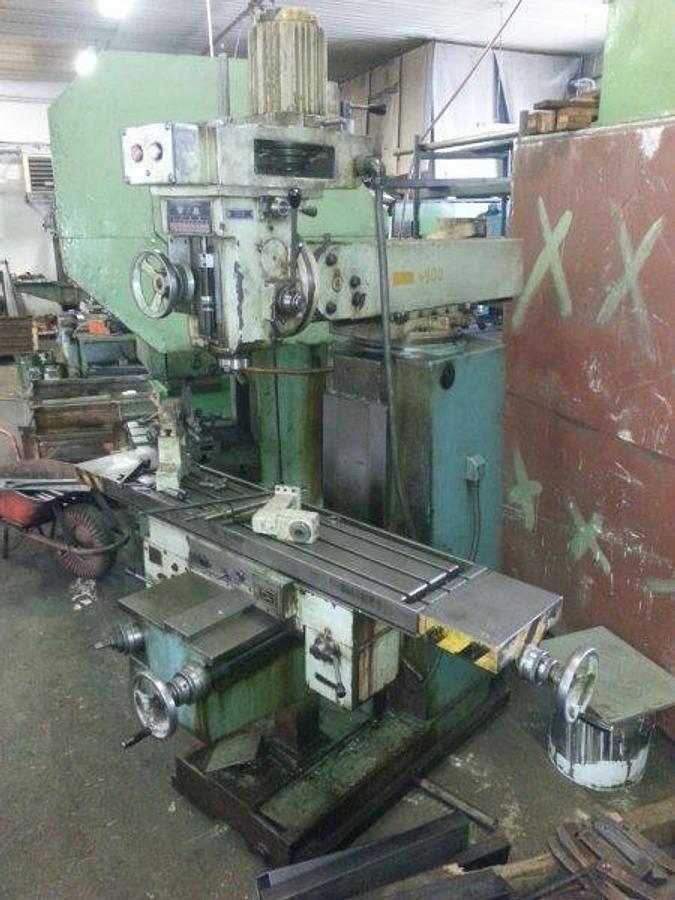

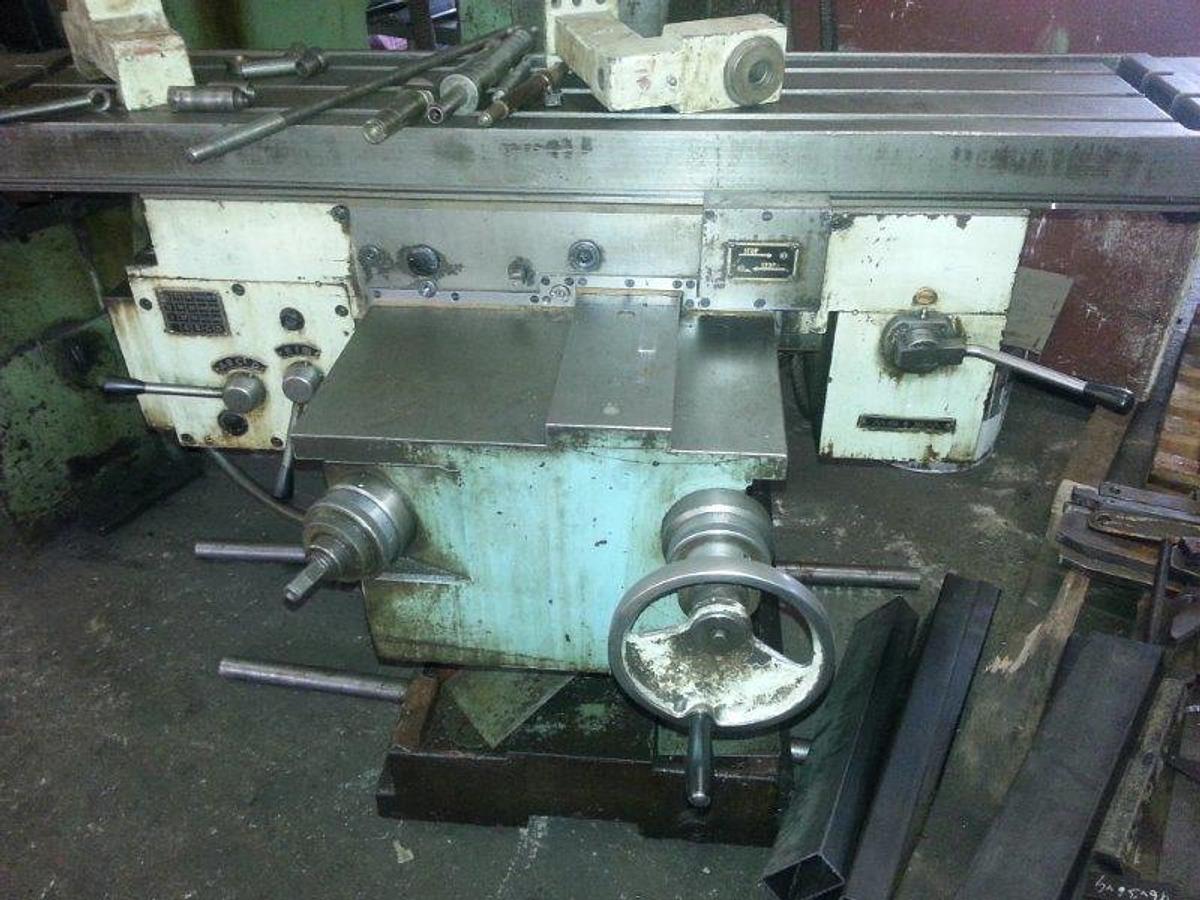

TOS FNK 25
Location:Brno, Czech Republic
Description
Travel distances :
Clamping grooves :
Number 3
Width x pitch 14 x 18 mm
Spindle diameter in front bearing 47 mm
Spindle speed:
Number of stages : 16
Speed 56 to 4500 r / min
The electric motor for driving the spindle :
The electric motor for driving displacement :
The electric motor of the coolant pump:
Speed: 2880 U / min

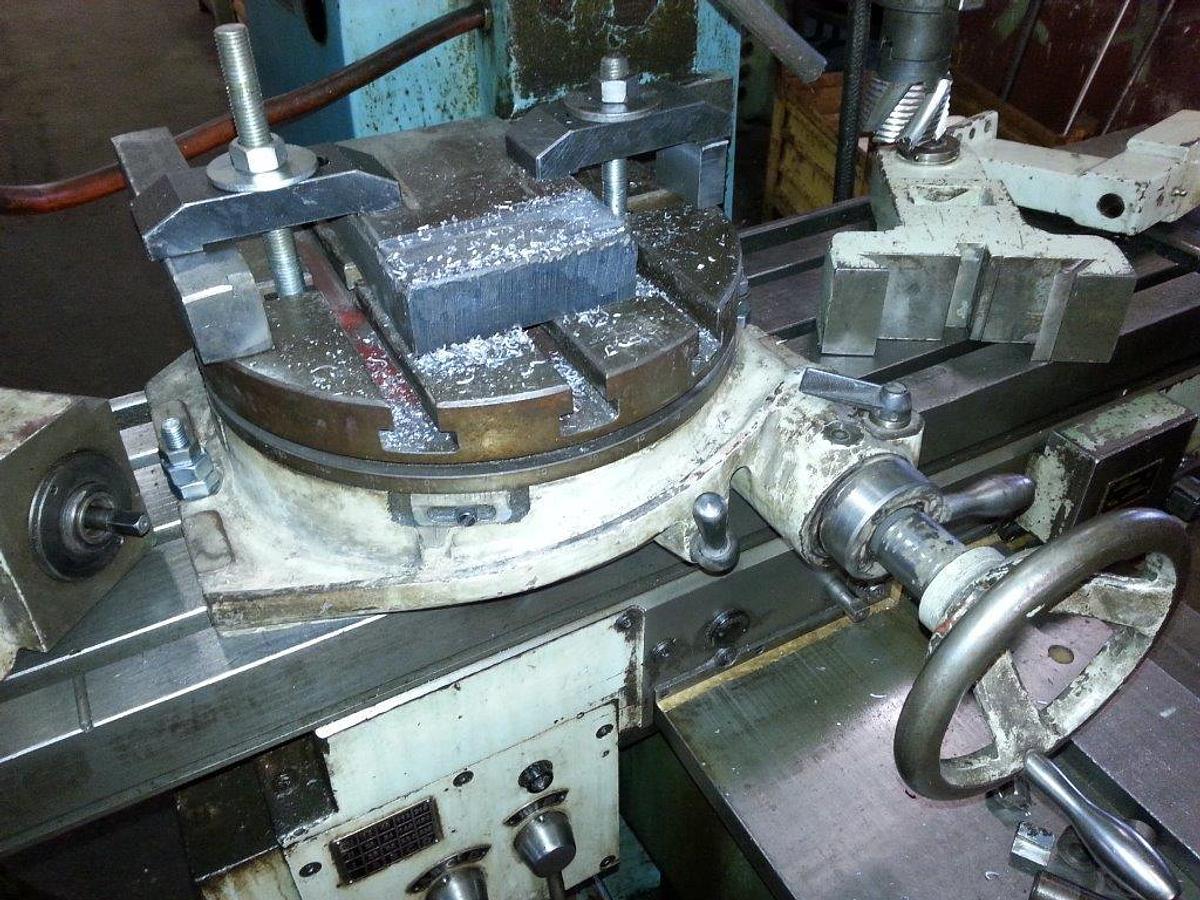

Round table
Dividing head

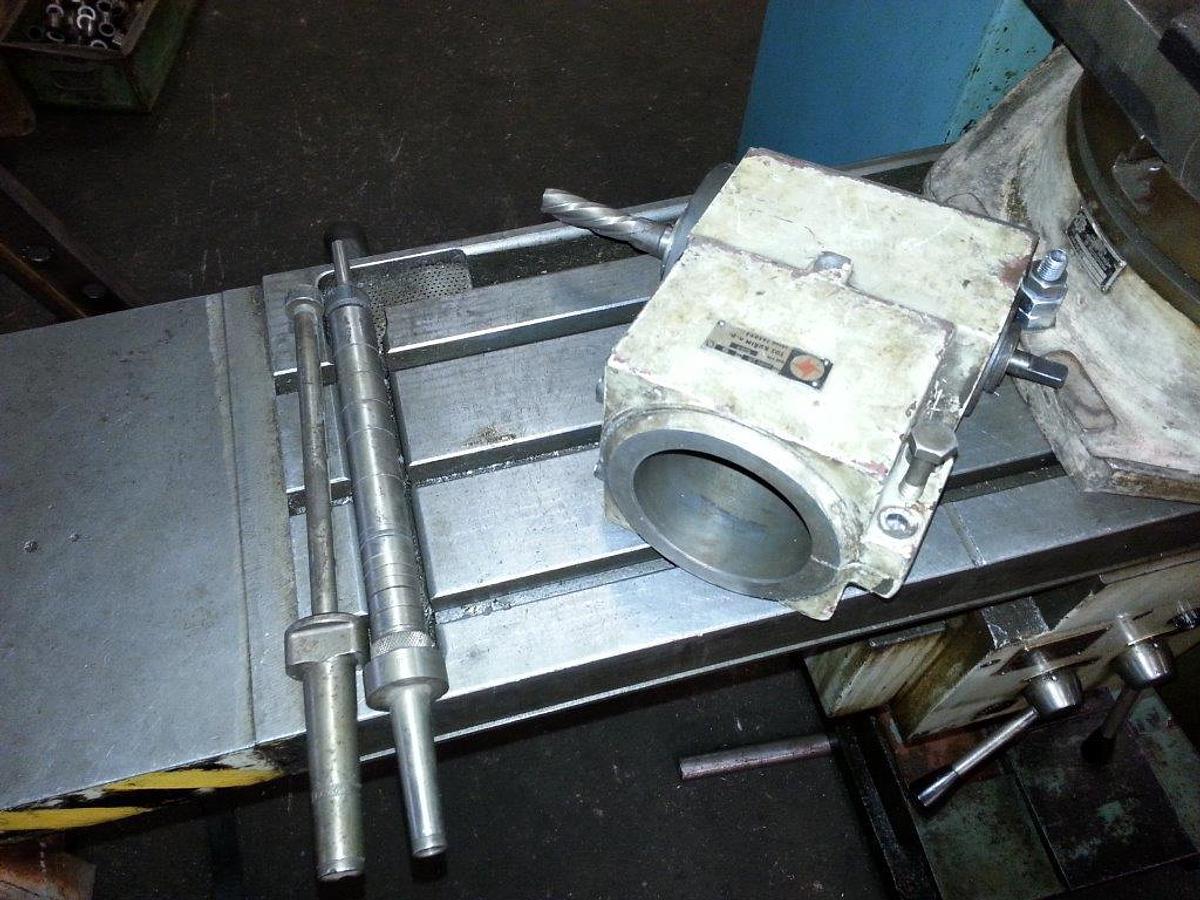

Milling adapter
Manual
Specifications
| Manufacturer | TOS |
| Model | FNK 25 |
| Year | 1981 |
| Condition | Used |
| Stock Number | 1876 |
| X | 800 mm |
| Z | 450 mm |
| Y | 370 mm |
| Machine Dimensions | 1982 x 1848 x 2260 mm |
| Engine power | 3.5 kW |
| Maximum table load | 1950 N |
| Total area | 290 x 1250 mm |
| Clamping surface | 250 x 1250 mm |
| Number of feed range | 12 |
| Speed | 1380 U / min |
| Spindle taper | ISO 40 |
| Diameter spindle head | 84 h 5 mm |
| Spindle bore | 13.5 mm |
| Quill stroke | 125 mm |
| Rotation of the spindle in the longitudinal plane of the table | ± 90 ° |
| Rotation of the spindle in the transverse plane of the table | ± 45 ° |
| Distance between table surface area and drill spindle | 360 mm |
| Distance of spindle tip and clamping table | 10 to 460 mm |
| Distance spindle axis | 200-750 mm |
| Electrical | 2.5 / 1.8 kW |
| Power | 0.125 kW |
| Machine weight | 1700 kg Accessories |
