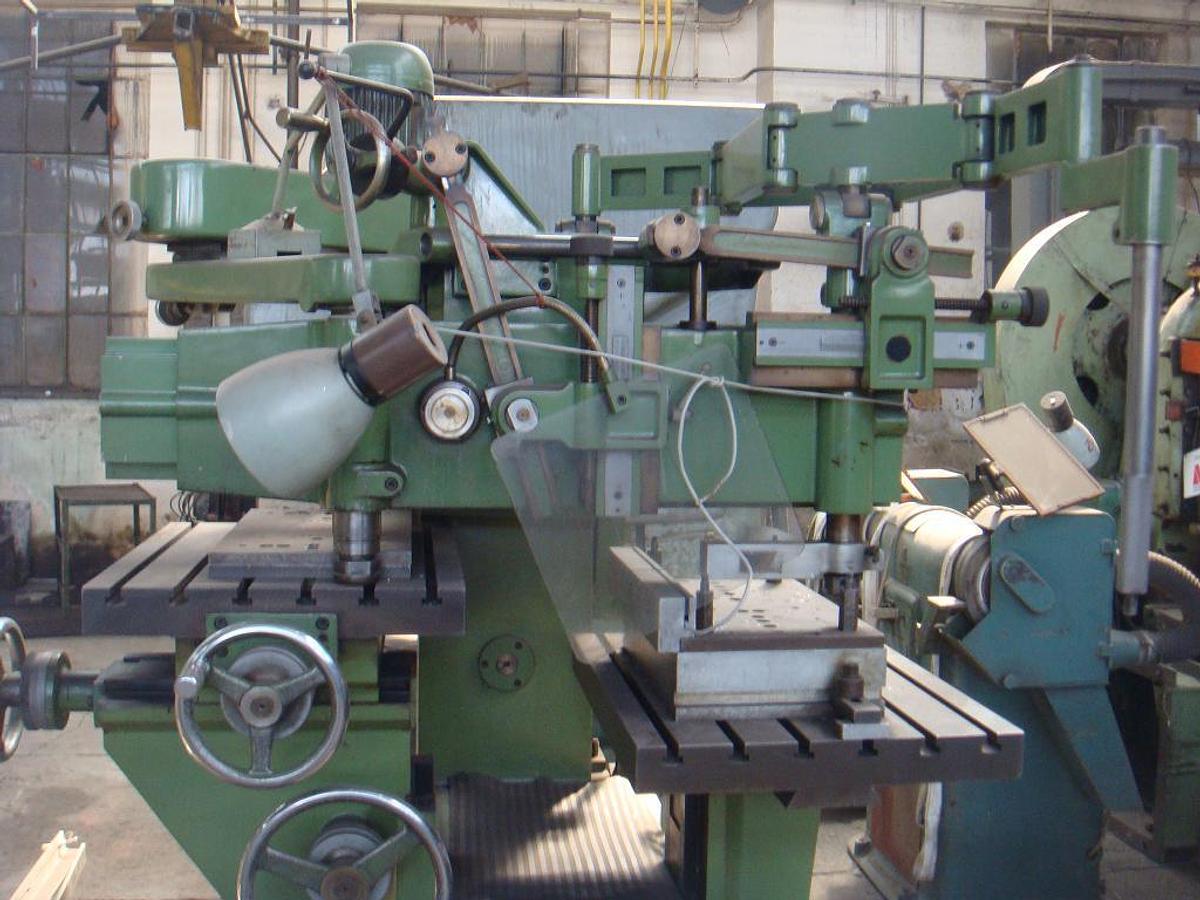

Sandt A.G. FC 5 TH

Table surface 325 x 555 mm Maximum height of workpiece 330mm Longitudinal track 255 mm Cross-track 180 mm Spindle and probe holder 80 mm vertical stroke Cutter Shaft - Ø max. 20 mm Probe - Ø max. 16 mm Distance between sensor and cutter 545 mm Each feed passage At a graduation 0.10 mm At max. Pranks part 1 mm performance (Workpiece and template fixed) Maximum circle diameter 210 mm Max rectangle 210 x 345 210 x 590 mm Maximum square 210 x 210 mm stencil carriers Area of 352 x 555 mm curb Maximum height of the template 300 mm Speed range (pole) 1400/2800 U / min Dimensions and weight Length 1450 mm Width 1200 mm Height 1930 mm Gross weight of 1400 kg Net weight approx 1200kg
