Sold

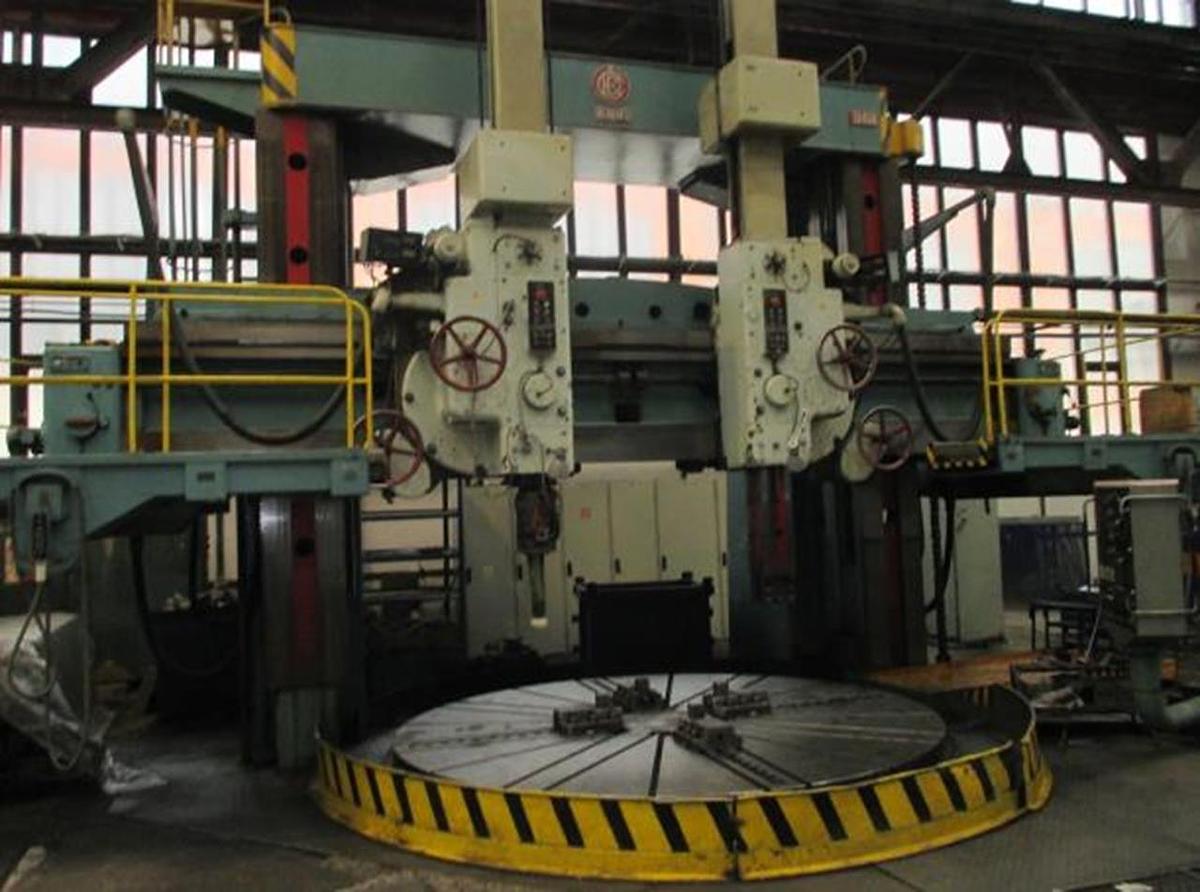

CKD SK 40
Location:Brno, Czech Republic
Description
Cone turning equipment
Specifications
| Manufacturer | CKD |
| Model | SK 40 |
| Year | 1968 |
| Condition | Used |
| Stock Number | 6459 |
| Diameter of the table | 3750 mm |
| Maximum length of the turning | 4200 mm |
| Workpiece weight | 40000 kg |
| Engine power | 80 kW |
| Vertical movement of the sled | 1400 mm |
| Horizontal movement of the sled | 1250 mm |
| Crane capacity | 10000 kg |
| Tilting of the transverse support from - to the center | 30/45° |
| Clamping with jaws from - to the center | 525 - 3565 mm |
| Production of module threads | 0.5 - 56 |
| The possibility of using a grinding wheel from a length of | 140 mm |
| Maximum length of grinding with fortune | 1350 mm |
