Sold

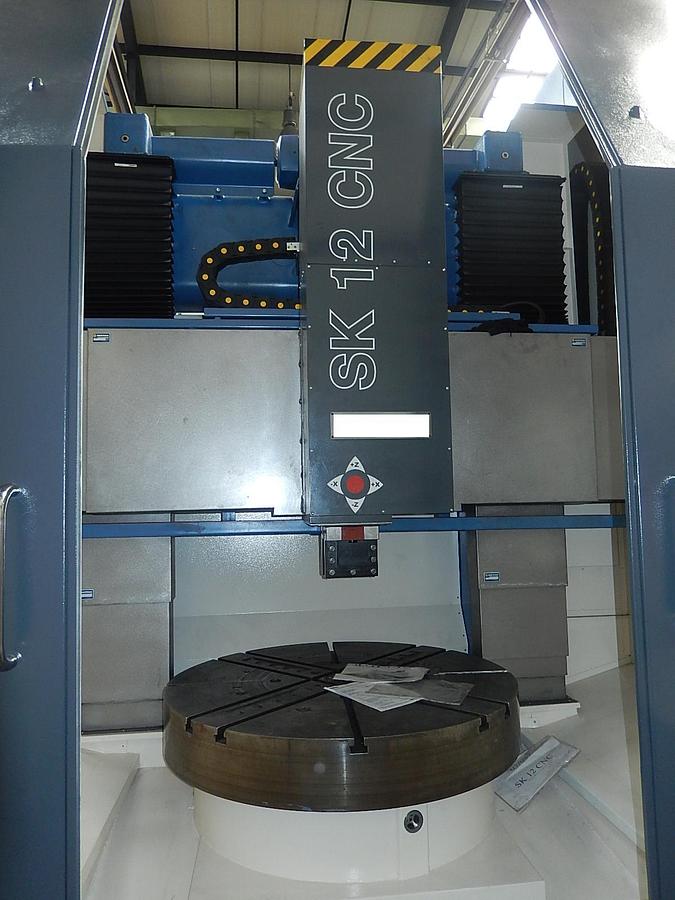

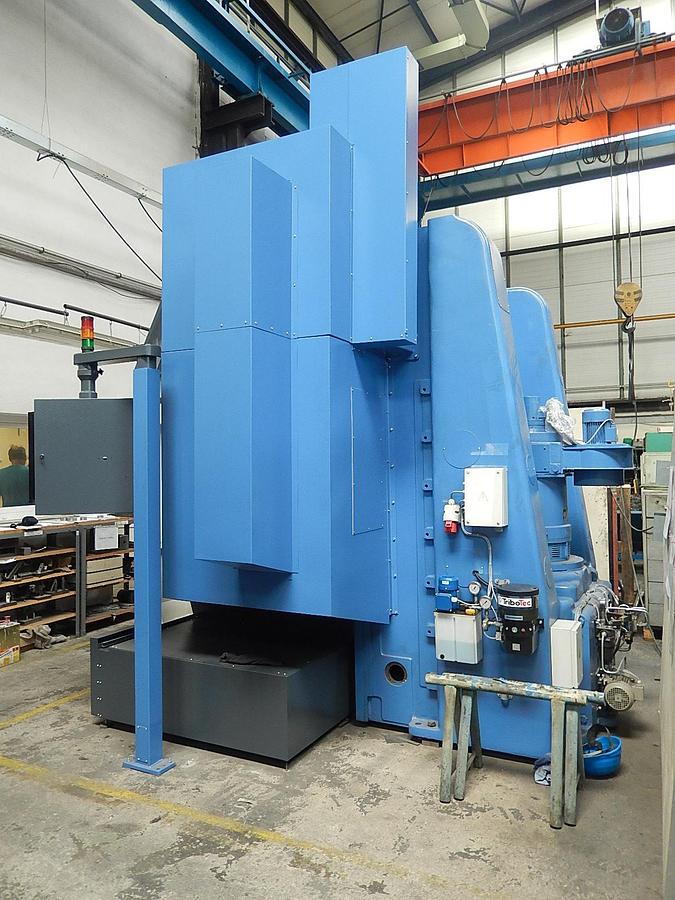

TOS SK 12
Location:Brno, Czech Republic
Description
Working capacity
Table drive
Table revolutions (when 3000 min-1)
Table torgue (when 3000 min-1)
Cross rail
Head
Machine dimensions including covering
Specifications
| Manufacturer | TOS |
| Model | SK 12 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 1389 |

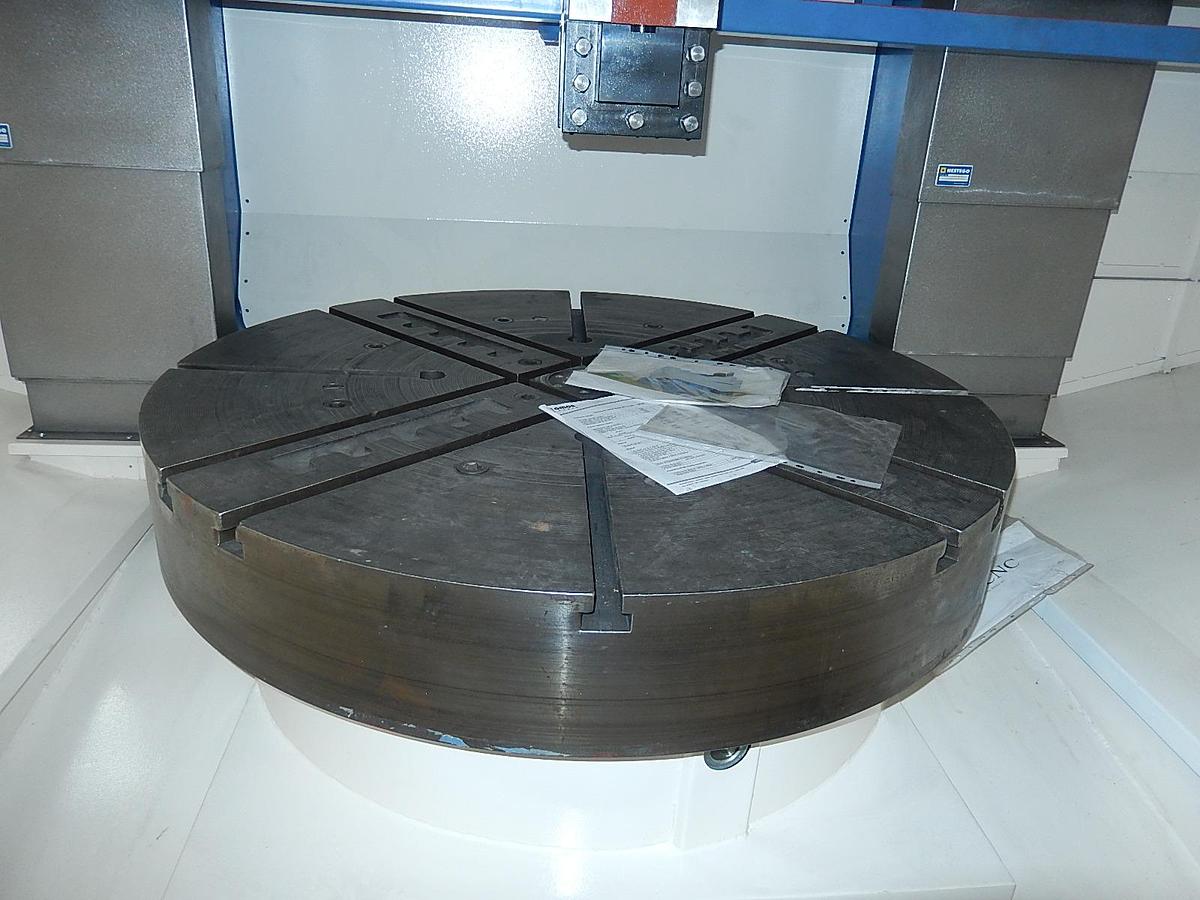

| Table diameter | 1180 mm |
| Max. weight of workpiece | 4000 kg |
| Max. turning diameter | 1350 mm |
| Max. height of workpiece | 1000 mm |
| Max. power | 50 kW |
| Voltage | 375 V |
| Revolutions | 1160 β 4000 min-1 |
| I. level | 5365 Nm-1 |
| II. level | 2461 Nm-1 |
| Travel | 0 β 1050 mm |
| Travel speed | 0.06 β 9 mm |
| Travel; X axis | 0 β 900 mm |
| Rapid traverse; Z axis (cooling) | 0 β 480 mm |
| Rapid traverse; Z axis (without cooling) | 0 β 520 mm |
| Rate of adjusting; X axis | 4.5 m/min |
| Rate of adjusting; Z axis | 4.5 m/min |
| Max. cutting force | 10 kN |
| Weight | 980 kg |
| Dimensions (lenght x width x depth) | 1670 x 582 x 420 mm |
| Drive unit 1FT7086-5AC70 (revolutions) | 3000 min-1 |
| Torgue | 23 Nm-1 |
| Section of ram | 180 x 180 mm |
| Section of tool (recommended) | 40 x 40 mm |
| Floor surface β width x length | 2800 x 3700 mm |
| Max. height | 3780 mm |
