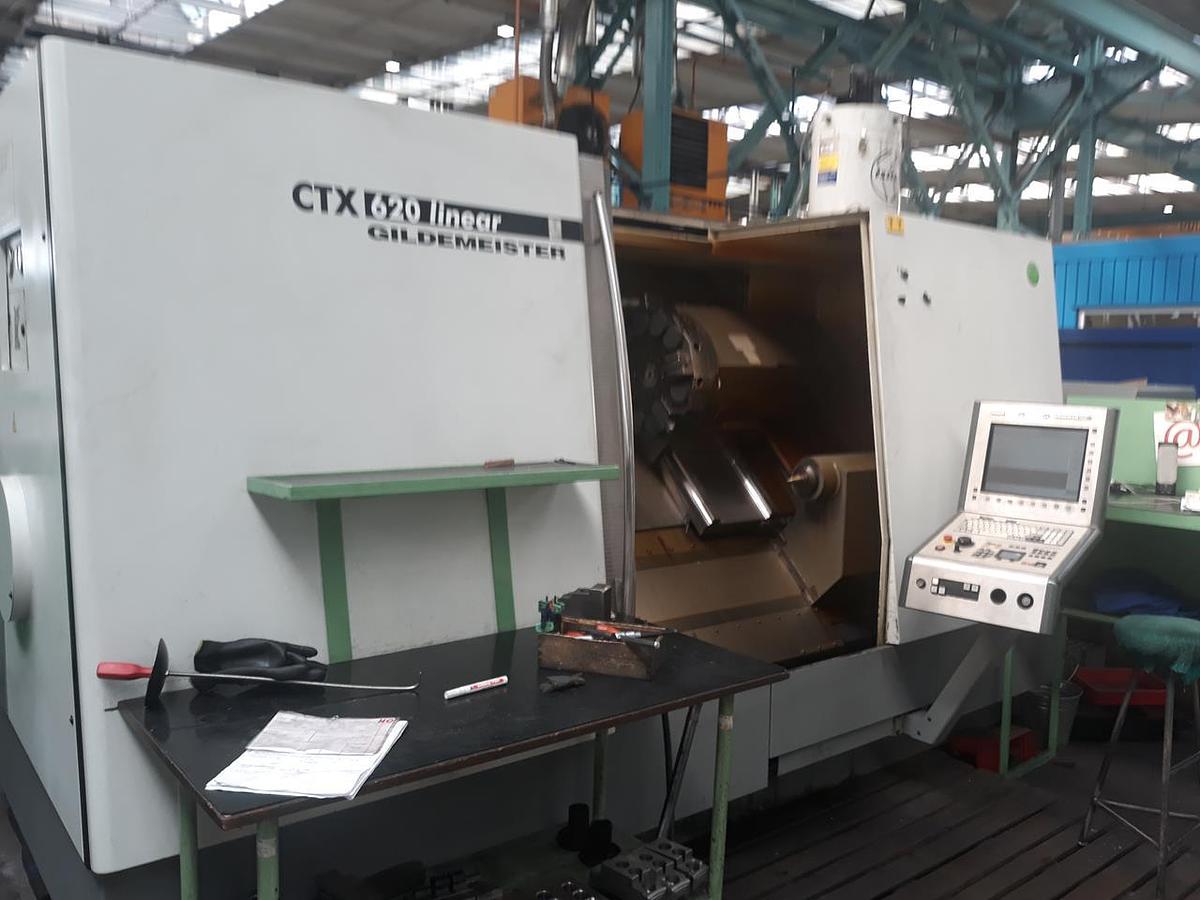

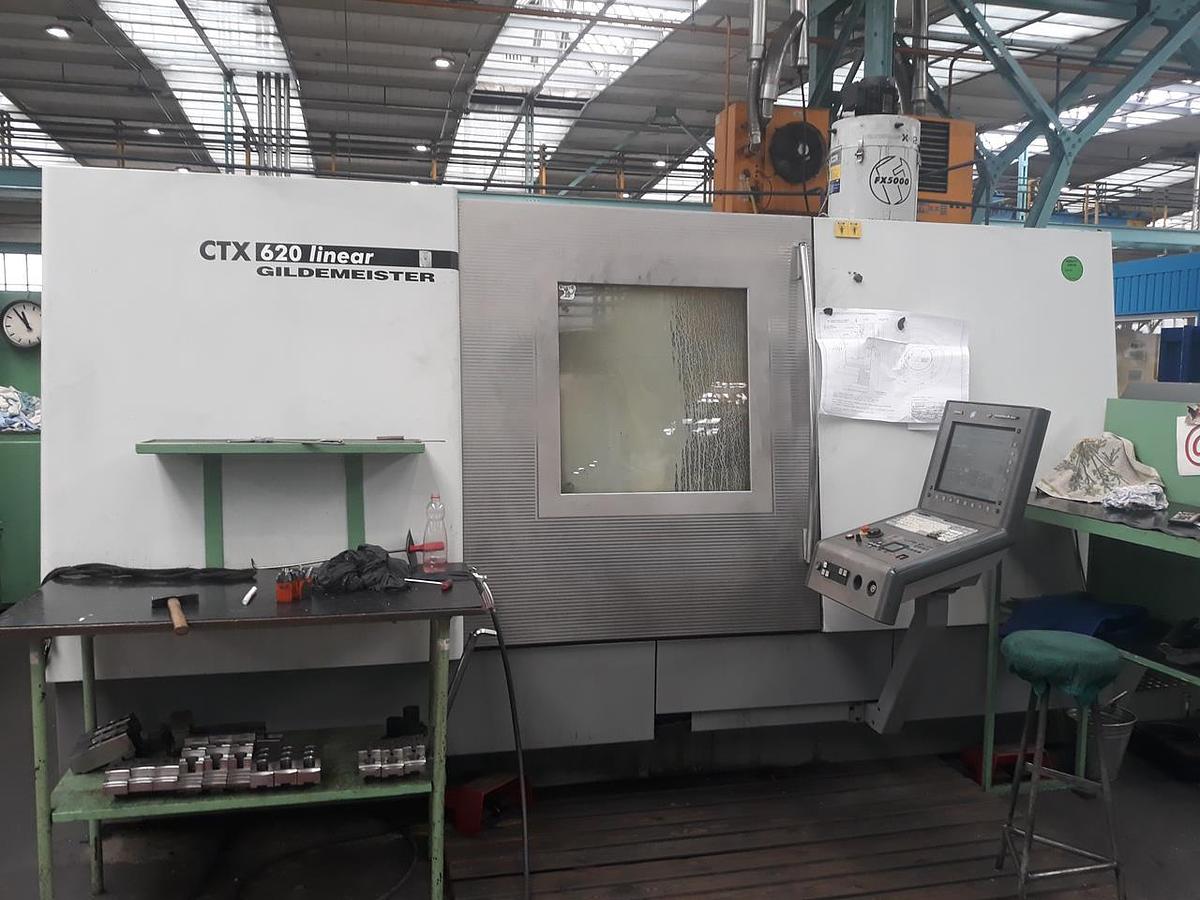

DMG CTX 620 LINEAR
Location:Brno, Czech Republic
Description
Equipment:
C-axis
Tailstock
Chip conveyor
Touch probe Mida Tool Eye Marposs

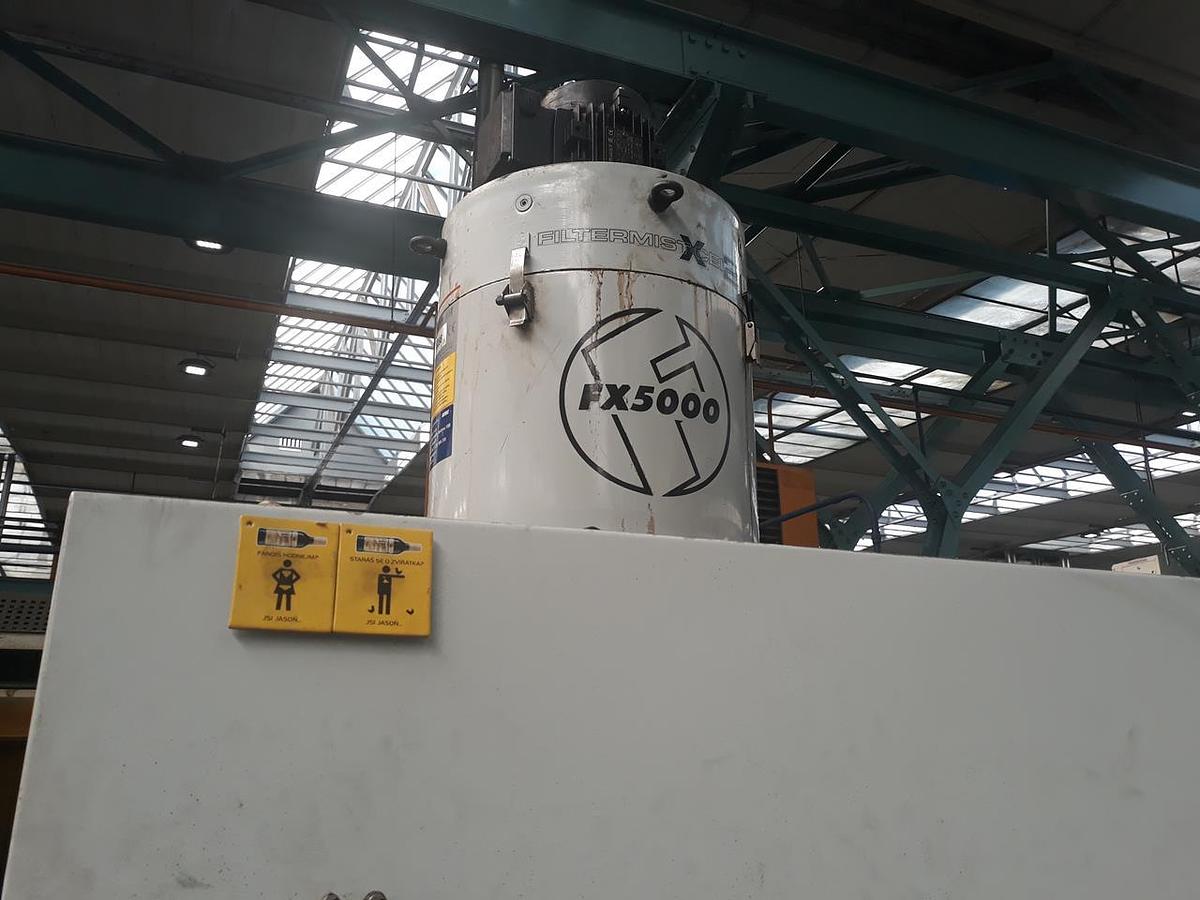

Aerosol separator Wemac typ FX5002
Specifications
| Manufacturer | DMG |
| Model | CTX 620 LINEAR |
| Year | 2006 |
| Condition | Used |
| Stock Number | 5448 |

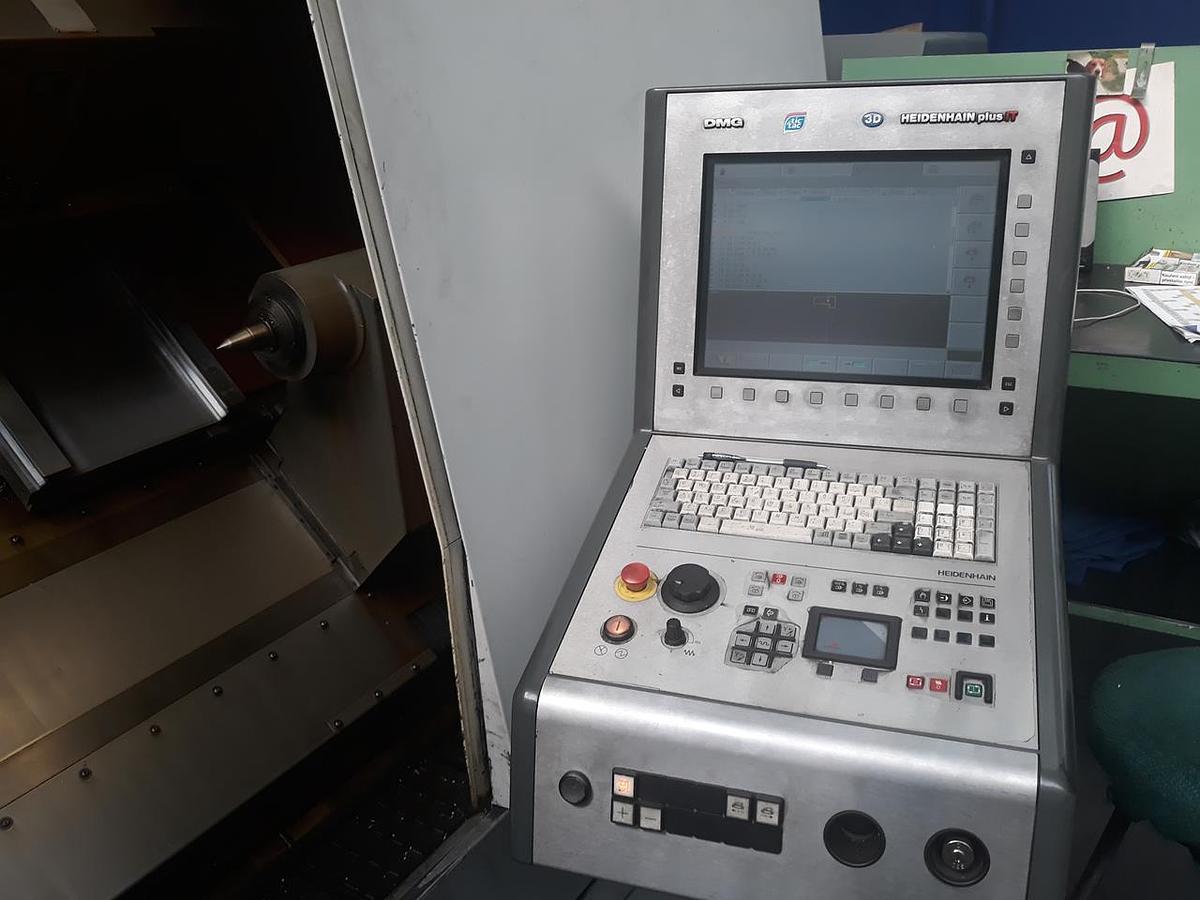

| Control system | Heidenhain 4290 NC pilot 4290 |

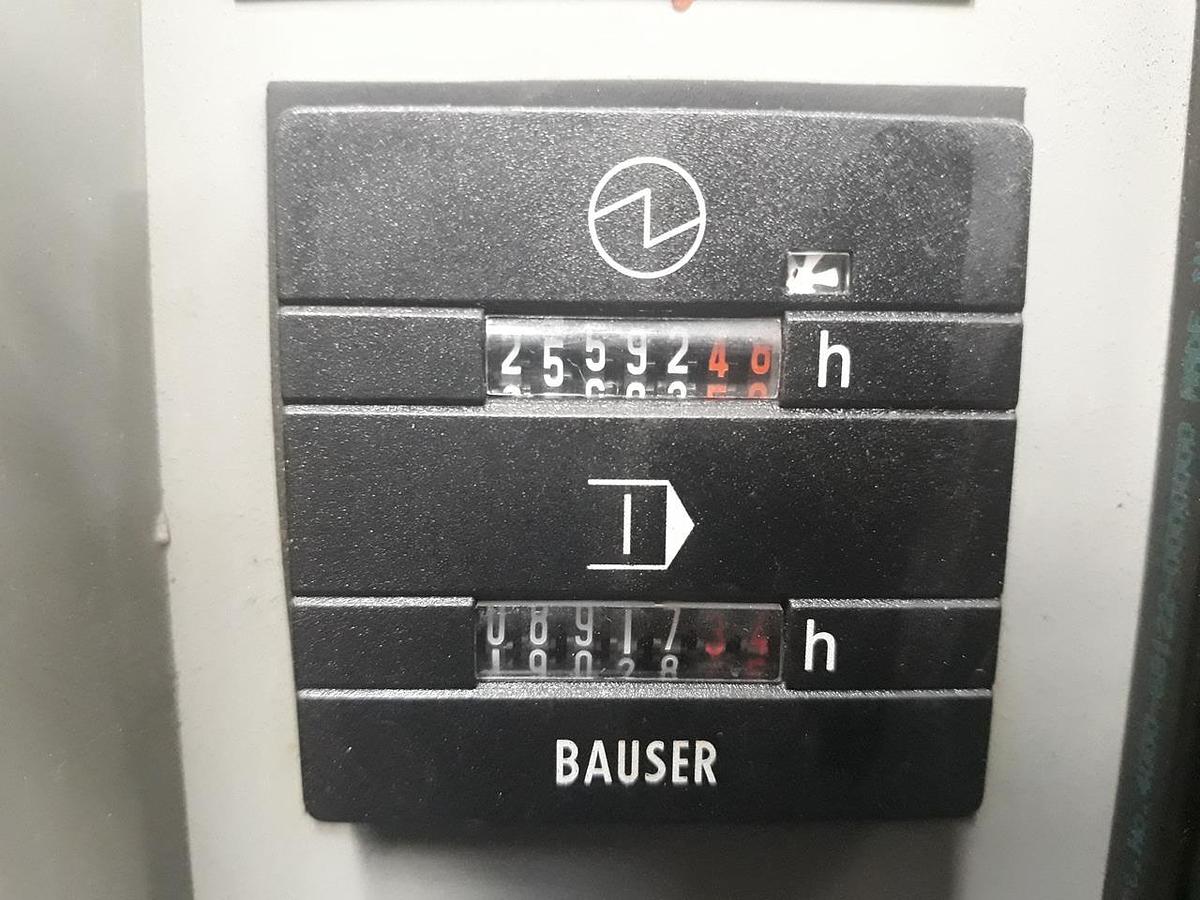

| Total hours | 25592 h |
| Cutting Hours | 8917 h |
| Max. turning diameter | 600 mm |
| Turning diameter over bed (max) | 800 mm |
| Turning diameter over cross slide (max) | 500 mm |
| Maximum travel length in the X-axis | 382.5 mm |
| Maximum turning length | 1000 mm |
| Maximum power of the main spindle | 40 kW |
| Diameter of the spindle bore | 136 mm |
| Minimum rotary speed of the main spindle | 20 1/min |
| Maximum spindle speed | 2500 1/min |
| Workpiece weight | 300 kg |

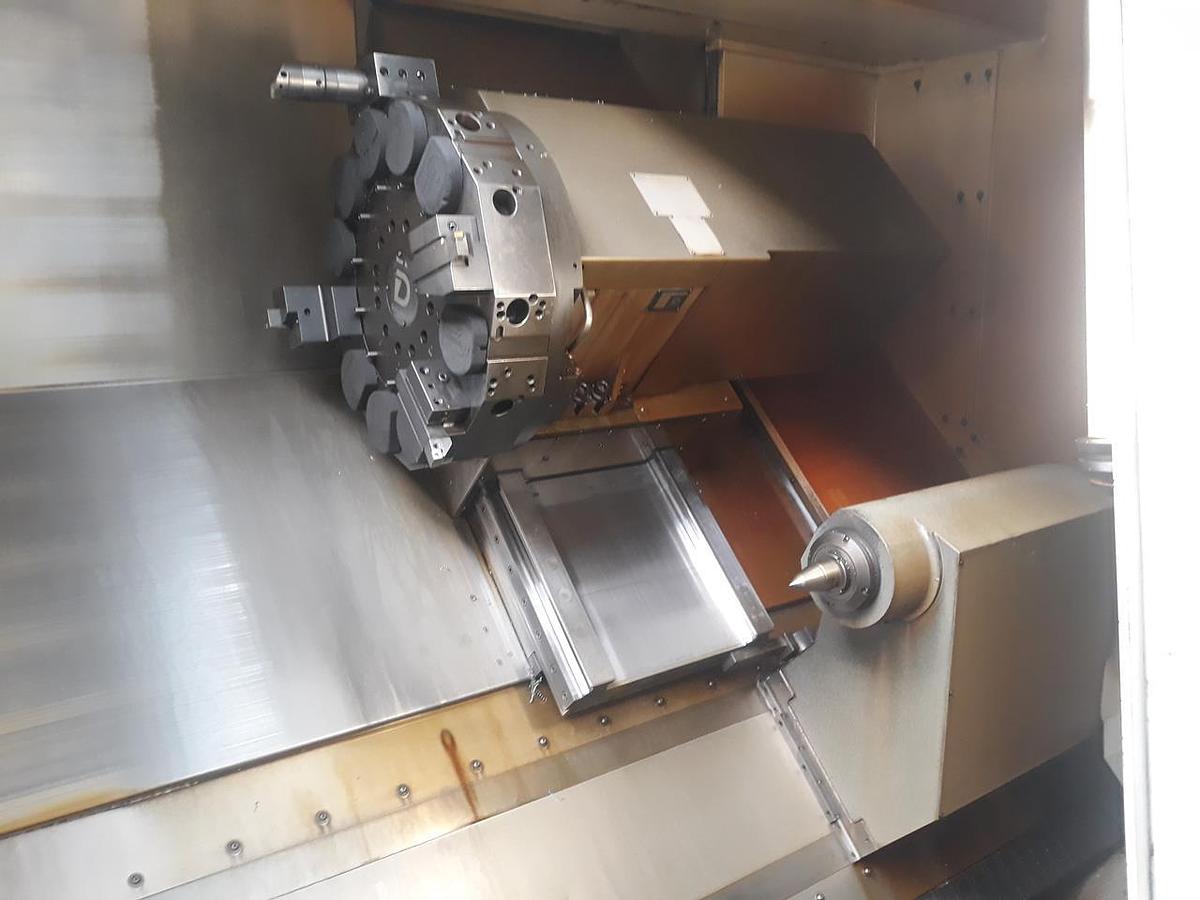

| Number of driven tools in the turret | 12 pcs |
| Max. bar diameter | 121 mm |
| Length | 5320 mm |
| Width | 2720 mm |
| Height | 2280 mm |
| Weight | 9000 kg |
