Sold

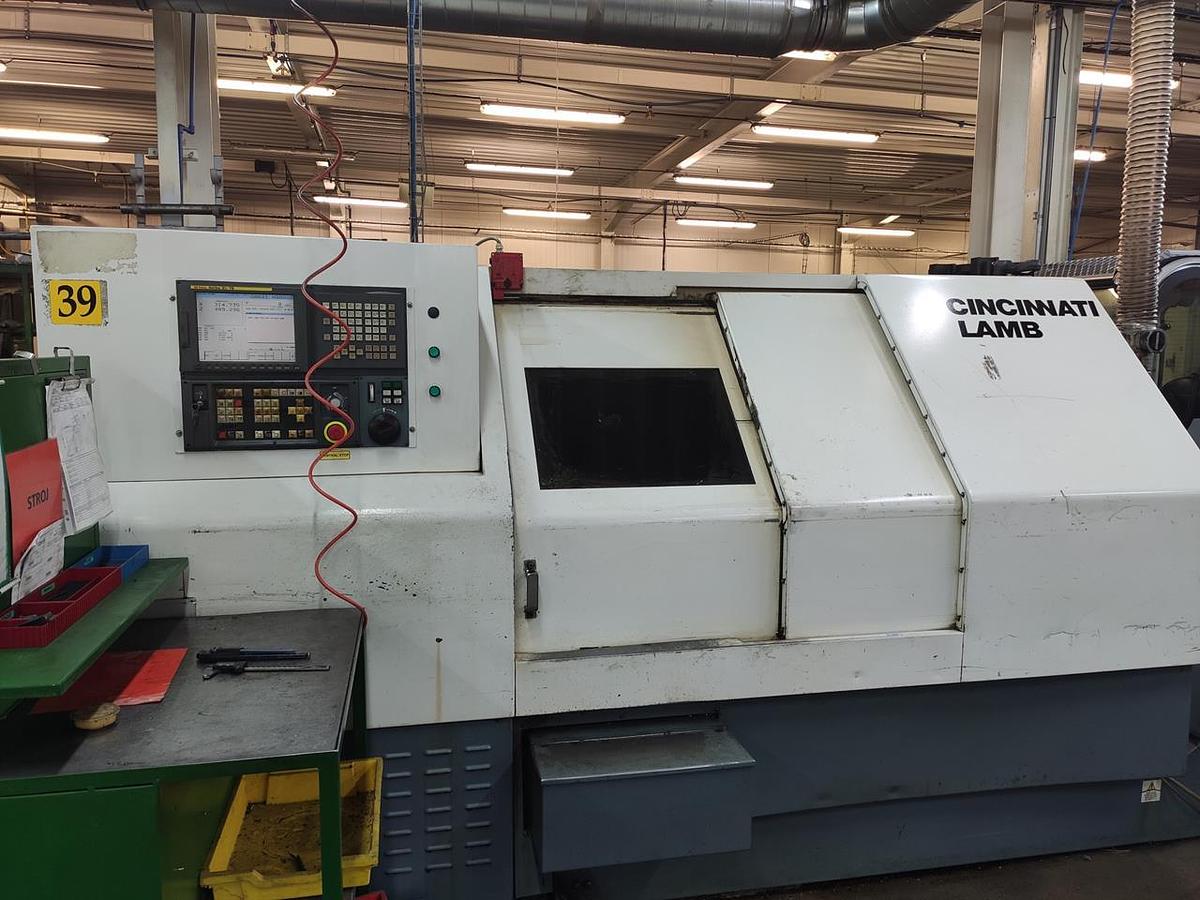

Cincinnati Lamb Hawk 300
Location:Brno, Czech Republic
Description

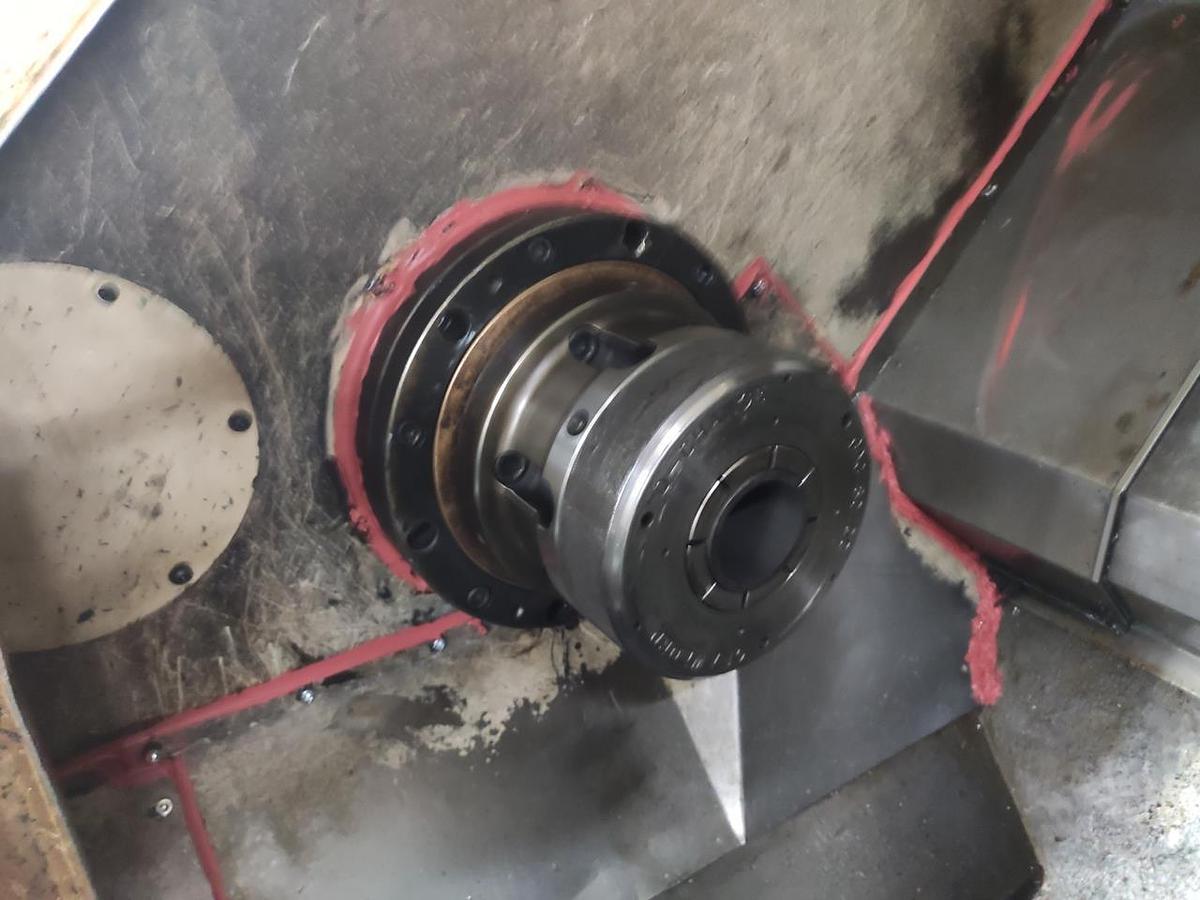

bearing replacement and a new spindle labyrinth will be delivered
The Z-axis cover is missing
Broken door glass
Specifications
| Manufacturer | Cincinnati Lamb |
| Model | Hawk 300 |
| Year | 2005 |
| Condition | Used |
| Stock Number | 4696 |

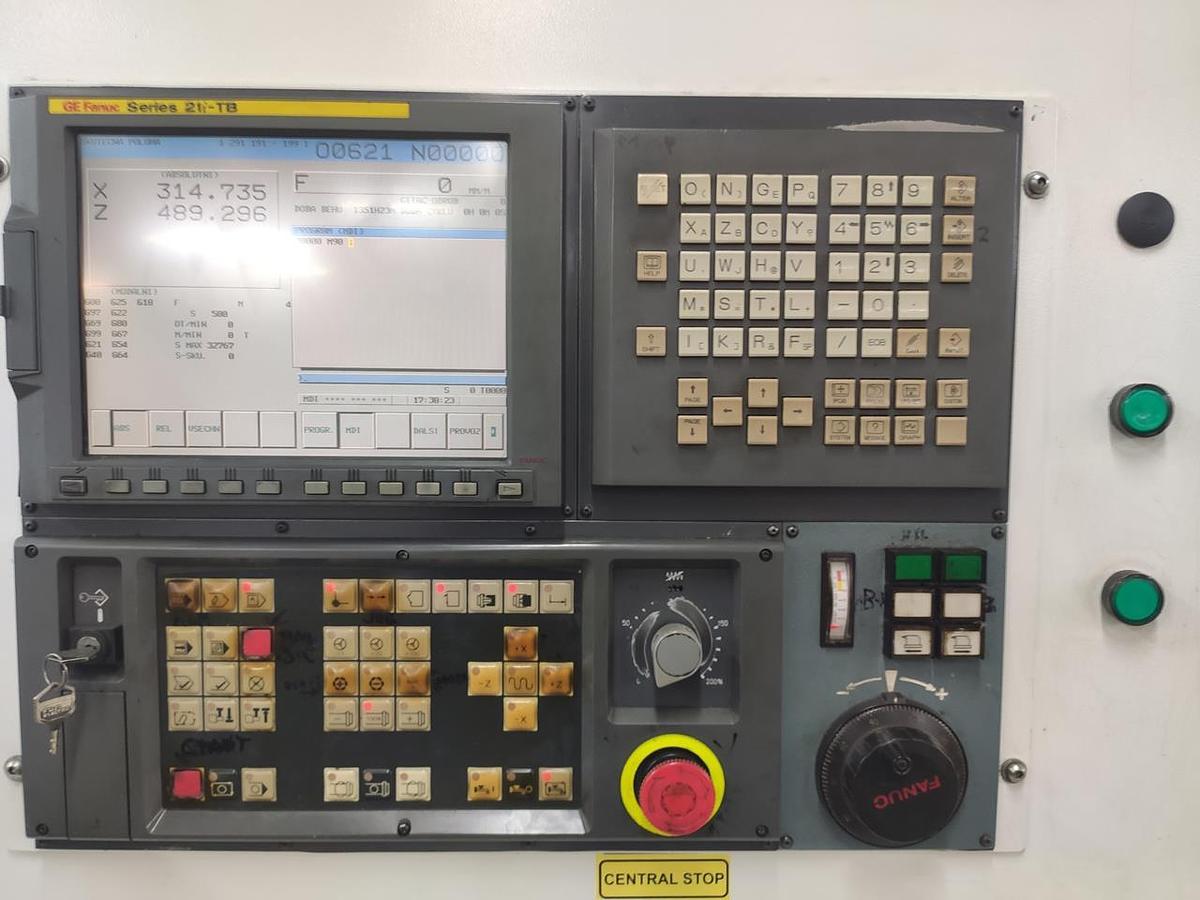

| Control system | Fanuc series 21i-TB |
| Maximum Z-axis feed length | 690 mm |
| Maximum travel length in the X-axis | 270 mm |
| Maximum feed rate in X-axis | 16 m/min |
| Maximum feed rate in Z-axis | 24 m/min |
| Maximum power of the main spindle | 15 kW |
| Diameter of the spindle bore | 82 mm |
| Maximum rotary speed of the main spindle | 3300 1/min |
| Tailstock quill diameter | 95 mm |
| Maximum travel length of the tailstock quill | 127 mm |
| Maximum-turning length | 670 mm |
| Max. turning diameter | 354 mm |
| Number of tool head positions | 12 |
| Length of the lathe | 3460 mm |
| Width of the lathe | 1900 mm |
| Height of the lathe | 1900 mm |
| Weight of the lathe | 5000 kg |
| GO | complete refurbishment of the spindle bearing |
