Sold

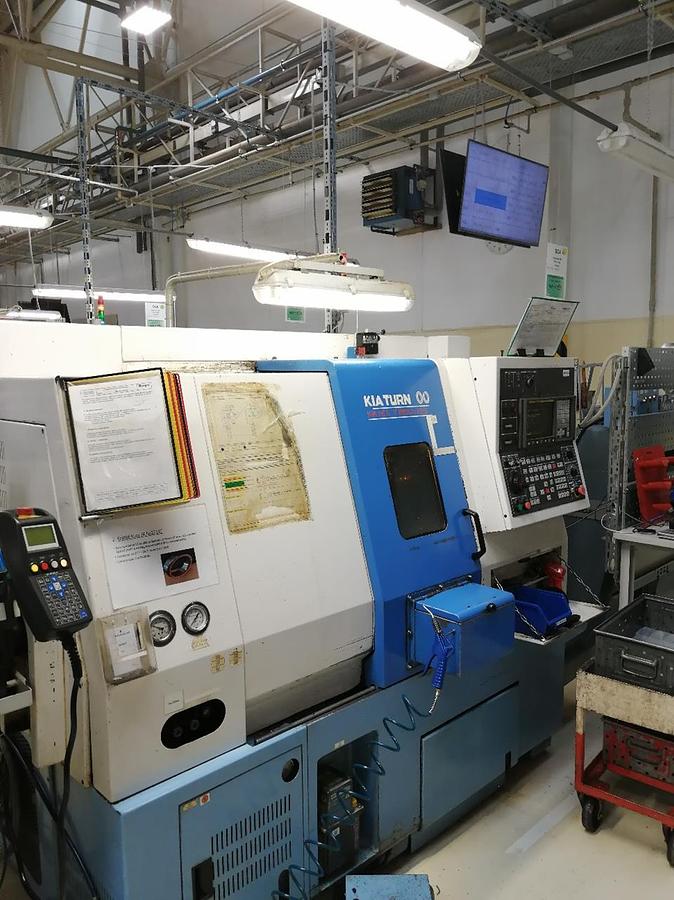

KIA SUPER KIA TURN 200
Location:Brno, Czech Republic
Description
Equipment:
Chip conveyor
Driven Tools
Chuck
Tailstock
Tool cases
C-axis
Specifications
| Manufacturer | KIA |
| Model | SUPER KIA TURN 200 |
| Year | 2005 |
| Condition | Used |
| Stock Number | 4529 |
| Control system | FANUC 0i-TB |
| Hours of operation | 12725 h |
| Total hours | 74105 h |
| Maximum turning length (Z-axis) | 330 mm |
| Turning diameter over bed (max) | 550 mm |
| Maximum travel length in the X-axis | 210 mm |
| Maximum feed rate in X-axis | 36 m/min |
| Maximum feed rate in Z-axis | 36 m/min |
| Diameter of the spindle bore | 110 mm |
| Maximum rotary speed of the main spindle | 4000 1/min |
| Total power demand | 14.1 kW |
| Maximum-turning length | 300 mm |
| Max. turning diameter | 350 mm |
| Number of tool head positions | 12 |
| Spindle taper | Morse 4 |
| Number of axis | 3 |
| Length of the lathe | 1943 mm |
| Width of the lathe | 1650 mm |
| Height of the lathe | 1820 mm |
| Weight of the lathe | 3500 kg |
| Bar feeder | FMB turbo 5-55/4200 A |
| Year of manufacture | 2015 |
| Length | 4200mm |
| Diameter | 5 - 65mm |
| Delivery time of maschine | 11/2019 |
