Sold

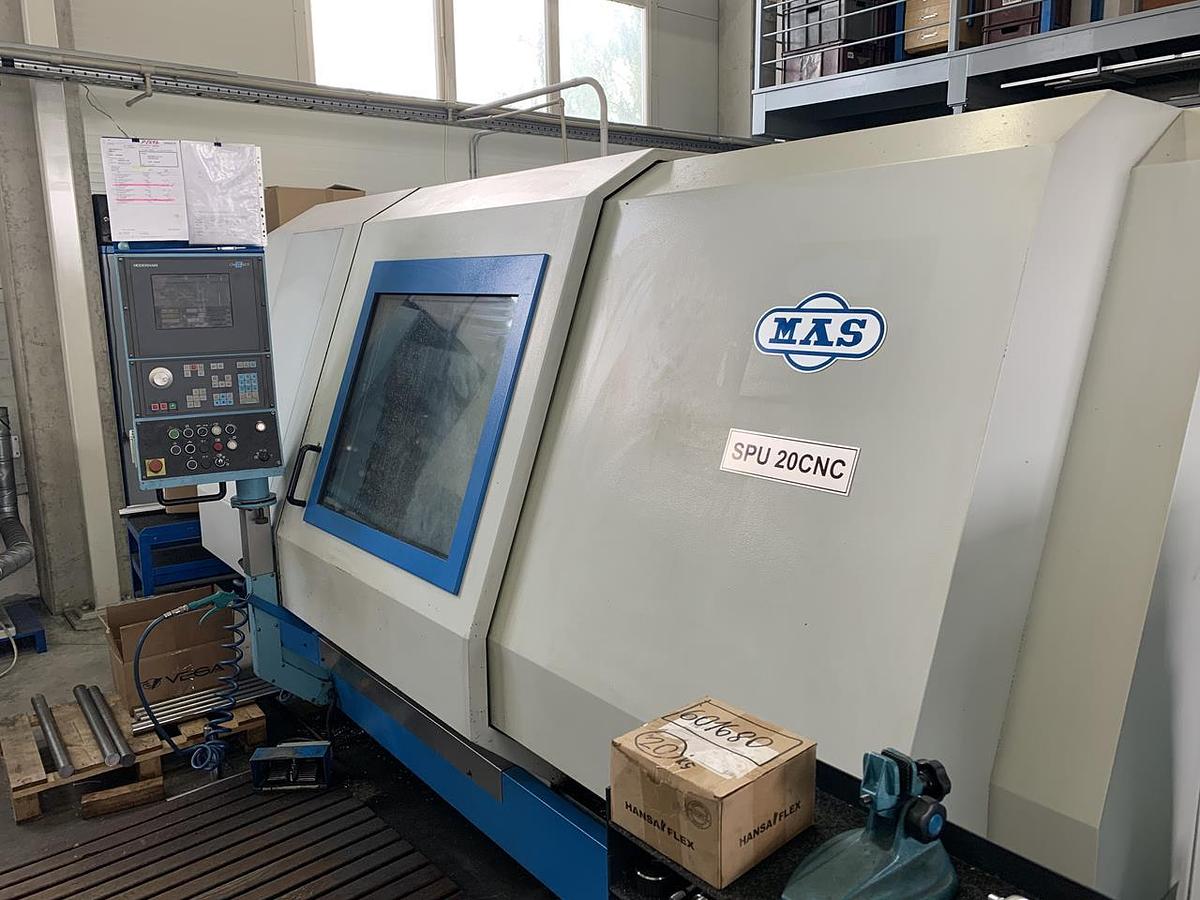

MAS SPU 20 CNC
Location:Brno, Czech Republic
Description
Accesories:
Chip transporter
Hydraulic chuck
Tailstock
Specifications
| Manufacturer | MAS |
| Model | SPU 20 CNC |
| Year | 1998 |
| Condition | Used |
| Stock Number | 4477 |
| Control system | HEIDENHAIN CNC PILOT 3190 |
| Maximum turning length (Z-axis) | 700 mm |
| Turning diameter over bed (max) | 600 mm |
| Turning diameter over cross slide (max) | 250 mm |
| Maximum power of the main spindle | 17 kW |
| Maximum rotary speed of the main spindle | 5000 1/min |
| Max. turning diameter | 200 mm |
| Tool head | Duplomatic |
| Number of tool head positions | 12 |
| Spindle drilling | 66 mm |
| Length of the lathe | 3590 mm |
| Width of the lathe | 2160 mm |
| Height of the lathe | 2050 mm |
| Weight of the lathe | 5300 kg |
