Sold

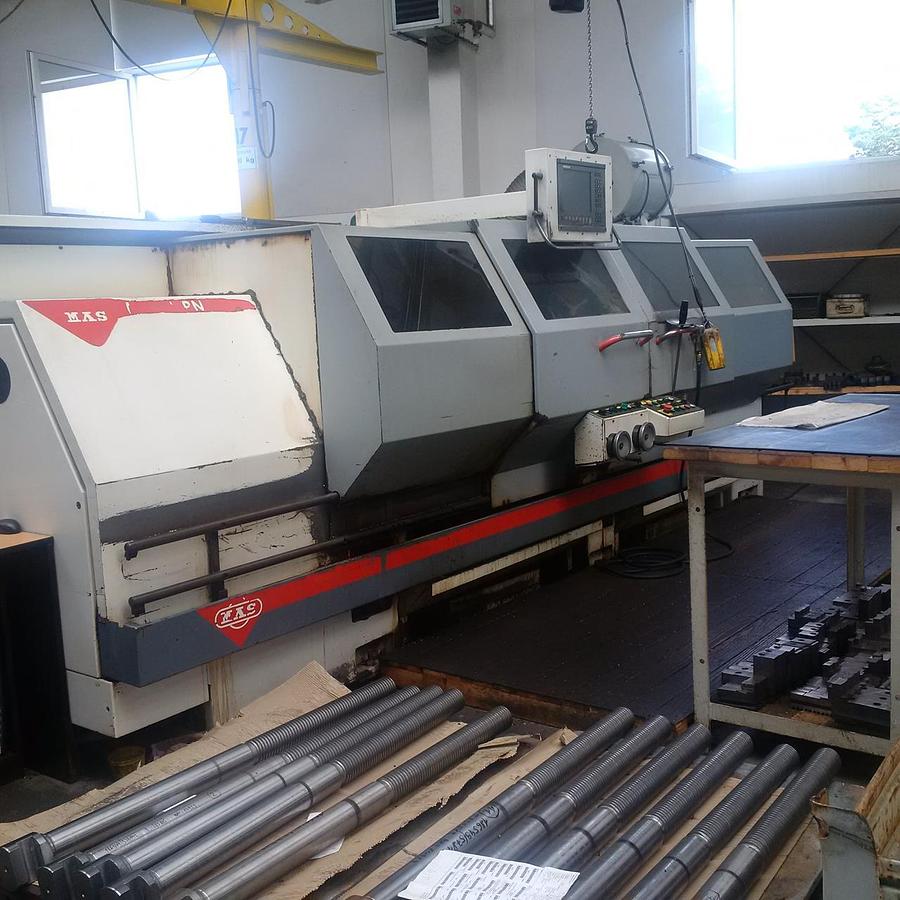

MAS MASTURN MT 70 CNC
Location:Brno, Czech Republic
Description
Equipment:
Knife holders for Duplomatic heads
Specifications
| Manufacturer | MAS |
| Model | MASTURN MT 70 CNC |
| Year | 2000 |
| Condition | Used |
| Stock Number | 4430 |
| Control system | Heidenhein manual plus M |
| Maximum turning length (Z-axis) | 3000 mm |
| Turning diameter over bed (max) | 820 mm |
| Turning diameter over cross slide (max) | 530 mm |
| Maximum travel length in the X-axis | 370 mm |
| Maximum feed rate in X-axis | 10000 m/min |
| Maximum feed rate in Z-axis | 7500 m/min |
| Maximum power of the main spindle | 28 kW |
| Maximum rotary speed of the main spindle | 1800 1/min |
| Total power demand | 50 kVA |
| Length of the lathe | 5000 mm |
| Width of the lathe | 1810 mm |
| Height of the lathe | 1885 mm |
| Weight of the lathe | 5300 kg |
