Sold

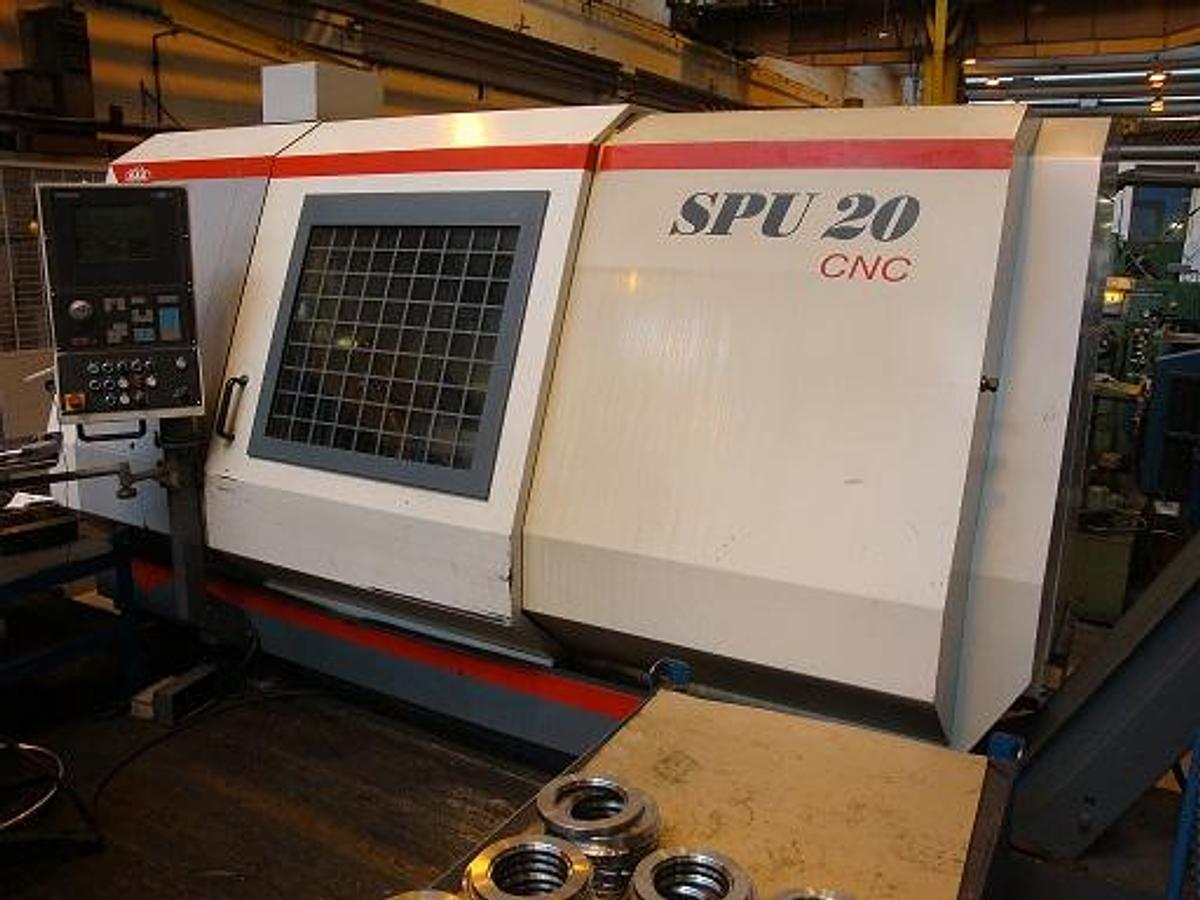

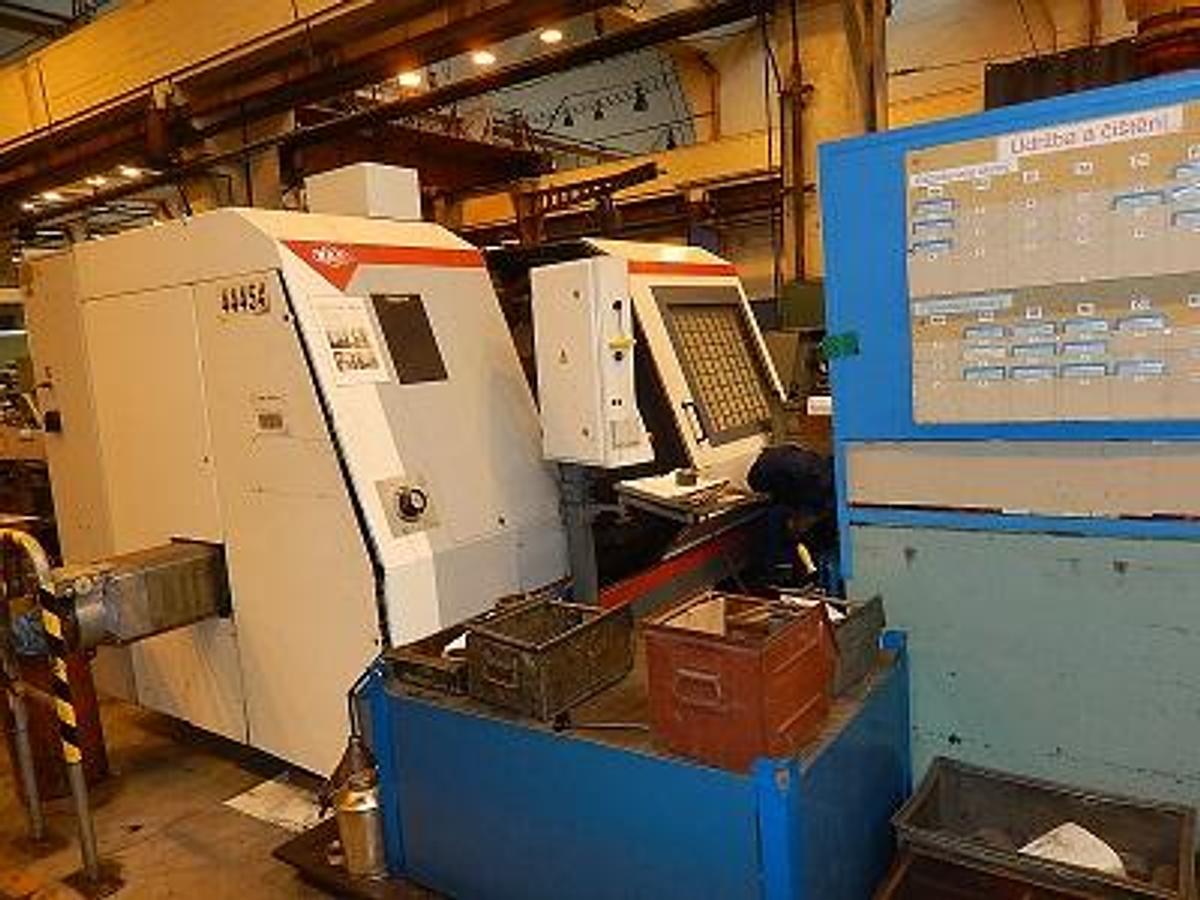

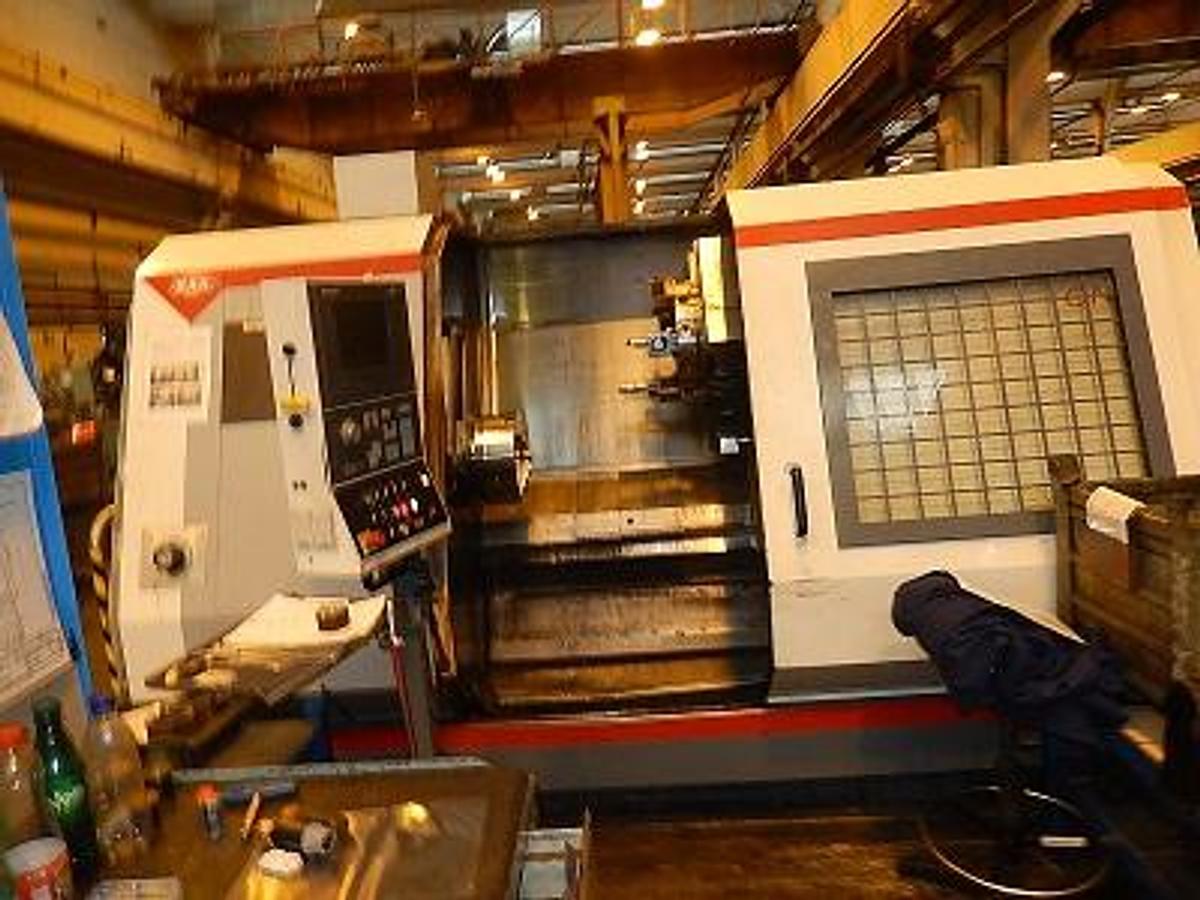

MAS SPU 20 CNC
Location:Brno, Czech Republic
Description
spindle:
C axis / motor 1 kw

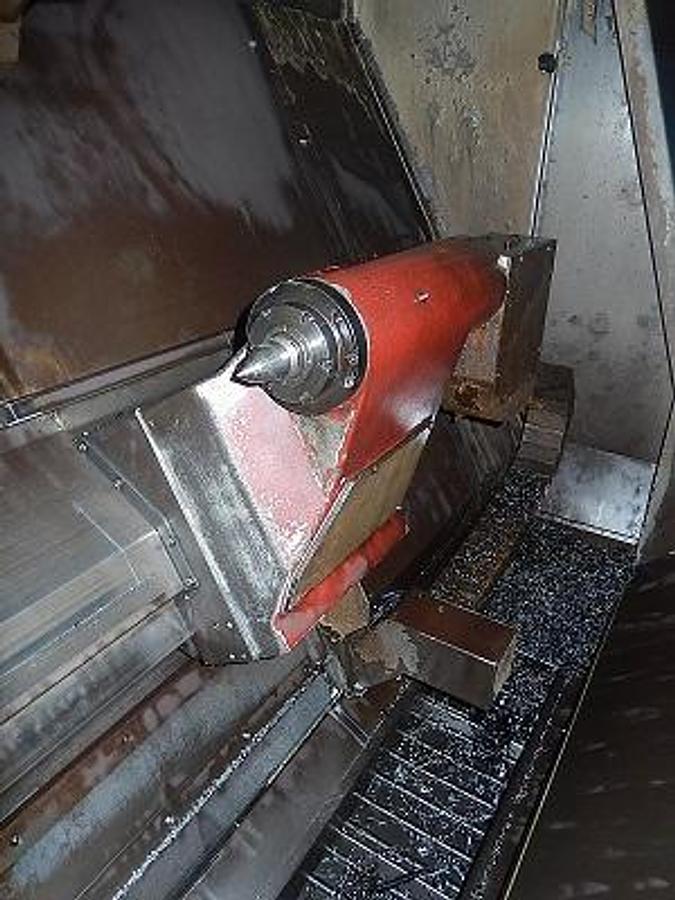

Tailstock:
12 places for live tools
Accessories:

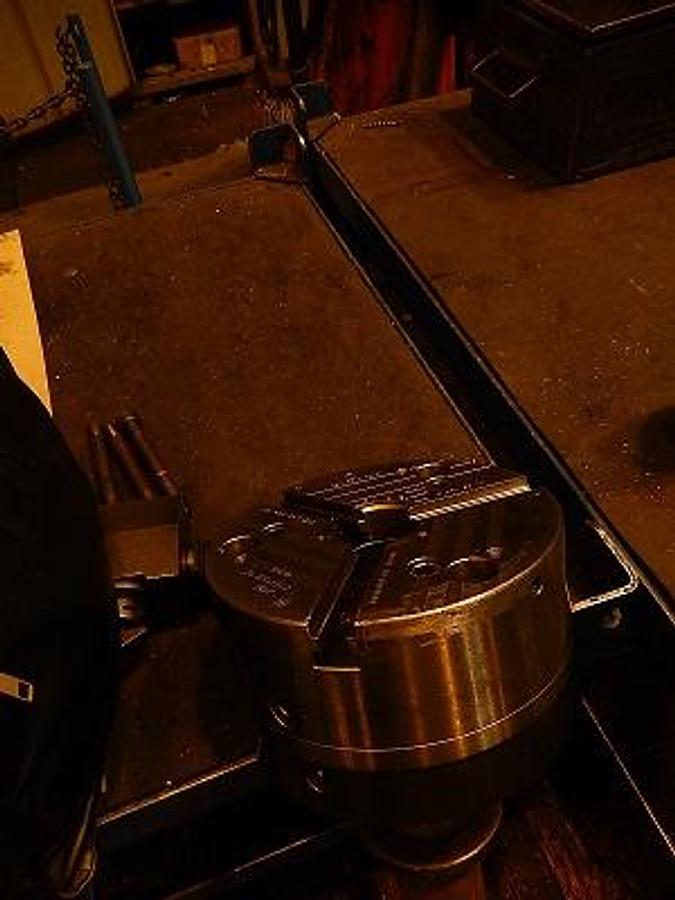

Chuck

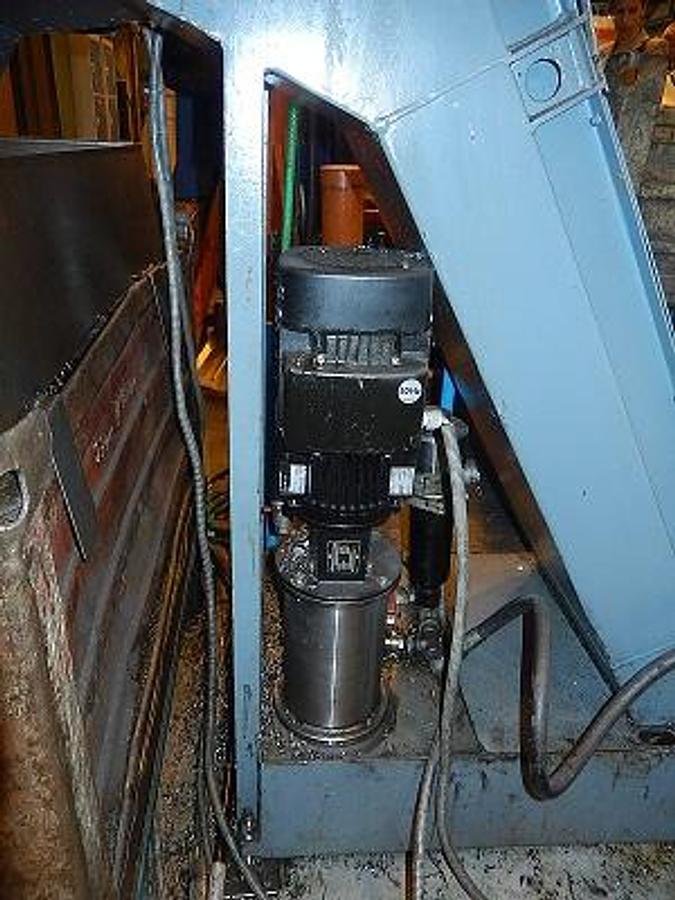

Internal cooling
Two piece tool holder for power tools
Specifications
| Manufacturer | MAS |
| Model | SPU 20 CNC |
| Year | 1999 |
| Condition | Used |
| Stock Number | 1654 |

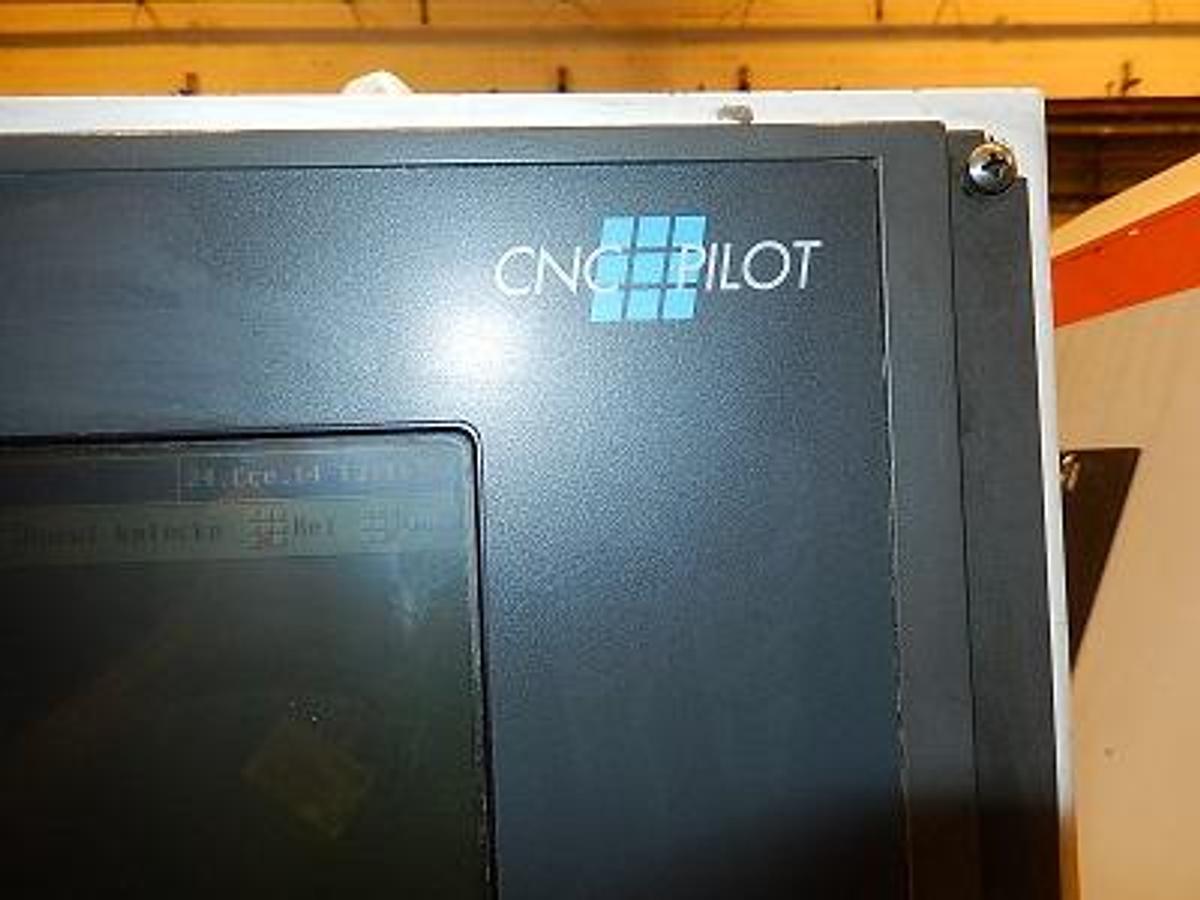

| Control system | Heidenhain CNC Pilot 3190 |
| Turning over bed | 600 mm |
| Turning over cross slide | 380 mm |
| Maximum turning diameter | 200 mm |
| Max turning length (Z) | 700 mm |
| Motor power | 35 kw |
| Spindle | DIN 55026 |
| Max speed | 4000 rpm |
| Diameter | 100 mm |
| Spindle bore | 106 mm |
| Clamp | Morse 4 |
| Revolver | Duplomatic |
| Engine power for turret | 5.5 kw |
| Maximum numbers of revolutions for live tools | 3000 U / m |

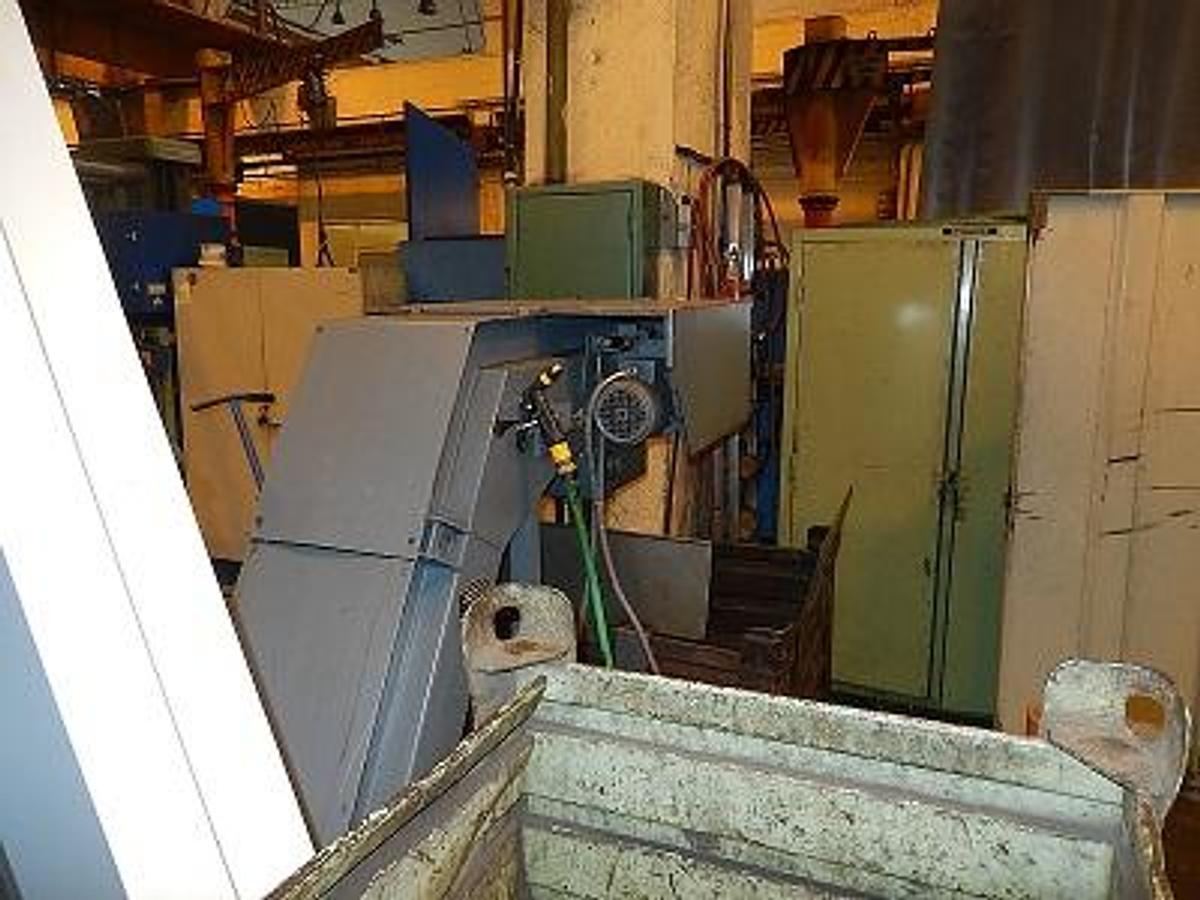

| Chip conveyor | CDT 300 |
| Machine dimensions | 5440x2380x2290 mm |
| Machine weight | 5500 kg |
