Sold
TRAUB TNL 16
Location:Brno, Czech Republic
Description
Max.reach length for a headstock stroke:
With driven tools
Specifications
| Manufacturer | TRAUB |
| Model | TNL 16 |
| Year | 1992 |
| Condition | Used |
| Stock Number | 2722 |

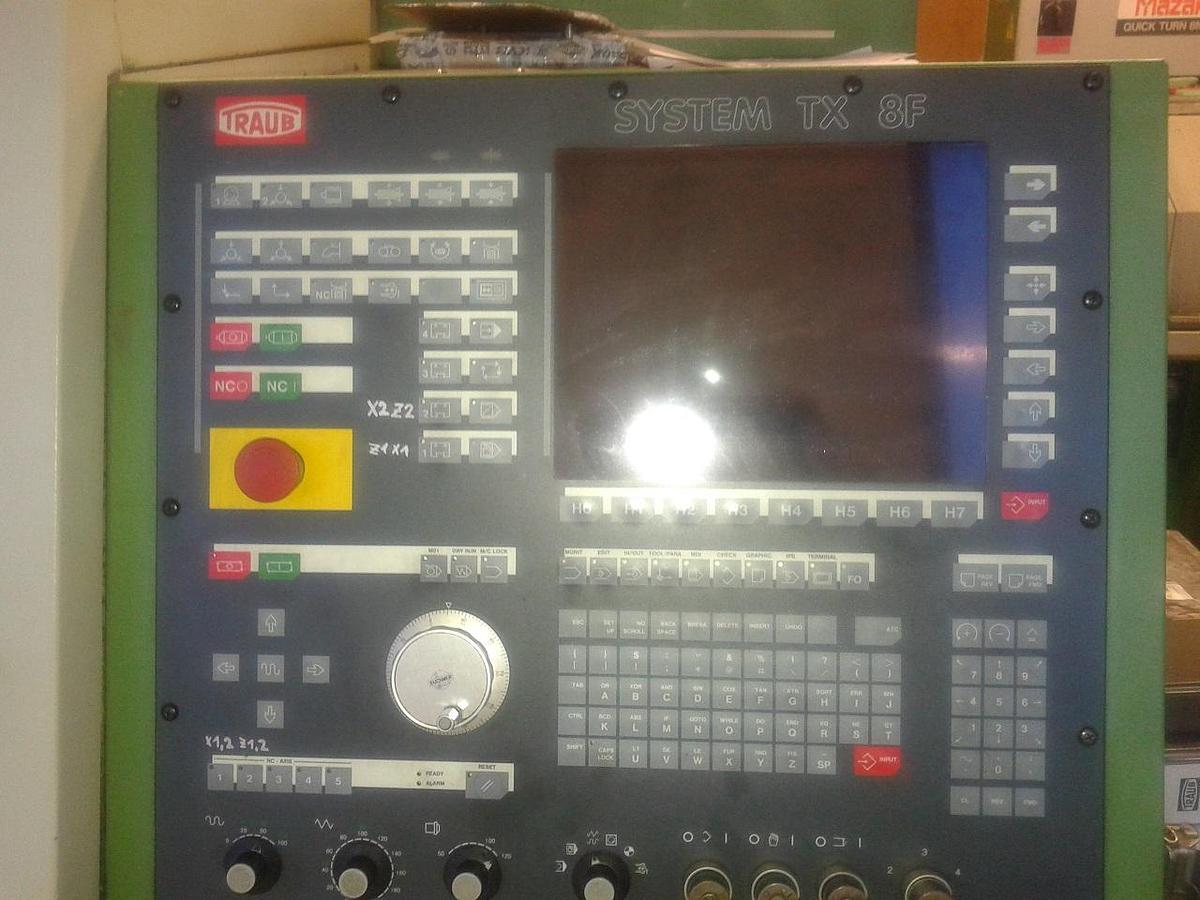

| Control system | TRAUB SYSTEM TX 8F |

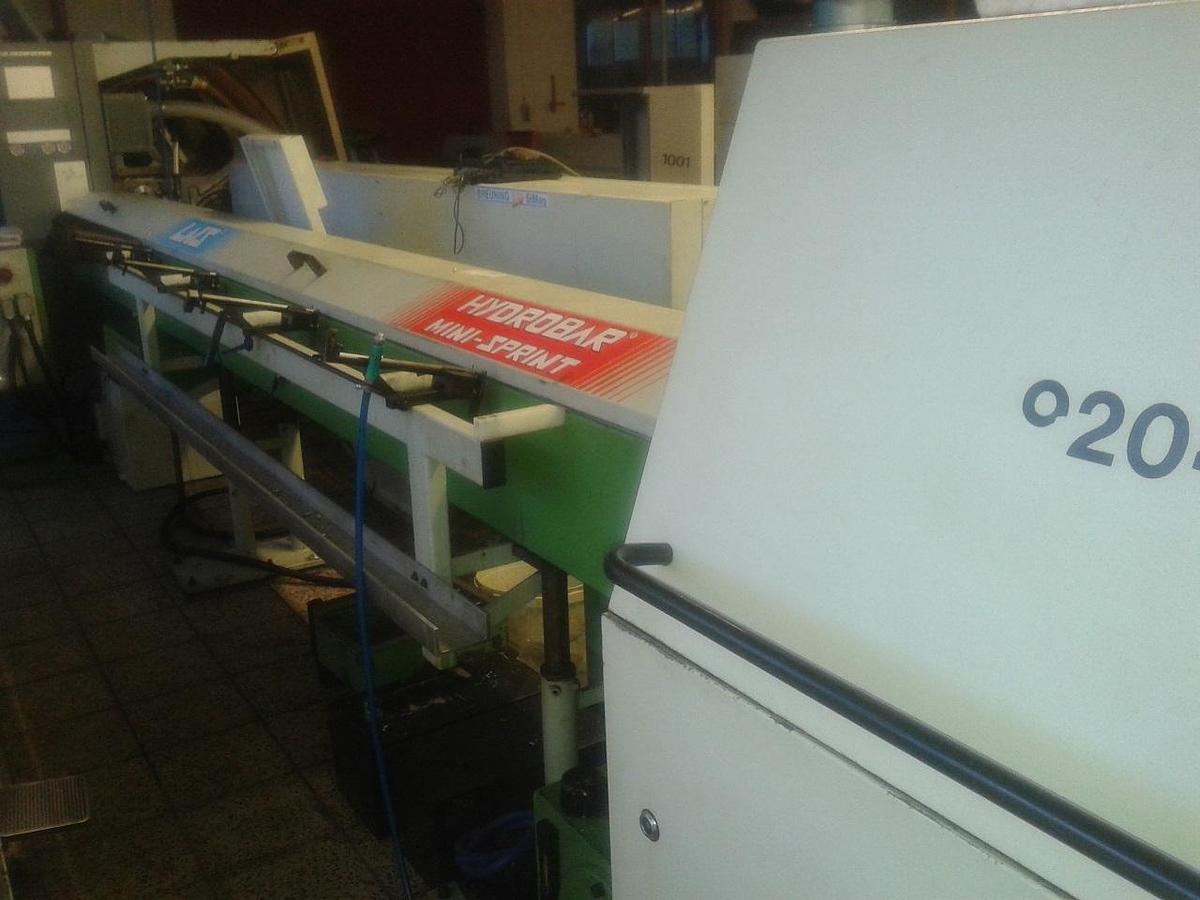

| Bar loader | 3000 mm |
| Bar loader passage | 16 mm |
| Drilling diameter of the front spindle bearing | 40 mm |
| Bearing diameter at the back spindle bearing | 30 mm |
| Collet chuck | Schaublin F20 / 76-87 |
| Speed adjustable infinitely | 200-8000 min -1 |
| Engine Power | 2.2 / 3.1 / 3.7 kW |
| Spindle stroke can be used (Z1 axis) | 200 mm |
| Feed force | 2500 N |
| With fixed guide bush | 200 mm |
| With driven gripper | 170 mm |
| With bar gripper | 170 mm |
| Revolver 1 X | 80 mm |
| Revolver 2 X | 105 mm |
