TRAUB TNA 300
Location:Brno, Czech Republic
Description
Machine dimensions : 2700 x 1620 x 1800 mm
Machine weight: 3500 kg
Specifications
| Manufacturer | TRAUB |
| Model | TNA 300 |
| Year | 1996 |
| Condition | Used |
| Stock Number | 1094 |
| Spindle passage | 42/65 mm |
| Spindle nose DIN 55026 | size A5/A6 |
| Chuck size | 160-175/200-250 |
| Turning dia. Max. | 275 mm |
| Over centre travel | 35 mm |
| Swing over bed | 560 mm |
| Swing over carriage | 372 mm |
| Turning length max | 450 mm |
| Spindle speed max. | 5600/4000 rpm |
| Tool section; dimensions | 20 x 20 mm |
| Indexing time 1 station | 0.35 sec |
| Indexing time each additional station | 0.10 sec |
| Max. component length | 250 mm |
| Max. component weight | 3 kg |

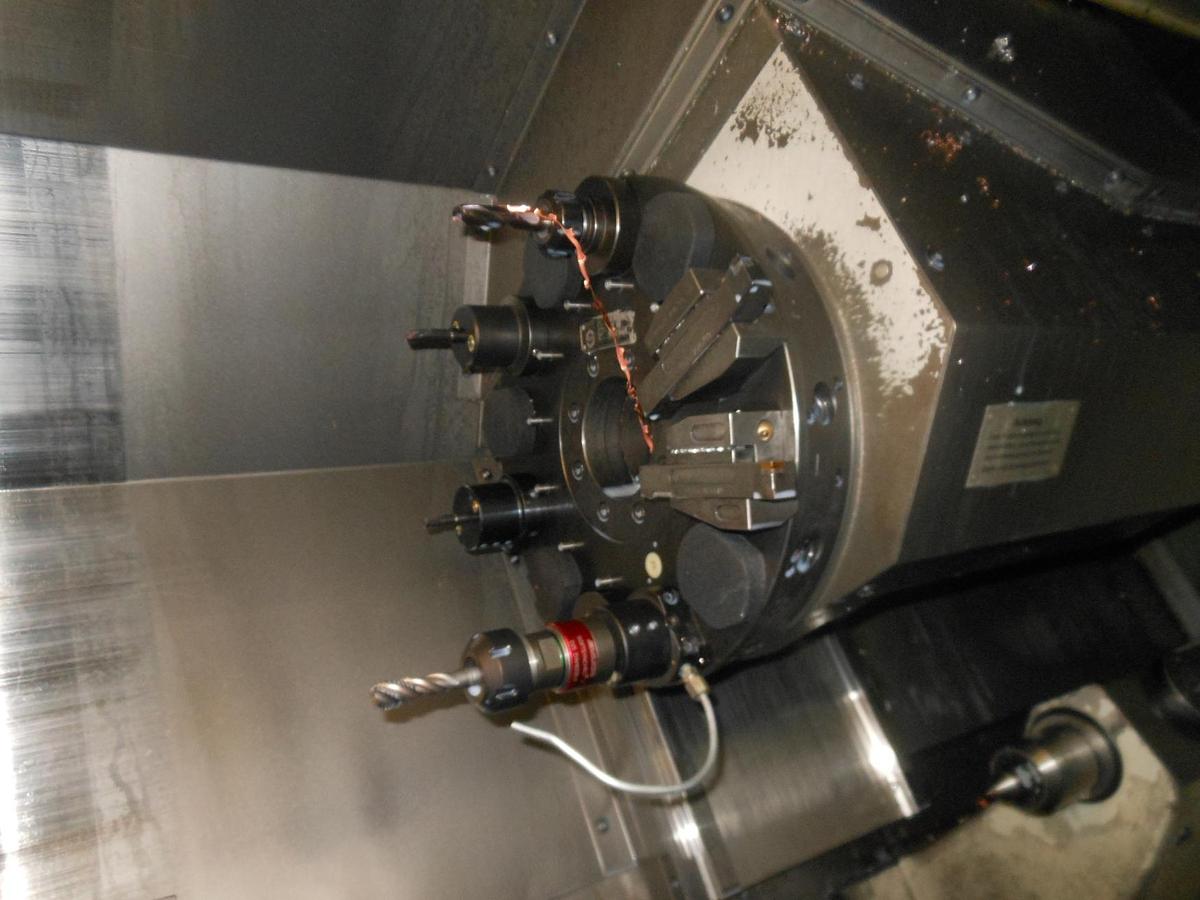

| Turret stations with drive | 12 |
| Power rating at 25% duty cycle | 4 kW |
| Drive gear speed | 4000 rpm |
| Quill size | 70 mm |
| Quill stroke | 60 mm |
| Engine power | 22 kv |
