ZPS SPR 63 CNC
Location:Brno, Czech Republic
Description
Simodrive 611

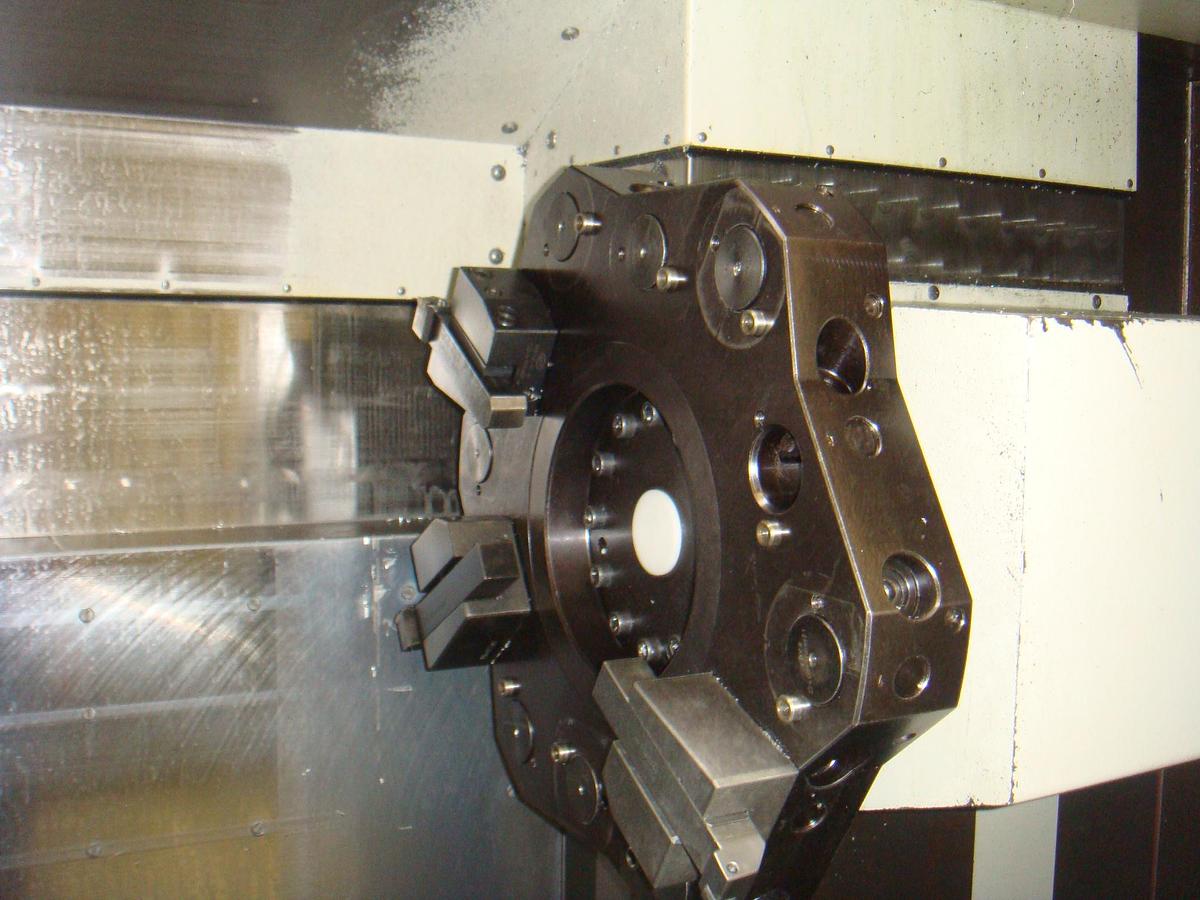

Turrets Baruffaldi
electric-pneu 12 (8/6) positions Baruffaldi
electric-pneu 12 (8/6) positions
Rapid traverse in X

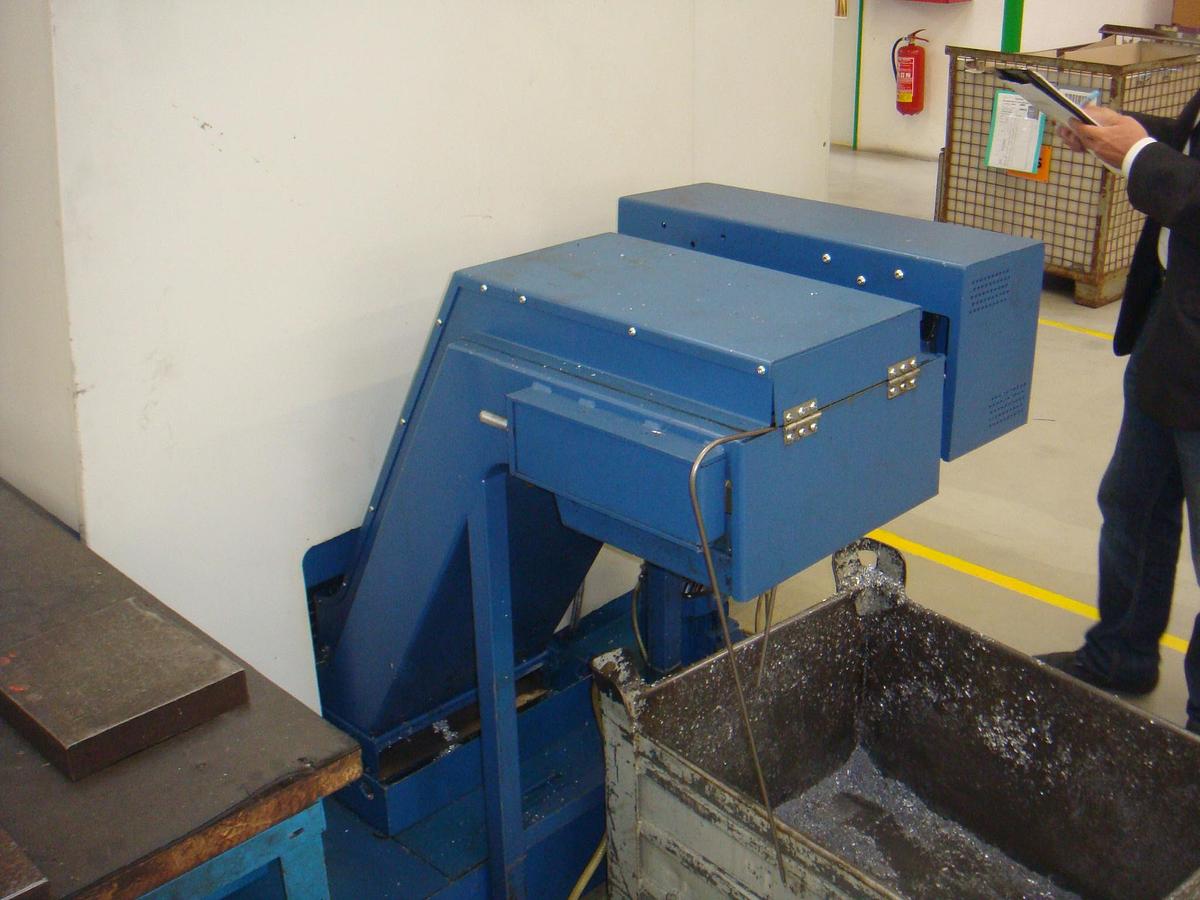

Ground plan area lxw (with a splinter conveyor) 3800x1800 mm 3800x1800 mm
Specifications
| Manufacturer | ZPS |
| Model | SPR 63 CNC |
| Year | 2007 |
| Condition | Used |
| Stock Number | 867 |

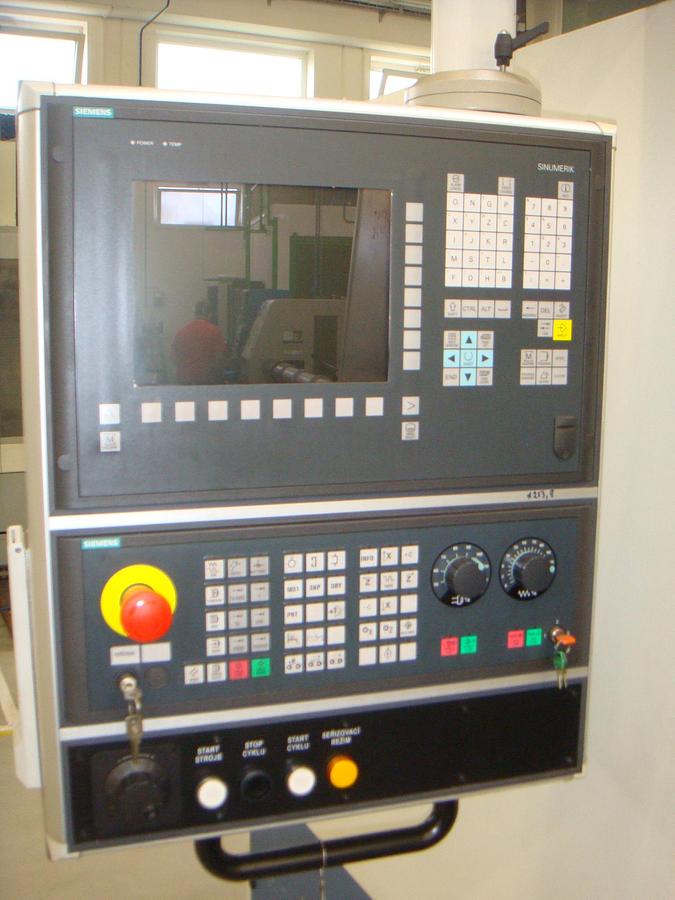

| Control system | SIEMENS Sinumerik 840D |
| Motors and drives | SIEMENS |
| Spindle bore | 75 mm 114 mm |
| Max. diameter of bar stock | 63 mm 100 mm |
| Max. swing over linear slide | 470 mm 550 mm |
| Max. machining length (at a flange) | 250 mm 250 mm |
| Max. machining diameter (at a flange) | 350 mm 430 mm |
| Max. spindle speed (according to a chuck) | 2300 rpm 1800 rpm |
| Power of spindle main motor | 32 kv |
| Z axes (max) | 20 m/min 20 m/min |
| Machine height | 2600 mm /2600 mm |
| Machine weight | 6500 kg |
