DMG CTX 310 eco
Location:Brno, Czech Republic
Description
Equipment:
C-axis

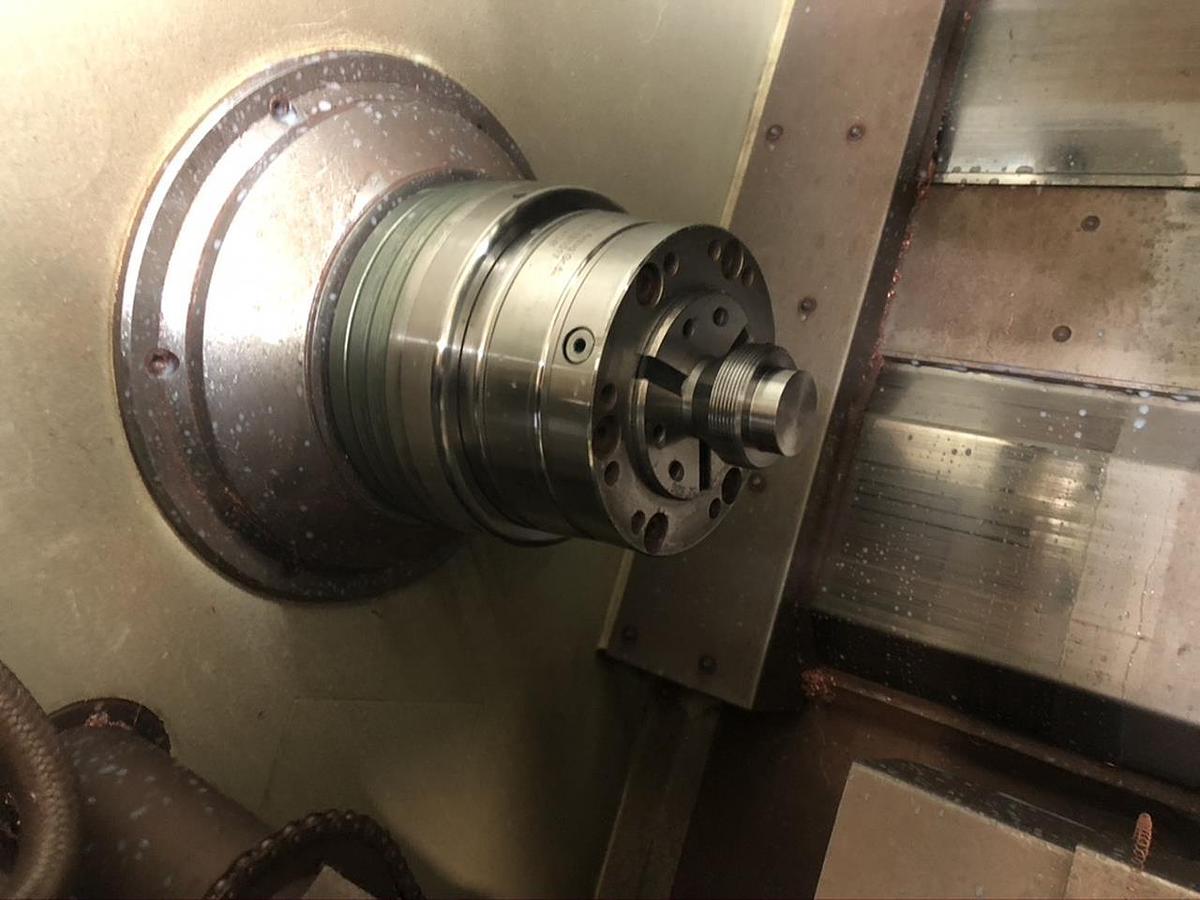

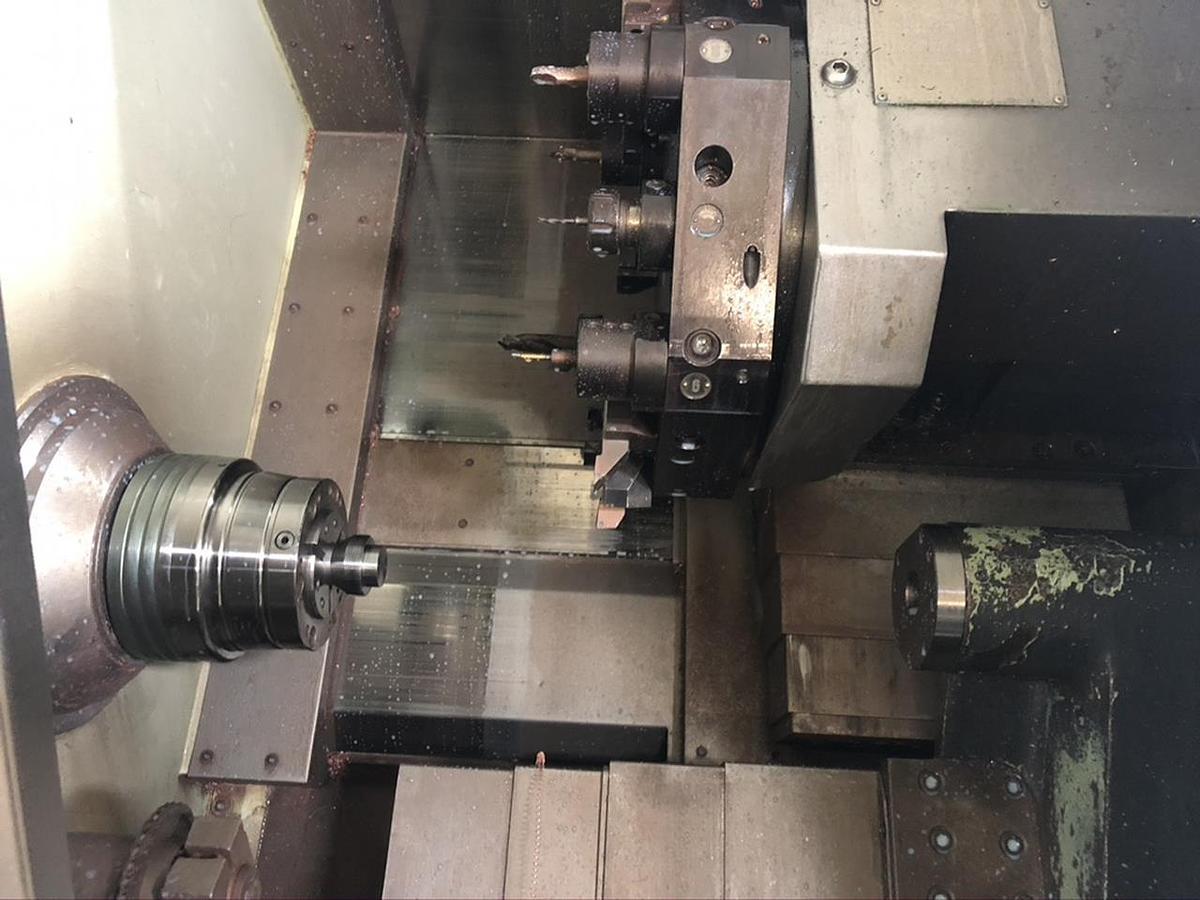

Chuck

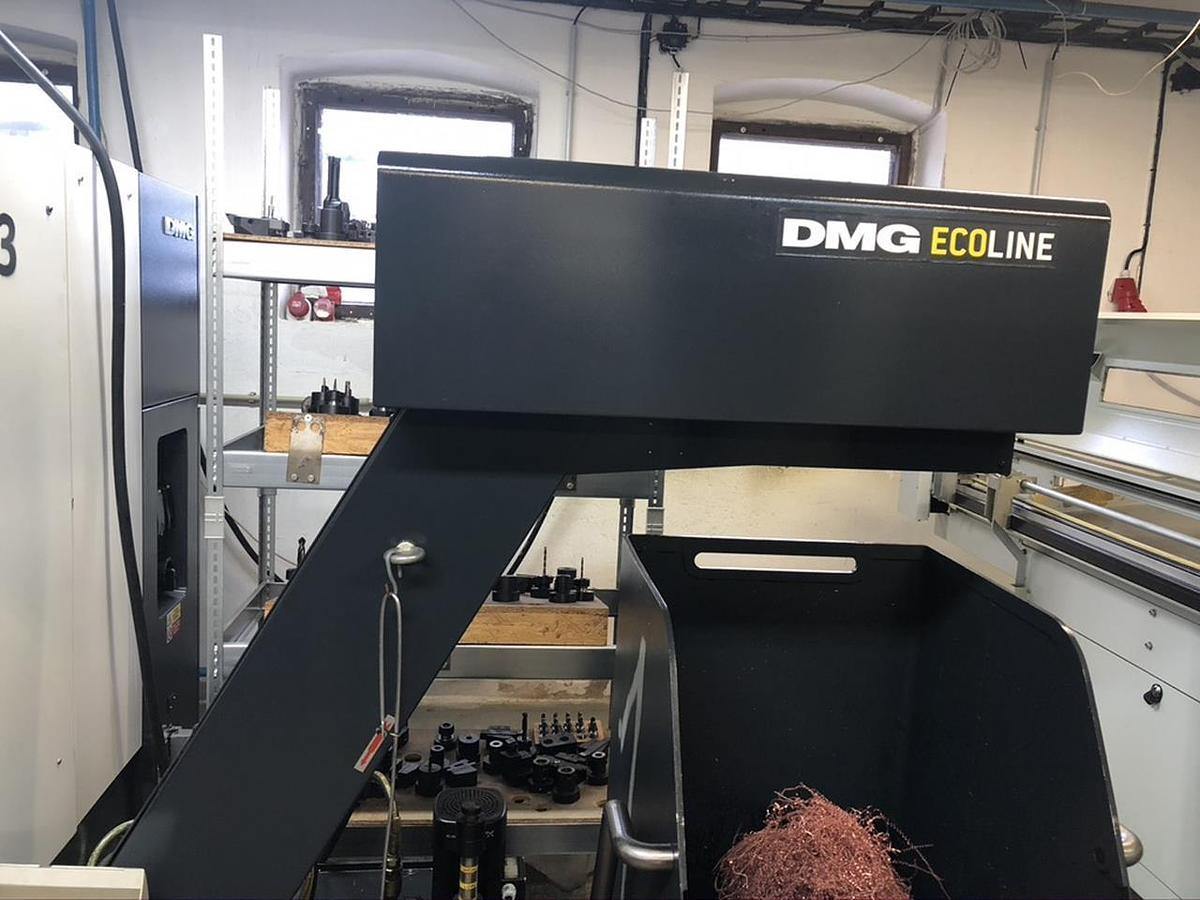

Chip conveyor
Jaws
Paddle

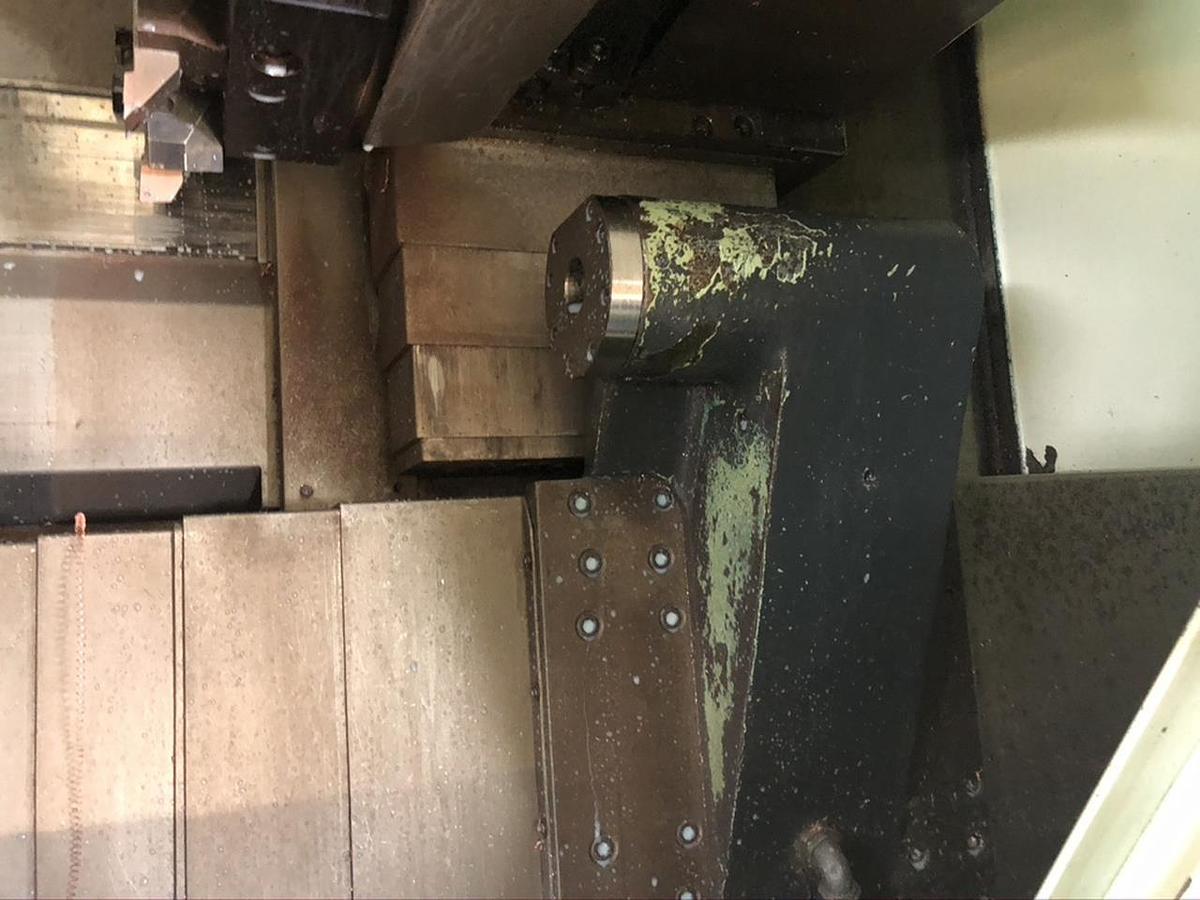

Tailstock controlled through program
Ball screw on Z axis is not in good condition
Specifications
| Manufacturer | DMG |
| Model | CTX 310 eco |
| Year | 2012 |
| Condition | Used |
| Stock Number | 4234 |

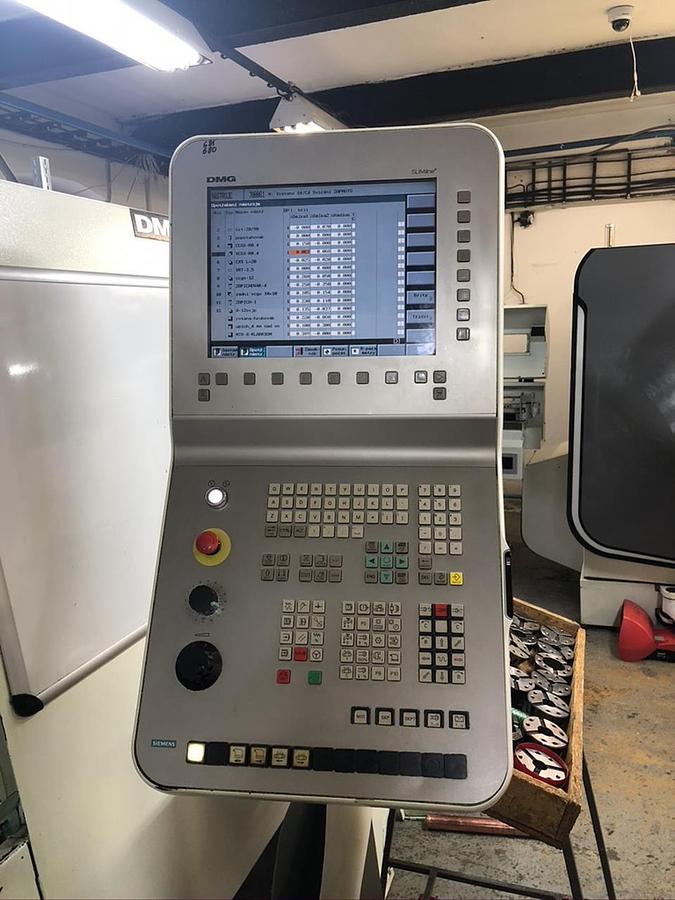

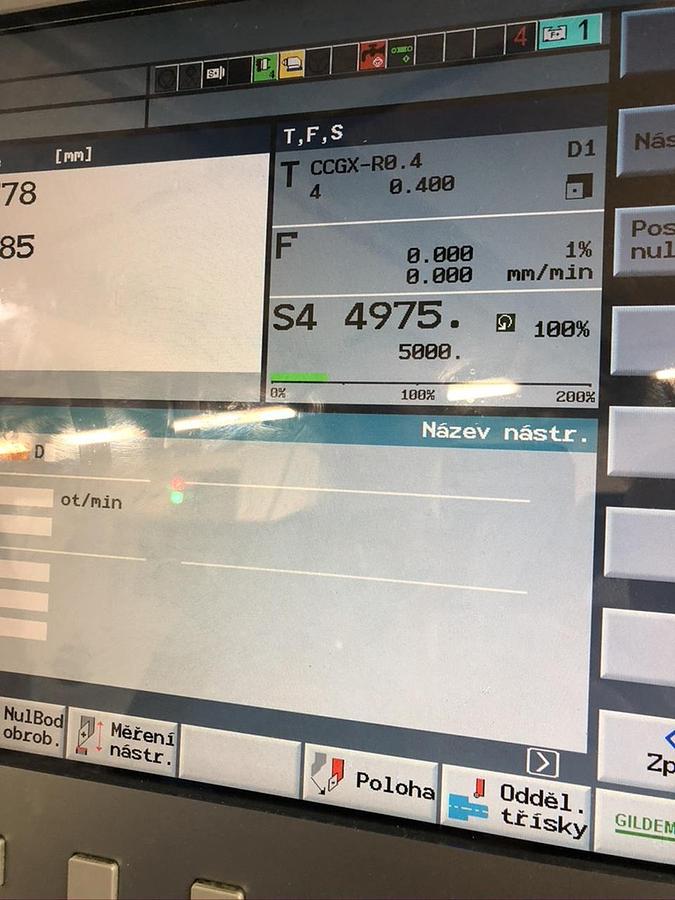

| Control system | SIEMENS 840D |

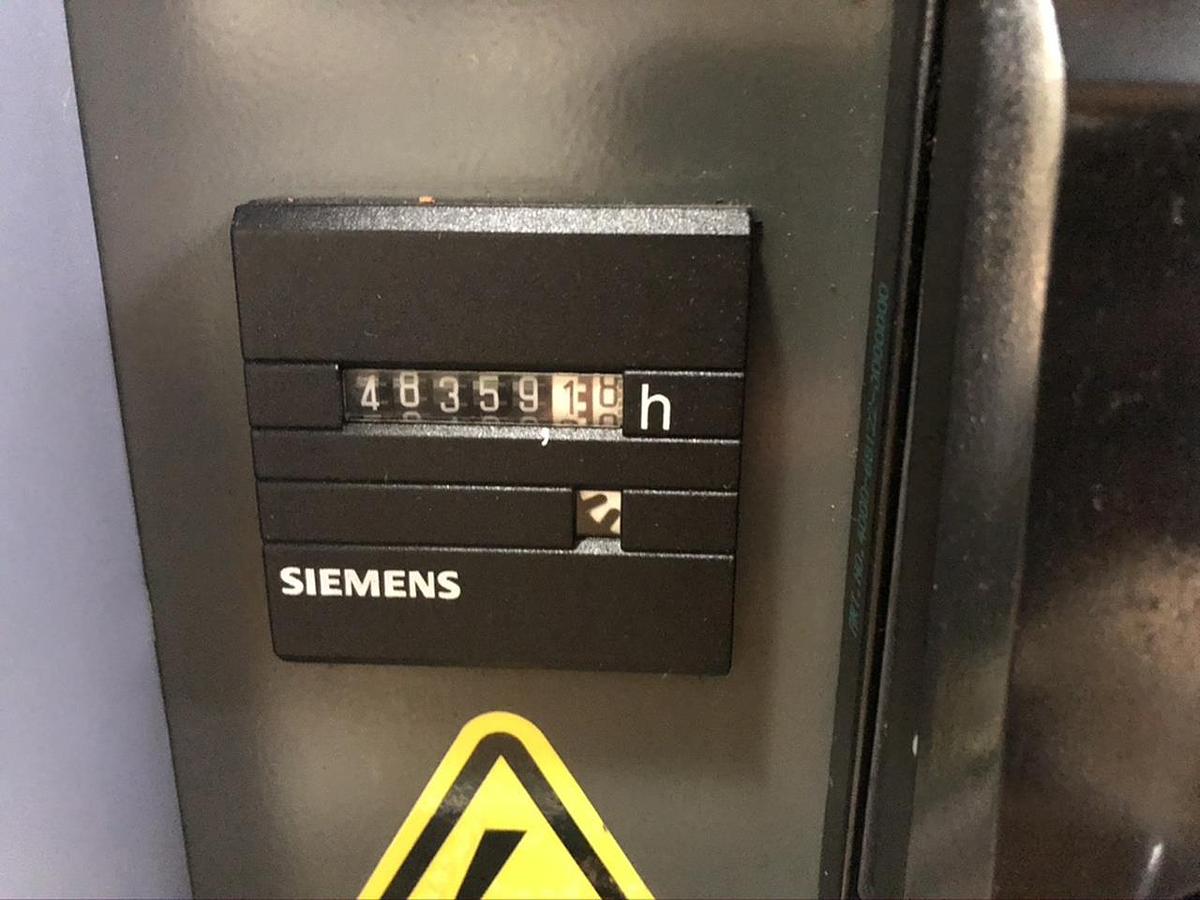

| Total hours | 48359 h |
| Turning diameter over bed (max) | 330 mm |
| Maximum travel length in the X-axis | 450 mm |
| Maximum feed rate in X-axis | 20 m/min |
| Maximum feed rate in Z-axis | 30 m/min |
| Number of spindles | 1 pcs |
| Maximum power of the main spindle | 11 kW |
| Diameter of the spindle bore | 52 mm |
| Maximum rotary speed of the main spindle | 5000 1/min |

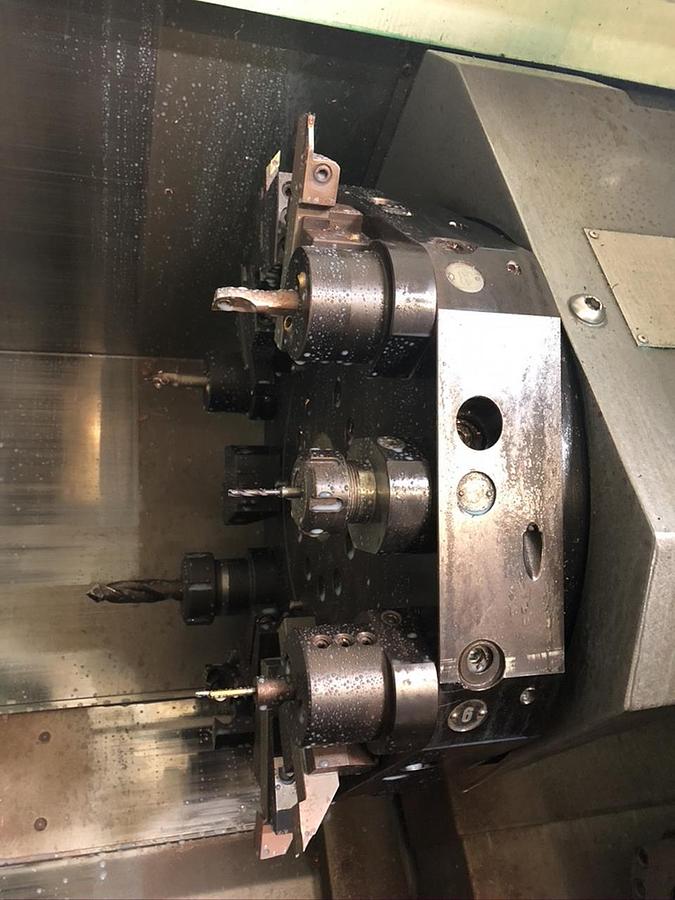

| Number of tool turrets | 1 pcs |
| Maximum number of tools | 12 pcs |
| Number of driven tools in the turret | 6 pcs |
| Number of CNC controlled axles | 2 pcs |
| Total power demand | 21 kW |
| Maximum-turning length | 450 mm |
| Length of the lathe | 5000 mm |
| Width of the lathe | 2200 mm |
| Height of the lathe | 1800 mm |
| Weight of the lathe | 3400 kg |
