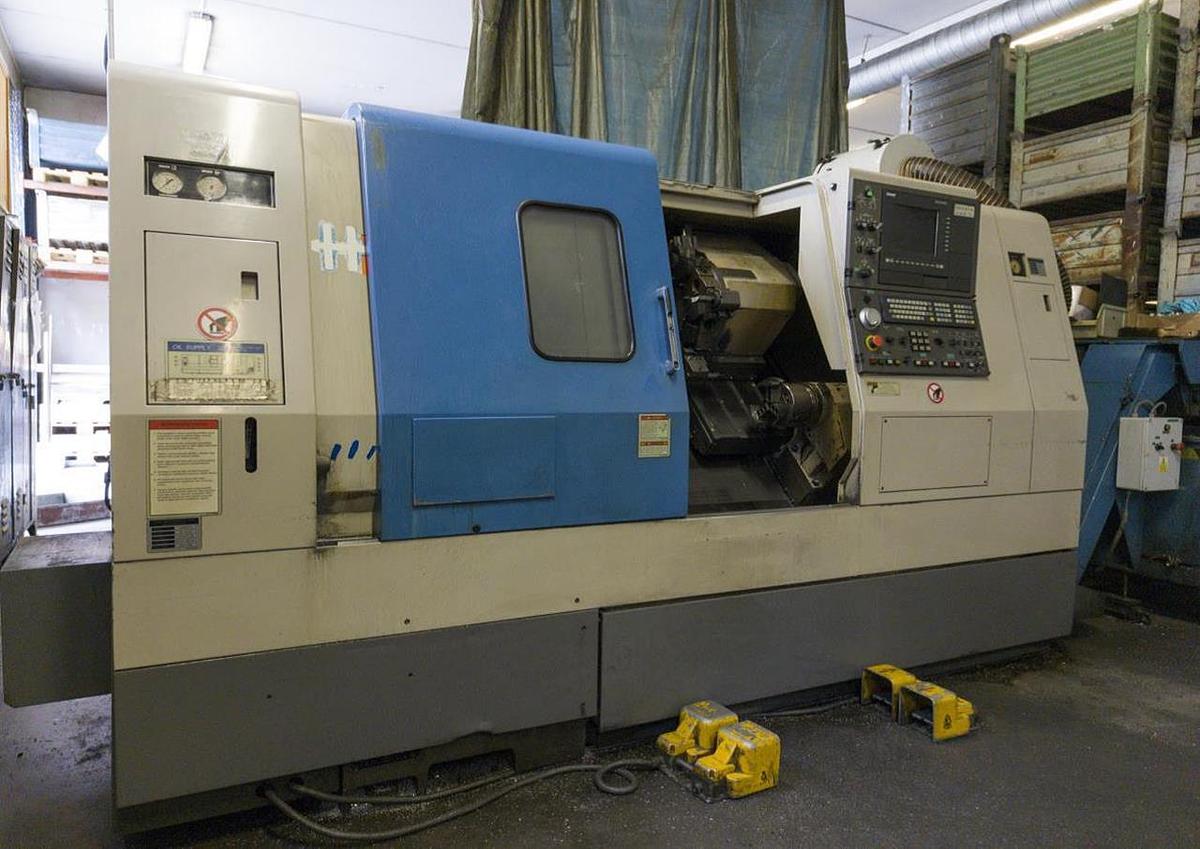

HYUNDAI HIT-250 MS
Location:Brno, Czech Republic
Description
Equipment:
C-axis
Technical books
Chip conveyor
Driven Tools
2x 3-jaw chuck
Cooling
Complete covering of working area
Oil mist separator
Houses for clamping lathe knives and cases (8 pcs.)
Specifications
| Manufacturer | HYUNDAI |
| Model | HIT-250 MS |
| Year | 2004 |
| Condition | Used |
| Stock Number | 6238 |

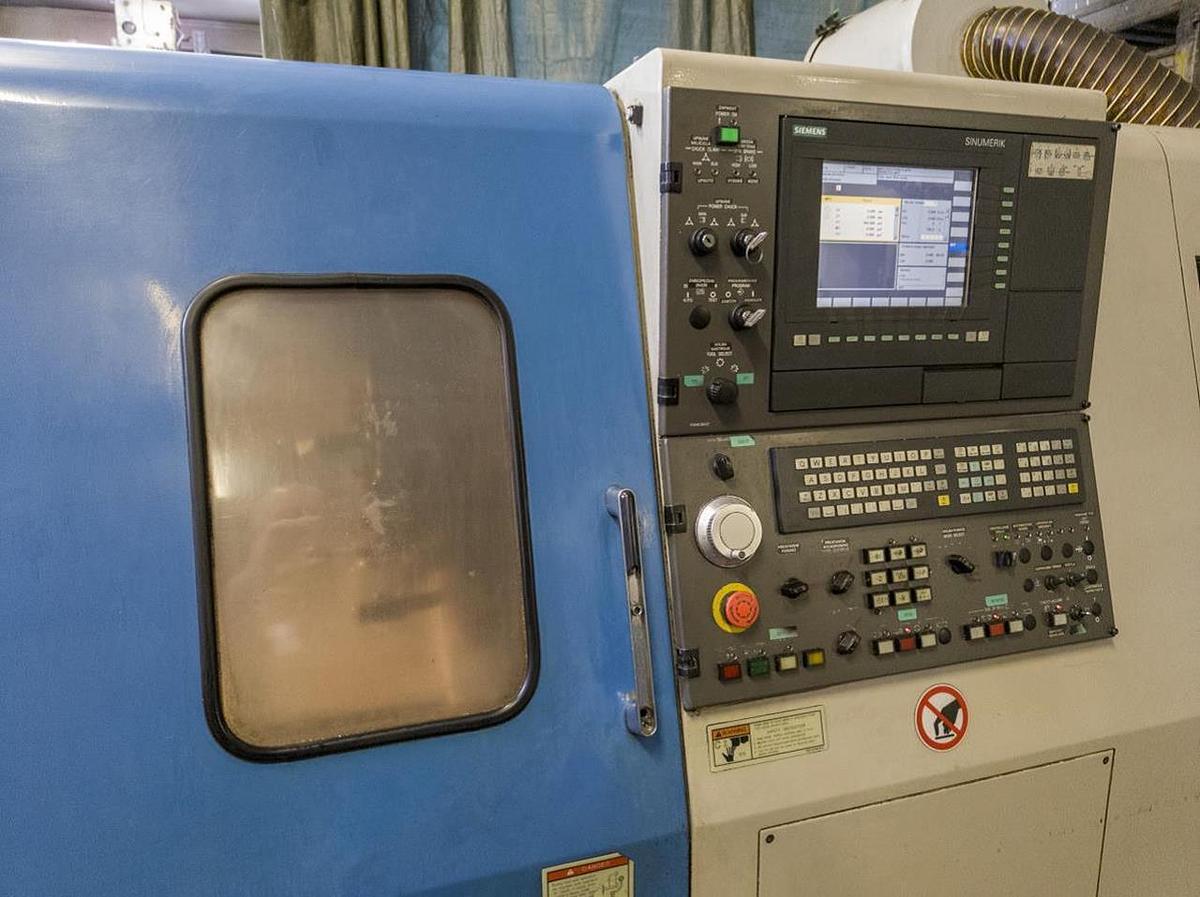

| Control system | Siemens Sinumerik 840D |
| Maximum-turning length | 650 mm |
| Max. turning diameter | 390 mm |
| Turning diameter over bed (max) | 590 mm |
| Maximum spindle speed | 3600 1/min |
| Maximum power of the main spindle | 15 kW |
| Diameter of the spindle bore | 80 mm |
| Maximum number of tools | 12 pcs |
| Number of driven tools in the turret | 12 pcs |
| Chuck diameter | 250 mm |
| Axis X | 265 mm |
| Axis Z | 660 mm |
| Chuck diameter (counterspindle) | 160 mm |
| Diameter of the spindle bore (counterspindle) | 50 mm |
| Max. Speed (counterspindle) | 4500 1/min |
| Length | 3692 mm |
| Width | 1850 mm |
| Height | 1850 mm |
| Weight | 6450 kg |
