TECNOLOGY ITALIANA TECNUMERIK T30 CSM 1000
Location:Brno, Czech Republic
Description
Axis movement/number of strokes per minute:
10 mm/310
15 mm/180
25 mm/165
35 mm/150
50 mm/140
100 mm/120

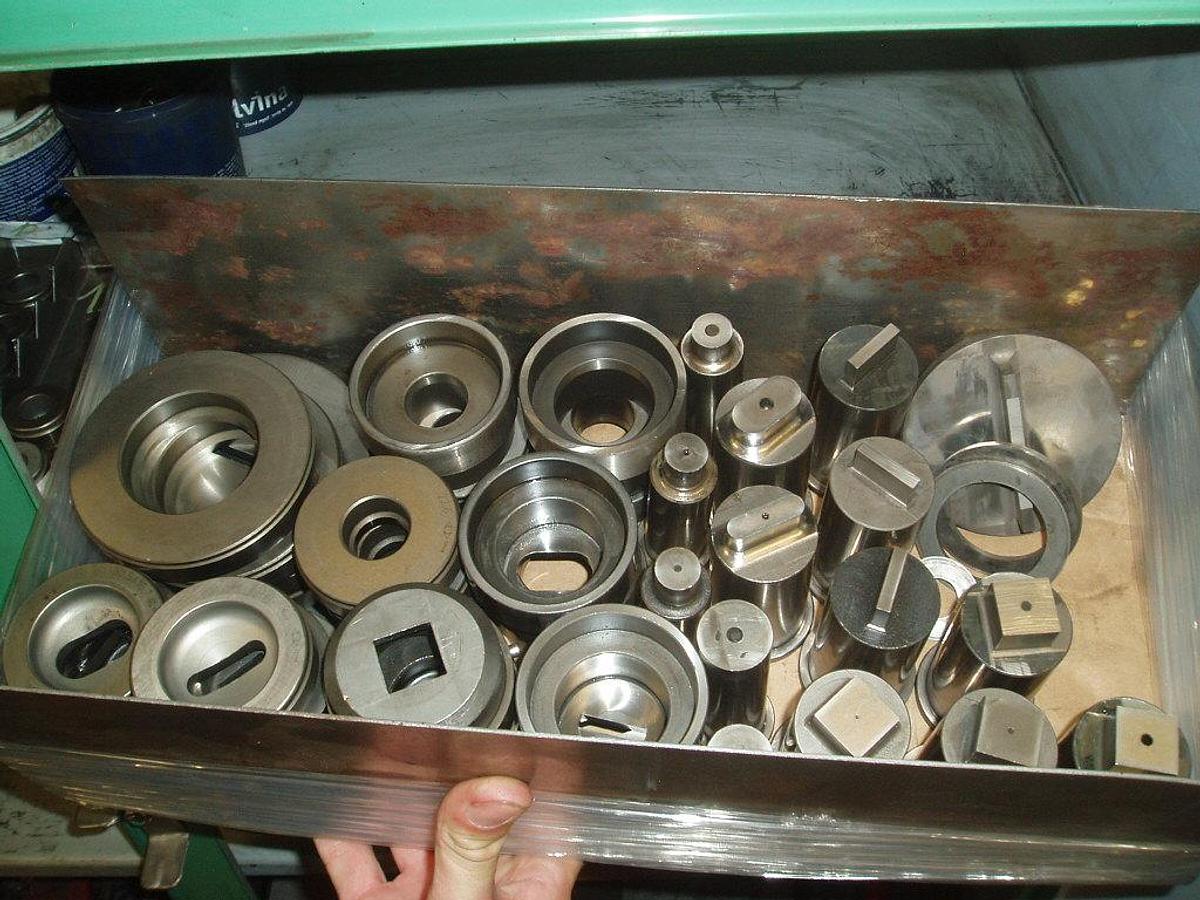

NC indicated tool magazine for 8 stations β manual tool exchange
Specifications
| Manufacturer | TECNOLOGY ITALIANA |
| Model | TECNUMERIK T30 CSM 1000 |
| Year | 1991 |
| Condition | Used |
| Stock Number | 1443 |
| Punching power | 300 kN |
| X Axis | 1550 mm |
| Y Axis | 1000 mm |
| X Axis with one repositioning | 3100 mm |
| Max. parallel repositioning speed | 45 m/min |
| Max. simultaneous repositioning speed | 64 m/min |
| Accuracy of sheet metal repositioning | +/- 0.1 mm |
| Max. punching diameter | 100 mm |
| Max. punching and nibbeling diameter | 8 mm |
| Adjustable stroke length | 20 mm |
| Max. sheet metal weight | 150 kg |
| Compressed air | 6 kp/cm2 |
| Compressed air β min.consumption | 200 l/min |
| Output | 9 kW |
| Dimensions | 3465 x 3960 x 2050 mm |
| Weight | 4200 kg |
