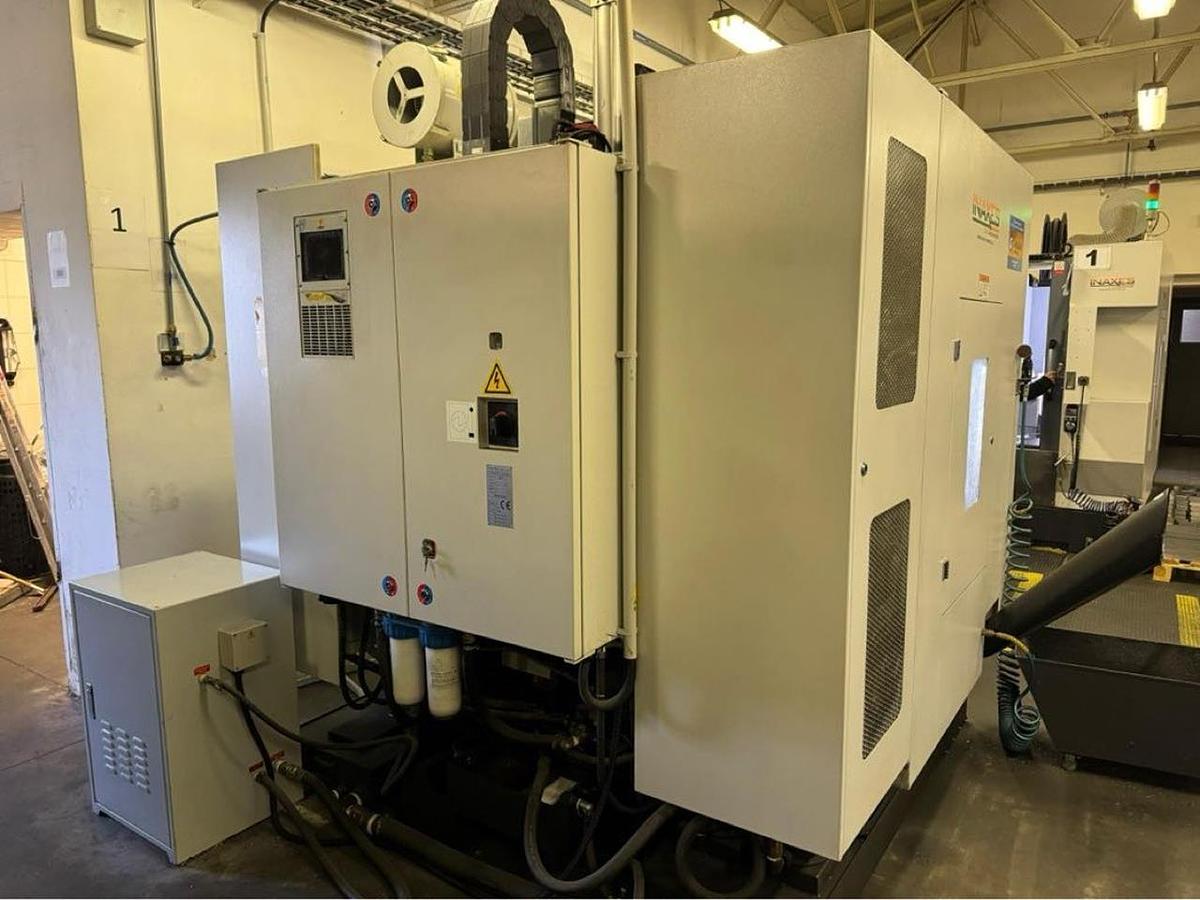

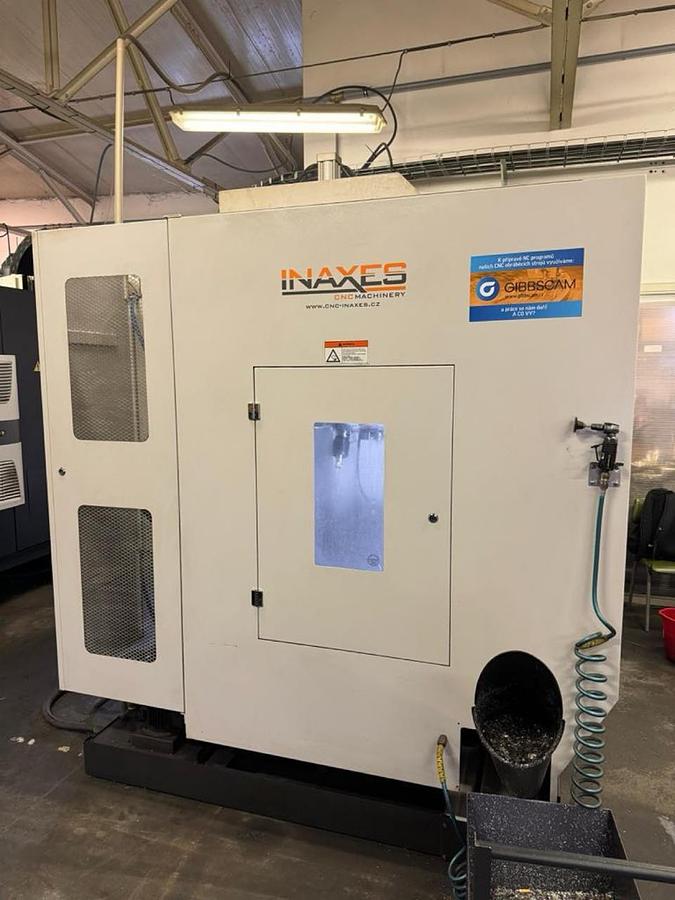

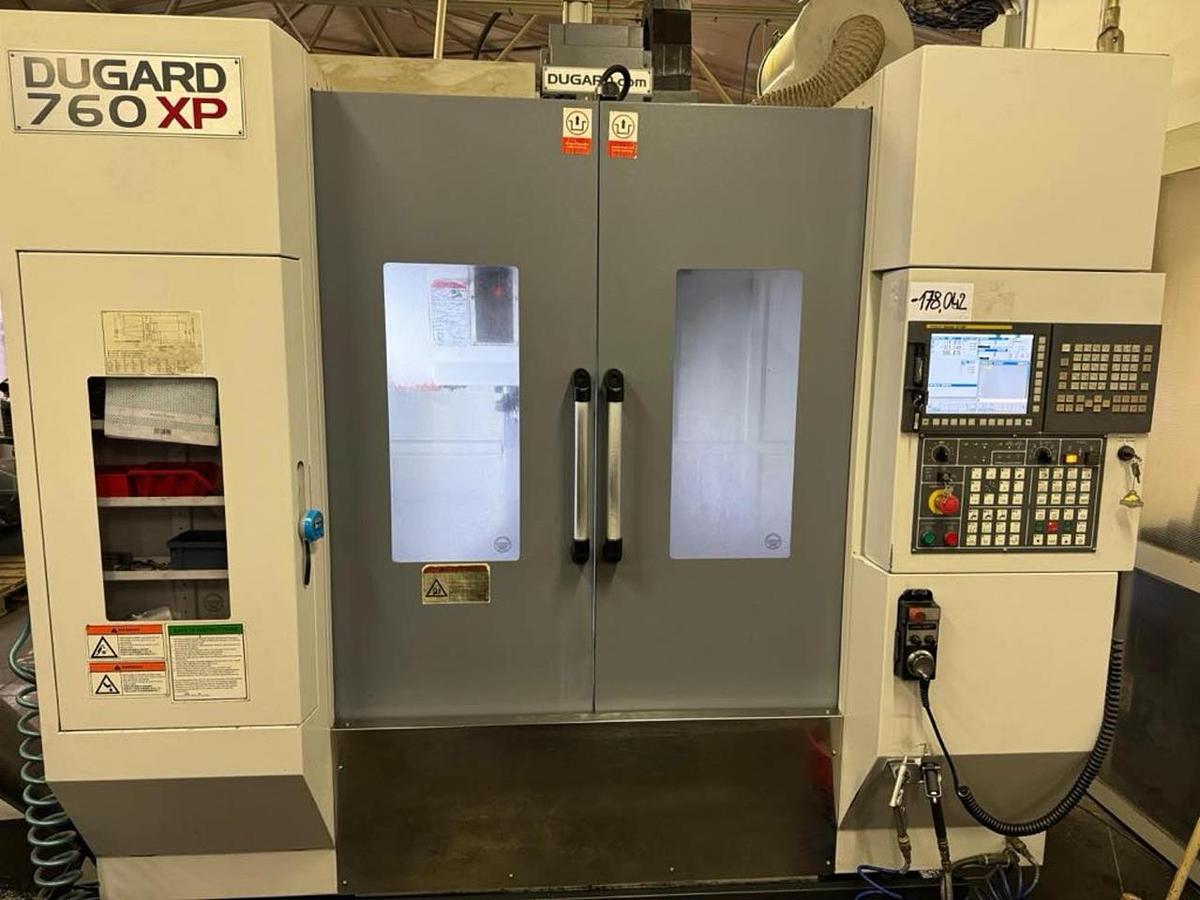

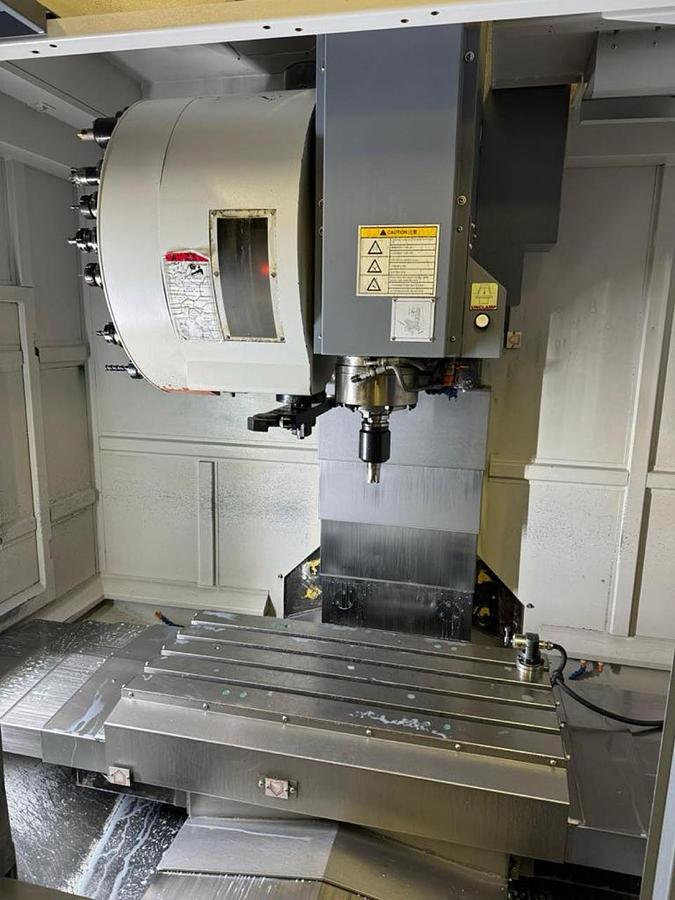

Dugard 760 XP
Location:Brno, Czech Republic
Description
Equipment:
Renishaw tool probe
Chip conveyor
Hand wheel
High pressure central cooling
Specifications
| Manufacturer | Dugard |
| Model | 760 XP |
| Year | 2016 |
| Condition | Used |
| Stock Number | 7309 |
| Control system | FANUC OiMF 10.4 LCD |
| Length of the working table | 910 mm |
| Width of the working table | 380 mm |
| Power of the spindle drive | 11 kW |
| Maximum rotary speed of the vertical spindle | 12000 1/min |
| X-Axis travels | 762 mm |
| Y-Axis travels | 430 mm |
| Z-Axis travels | 460 mm |
| Taper | BT 40 |
| Maximum number of tools | 28 pcs |
| Max. tool weight | 7 kg |
| Max. tool lenght | 250 mm |
| Machine height | 1880 mm |
| Machine length | 2596 mm |
| Machine width | 1935 mm |
| Machine weight | 3650 kg |
