Sold

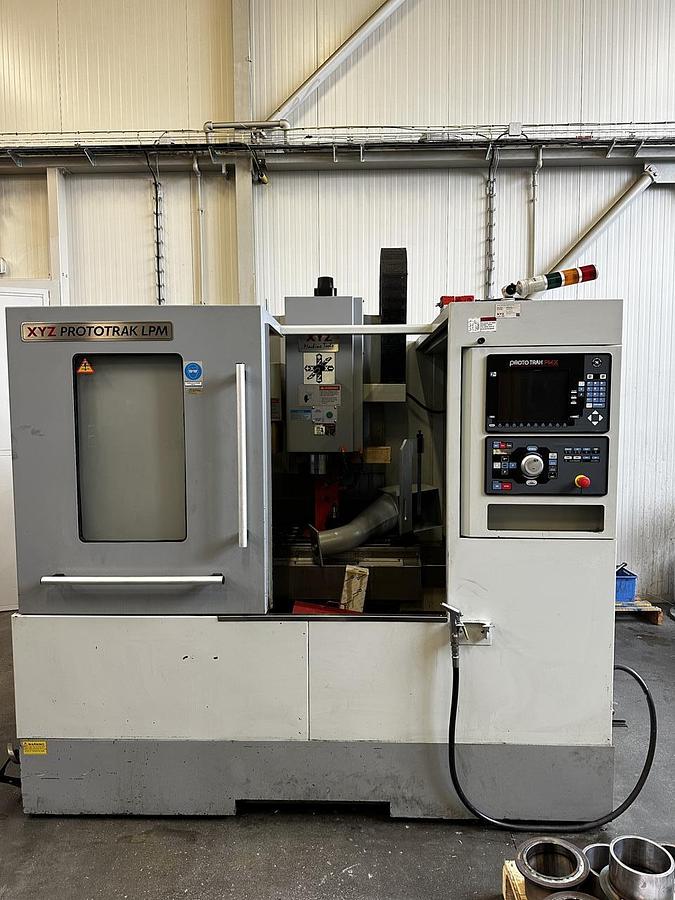

XYZ Machine Tools PROTOTRAK LPM
Location:Brno, Czech Republic
Specifications
| Manufacturer | XYZ Machine Tools |
| Model | PROTOTRAK LPM |
| Condition | Used |
| Stock Number | 6551 |
| Control system | ProtoTRAK PMX CNC |
| Length of the working table | 900 mm |
| Width of the working table | 500 mm |
| Maximum table load (evenly distributed) | 450 kg |
| Power of the spindle drive | 11 kW |
| Maximum rotary speed of the vertical spindle | 8000 1/min |
| X-Axis travels | 787 mm |
| Y-Axis travels | 470 mm |
| Z-Axis travels | 533 mm |
| Taper | BT 40 |
| Maximum number of tools | 16 pcs |
| Maximum tool diameter | 80 mm |
| Max. tool weight | 7 kg |
| Machine height | 2616 mm |
| Machine length | 3988 mm |
| Machine width | 2235 mm |
