Sold

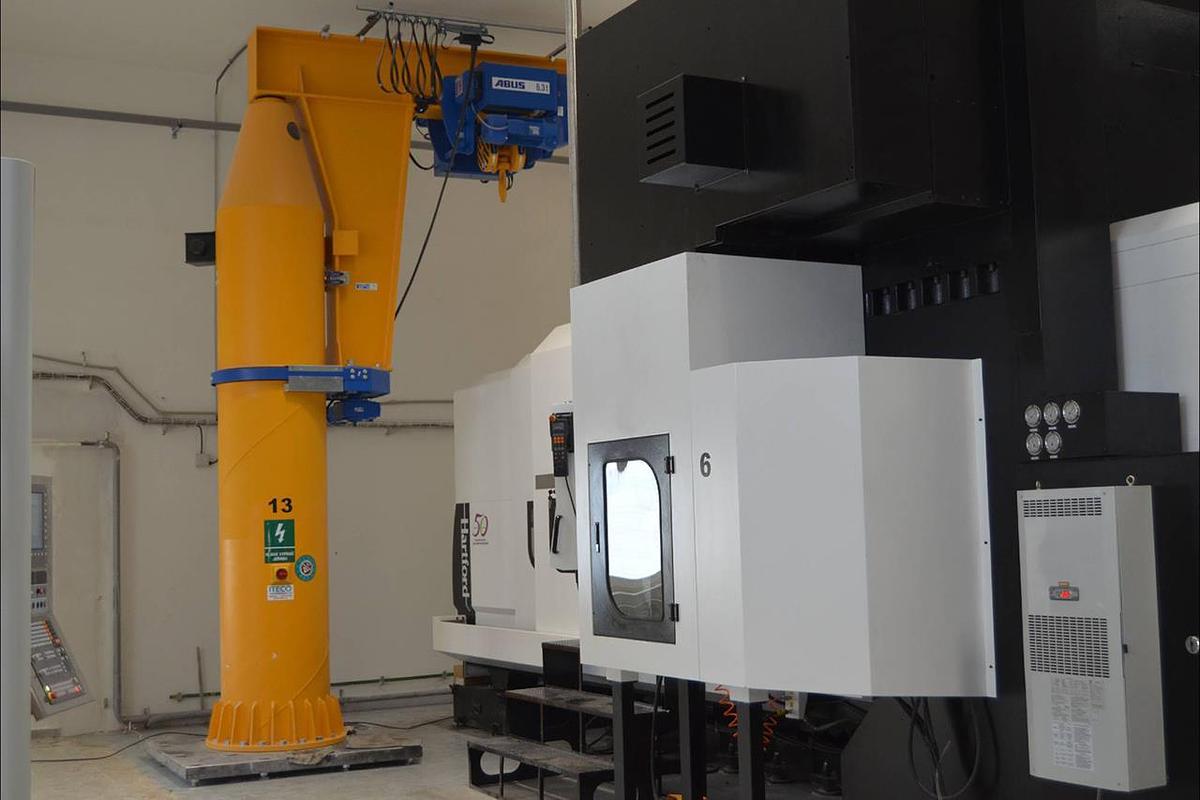

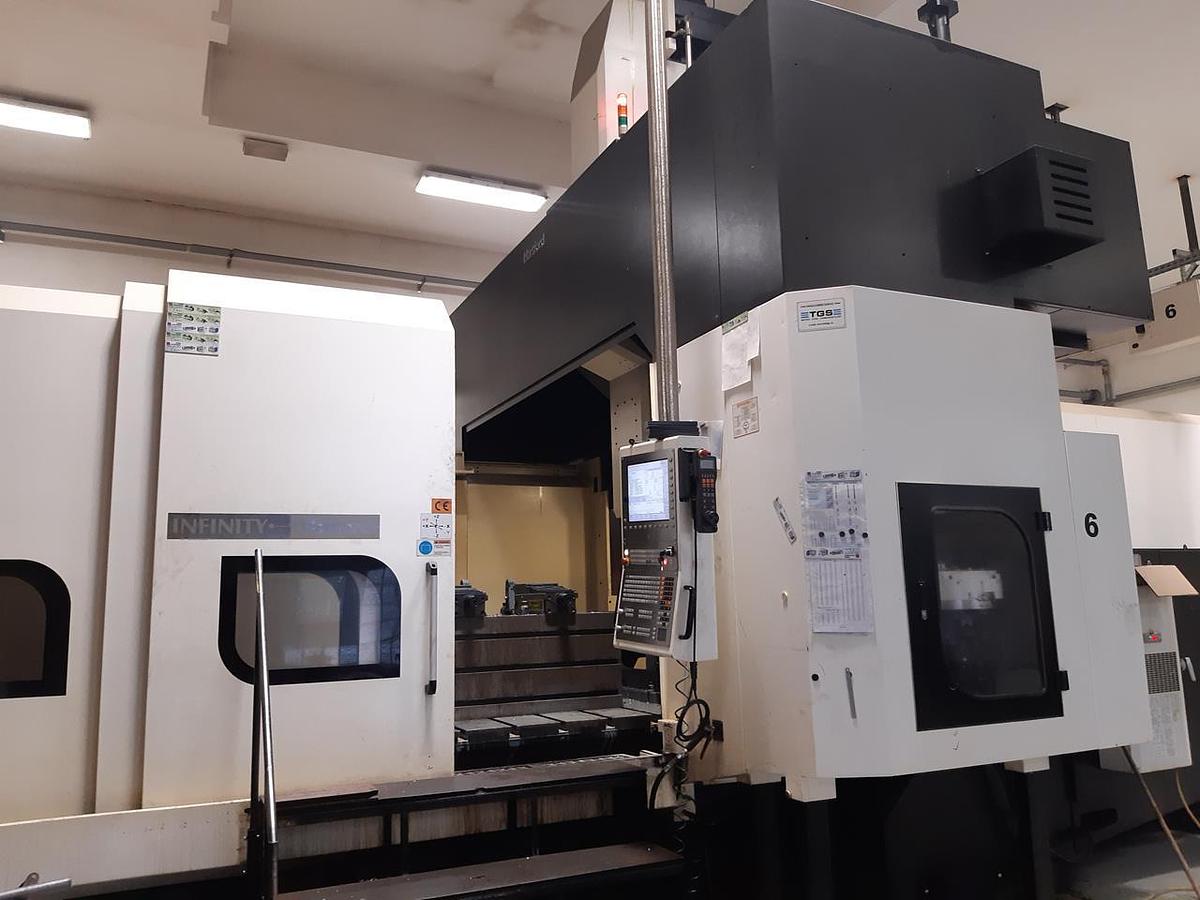

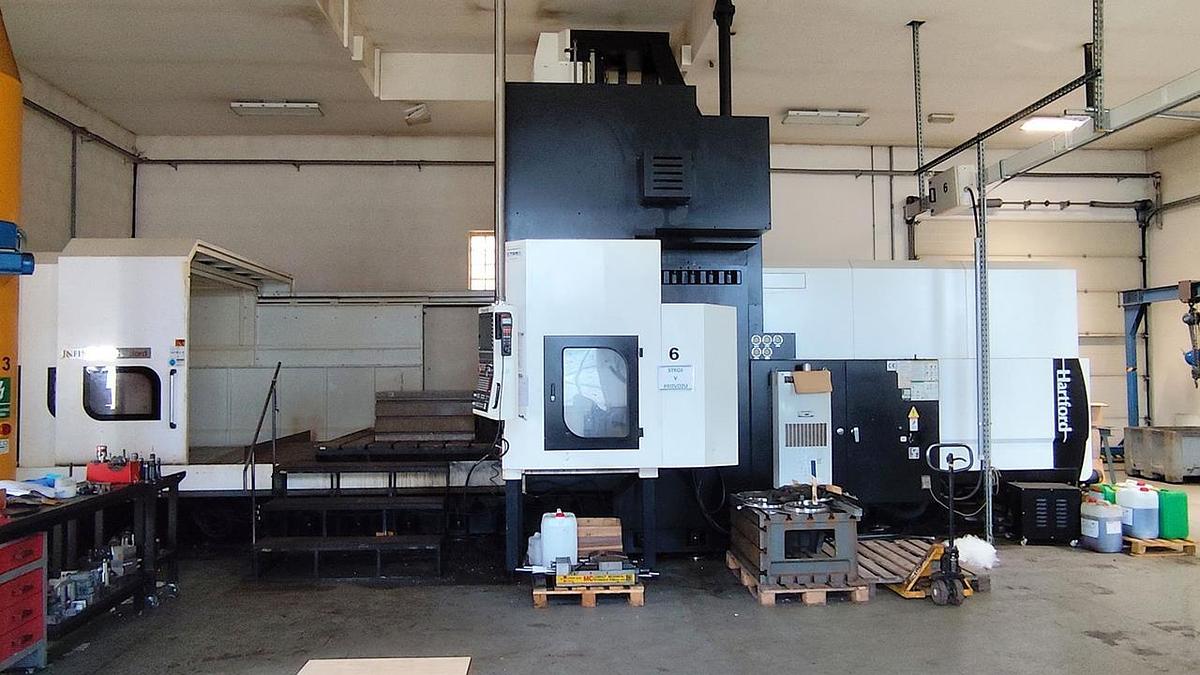

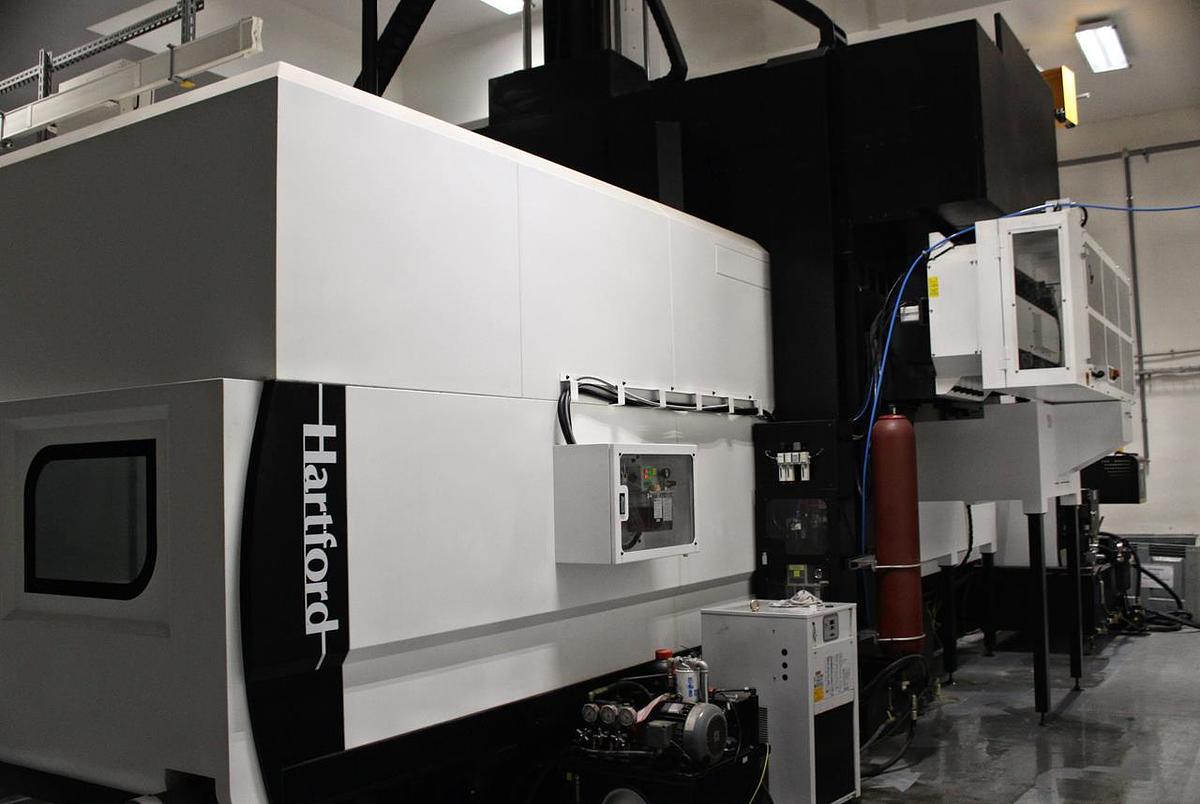

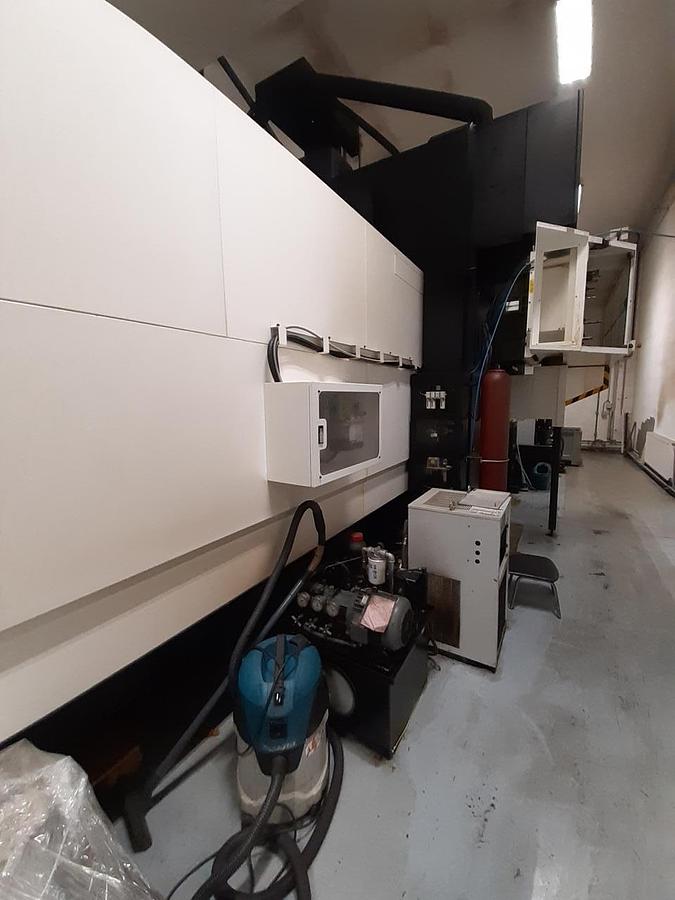

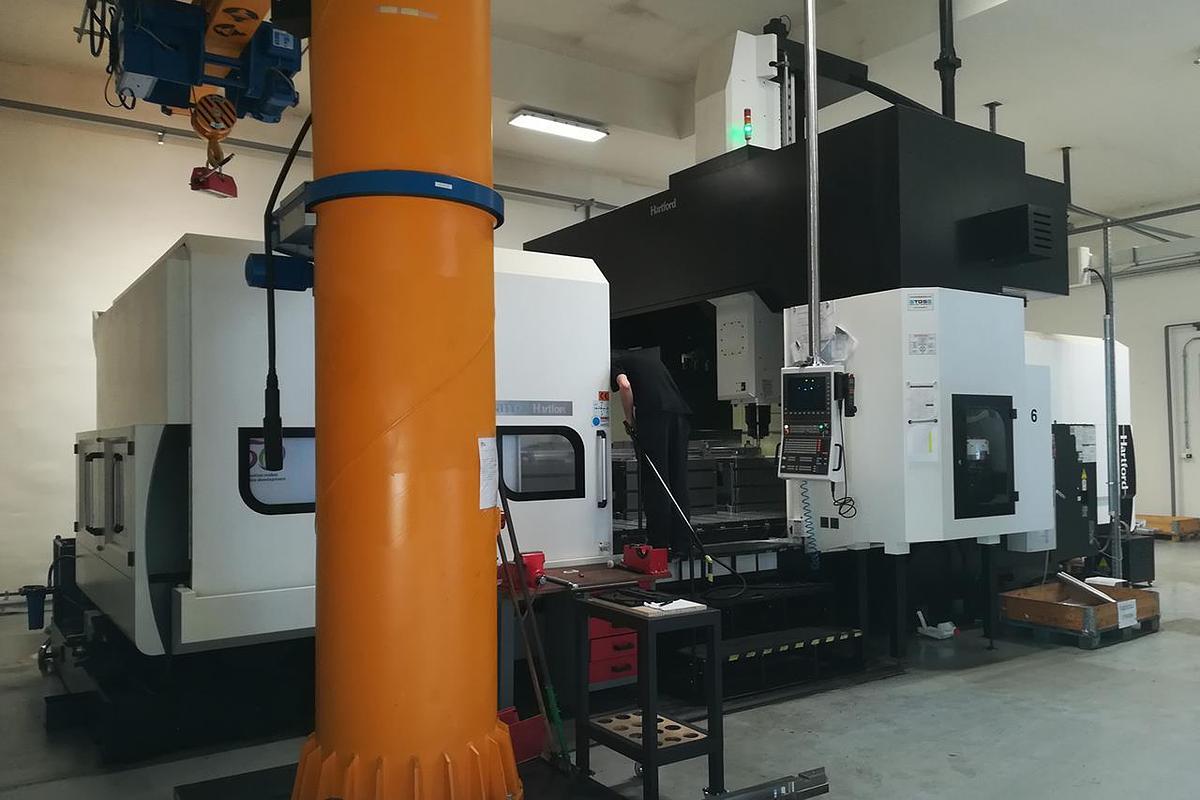

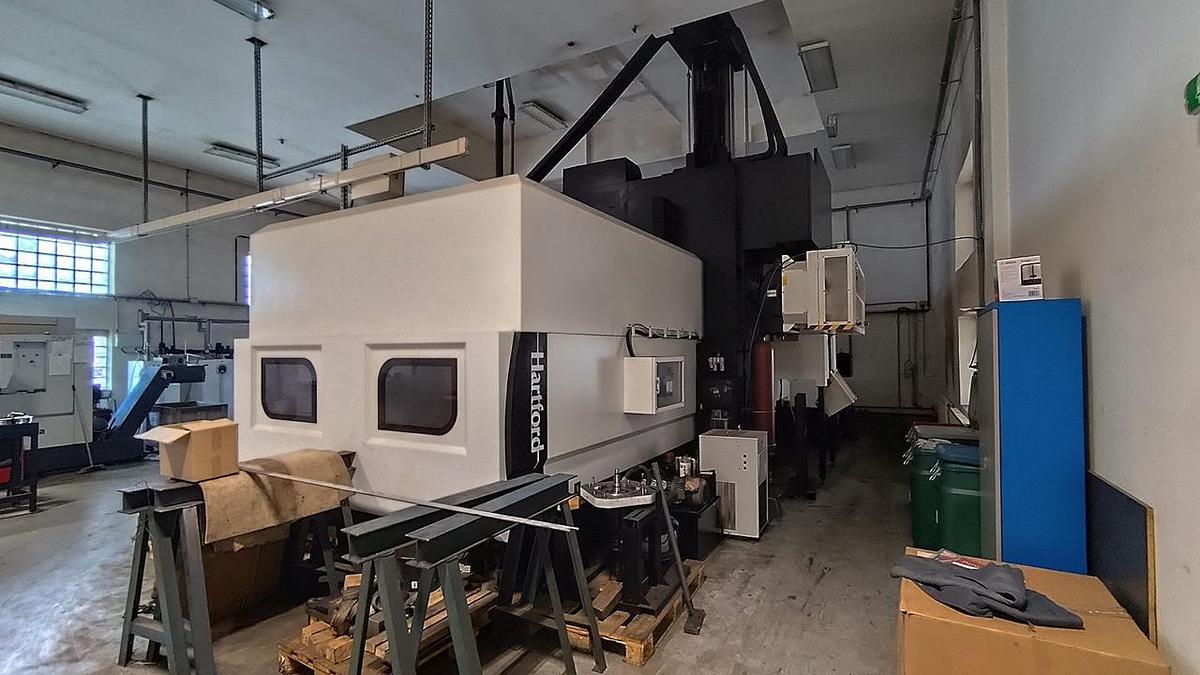

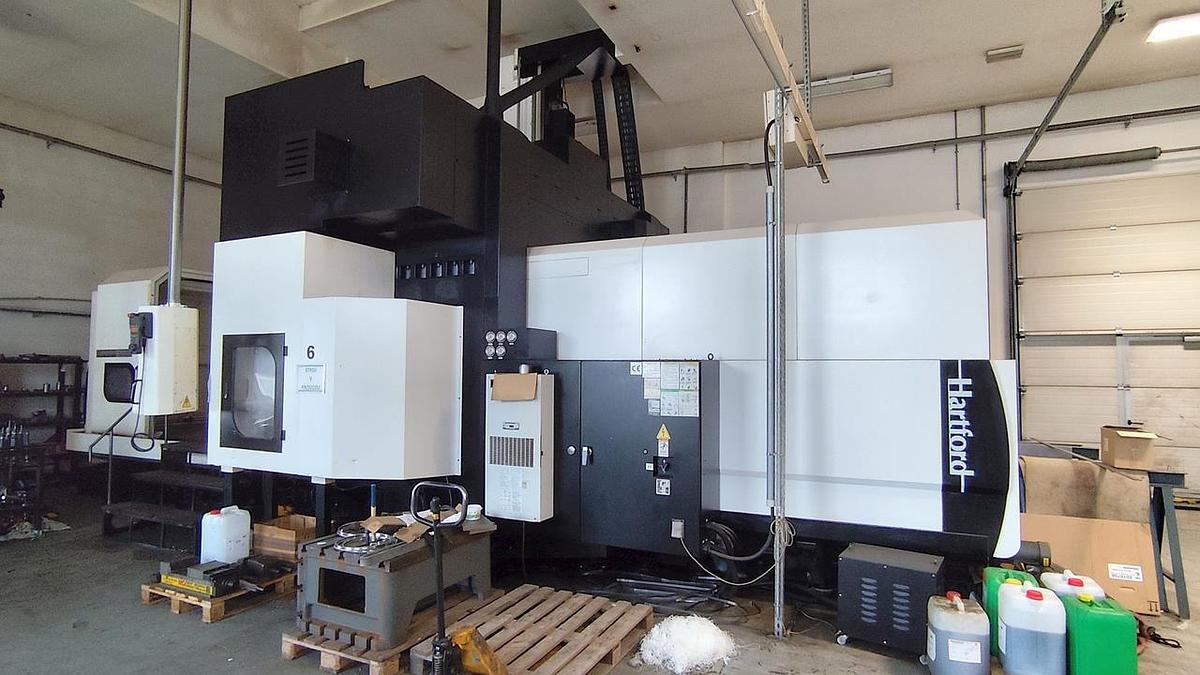

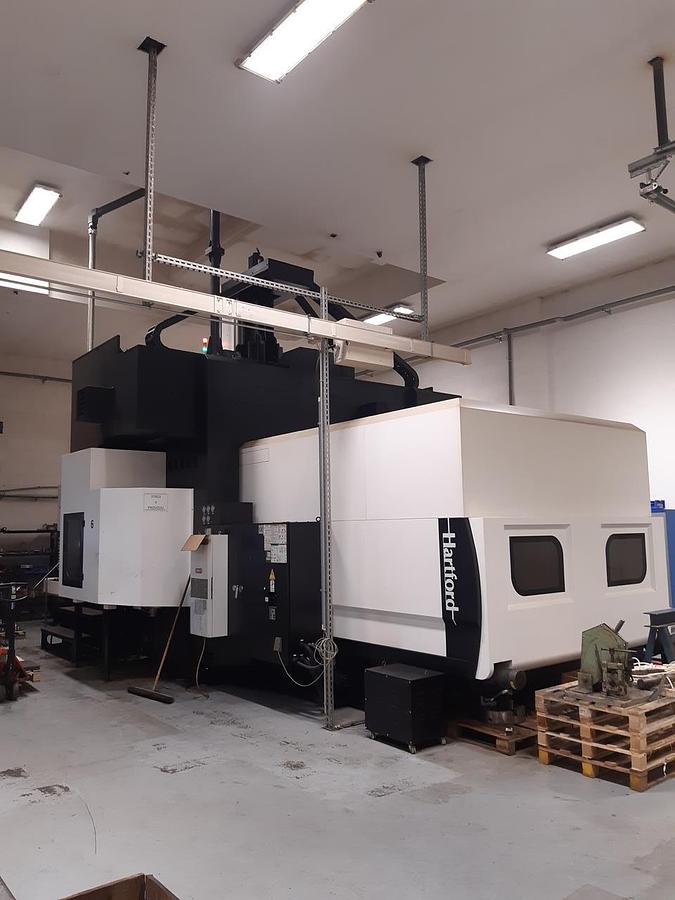

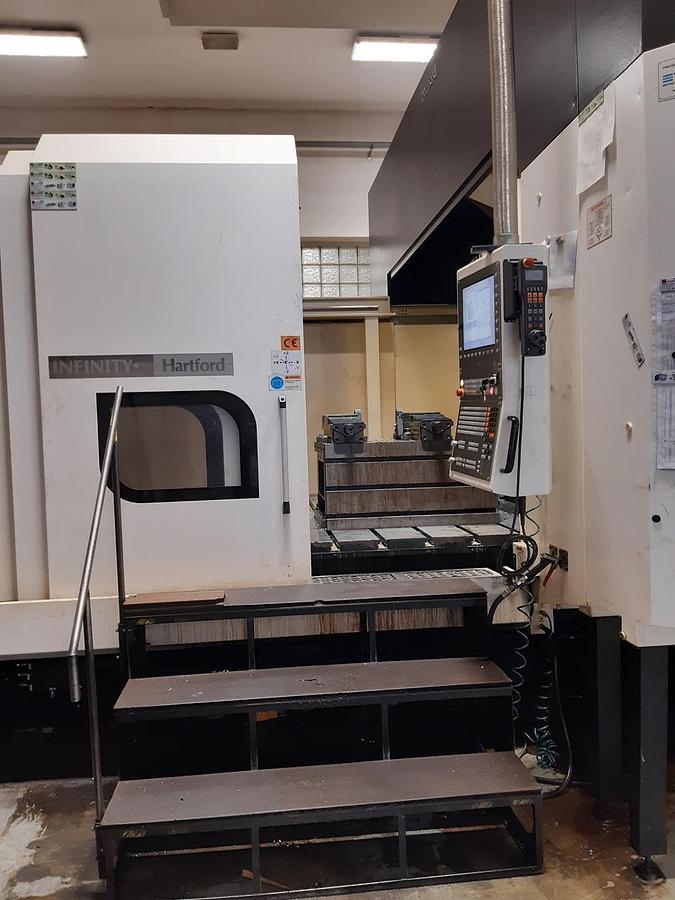

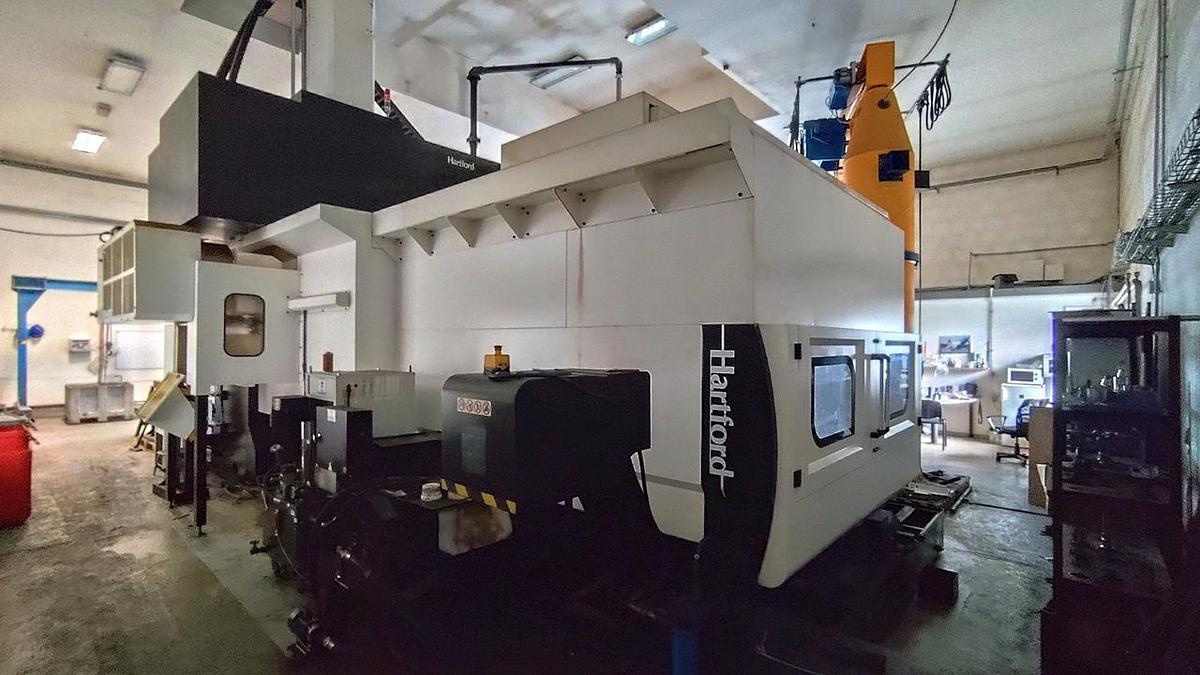

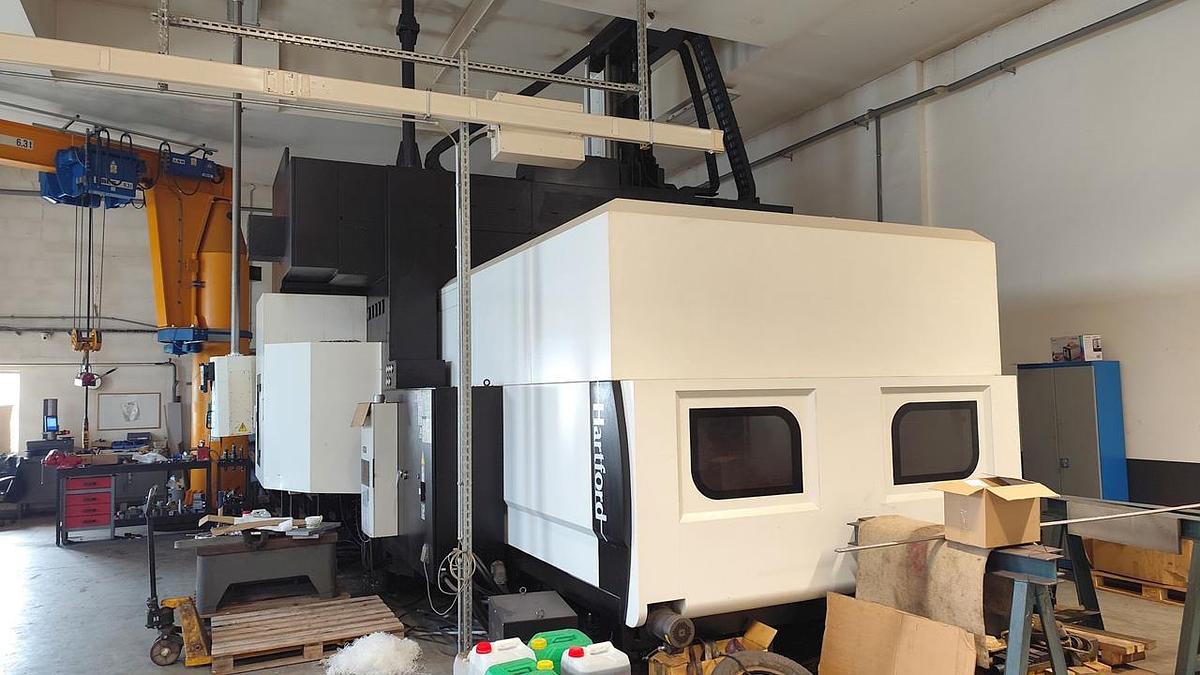

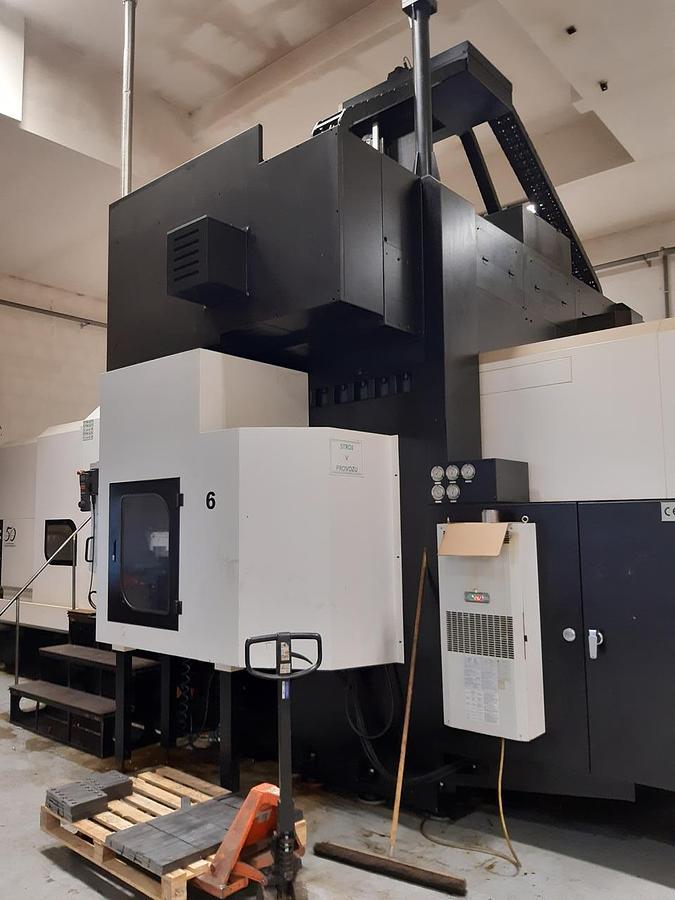

Hartford HSA – 428EA
Location:Brno, Czech Republic
Description
Equipment:
Technical books

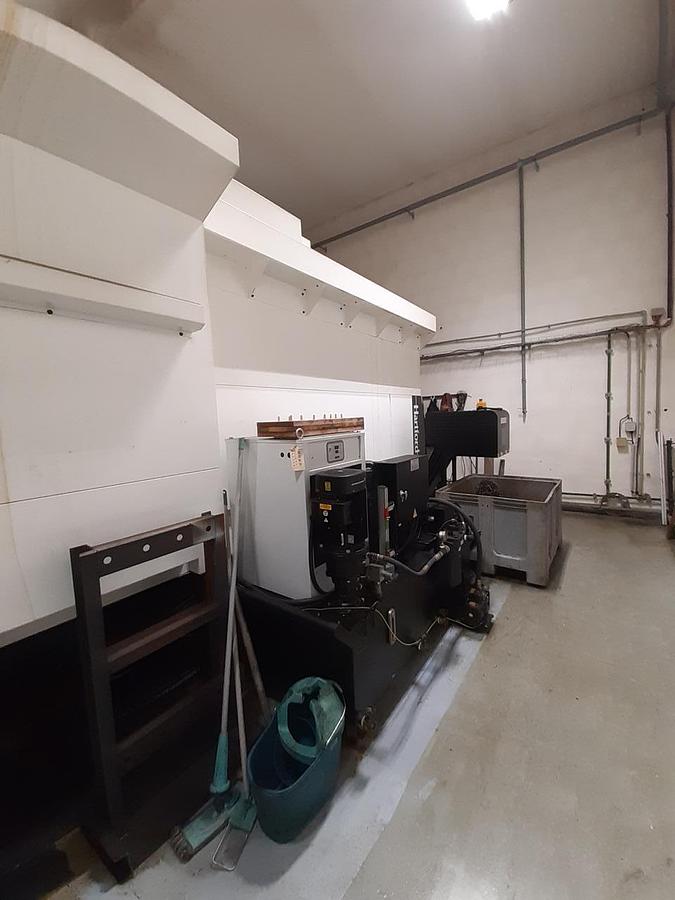

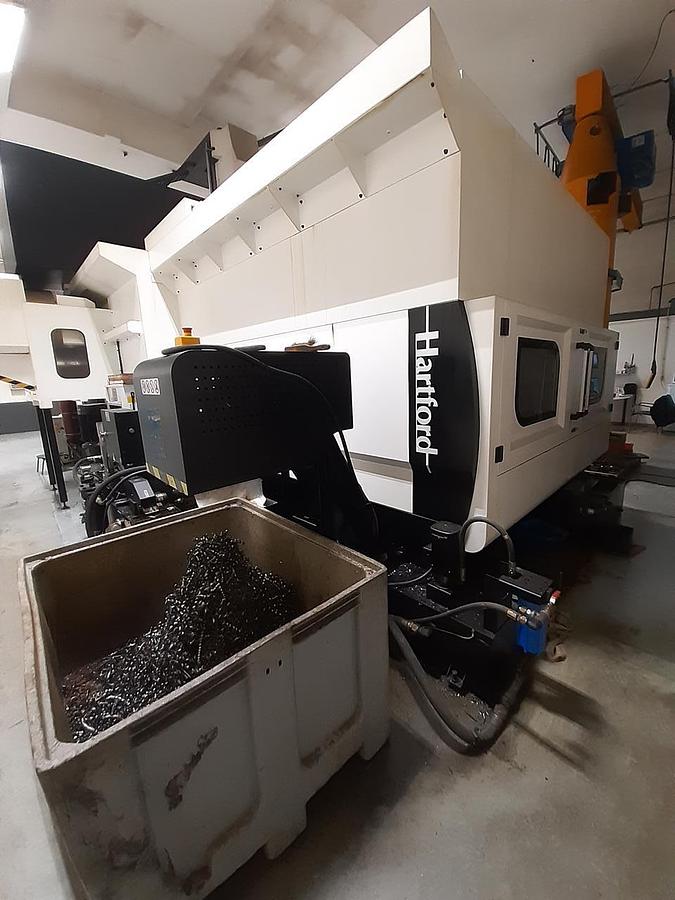

Chip conveyor
Hand wheel

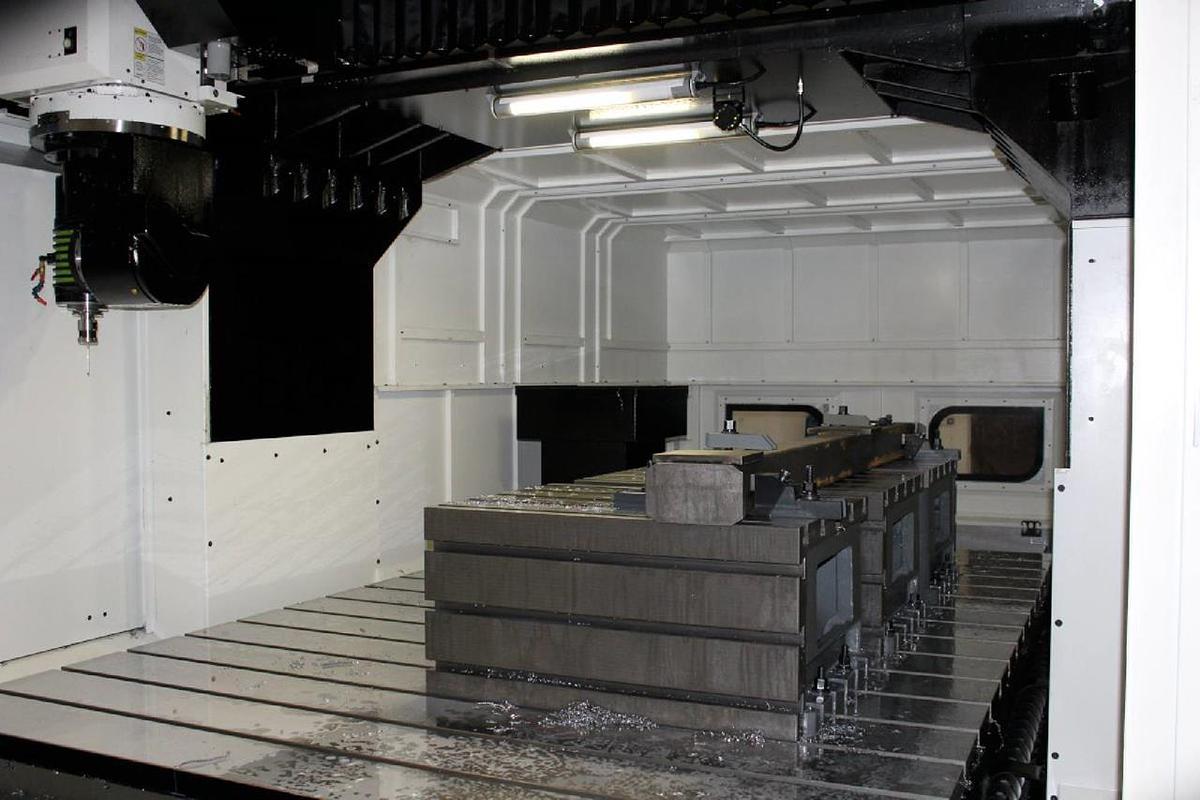

Spindle head
Spindle extension
Angle head HF-AU H265 and Extended head H228
Head positioning in five degree
Internal cooling 40 bar
Probe Renishaw RMP60 ( Q ) ISO50
Specifications
| Manufacturer | Hartford |
| Model | HSA – 428EA |
| Year | 2015 |
| Condition | Used |
| Stock Number | 5441 |

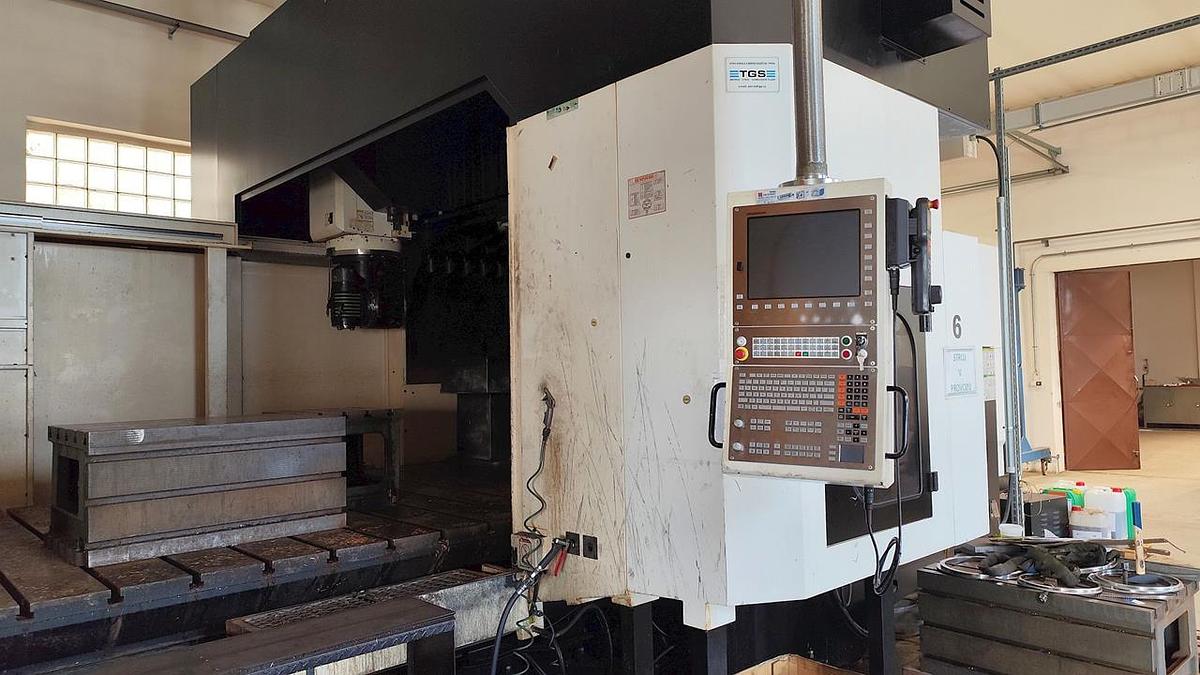

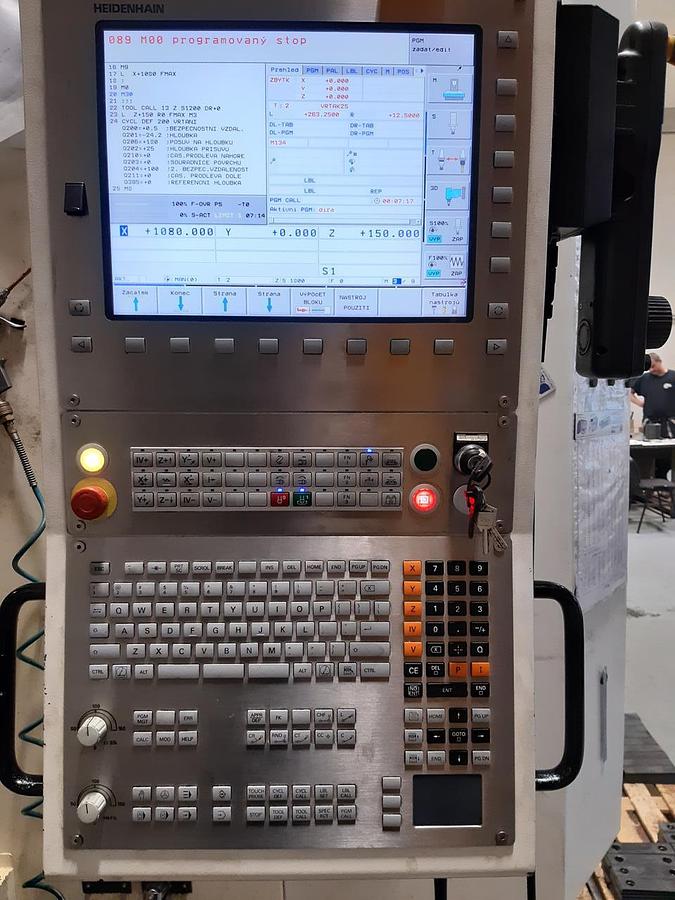

| Control system | Heidenhain 530iHSCI |
| Total hours | 14613 h |
| Hours on | 5484 h |

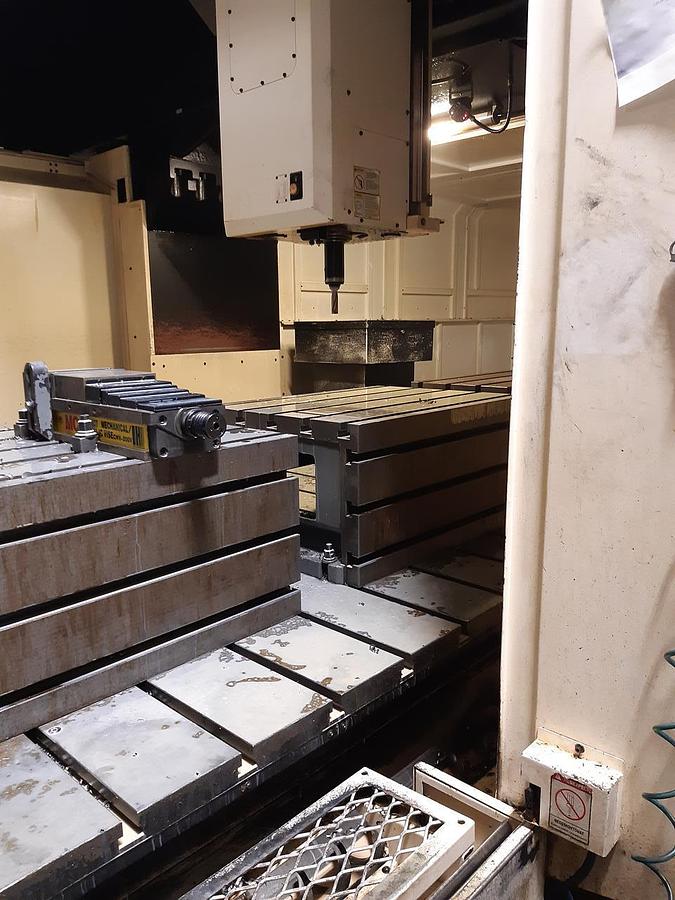

| Length of the working table | 4000 mm |
| Width of the working table | 2500 mm |
| Maximum table load (evenly distributed) | 18000 kg |
| Power of the spindle drive | 26 kW |
| Maximum distance of the spindle from the table | 2800 mm |
| X-Axis travels | 4000 mm |
| Y-Axis travels | 2800 mm |
| Z-Axis travels | 1400 mm |
| Number of axis | 5 pcs |
| Maximum rotary speed of the vertical spindle | 6000 1/min |
| Maximum feed rate in X-axis | 10000 mm/min |
| Maximum feed rate in Y-axis | 10000 mm/min |
| Maximum feed rate in Z-axis | 10000 mm/min |
| Taper | ISO 50 |
| Maximum number of tools | 32 pcs |
| Rapid traverse X/Y/Z | 16000/20000/15000 mm/min |
| Max. tool weight | 15 kg |
| Coolant tank | 400 l |
| Machine height | 6415 mm |
| Machine length | 13000 mm |
| Machine width | 7300 mm |
| Machine weight | 44000 kg |
