Sold

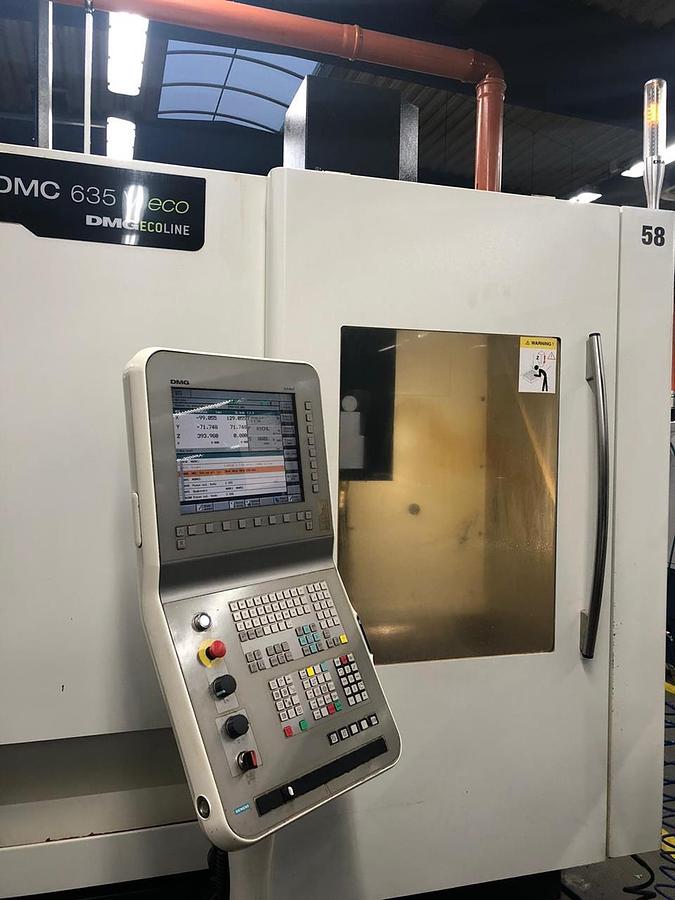

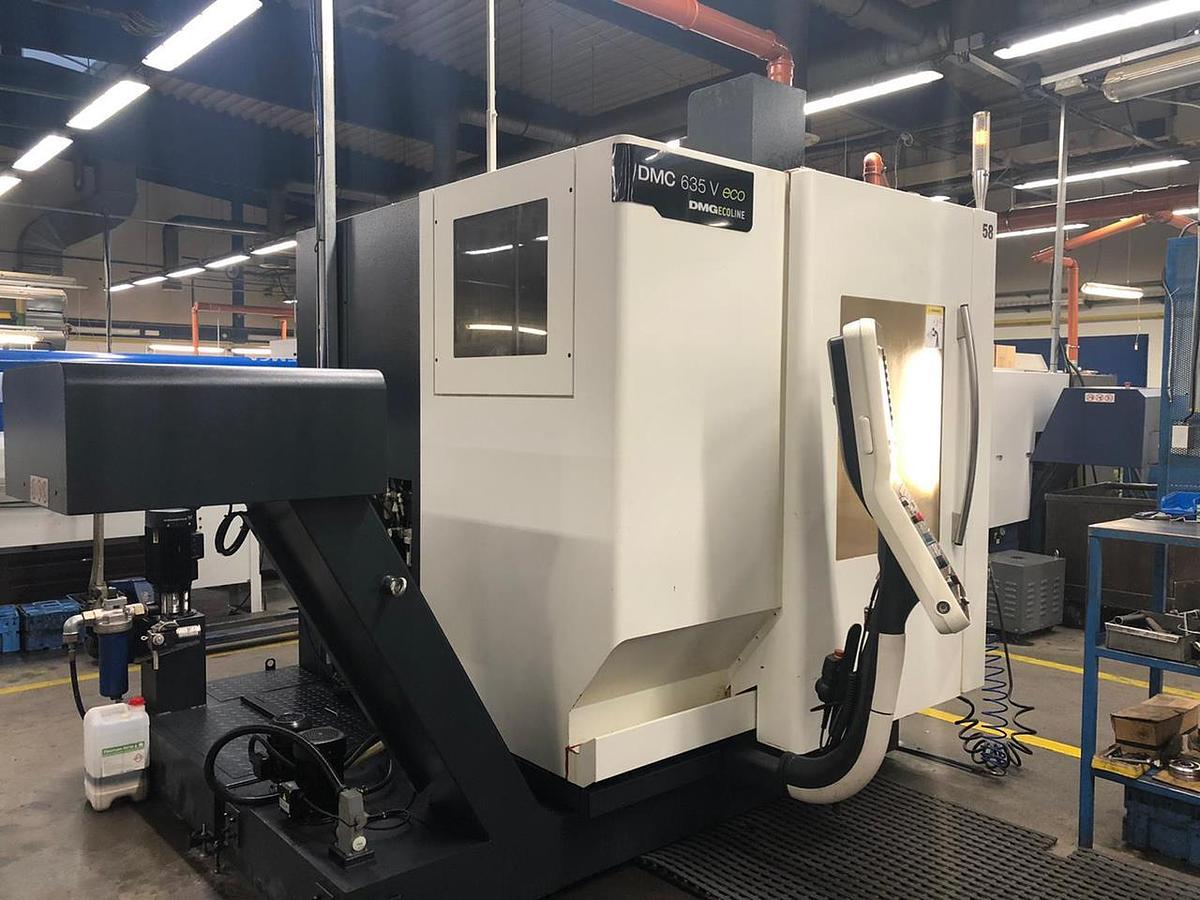

DMG MORI DMC 635
Location:Brno, Czech Republic
Specifications
| Manufacturer | DMG MORI |
| Model | DMC 635 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 5207 |

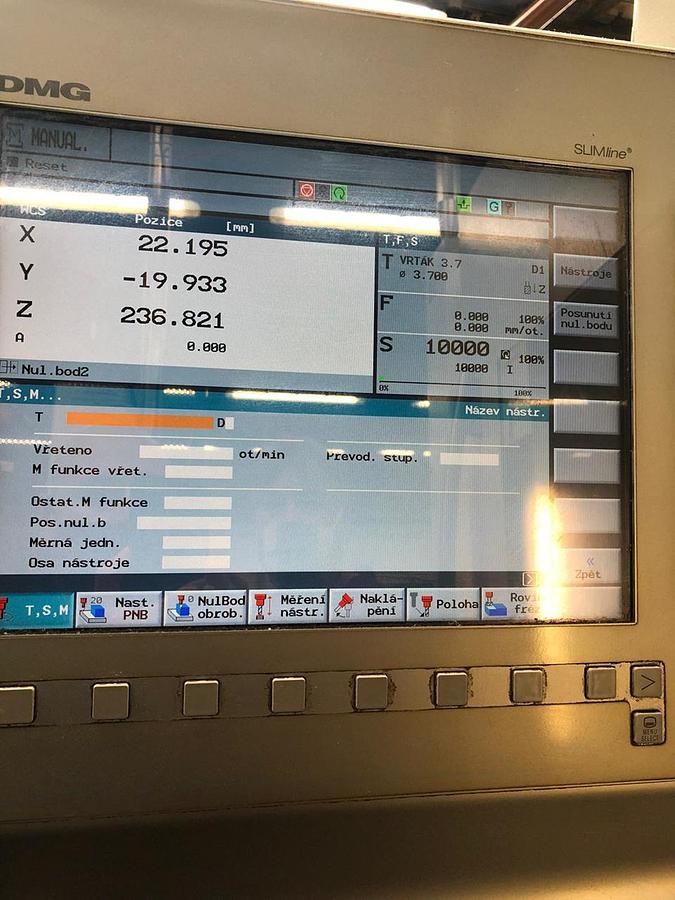

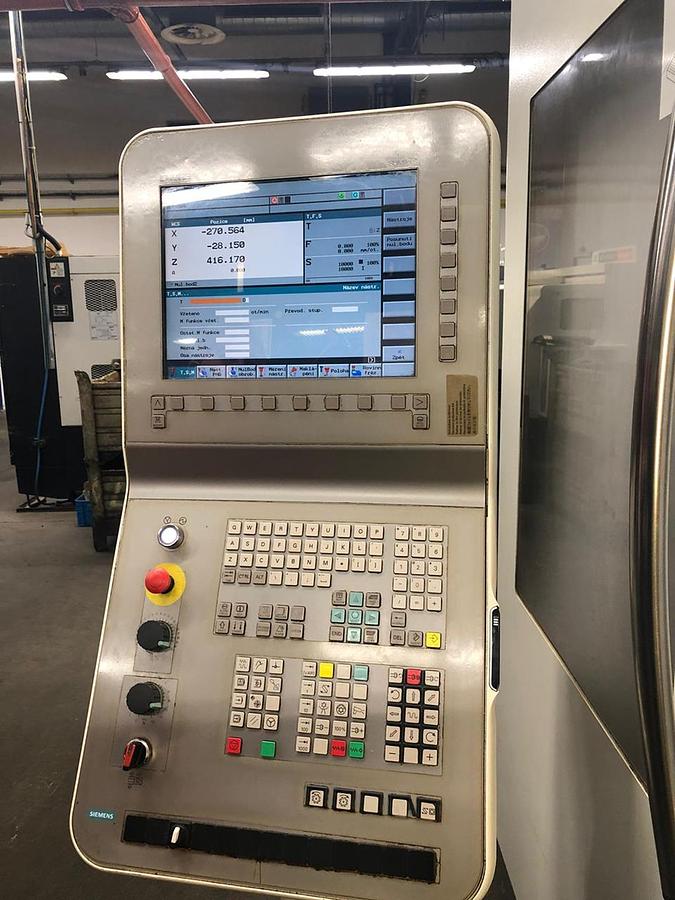

| Control system | SIEMENS 840D SL |

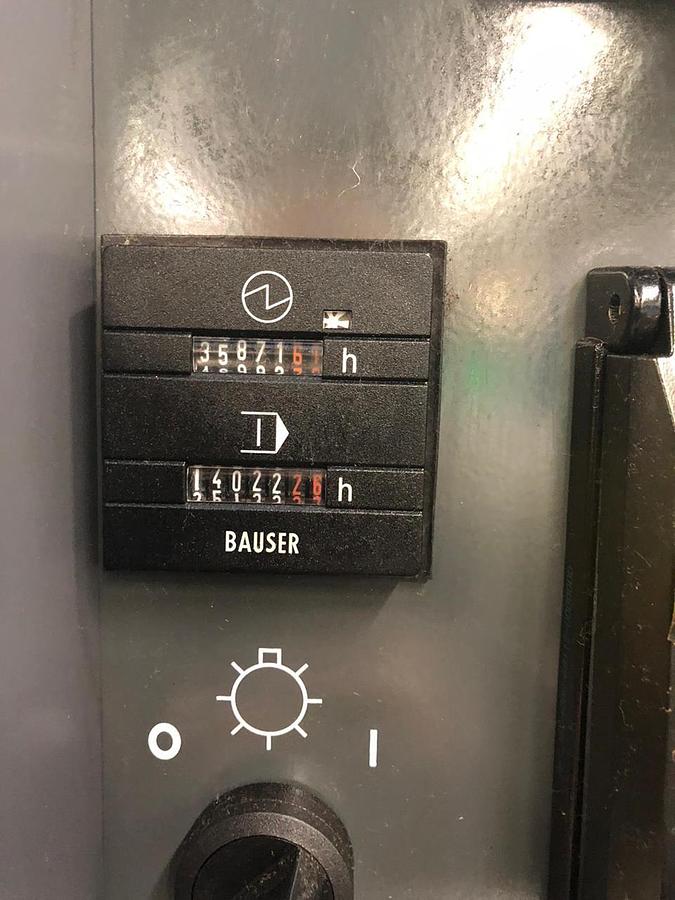

| Total hours | 35870 h |
| Cutting Hours | 14021 h |

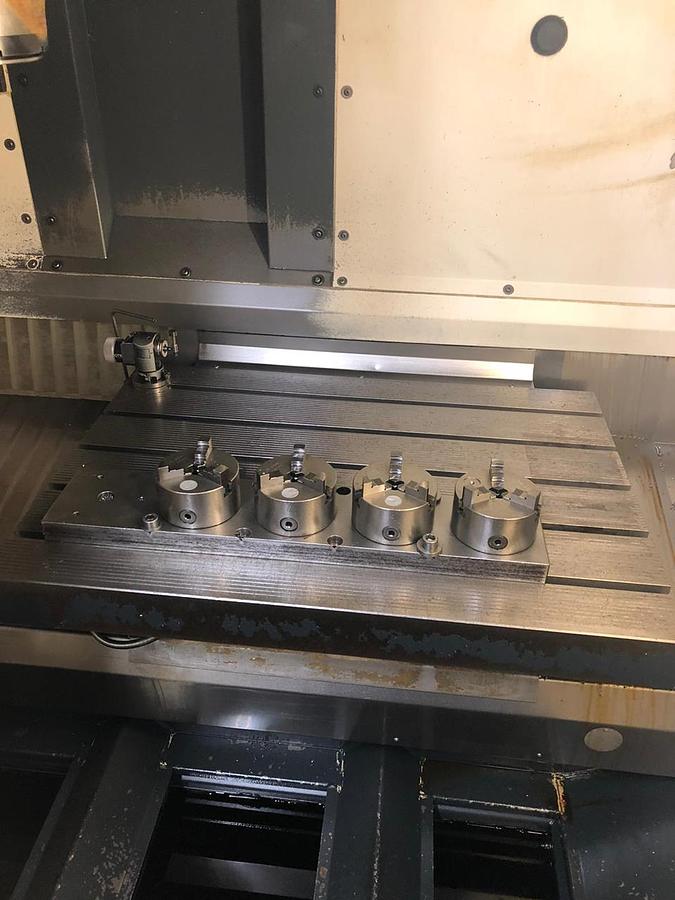

| Length of the working table | 790 mm |
| Width of the working table | 560 mm |
| Maximum table load (evenly distributed) | 600 kg |
| Power of the spindle drive | 13 kW |
| Minimum rotary speed of the vertical spindle | 20 1/min |
| Maximum rotary speed of the vertical spindle | 10000 1/min |
| X-Axis travels | 635 mm |
| Y-Axis travels | 510 mm |
| Z-Axis travels | 460 mm |
| Maximum feed rate in X-axis | 20000 mm/min |
| Maximum feed rate in Y-axis | 20000 mm/min |
| Maximum feed rate in Z-axis | 20000 mm/min |
| Rapid traverse X/Y/Z | 25 mm/min |
| Taper | SK 40 |
| Maximum number of tools | 30 pcs |
| Maximum tool diameter | 130 mm |
| Max. tool weight | 6 kg |
| Machine height | 3500 mm |
| Machine length | 4000 mm |
| Machine width | 2700 mm |
| Machine weight | 4500 kg |
| Availability | 2Q/2022 |
