Sold

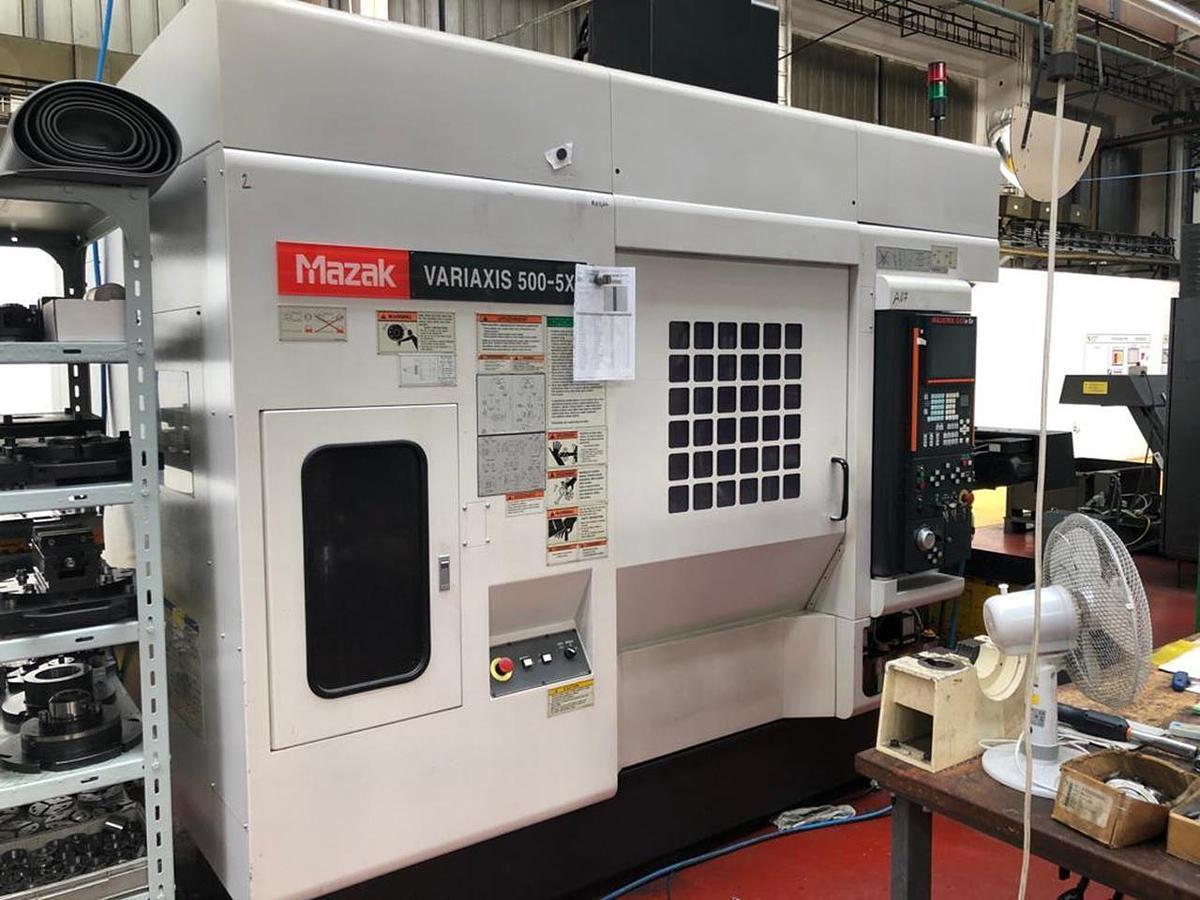

MAZAK VARIAXIS 500-5X
Location:Brno, Czech Republic
Description
Equipment:
Chip conveyor
Specifications
| Manufacturer | MAZAK |
| Model | VARIAXIS 500-5X |
| Year | 2005 |
| Condition | Used |
| Stock Number | 4574 |
| Control system | MAZATROL 640M 5X |
| Total hours | 63621 h |
| Length of the working table | 400 mm |
| Width of the working table | 400 mm |
| Maximum table load (evenly distributed) | 300 kg |
| Power of the spindle drive | 22 kW |
| Minimum rotary speed of the vertical spindle | 35 1/min |
| Maximum rotary speed of the vertical spindle | 12000 1/min |
| Minimum distance of the spindle from the table | 190 mm |
| Maximum distance of the spindle from the table | 650 mm |
| Travel length X-axis (mechanical feed) | 510 mm |
| Travel length Y-axis (mechanical feed) | 510 mm |
| Travel length Z-axis (mechanical feed) | 460 mm |
| Maximum feed rate in X-axis | 50 m/min |
| Maximum feed rate in Y-axis | 50 m/min |
| Maximum feed rate in Z-axis | 50 m/min |
| Taper | HSK 63 |
| Maximum number of tools | 600 pcs |
| Maximum tool length | 300 mm |
| Workpiece diameter | 500 mm |
| Workpiece height | 405 mm |
| Tool diameter | 125 mm |
| Machine height | 3074 mm |
| Machine length | 3973 mm |
| Machine width | 2805 mm |
| Machine weight | 9000 kg |
