Sold

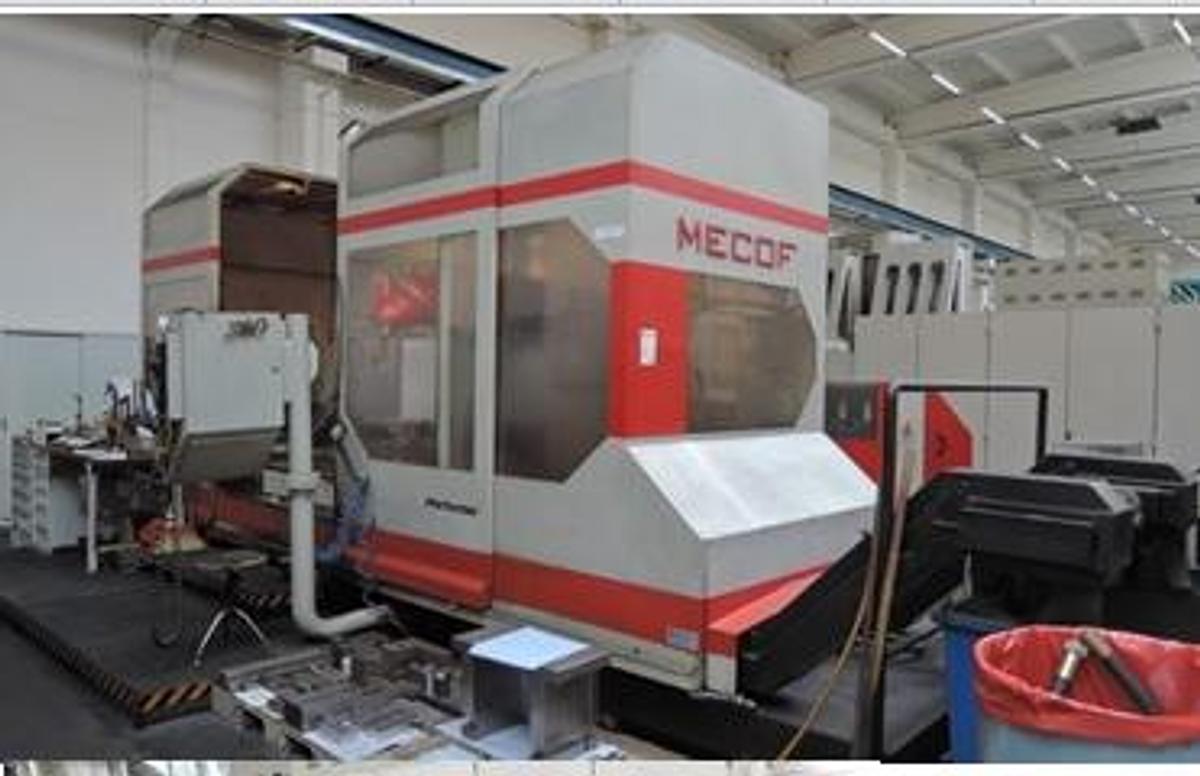

MECOF PERFORMA
Location:Brno, Czech Republic
Description
Travel distances:
+ turning head
Machine table:
2200 x 1500 mm
Universal milling head:
High speed spindle E28:
Tool changer:
Laser measuring device DMDU :
Specifications
| Manufacturer | MECOF |
| Model | PERFORMA |
| Year | 2001 |
| Condition | Used |
| Stock Number | 3963 |

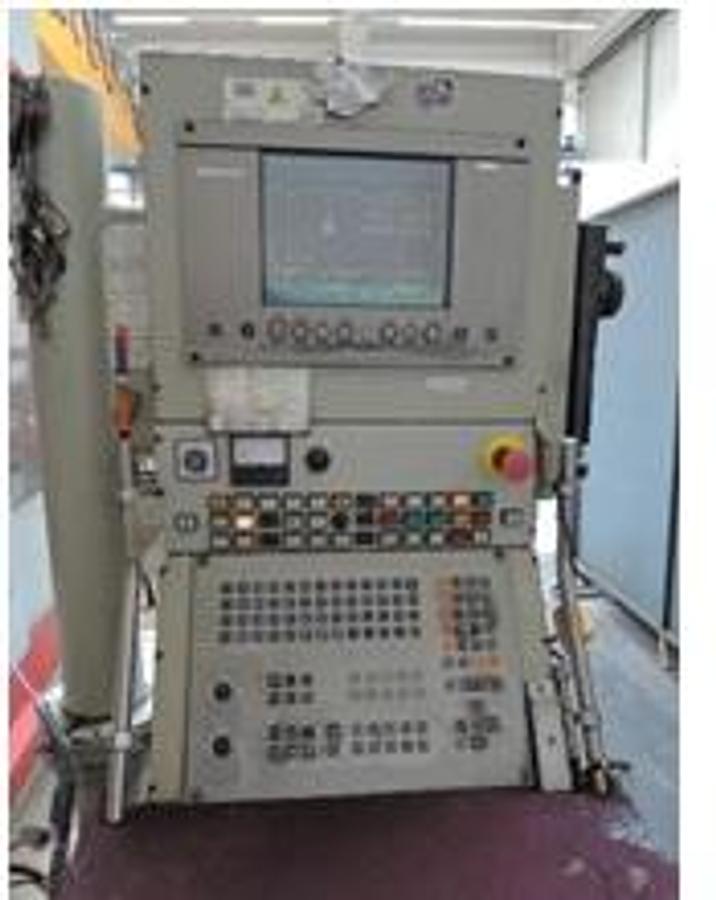

| Control system | Heidenhain TNC 430 |
| Machine operating hours | 51837 h |
| Spindle operating hours | 23564 h |
| Operating hours of the electric spindle | 24621 h |
| X | 2000 mm |
| Y | 1000 mm |
| Z | 1200 mm |
| Weight of work piece | 5000 kg |
| Installed performance | 127 kw |
| Max. power | 15 kw |
| Range of revolution | 21000 rpm |
| Toll holder | ISO 50 |
| Max. torque | 12 Nm |
| Tool holder | HSK 50 E |
| 24 pocket for ISO 50 (120 x 400 mm-Weight | 15 kg) |
| 12 pocket for HSK 50-E (60 x 200 mm- Weight | 5 kg) |
| Accuracy | 0.015 mm |
| Machine Weight | 25000 KG |
| Availability | 01.04.2019 |
