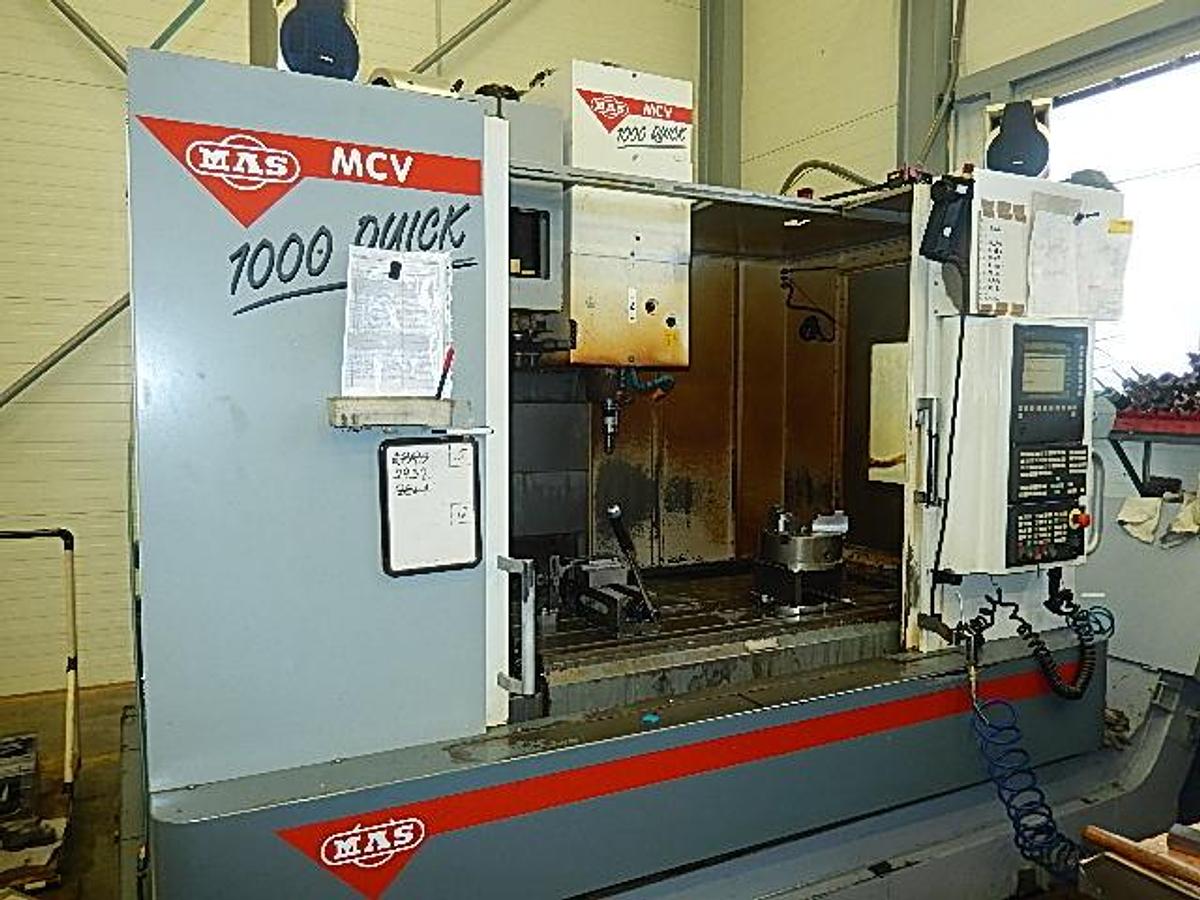

MAS MCV 1000QUICK

Machine dimensions: Table surface 1300x600 mm Number of T-slot table 18/125 mm The width and pitch T-slot table 18/125 mm The greatest length of the path table (X) 1016 mm Maximum length of carriage (Y) 610 mm The greatest path length of the spindle (Z) 660 mm Max. table load 700 Kg Diameter of spindle 75 mm Distance from spindle to table surface 150-810 mm Spindle speed 20-10000 min-1 Rapid traverse X Y Z 22000 mm.min-1 Spindle engine 17/25 kW cooling equipment Pneumatic equipment Number of tool positions 20(40) Max. diameter of tool 100 mm Max. lenit of tool 300 mm Max. weight of tool 6 Kg Chip conveyor
