Sold

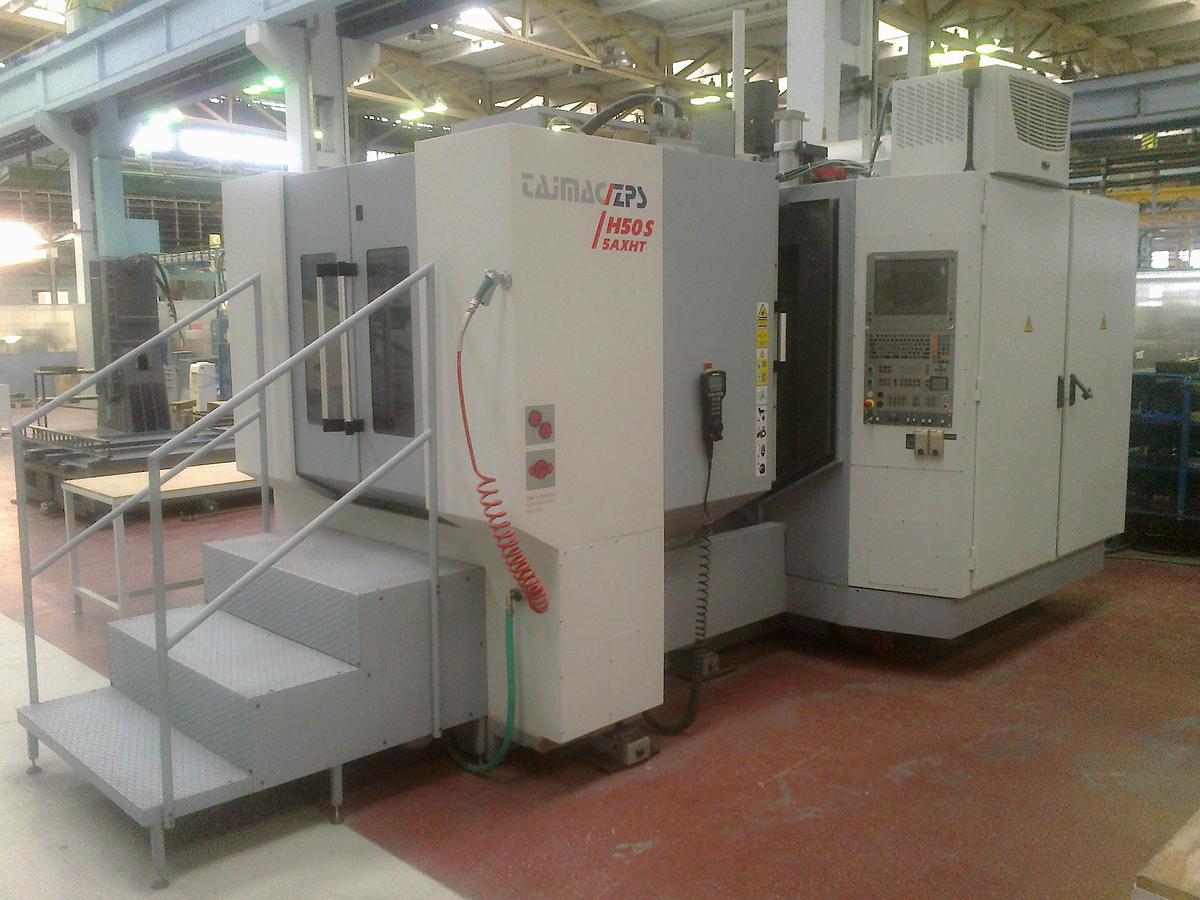

ZPS H 50 5AX
Location:Brno, Czech Republic
Description
Travels
Spindle
Specifications
| Manufacturer | ZPS |
| Model | H 50 5AX |
| Year | 2008 |
| Condition | Used |
| Stock Number | 1110 |
| Control system | HEIDENHAIN iTNC 530 or Sinumerik 840D Solution Line |
| Axis | 5 |
| X-axis | 750 mm |
| Y-axis | 700 mm |
| Z-axis | 770 mm |
| B-axis table indexing range | -1 o - 135 o |
| Rapid traverse in X; Y; Z axes | 50m/min |
| No. of pallets | 2 |
| Working area | 800x 630 mm + CNC NIKKEN rotary table |
| Max. load | 800 kg |
| Max. workpiece dimension | Ø750x 800mm |
| Speed range | 1– 8000 RPM |
| Transmission | 2 gear gearbox + belt transmission |
| Tool clamping taper | SK 50 |
| Tool holder | DIN 69 871/ ISO 7388/1 |
| Retention Knob | DIN 69 872/ ISO 7388/2 – A Type |
| Tool positions | 56 |
| Tool change time | 4 s |
| Max. weight of all tools in changer | 590 kg |
| Machine dimension | 4 534x2 510x2 760 mm |
| Machine weight | 14 000kg |
