Sold

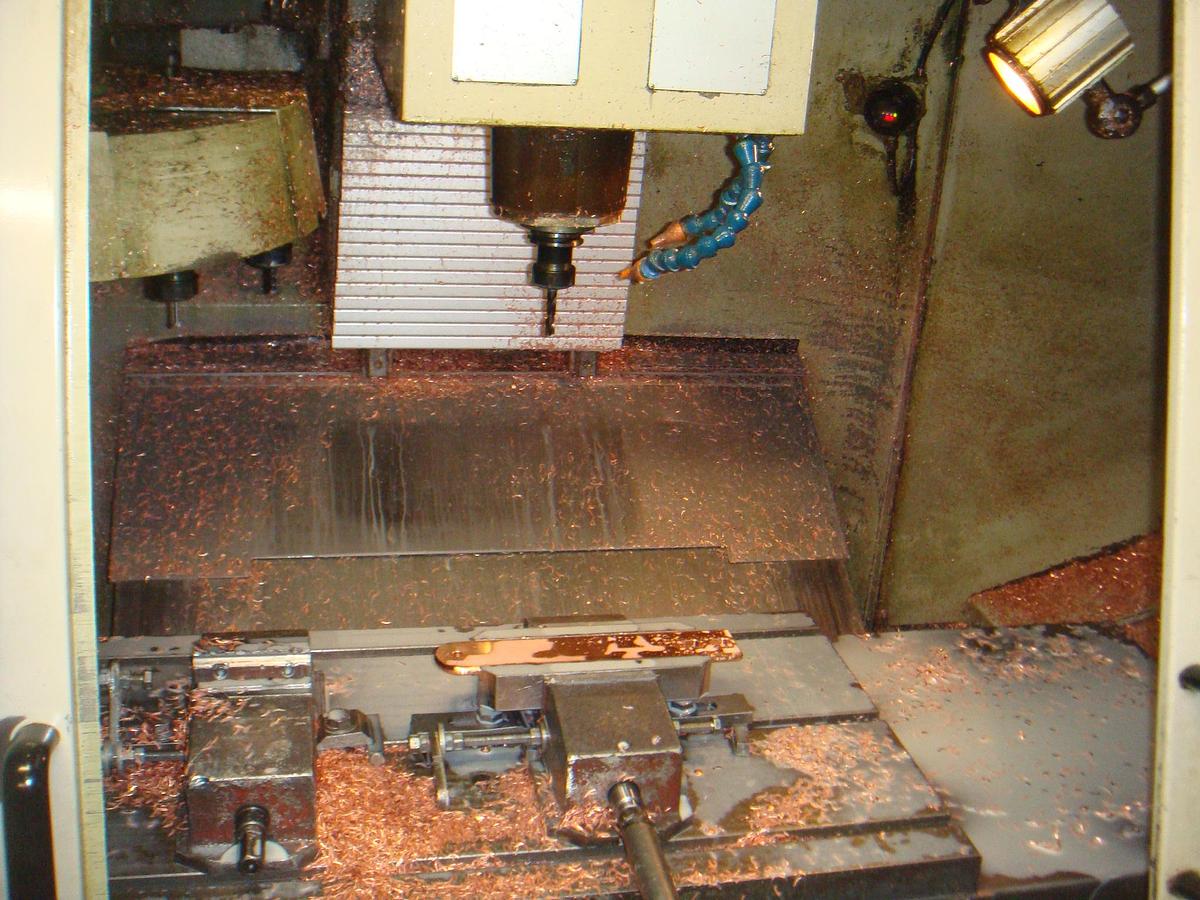

Cincinnati Arrow 750
Location:Brno, Czech Republic
Description
Travel distances:
Z: 560 mm; extended Z: 720 mm
Specifications
| Manufacturer | Cincinnati |
| Model | Arrow 750 |
| Year | 1997 |
| Condition | Used |
| Stock Number | 1093 |

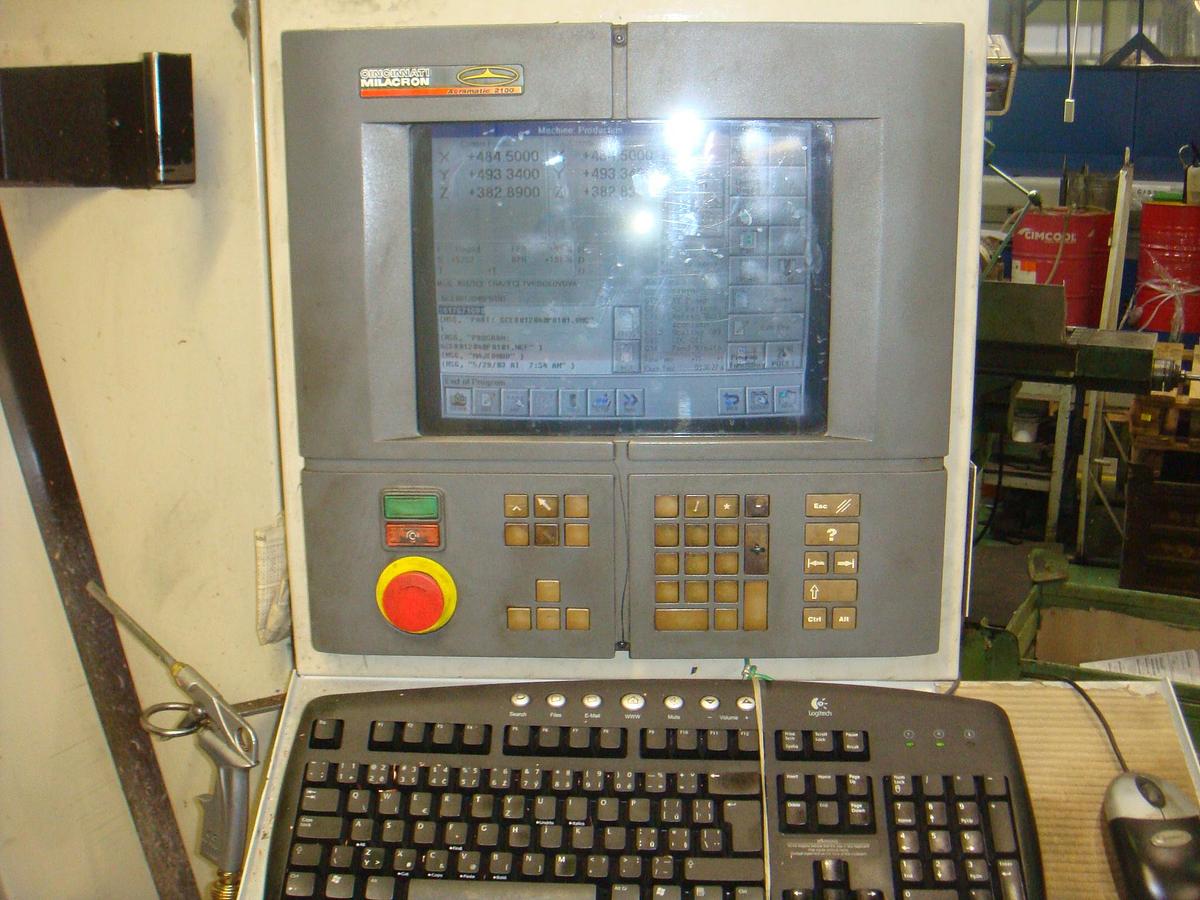

| Control System | ACRAMATIC 2100E |
| X | 762 mm |
| Y | 510 mm |
| Range; spindle gauge line to work surface min. | 127 mm |
| Standard Z axis max. | 687 mm |
| Extended Z axis max. | 847 mm |

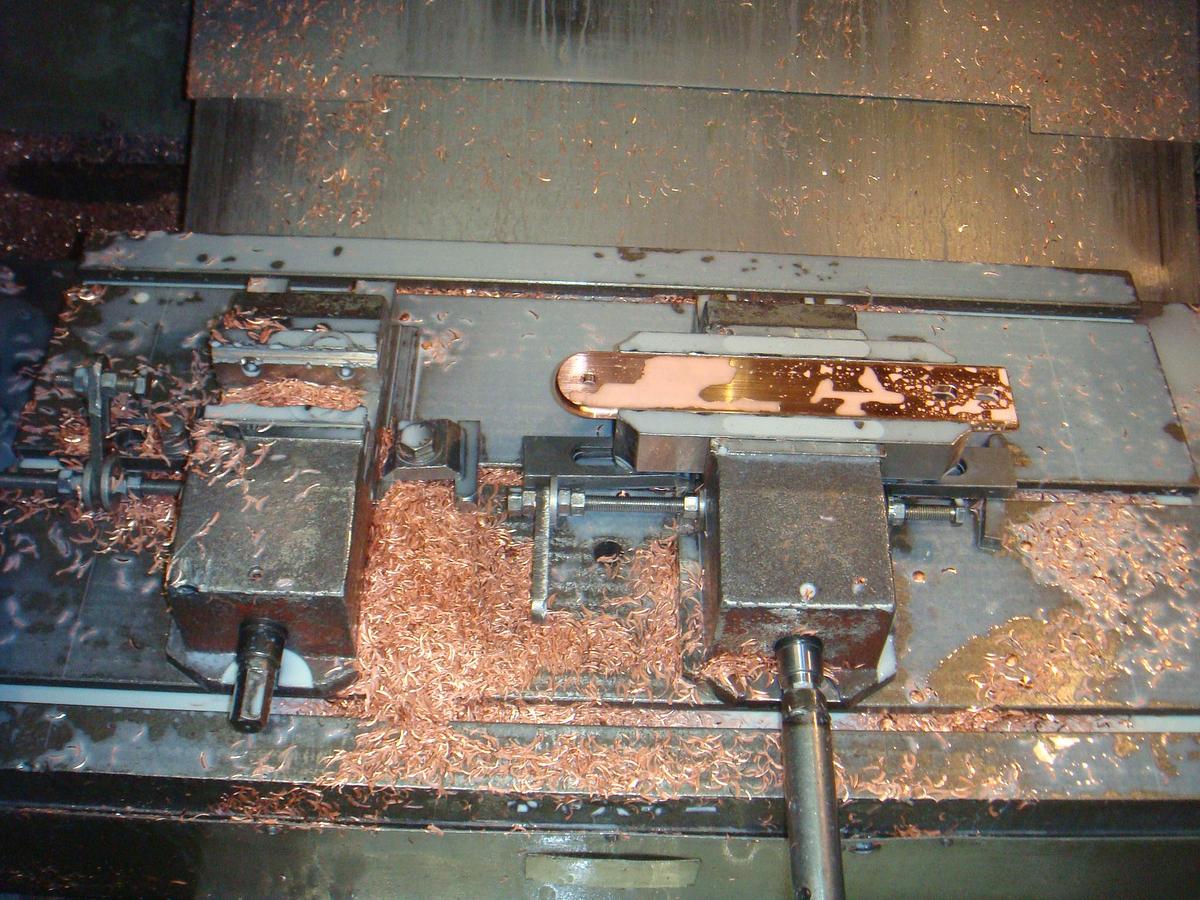

| Work surface dimensions | 865 x 510 mm |
| Load capacity | 455 kg |
| Engine power | 9 kv |
| Spindle speed range min/max | 60/8000 rpm |
| High speed spindle max | 10 000 rpm |
| High torque spindle max | 5 000 rpm |
| Feedrates (X;Y;Z) | 15 000 mm/min |
| Rapid traverse rate (X;Y;Z) | 24 m/min |

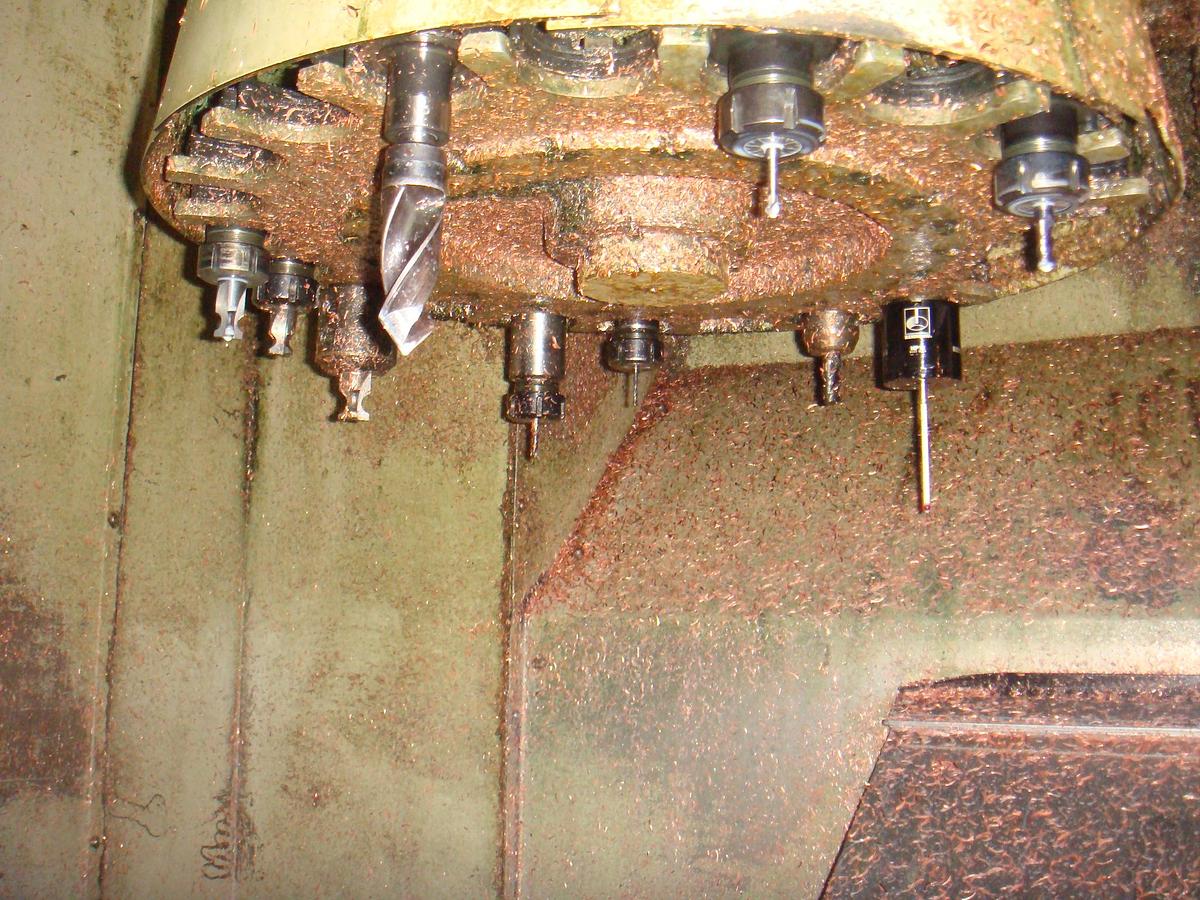

| Tool and holder weight (max) | 6.8 kg |
| Tool lenght (max) | 305 mm |
| Tool diameter (adjacent pockets full) | 80 mm |
| Tool diameter (adjacent pockets empty) | 160 mm |
| Automatic tool change time | 7 s |
| Machine weight | 4200 kg |
| Machine dimensions | 2750 x 2800 x 2500 mm |
