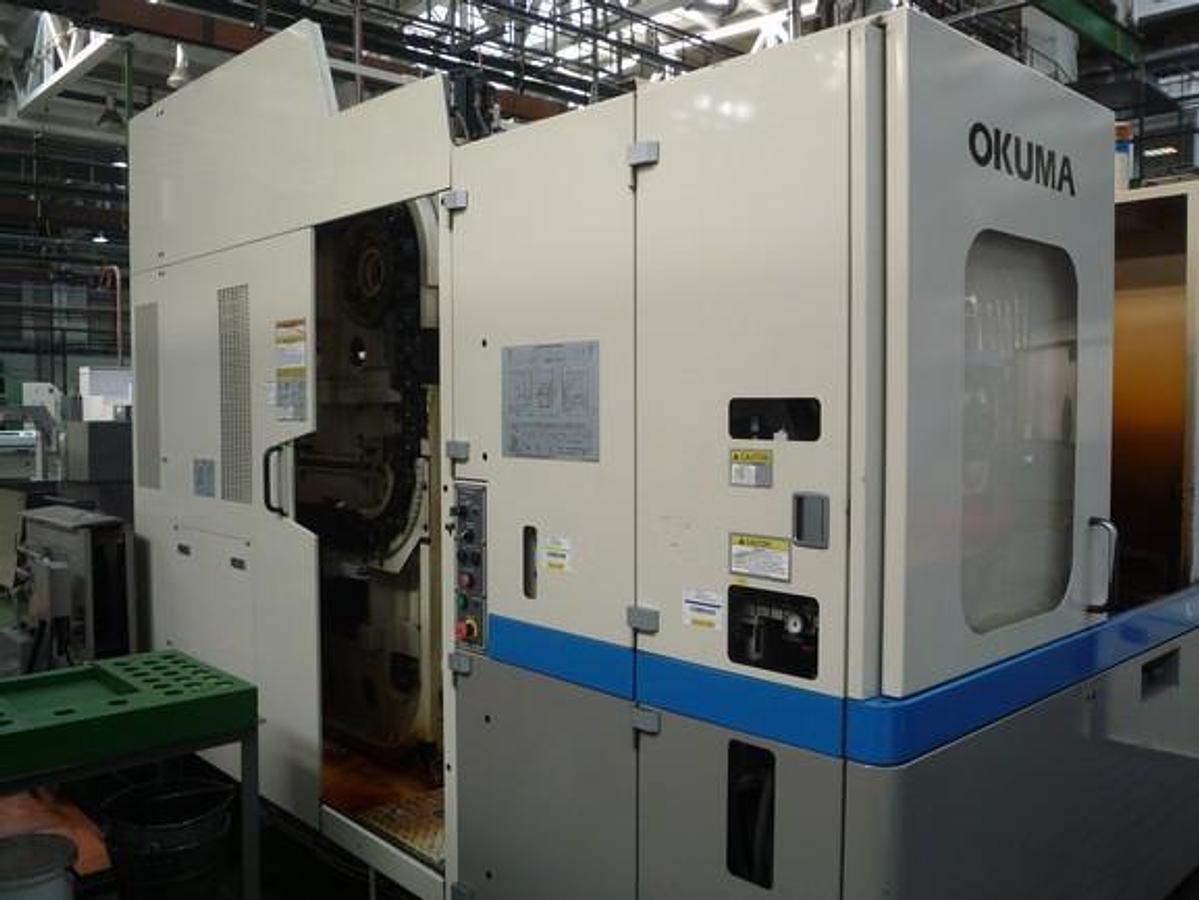

OKUMA MA 40 HA
Location:Brno, Czech Republic
Description
Travels distance :
Table:
Index positions:
Spindle:
Feedrate:
ATC:
MAX. tool diameter:
APC:
Pallet change system:
MOTOR:
Table indexing:
Specifications
| Manufacturer | OKUMA |
| Model | MA 40 HA |
| Year | 2001 |
| Condition | Used |
| Stock Number | 822 |
| Spindle hours | 22000 |
| Control system | Okuma OSP - U100M |
| X-axis | 560mm |
| Y-axis | 610mm |
| Z-axis | 560mm |
| Spindle center to table(pallet) | 50-600mm |
| Spindle end to table(pallet)center | 150-710mm |
| Table (pallet) size | 400x400mm |
| Index positions | 360 positions (increments |
| Direct command) Max. load capacity | 400kg |
| Spindle speed range | 50 to 7000 min-1 |
| Number of spindle speed ranges | infinitely variable |
| Taper hole | NT No.40 |
| Spindle diameter | β 70 |
| Rapid feedrate(X-Y-Z-axis) | 40000mm/min |
| Jog feedrate(X-.Y-Z-axis) | 1 to 40000mm/min |
| Tool Shank | MAS BT 40 |
| Retention knob | MAS2 |
| With adjacent tools | β 100mm |
| Without adjacent tools | β 150mm |
| Max. tool lenght | 300mm |
| Max. tool weight | 10kg |
| Tool selection | Memory random |
| No.of pallets | 2 |
| Standard | AC 2.0 (1)kW |
| Hydraulic power unit | AC 2.2 kv |
| X-axis feed | AC 5.1 kW servomotor |
| Y-axis feed | AC 5.1 kW servomotor |
| Z-axis feed | AC 5.1 kW servomotor |
| Optional | AC 2.8 (0.001)kW |
| Machine height | 2720 mm |
| Magazine indexing (30-tool ATC) | AC 2.0 kW servomotor |
| APC drive (rotary type 2-pallet) | AC 2.0 kW servomotor |
| Floor space | 2490x3990 mm |
| Machine weigh | 10.000 kg |
