MECTRON MGH 250
Location:Brno, Czech Republic
Description
Equipment:

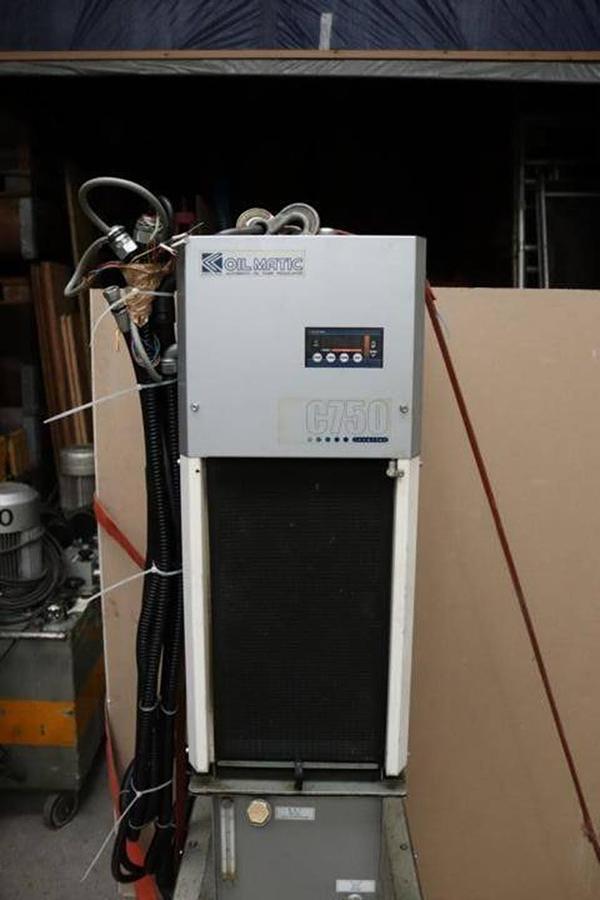

Cooler OilMatic C750
Transformer
Specifications
| Manufacturer | MECTRON |
| Model | MGH 250 |
| Year | 2010 |
| Condition | Used |
| Stock Number | 6634 |

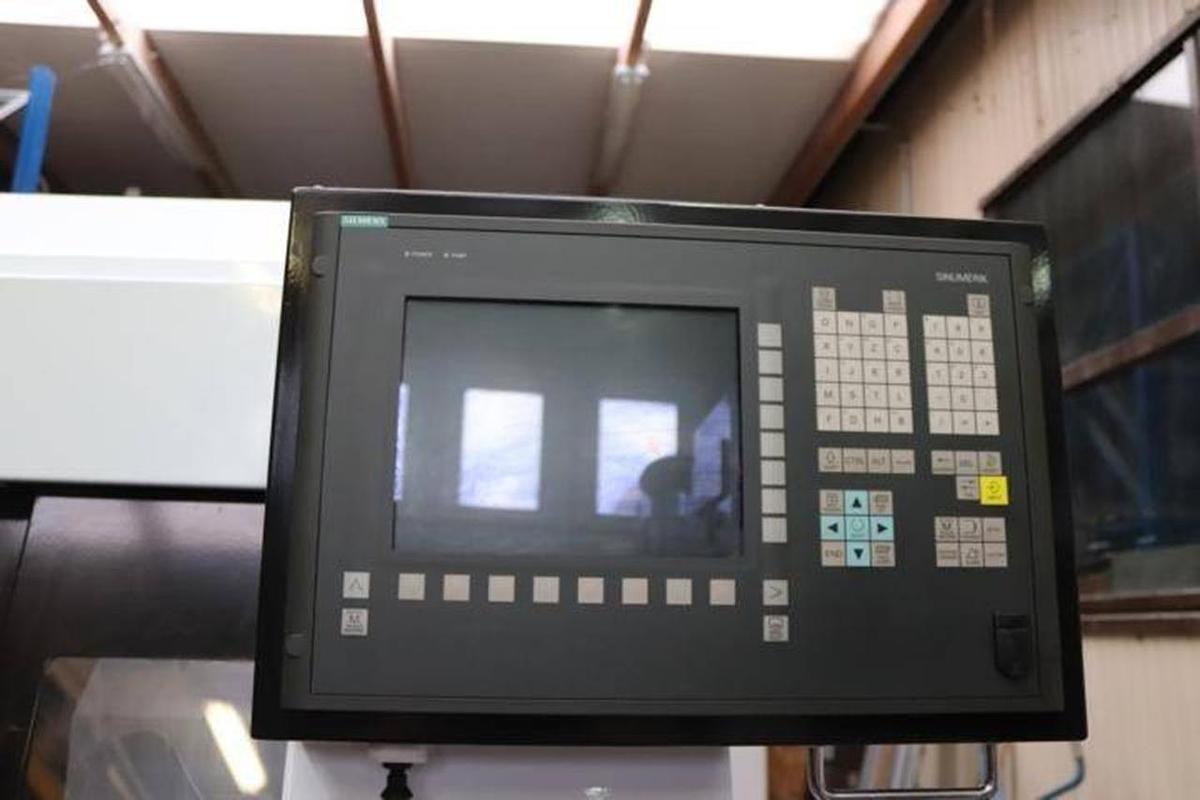

| Control system | SINUMERIK 840DSL |
| Length of the working table | 400 mm |
| Width of the working table | 300 mm |
| Maximum table load (evenly distributed) | 80 kg |
| Maximum rotary speed of the vertical spindle | 30000 1/min |
| Minimum distance of the spindle from the table | 100 mm |
| Maximum distance of the spindle from the table | 350 mm |
| X-Axis travels | 250 mm |
| Y-Axis travels | 250 mm |
| Z-Axis travels | 250 mm |
| Maximum feed rate in X-axis | 36 m/min |
| Maximum feed rate in Y-axis | 36 m/min |
| Maximum feed rate in Z-axis | 36 m/min |
| Taper | HSK E 25 |
| Number of axes | 3 pcs |
| Machine height | 1070 mm |
| Machine length | 1660 mm |
| Machine width | 1800 mm |
| Machine weight | 1850 kg |
