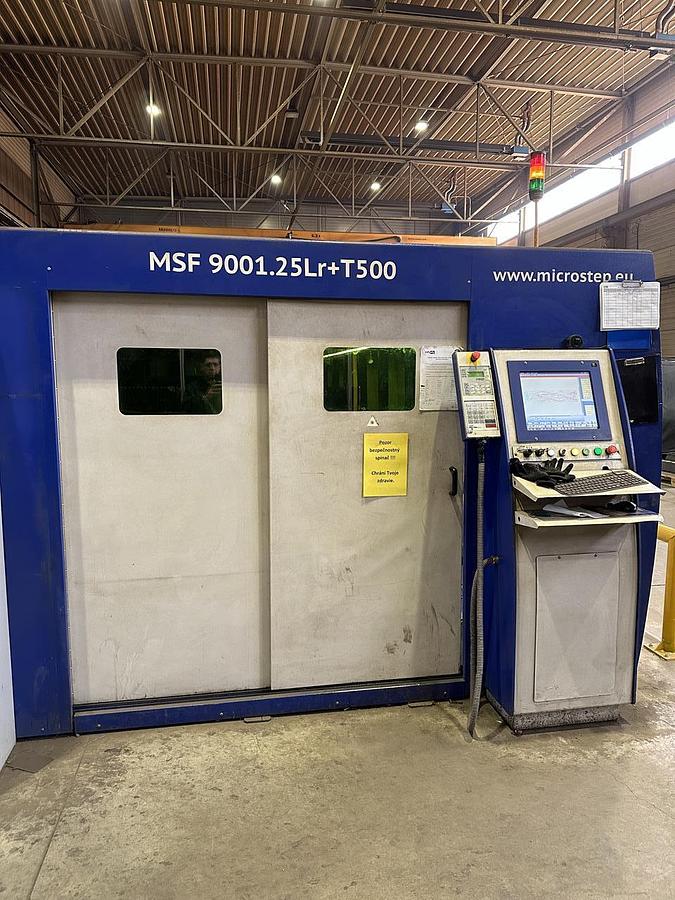

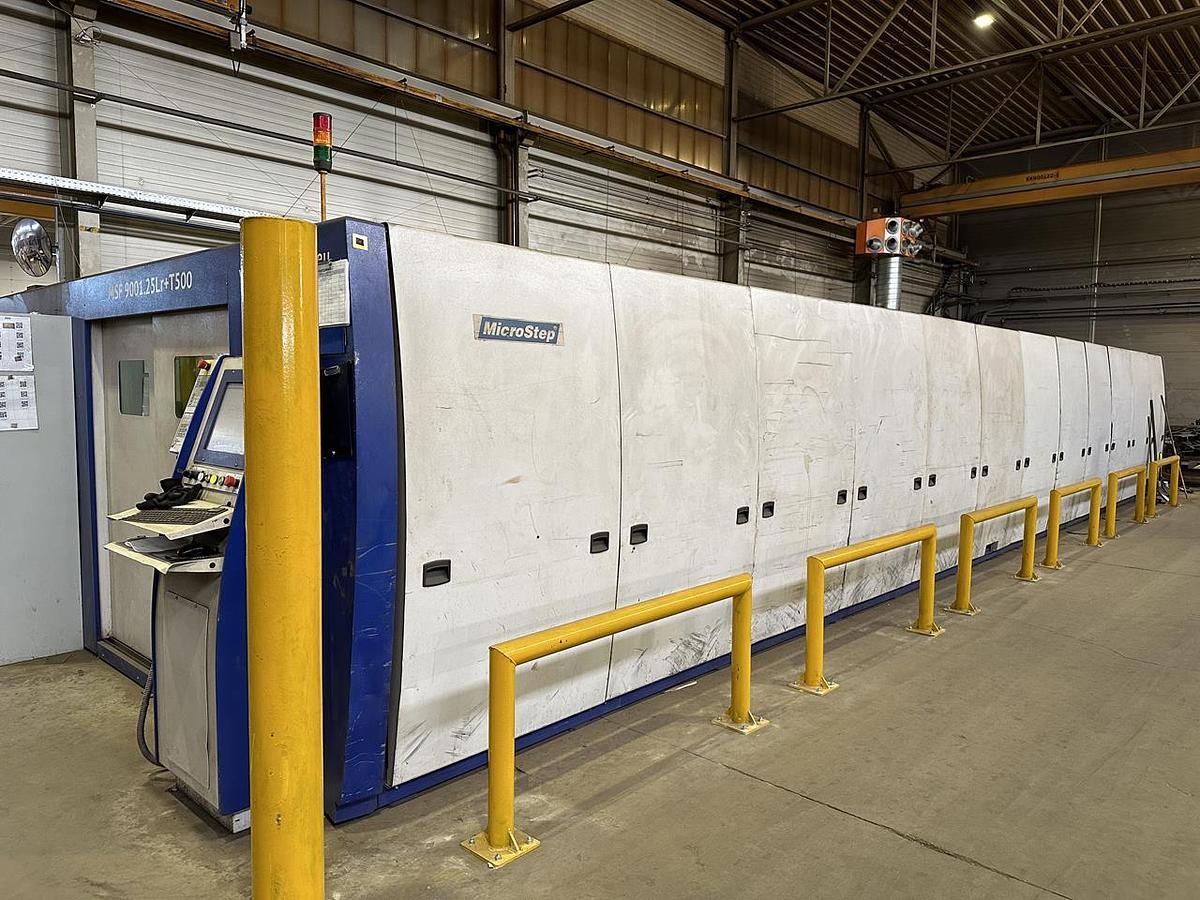

Microstep MSF 9001.25Lr T500
Location:Brno, Czech Republic
Description
After GO 2022 (tables
laser head
laser source)
Equipment:
Technical documentation
Point laser sight
Camera in the head
Protective glass against lens contamination
Remote support
Adaptive cutting
Automatic targeting of sheet rotation
Touch LED panel
Automatic nozzle cleaning
Calibration station

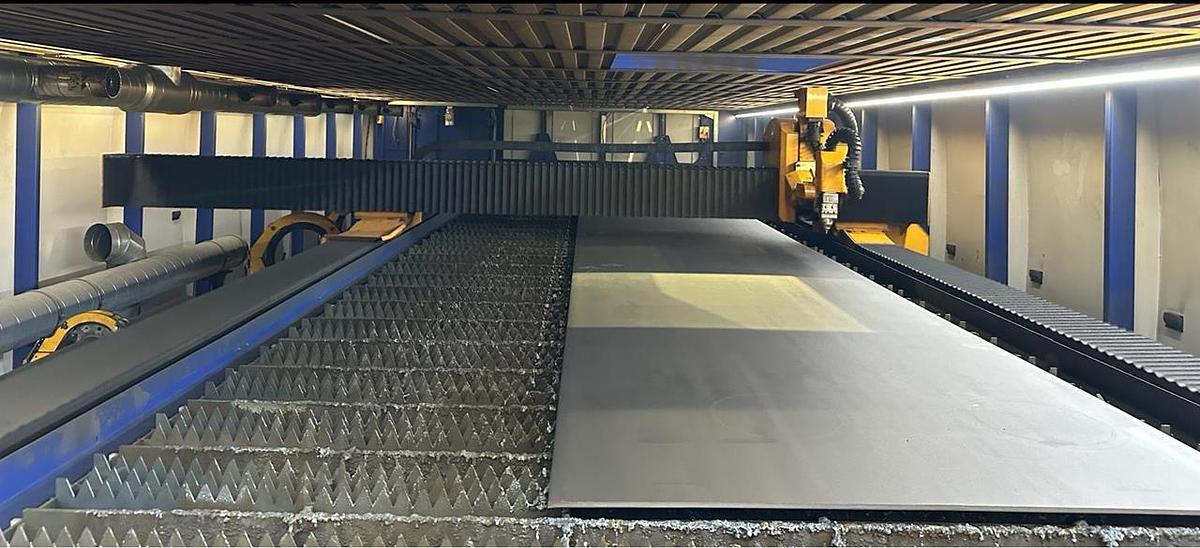

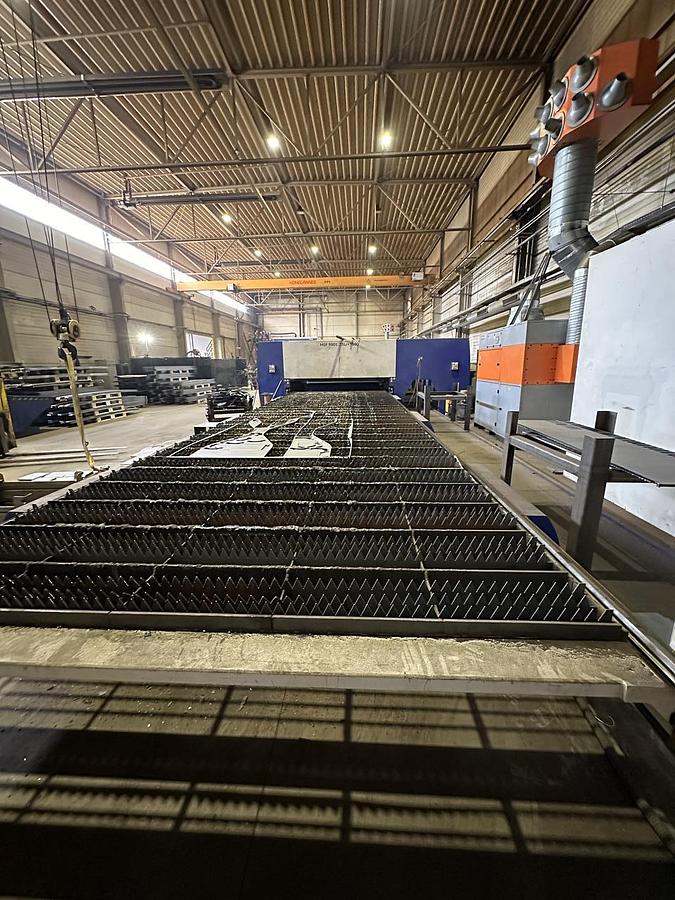

Pallet table changer 2 tables
Suction segments under the grate
1x slag drawer
Automatic chip conveyor

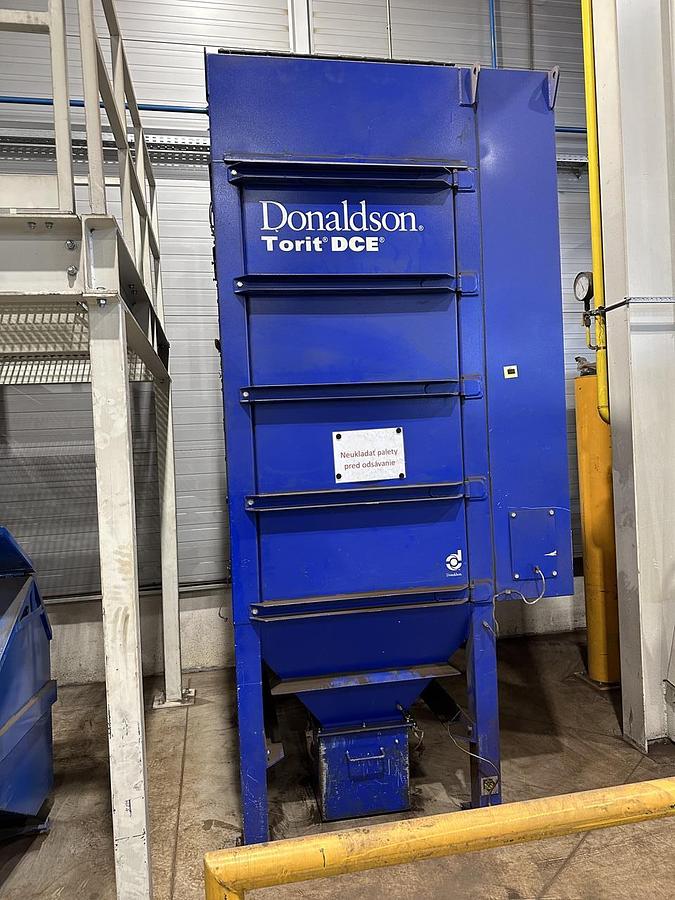

Automatic suction
2x Asper license
Specifications
| Manufacturer | Microstep |
| Model | MSF 9001.25Lr T500 |
| Year | 2015 |
| Condition | Used |
| Stock Number | 7253 |
| Laser power | 10 kW |
| Length of the working table | 9000 mm |
| Width of the working table | 2500 mm |
| Maximum thickness of the cut sheet metal (Stainless Steel) | 25 mm |

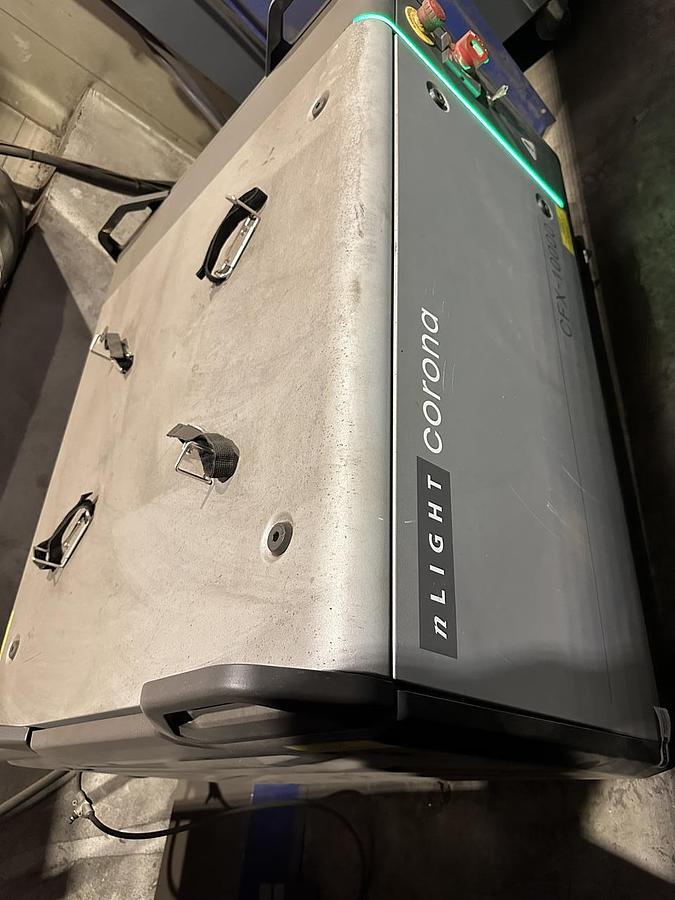

| Source | nLight CORONA-CFX-10000 |
| Positioning speed | 130 m/min |

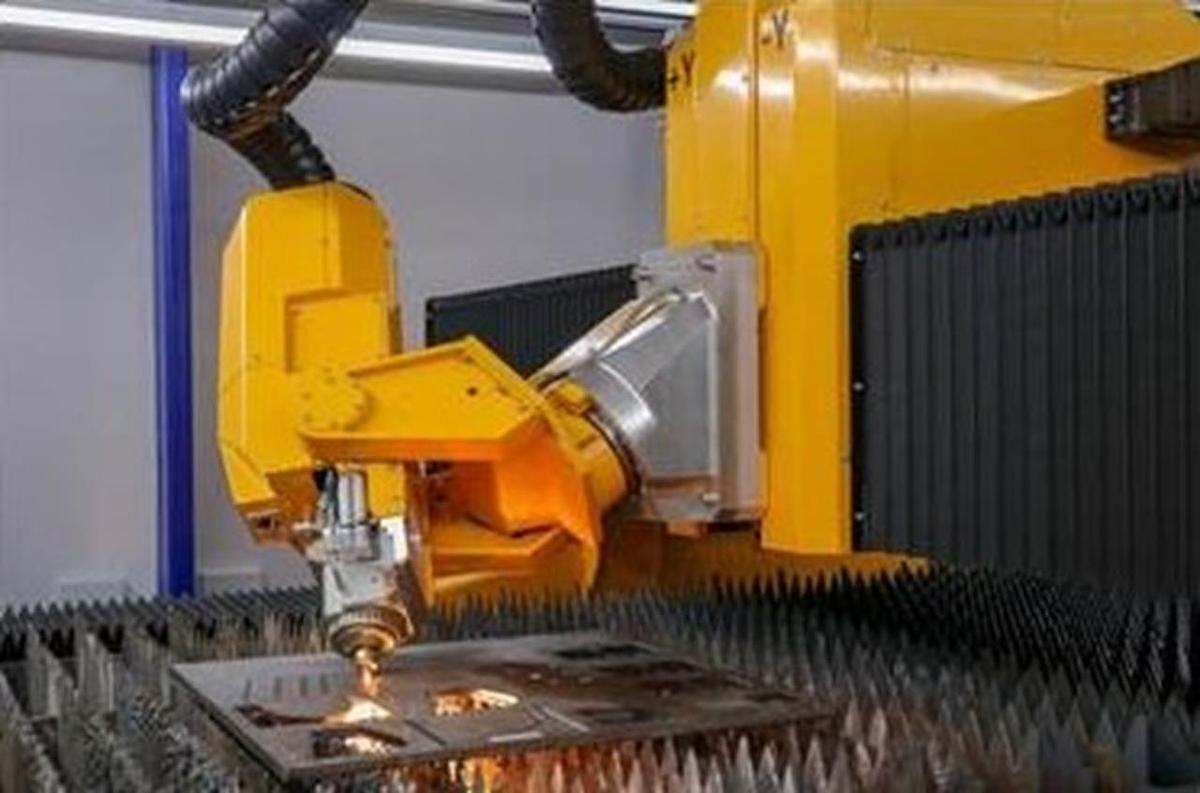

| Laser head | Thermacut EX-TRABEAM-Pro-360 |
| Machine height | 2570 mm |
| Machine length | 23000 mm |
| Machine width | 6000 mm |
