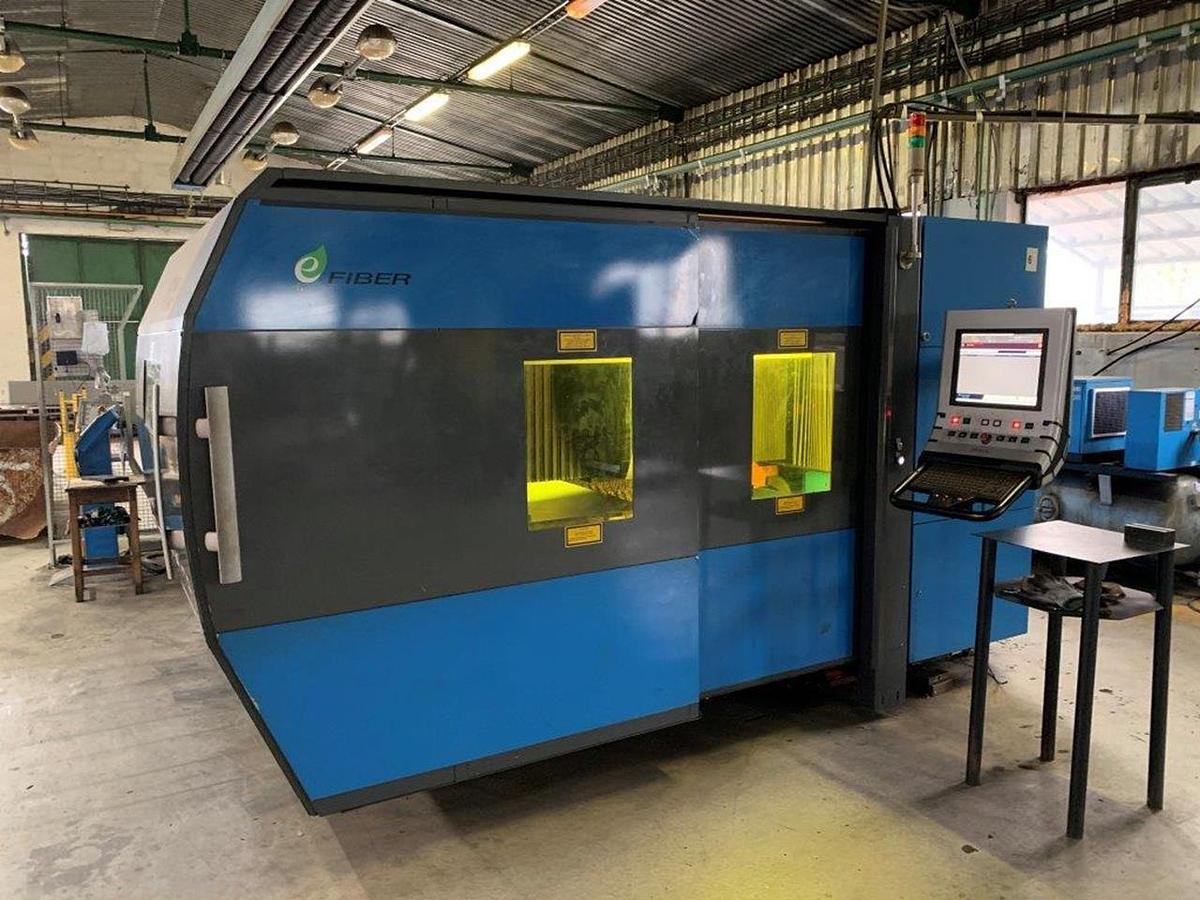

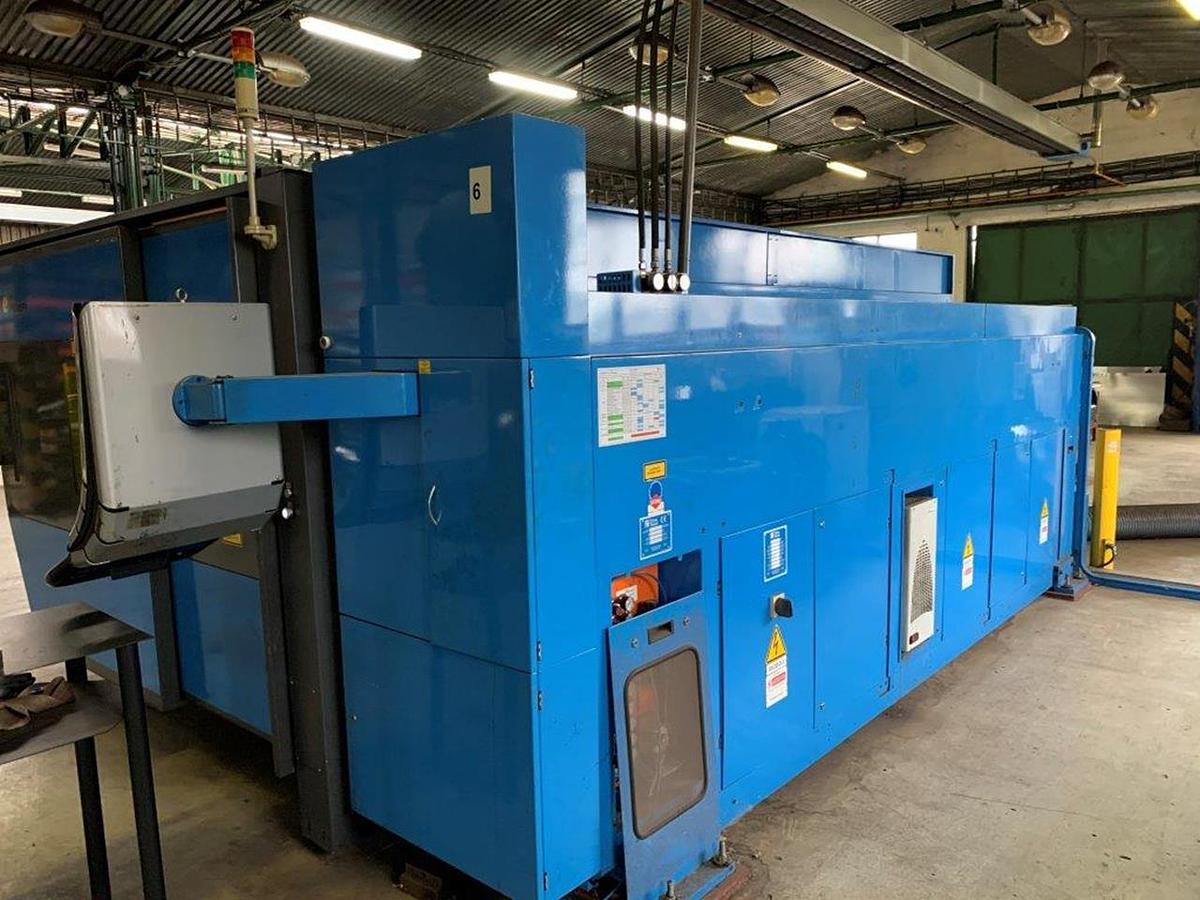

Prima Power Platino Fiber
Location:Brno, Czech Republic
Description
Equipment:
Cooling
Suction
Two changing tables with steel grates
Specifications
| Manufacturer | Prima Power |
| Model | Platino Fiber |
| Year | 2014 |
| Condition | Used |
| Stock Number | 6906 |
| Control system | Prima Power |

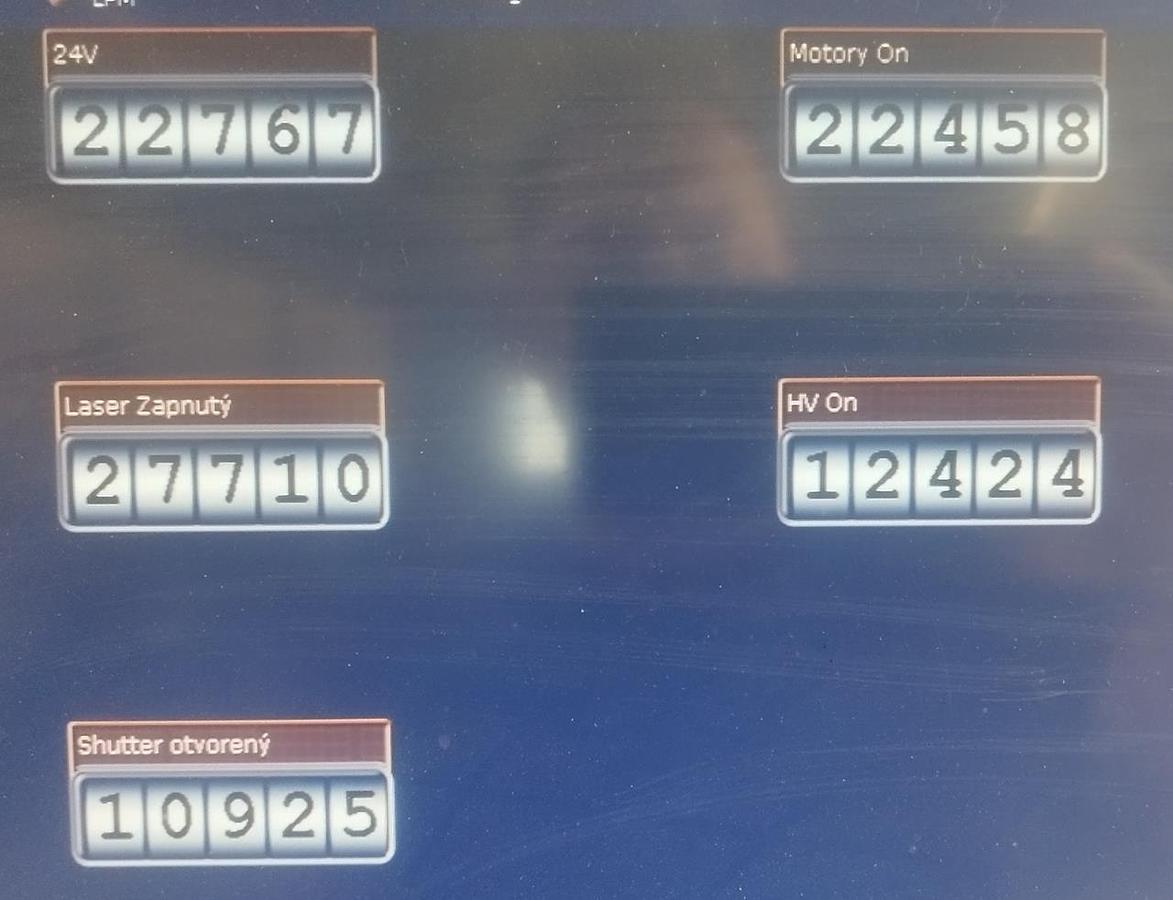

| Total hours | 27 710 h |
| Beam ON | 12 424 |
| Laser power | 3 kW |
| Length of the working table | 3000 mm |
| Width of the working table | 1500 mm |
| Maximum sheet thickness (carbon steel) | 20 mm |
| Maximum thickness of the cut sheet metal (Stainless Steel) | 8 mm |
| Maximum sheet thickness (copper) | 6 mm |
| Maximum thickness of the cut sheet metal (Aluminum) | 8 mm |
| Travel length X-axis | 3065 mm |
| Travel length Y-axis | 1560 mm |
| Travel length Z-axis | 150 mm |
| Source | IPG 3000 |
| Machine height | 2200 mm |
| Machine length | 9797 mm |
| Machine width | 3757 mm |
| Machine weight | 10000 kg |
| Cutting gas | nitrogen oxygen and compressed air |
