Sold

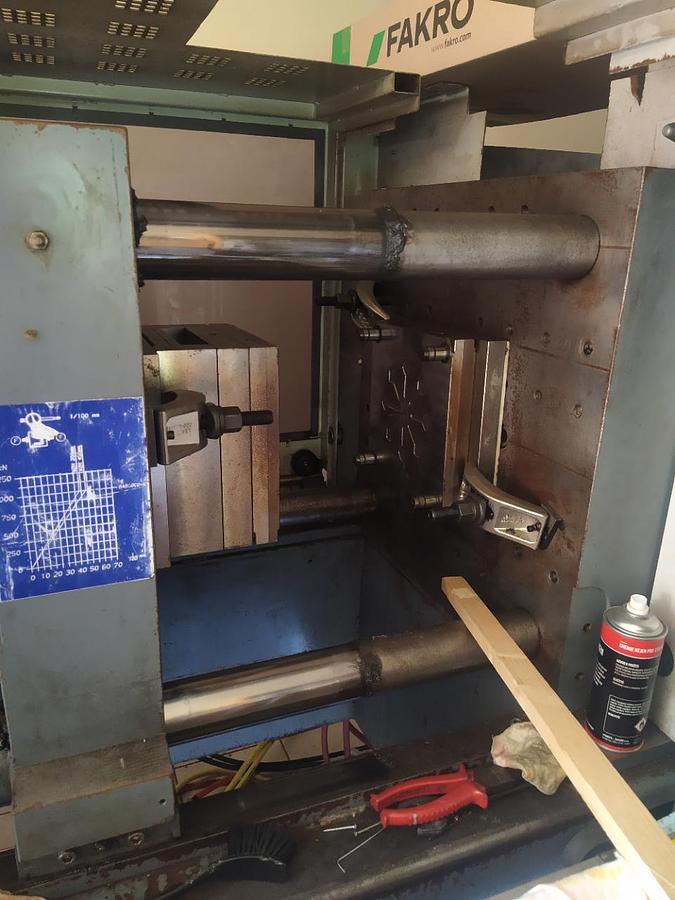

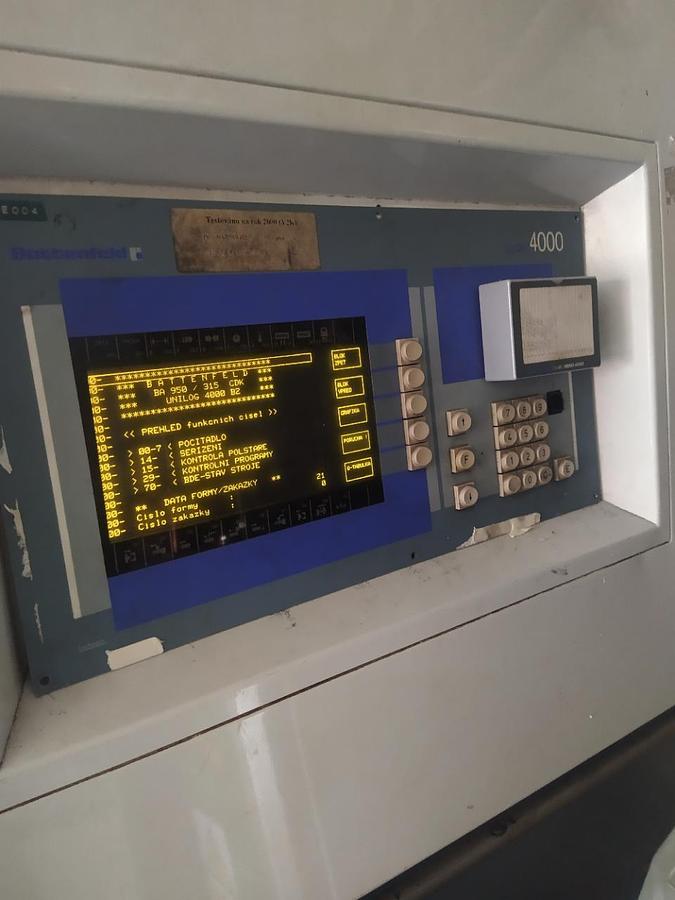

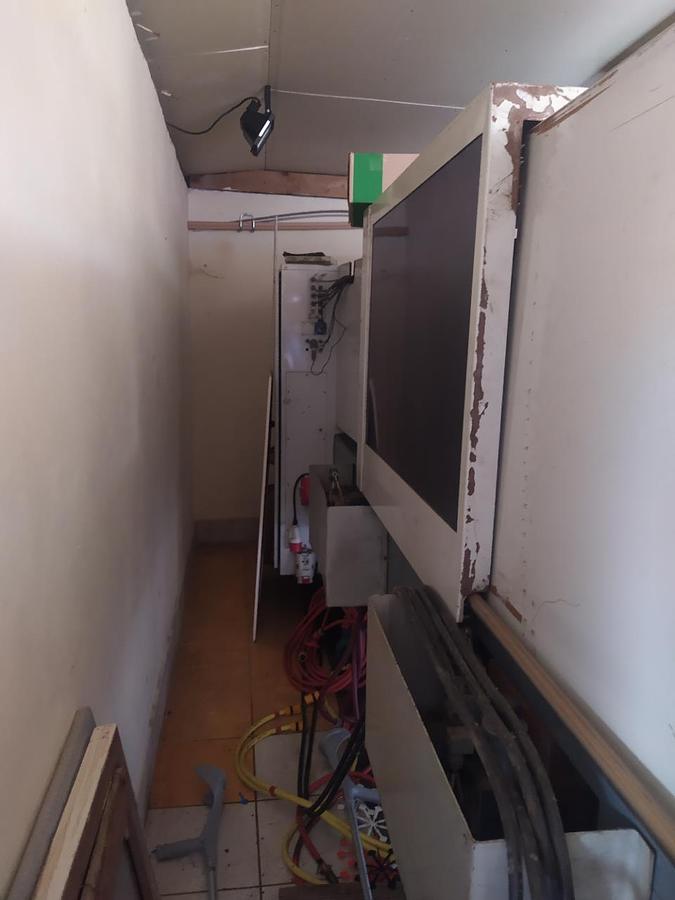

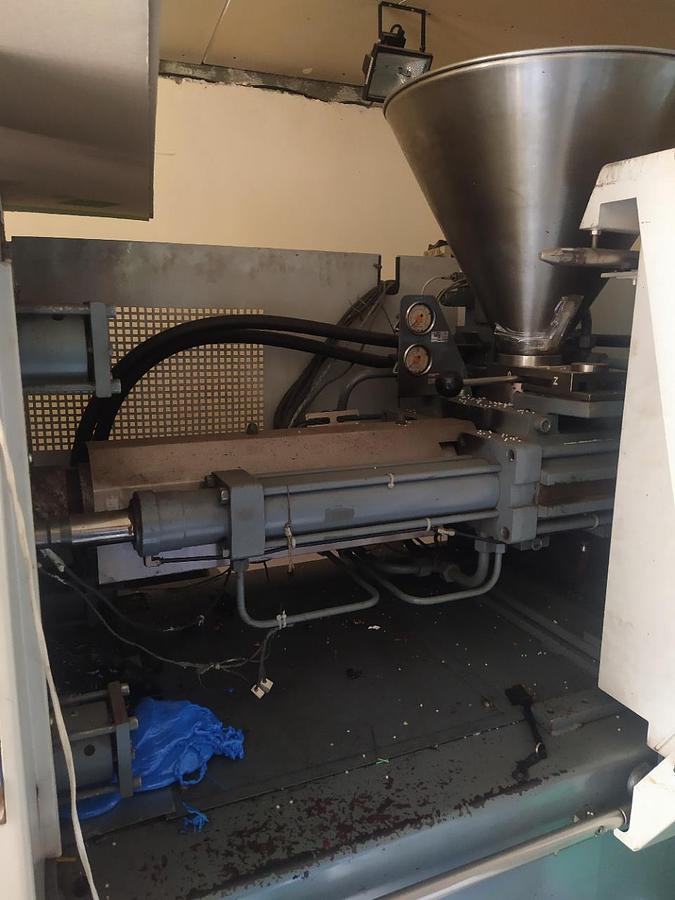

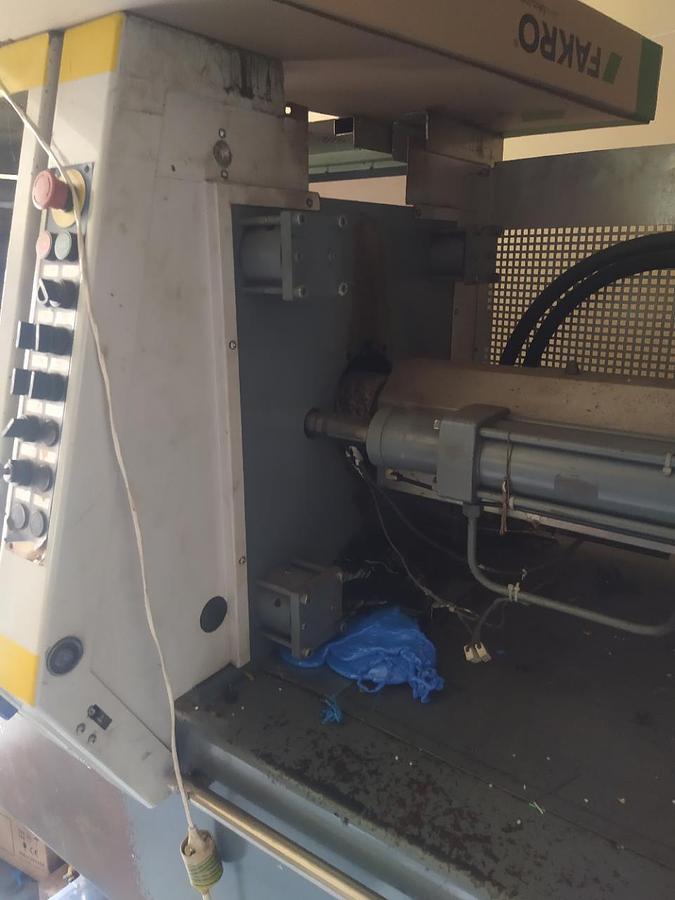

Battenfeld BA 950 CDK
Location:Brno, Czech Republic
Specifications
| Manufacturer | Battenfeld |
| Model | BA 950 CDK |
| Year | 1993 |
| Condition | Used |
| Stock Number | 6073 |
| Clamping force | 95 t |
| Injection capacity | 286 cm³ |
| Min. Height of the plate for mounting the mold | 640 mm |
| Min. Width of the plate for mounting the mold | 640 mm |
| Distance between the columns (horizontal) | 410 mm |
| Distance between the columns (vertical) | 410 mm |
| Power of the ejector | 1.8 t |
| Length of the ejector stroke | 125 mm |
| Length of the screw stroke | 180 mm |
| Maximum injection pressure | 171 MPa |
| Length of the stroke of the injection nozzle | 250 mm |
| Pressure force of the injection nozzle | 8.1 t |
| Weight of the injection molding machine | 4400 kg |
