Sold

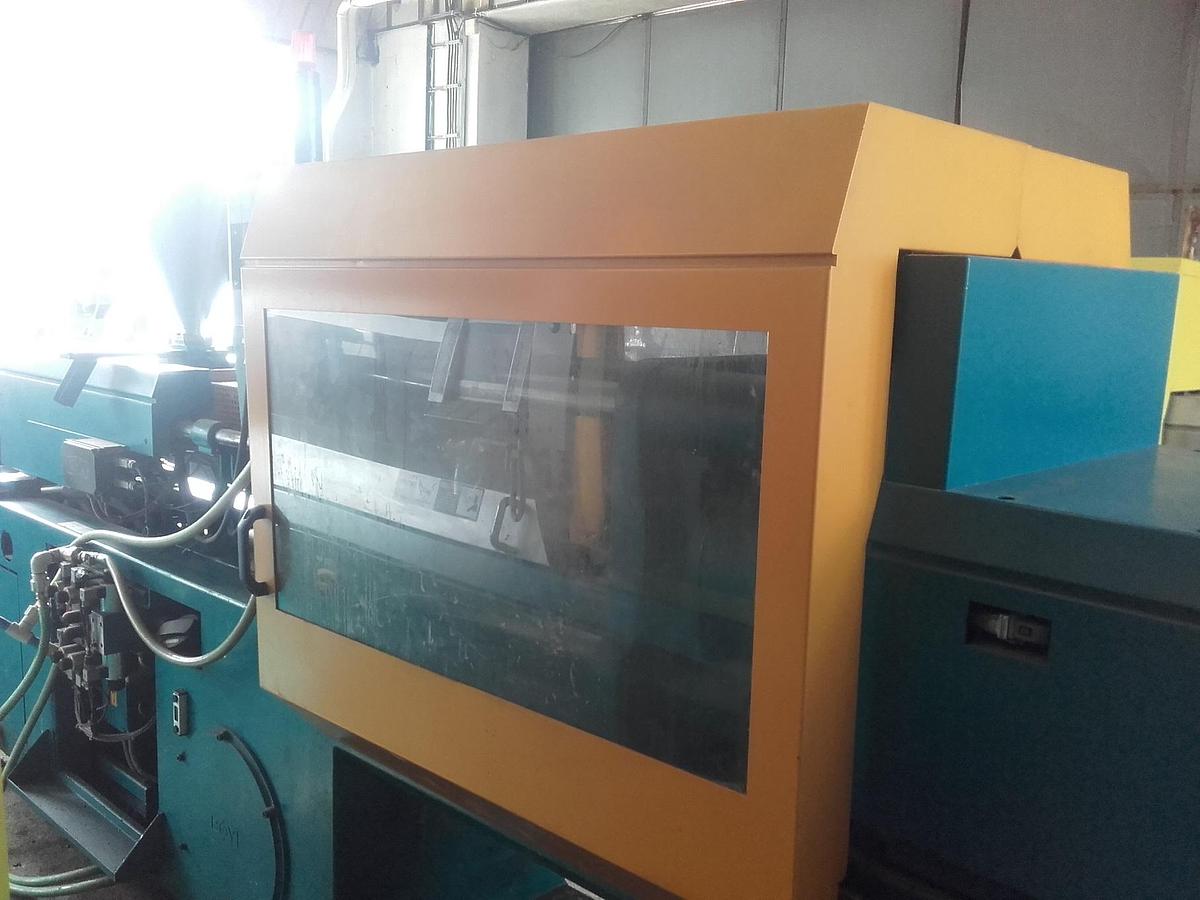

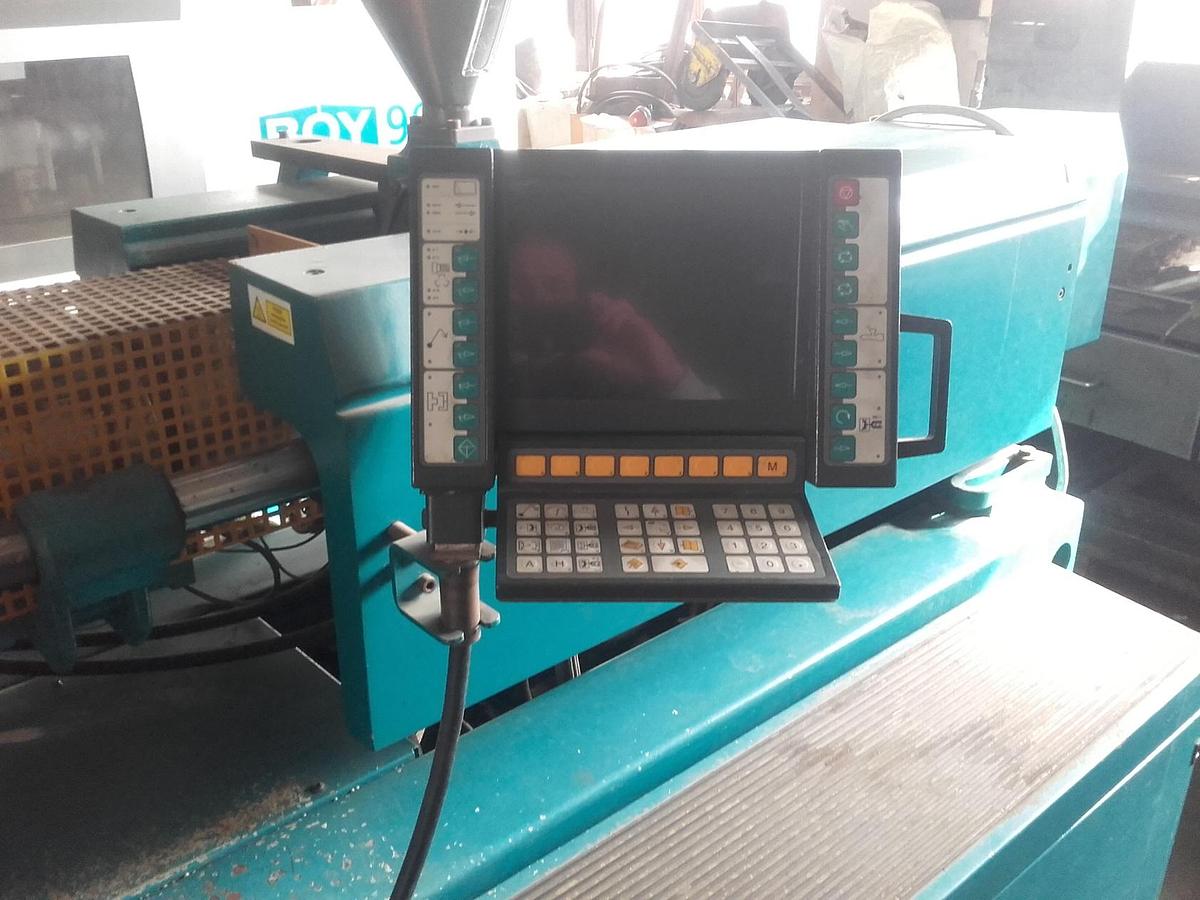

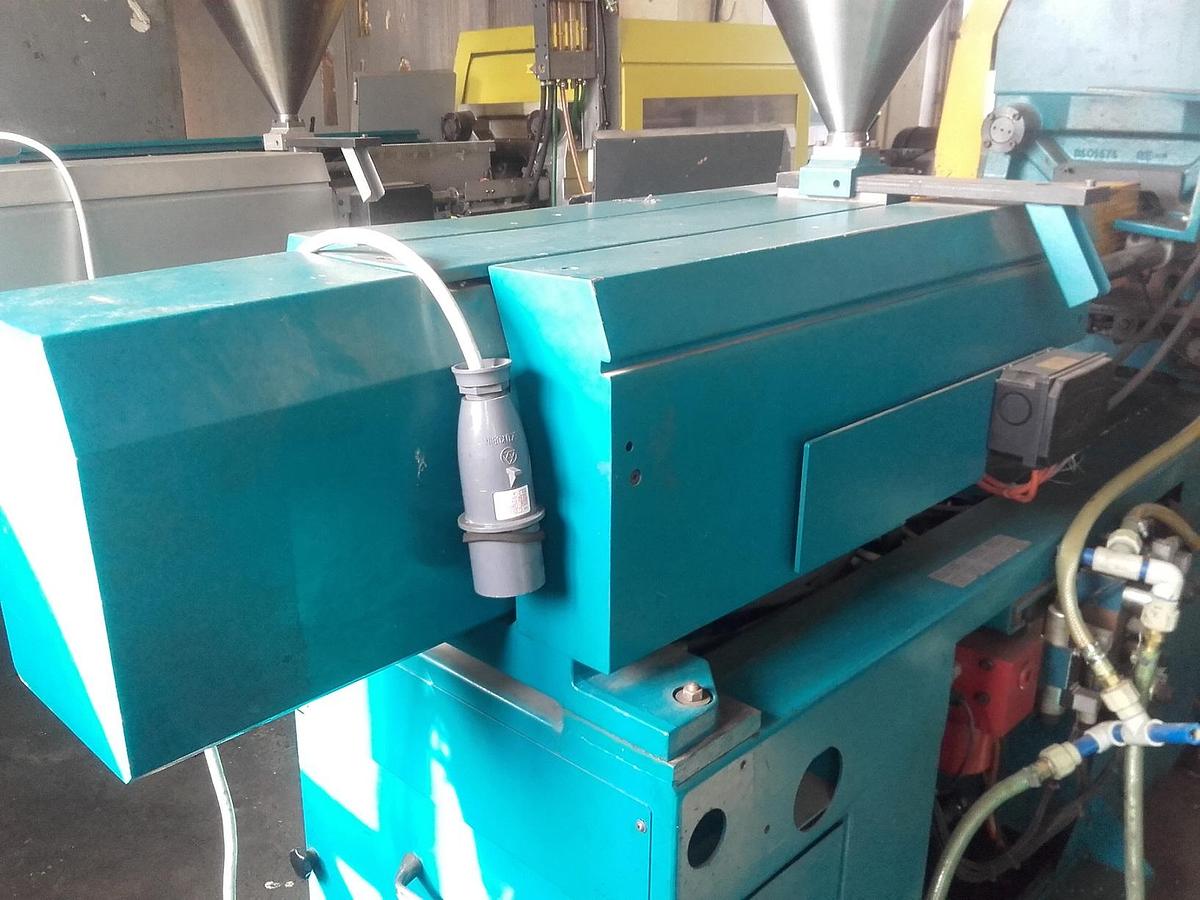

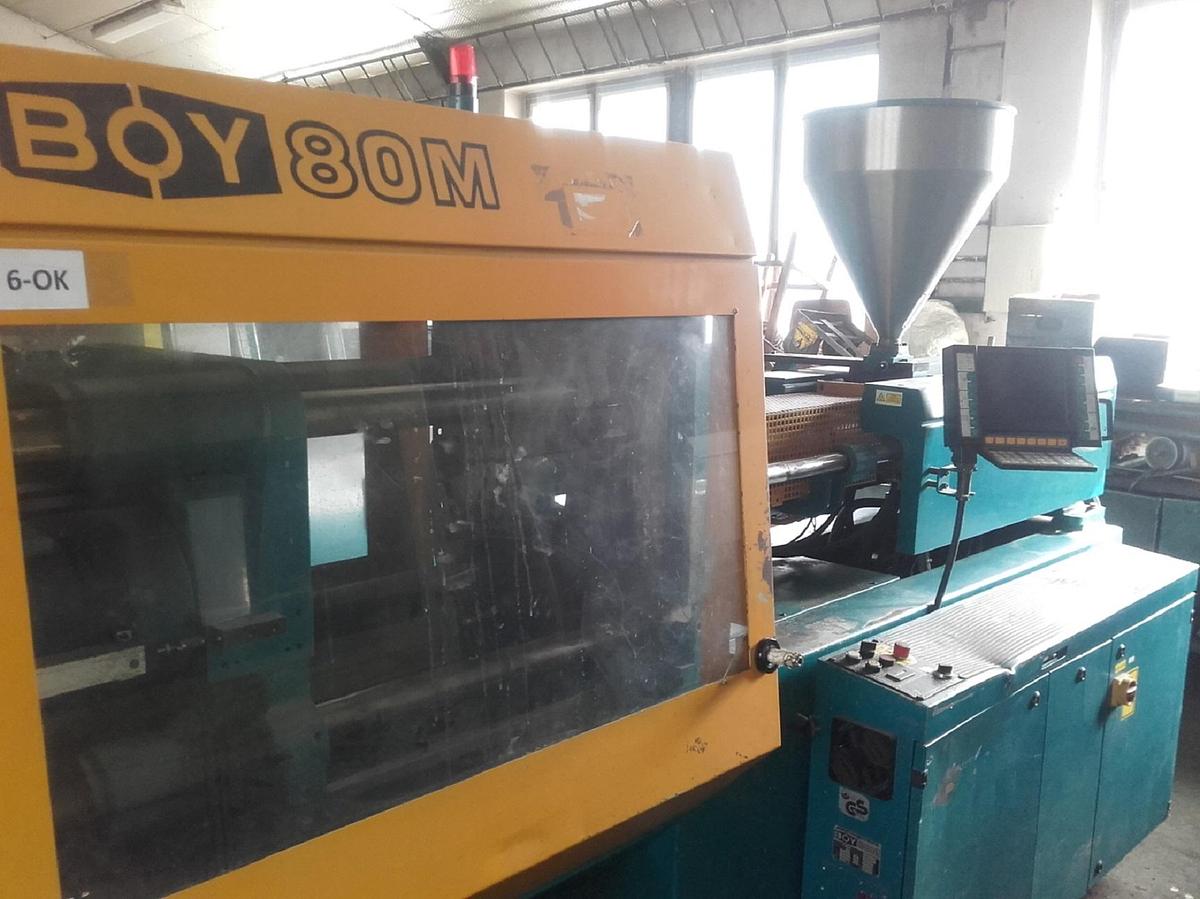

BOY 80 M
Location:Brno, Czech Republic
Description
Size of mould platens:
560 mm x 560 mm
Distance between tie bars:
410 x 358 mm
Injection unit:
Electric and Hydraulic Equipment:
Power 25 (kW)
Drive power 15 (kW)
Oil filling 290 (l)
Machine dimensions:
4150 x 1300 x 2100 mm
Specifications
| Manufacturer | BOY |
| Model | 80 M |
| Year | 2000 |
| Condition | Used |
| Stock Number | 3564 |
| Operating hours | 52948 |
| Clamping force | 800 kN |
| Mould opening force max. | 32.5 kN |
| Mould opening stroke | 430 mm |
| Mould height min. | 250 mm |
| Max height | 680 mm |
| Hydraulic ejector - stroke | 130 mm |
| Ejector force forward/backward | 18.1 kN |
| Screw diameter | 36 mm |
| Ls/D ratio | 23 |
| Injection pressure | 2085 bar |
| Stroke volume | 147.6 ccm |
| Shot weight PS | 124 g |
| Injection stroke | 145 mm |
| Screw speed | 10-310 1/min |
| Nozzle pressure | 65.3 kN |
| Reservoir capacity | 290 ltr. |
| Machine weight | 3515 kg |
