Sold

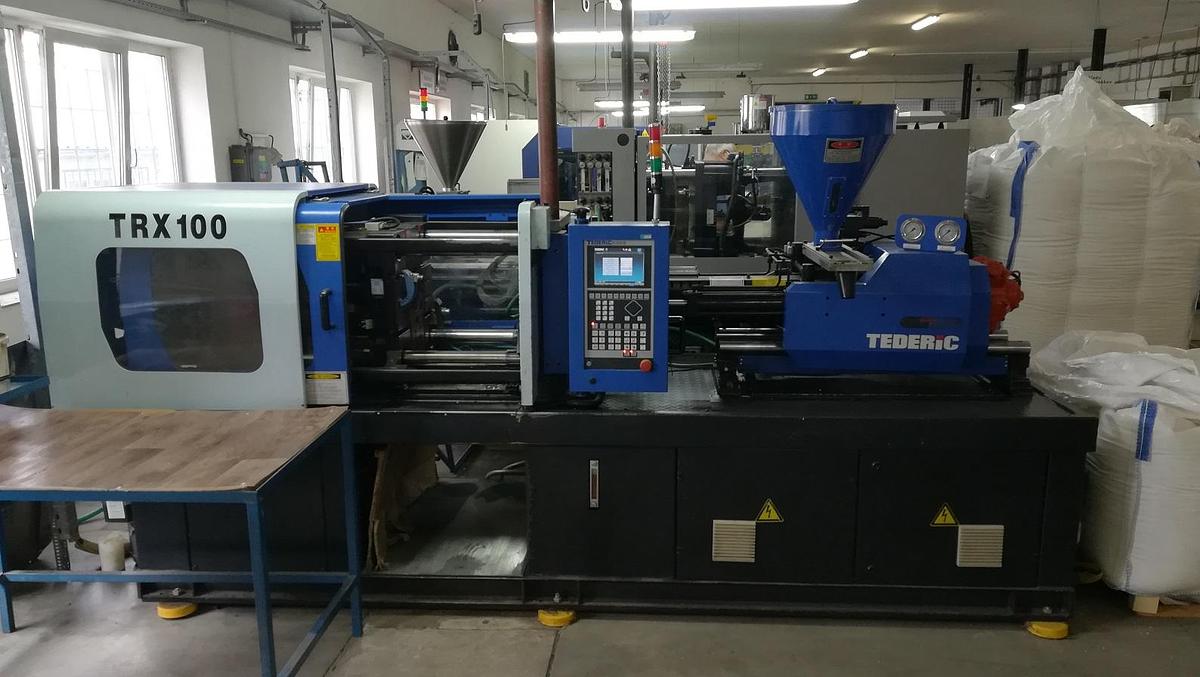

TEDERIC TRX 100
Location:Brno, Czech Republic
Description
Hopper capacity. 25 L
Machine dimensions:
(LxWxH) 4100 x 1100 x 1800 mm
Specifications
| Manufacturer | TEDERIC |
| Model | TRX 100 |
| Year | 2009 |
| Condition | Used |
| Stock Number | 3751 |
| Screw diameter | 35- 38- 42 mm |
| Screw | 21.7 -20.0 -18.1 L/D ratio L/D |
| Shot size (theoretical) | 159- 187- 228 m3 |
| Injection weight | 144 -170- 208 g |
| Injection rate | 89 -105- 128 cm3/s |
| Injection pressure | 194 165 135 Mpa |
| Injection stroke | 165 mm |
| Screw speed | 0-191 rpm |
| Clamping unit Clamping force | 1000 KN |
| Clamping stroke | 320 mm |
| Space between tie bars | 360 x 360 mm |
| Max Mold height | 350 mm |
| Min Mold height | 100 mm |
| Ejector stroke/force | 100/38 KN/mm |
| No. of ejector pins piece | 5 |
| Others Max pump pressure | 16 Mpa |
| Pump Motor Power | 11.0 KW |
| Heater power | 7 KW |
| Oil tank capacity | 180 L |
| Machine weight | 3500 kg |
