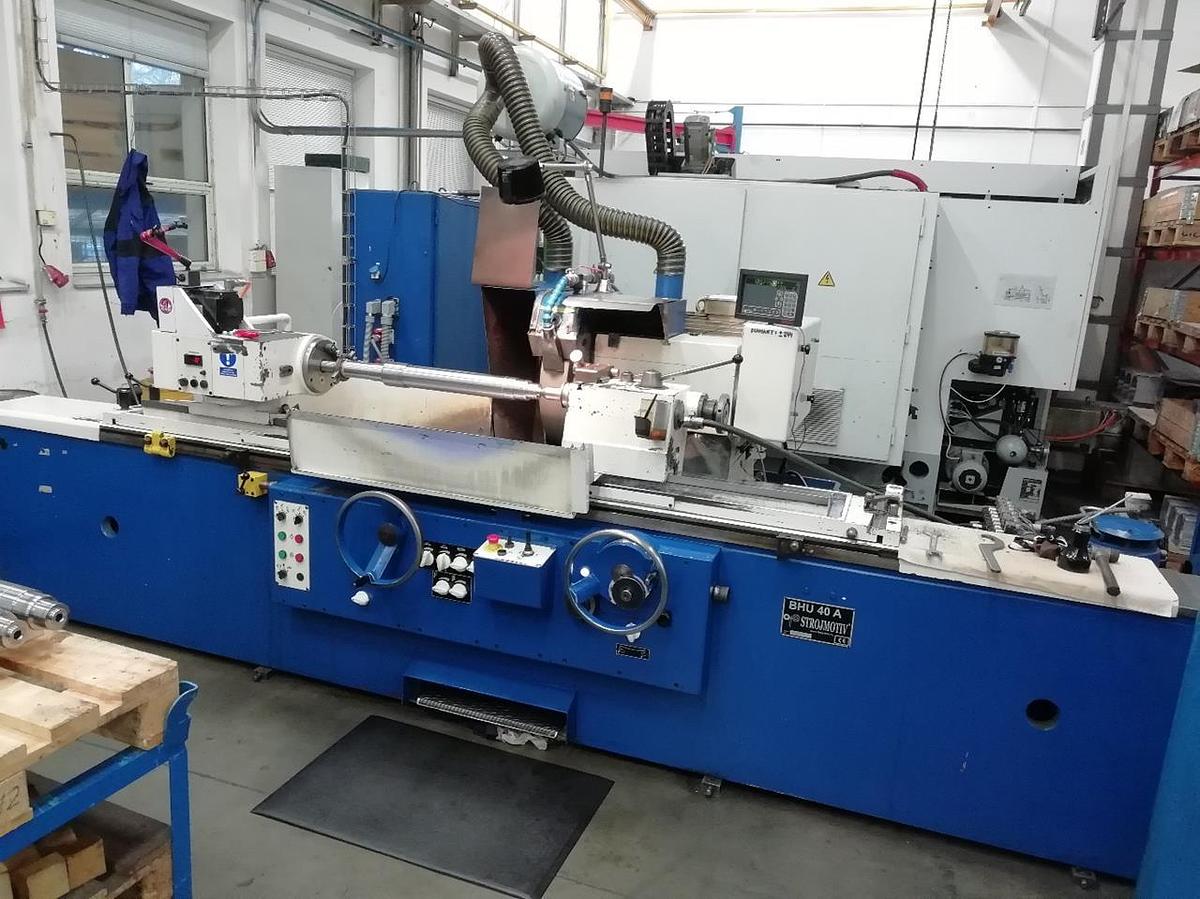

TOS Hostivař BHU 40A/1500
Location:Brno, Czech Republic
Description
Equipment:
Possibility of setting the headstock of the grinding wheel at an angle
Grinding wheel
Dresser
Supports
Luneta
Side wheel dresser
Flanges for disc
DRO NEWALL DP700
Specifications
| Manufacturer | TOS Hostivař |
| Model | BHU 40A/1500 |
| Year | 2016 |
| Condition | Used |
| Stock Number | 4776 |
| Maximum length of the grinding | 1500 mm |
| Maximum weight of the workpiece | 300 kg |
| Power of the grinding wheel spindle drive | 15 kW |
| Maximum rotary speed the grinding wheel spindle | 1240 1/min |
| Maximum grinding wheel diameter | 600 mm |
| Diameter hole in the grinding wheel | 305 mm |
| Total power demand | 22 kVA |
| Grinding diameter | 400 m |
| Maximum grinding wheel width | 150 mm |
| Distance between centers | 1500 mm |
| Longitudinal movement of the table - x-axis | 1 - 1790 mm |
| Spindle taper | Morse 5 |
| Grinding diameter in open support | 110 mm |
| Machine weight | 5950 kg |
| Availability | 3Q/2020 |
