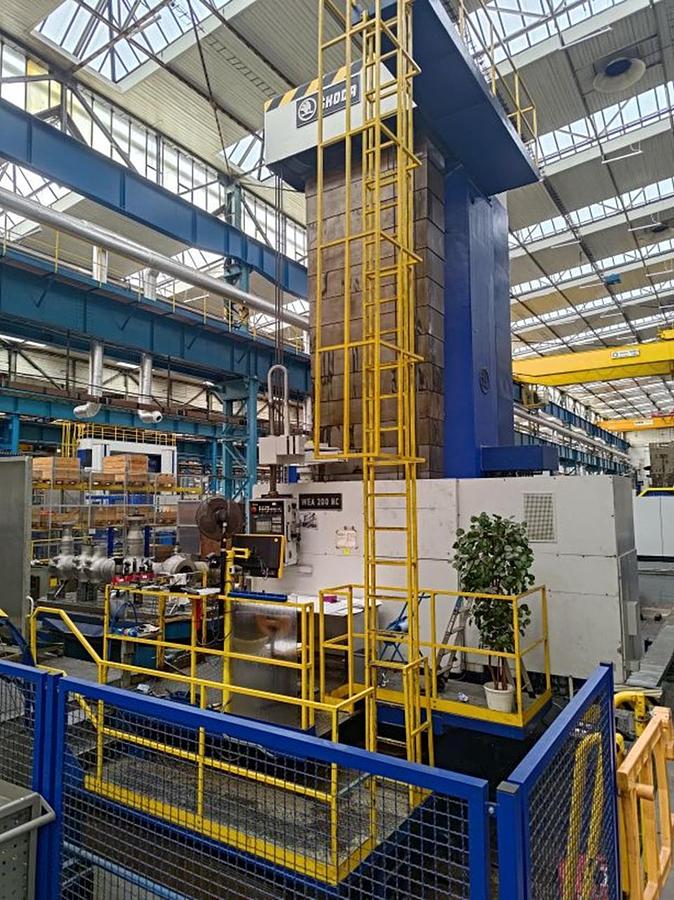

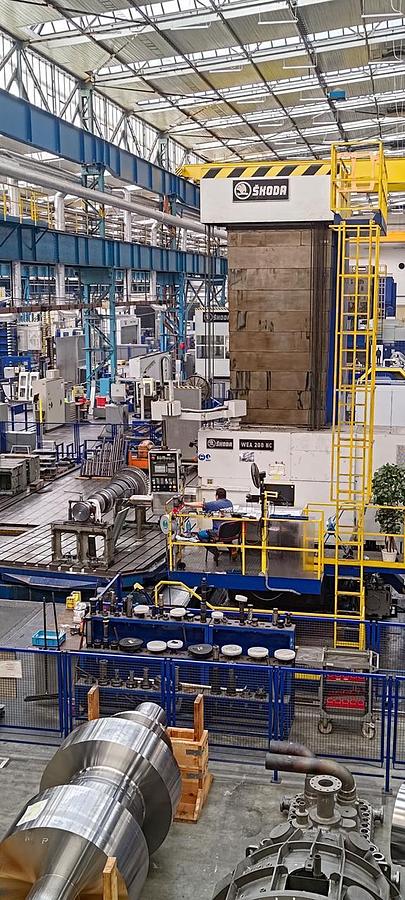

Škoda WEA 200 NC
Location:Brno, Czech Republic
Description
Equipment:

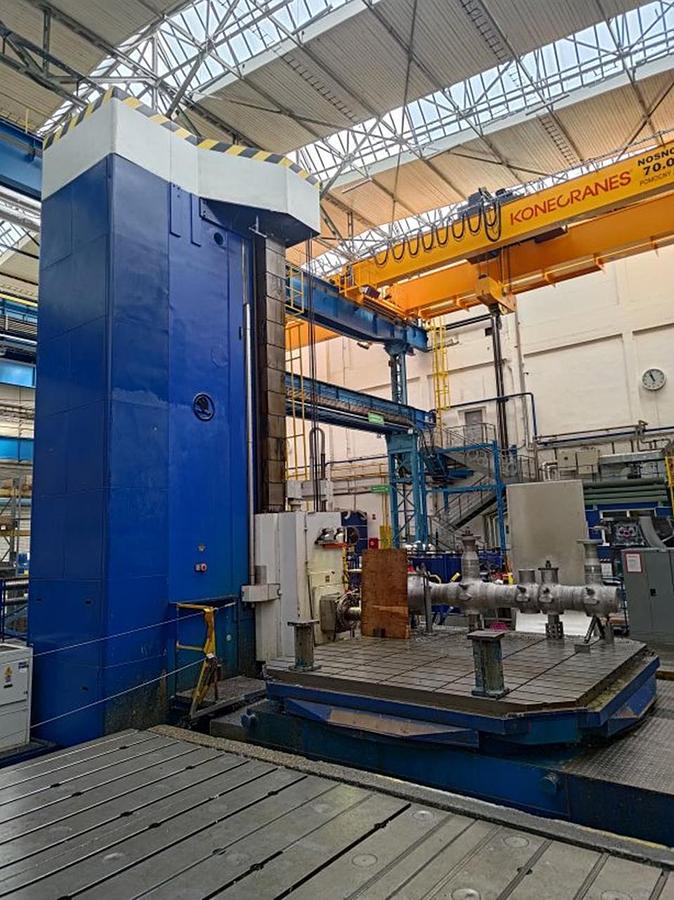

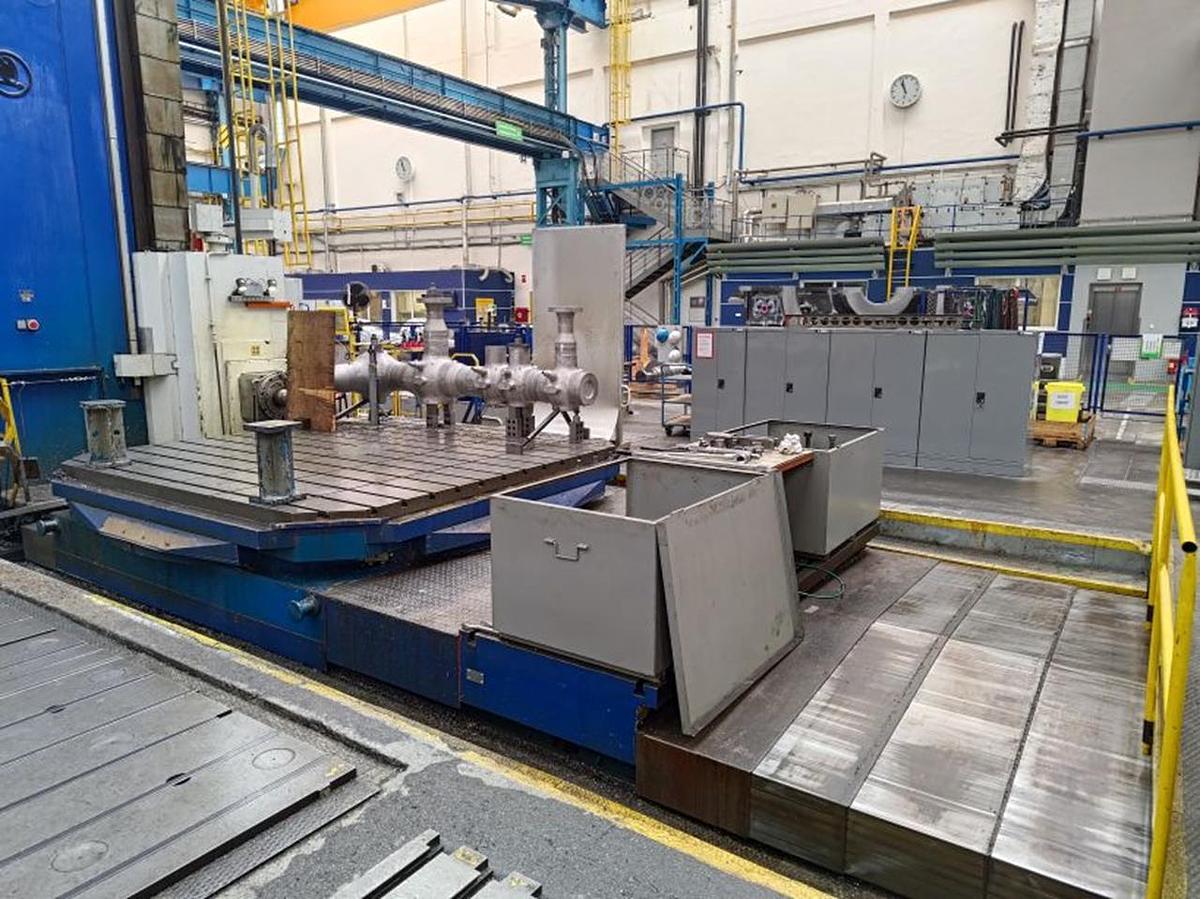

Rotary table

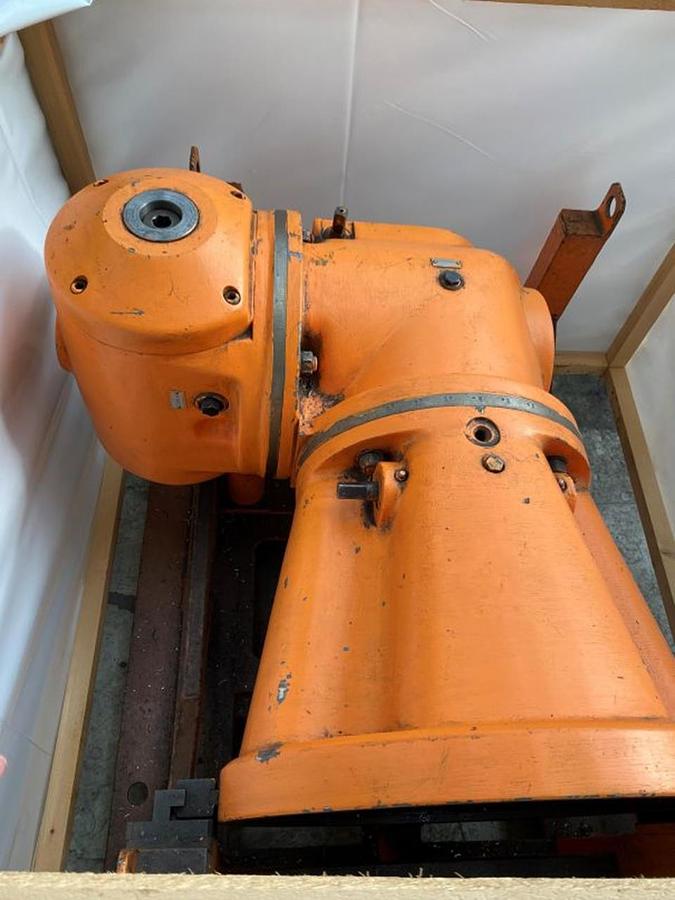

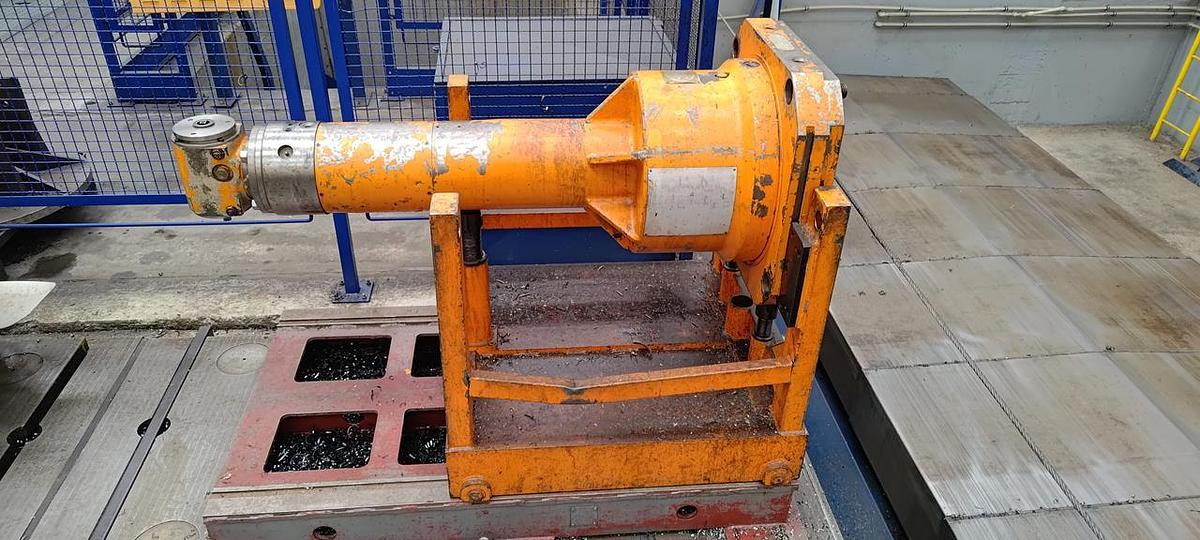

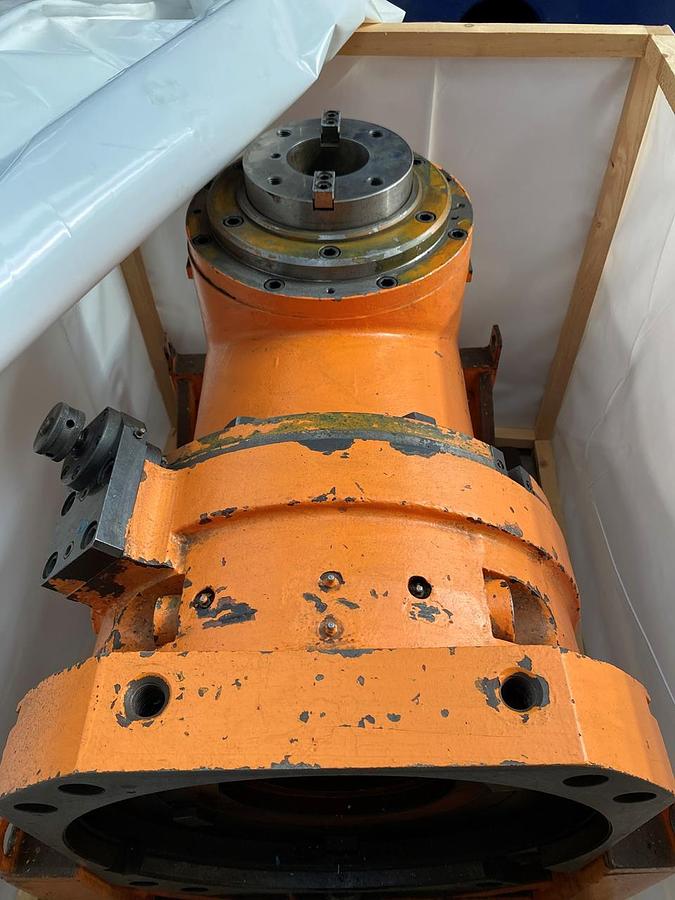

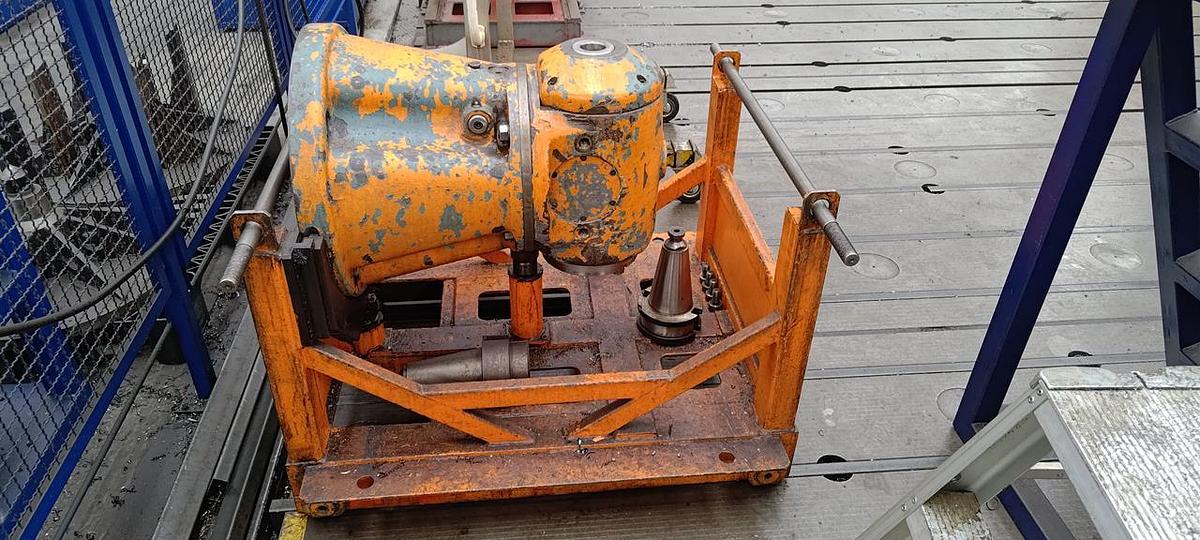

Milling heads
Availability September 2024
Specifications
| Manufacturer | Škoda |
| Model | WEA 200 NC |
| Year | 1983 |
| Condition | Used |
| Stock Number | 7699 |

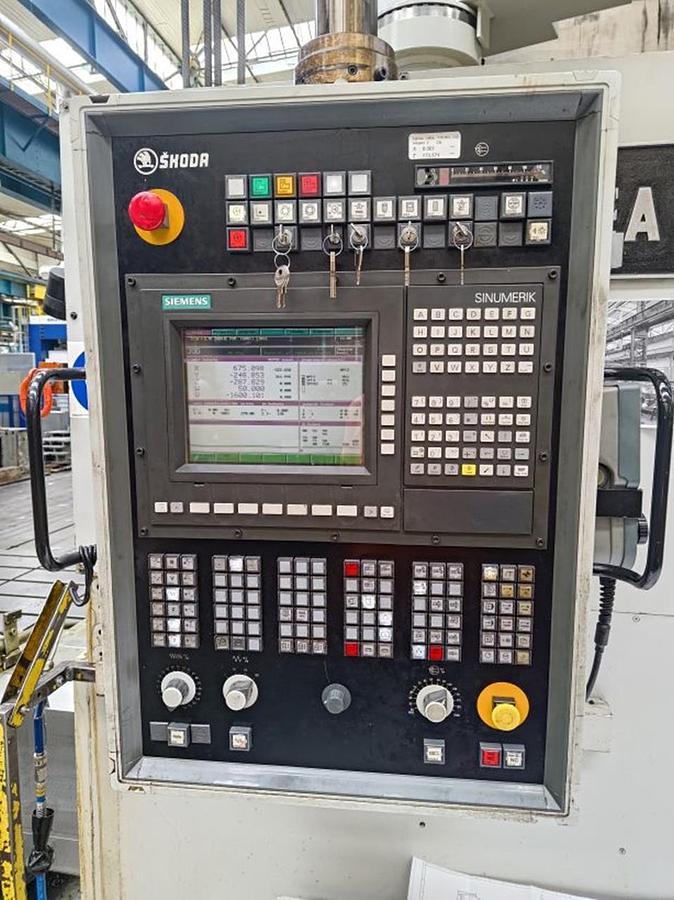

| Control system | Sinumerik 840C |

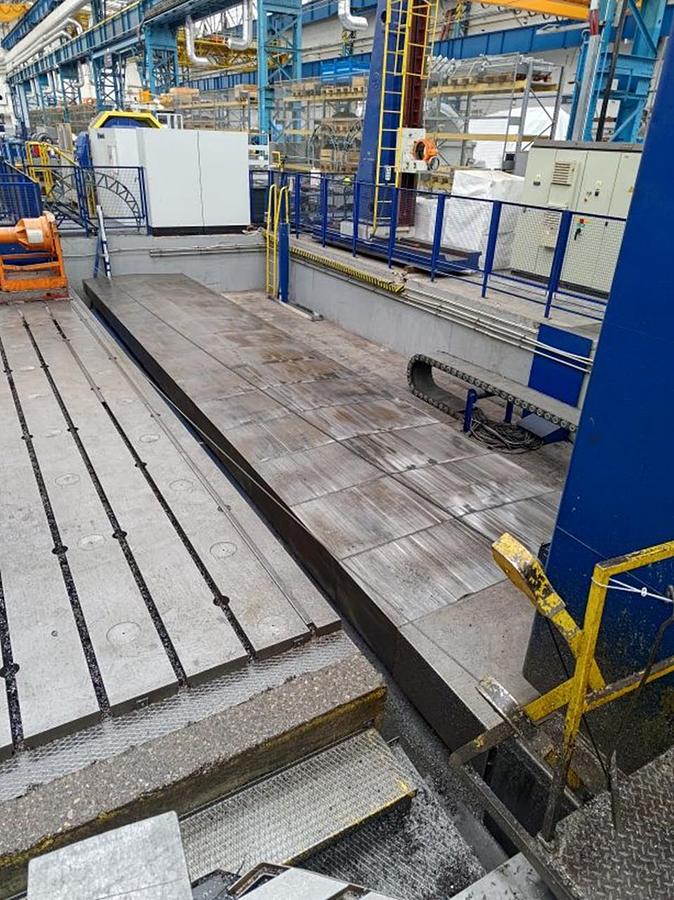

| Length of the working table | 3500 mm |
| Width of the working table | 3500 mm |
| Maximum weight of the grinded workpiece | 60 t |

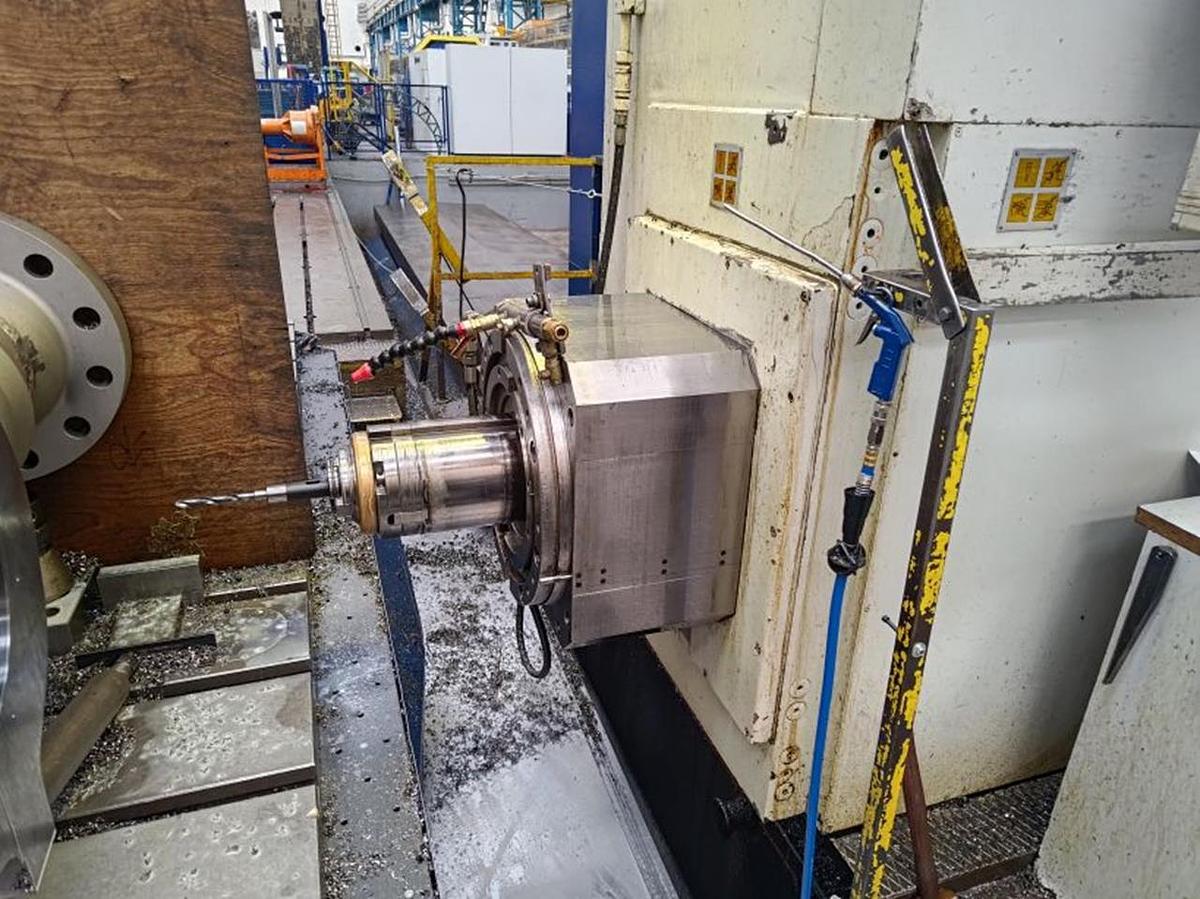

| Dimension of quill | 520x520 mm |
| Spindle bore | 200 mm |
| X-Axis travels | 13000 mm |
| Y-Axis travels | 4150 mm |
| Z-Axis travels | 2000 (1600) mm |
| Taper | ISO 60 |
| Spindle extension | 2000 mm |
| Quill extension | 1600 mm |
| Travel of the headstock | 4150 (3150) mm |
| Maximum main spindle torque | 15000 m |
| Rapid feed of the headstock and stand | 10000 mm/min |
| Rapid feed of the spindle and quill | 6000 mm/min |
| Spindle speed | 0.8-630 1/min |
| Feed rate of quill and spindle | 0.8-2000 mm/min |
| Feed rate of the headstock and stand | 1.4-2000 mm/min |
| Power input | 180 kVA |
| Peak power consumption | 400 kVA |
| Machine weight | 109 t |
