TOS WHN 13.4 B

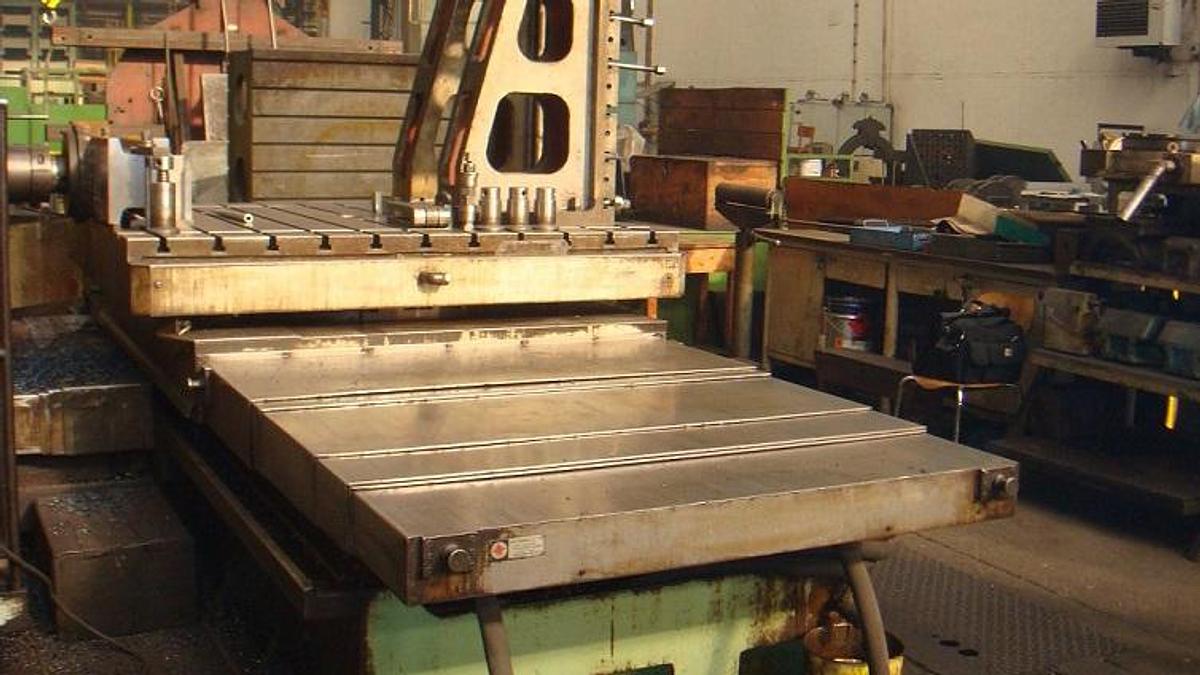

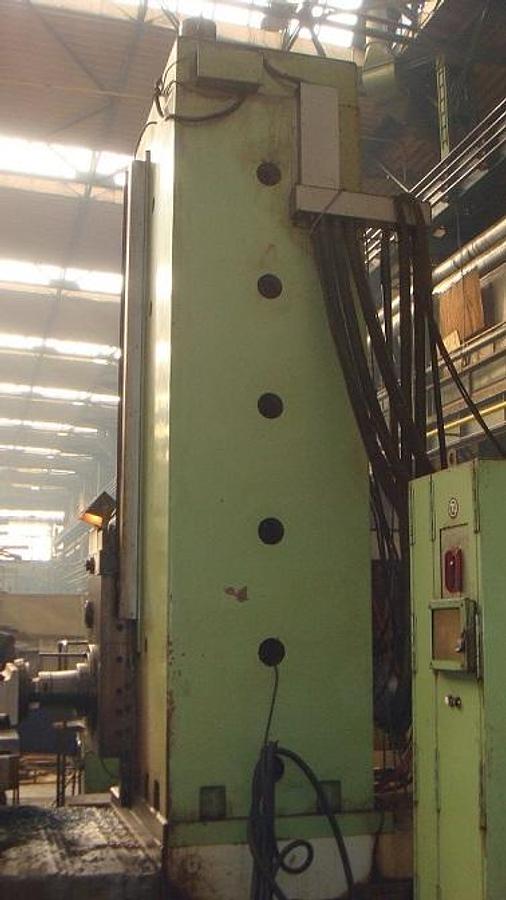

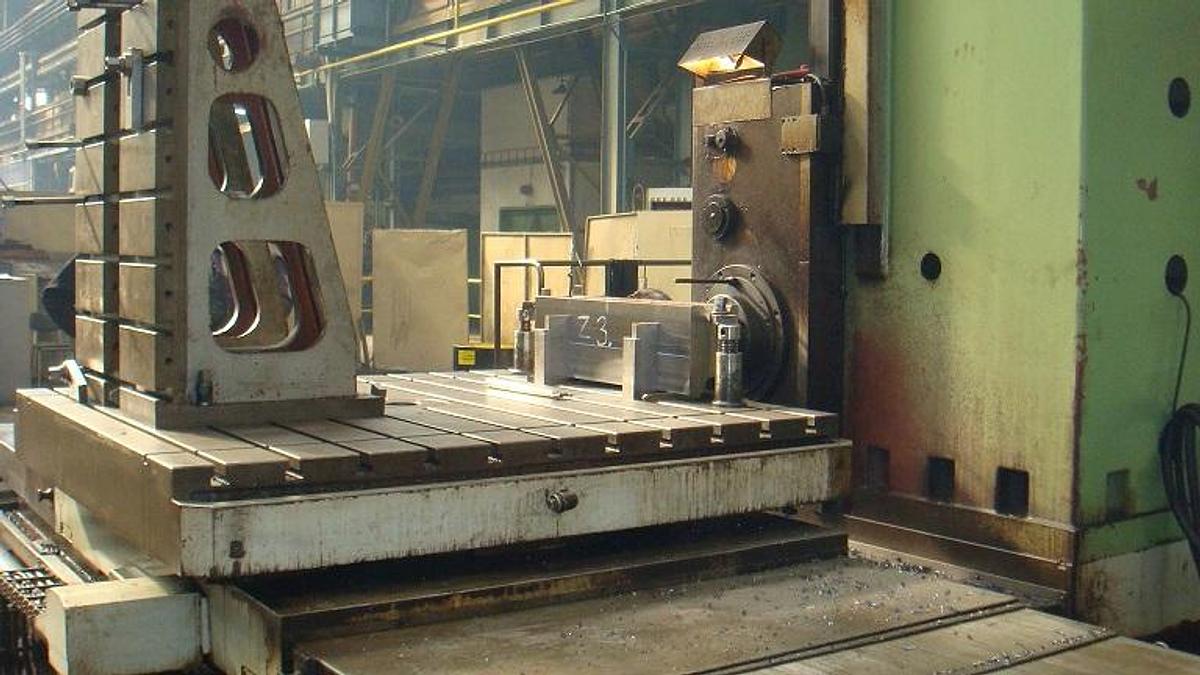

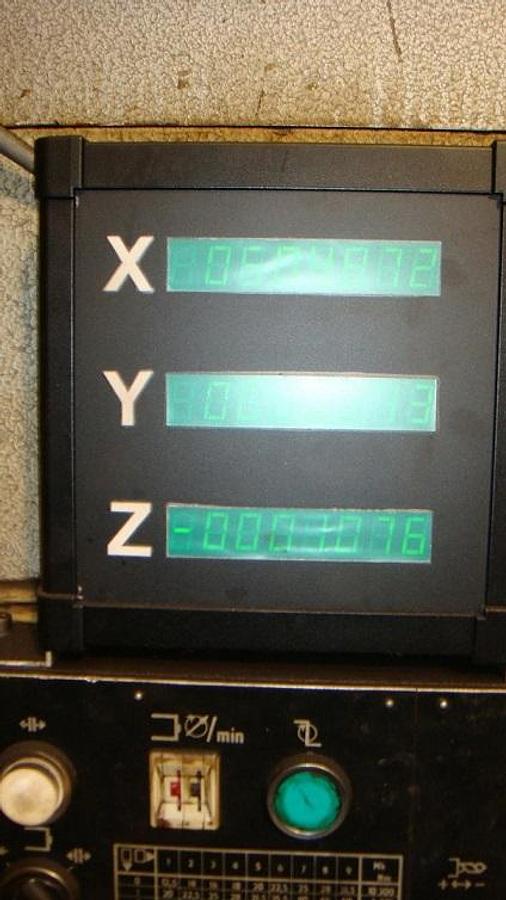

Spindle diameter 130 mm Spindle speed range 10 - 3000 rpm Main motor power 37 kW Main motor nominal speed 1500 rpm Main motor maximal speed 7000 rpm X…transversal travel of table 2000 mm Z…longitudinal travel of column 1000 mm Y…vertical travel of headstock 1600 mm W…spindle stroke 800 mm Table clamping surface 1600 x 1800 mm x mm Table loading capacity 12000 kg Feeds... X Y Z W - manual mode 4 - 500 mm / min Feeds... X Y Z - automatic mode 4 - 10000 mm / min Feeds... W - automatic mode 4 - 8900 mm / min Rapid traverse…X Y Z 10000 mm / min Rapid traverse…W 8900 mm / min Rapid traverse of table rotation…B 1 84 rpm Nominal torque of feed motors... X Y Z 38 Nm Nominal torque of feed motors... B 23 Nm Nominal speed of feed motors 2000 rpm Total area including CE - approximate 8300 x 9000 (8700) mm x mm The machine is equipped with digital D.R.O and deep hole drilling system BTA.
