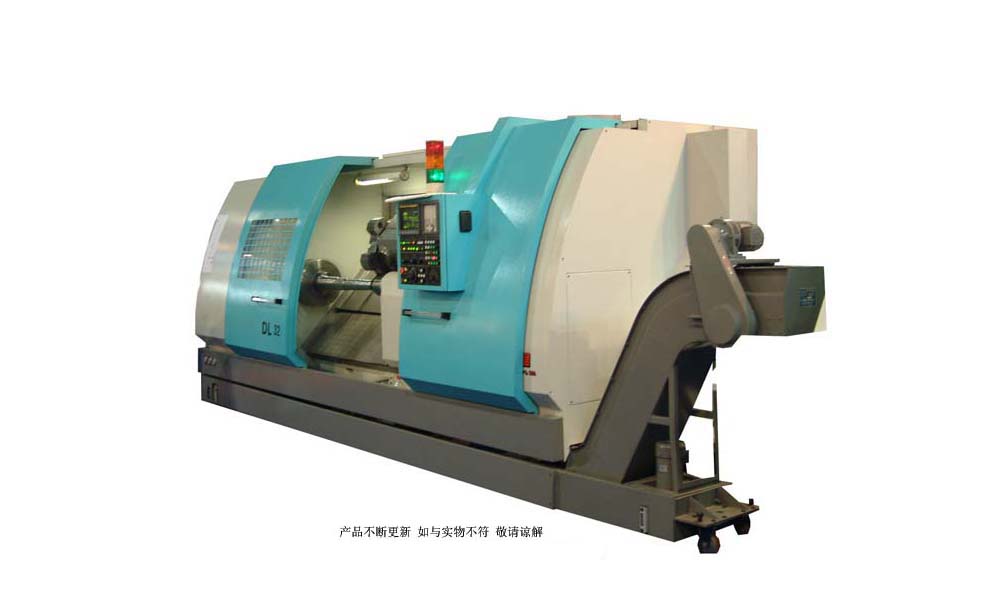

The machine comprises one-piece slant bed which is of good rigidity and facile for chip conveying. The moving surfaces of saddle slide adopt plastic guideway plates or rolling guideway, which are of small friction factor and good dynamic.Besides
standard CNC system,some other top quality CNC systems from abroad can also be adopted according To the customers’ requirements.These machines are Easy to operate and run reliably.
Independent automatic chip conveyor,cooling system and intermittent automatic lubrication system are comprised in these machines. These machines are equipped with 8/12 tools hydraulic power rotary turrets,so they have high indexing speed and accurate reliable positioning ,wholly-enclosed protect.High rigidity,high efficiency,low noise and reliability are features of the machine

Main Specification
Max.swing over bed mm 680
Max.length of workpiece mm 2000
Max.dia of workpiece mm 400/630
Travel in X/Z-axis mm 385/2030
Working feed in X/Z-axis mm/min 0.01-9000/0.01-12000
Rapid feed in X/Z-axis mm/min 13000/13000
Spindle speed r/min 2000
Spindle taper bore   Metric120
Dia. of spindle through hole mm 100
Main motor power kW 22/30
Number of turret stations   12
Time of tool change s 0.68
Mode for tool selection   optional
Max. storke of tailstock sleeve mm 180
Tailstock taper bore   Morse No.5
Inclining angle of bed guideway to horizontal   45°
Guideway of saddle slide   Plastic guideway plate
CNC control system   FANUC 0i-TA
Machine spindle motor   œP50
Dimension of main machine(Without chip conveyor L x W x H)   5500x2040x2240
Overall dimension of machine(With chip conveyor L x W x H) mm 6500x2040x2240
Net weight of machine/gross weight of machine mm 13000/14000
