Performance Introduction

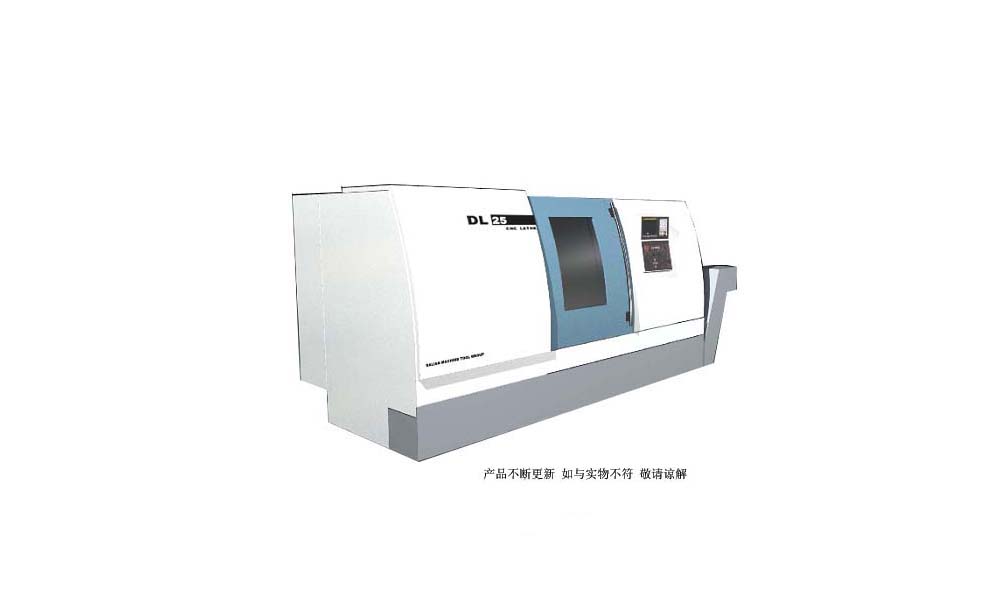

The machine comprises one-piece slant bed which is of good rigidity and facile for chip conveying. The moving surfaces of saddle slide adopt plastic guideway plates or rolling guideway, which are of small friction factor and good dynamic.Besides
standard CNC system,some other top quality CNC systems from abroad can also be adopted according To the customers’ requirements.These machines are Easy to operate and run reliably.
Independent automatic chip conveyor,cooling system and intermittent automatic lubrication system are comprised in these machines. These machines are equipped with 8/12 tools hydraulic power rotary turrets,so they have high indexing speed and accurate reliable positioning ,wholly-enclosed protect.High rigidity,high efficiency,low noise and reliability are features of the machine

Main Specification
Max.swing over bed mm 500
Max.length of workpiece mm 540
Max.dia of workpiece mm 300/420
Travel in X/Z-axis mm 220/550
Working feed in X/Z-axis mm/min 0.01-9000/0.01-12000
Rapid feed in X/Z-axis mm/min 12000/16000
Spindle speed r/min 4000
Spindle taper bore   Metric80
Dia. of spindle through hole mm 70
Main motor power kW 11/15
Number of turret stations   12
Time of tool change s 0.3
Mode for tool selection   optional
Max. storke of tailstock sleeve mm 100
Tailstock taper bore   Morse No.4
Inclining angle of bed guideway to horizontal   60°
Guideway of saddle slide   Plastic guideway plate
CNC control system   FANUC 0i-TA
Machine spindle motor   œP22
Dimension of main machine(Without chip conveyor L x W x H)   2800x1420x2000
Overall dimension of machine(With chip conveyor L x W x H) mm 3050x1560x1940
Net weight of machine/gross weight of machine mm 4500/5000
