Performance Introduction

The front and back of the spindle adopts the original Japanese NSK high precist slant-angled ball bearings. To it proper pretightening force is given,matching with the optimum skip distance and the box-type spindle box. Thus the spindle has high rigidity and is capable to operate at high speed.

The rotary arbor-type tailstock with high speed and high precision guarantees the turning centering.The arbor bearings are all imported from NSK in Japan.The sleev can be expanded and contracted by program control. The taistock can be wholly moved by the saddle pulling.

The bed and the base are block mold. 60 slant bed ways can bear larger load area. It has better rigidity and absorption of vibration. It can keep the high precise turning and excellent precision.

Main Features

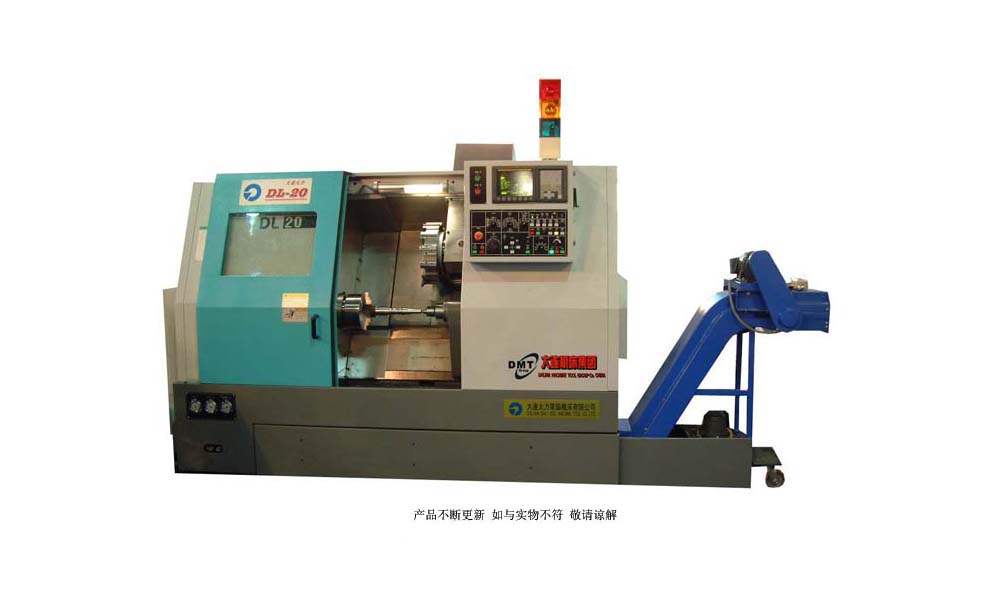

◇ DL-20 CNC Lathe is our latest production,with is 2-axis parallel,half-closed loop NC lathe.The NC system is FANUC 0i-TA. It is driven by AC servo motor. It is ideal for turning of various shafts(within 260mm) and discs(widthin 380mm)
◇ Precise,rapid,longitudinal and transversal driven: The machine adopts the THK ball screw and plastic skin guideway which are efficient,precise and good axial rigidity. It eliminates the clearance of return stroke and makes the tool carriage move rapidly and steadily. It also has high positioning accuracy.
◇ Independent chip convey and cooling systems
◇ Sold Spindle supported by Hi-speed angular bearings make an ideal design for heavy duty high speed turning.The powerful spindle motor can perform full-power cutting from medium to high speed at top speed of 3500 RPM.High speed cutting can be performed with the newest technology tooling such as ceramic or cremet.

Main Specification
Max.swing over bed mm 460
Max.length of workpiece mm 540
Max.dia of workpiece mm 260/380
Travel in X/Z-axis mm 220/540
Working feed in X/Z-axis mm/min 0.01-9000/0.01-12000
Rapid feed in X/Z-axis mm/min 12000/16000
Spindle speed r/min 4000
Spindle taper bore   Metric80
Dia. of spindle through hole mm 70
Main motor power kW 11/15
Number of turret stations   12
Time of tool change s 0.3
Mode for tool selection   optional
Max. storke of tailstock sleeve mm 100
Tailstock taper bore   Morse No.4
Inclining angle of bed guideway to horizontal   60°
Guideway of saddle slide   Plastic guideway plate
CNC control system   FANUC 0i-TA
Machine spindle motor   œP22
Dimension of main machine(Without chip conveyor L x W x H)   2800x1420x2000
Overall dimension of machine(With chip conveyor L x W x H) mm 3050x1560x1940
Net weight of machine/gross weight of machine mm 4000/4500
