Performance Introduction

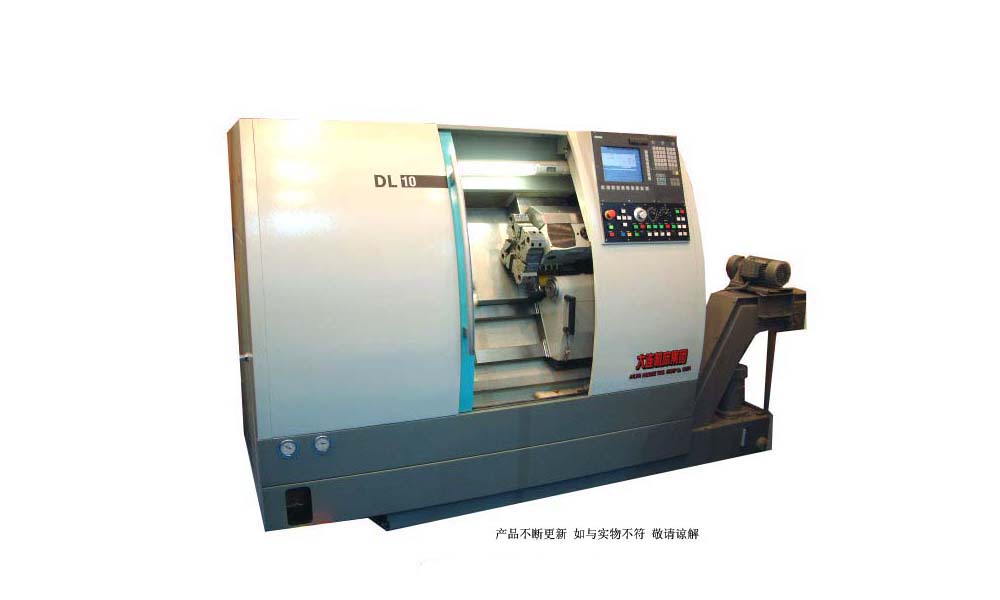

The machine comprises one-piece slant bed which is of good rigidity and facile for chip conveying. The moving surfaces of saddle slide adopt plastic guideway plates or rolling guideway, which are of small friction factor and good dynamic.Besides
standard CNC system,some other top quality CNC systems from abroad can also be adopted according To the customers’ requirements.These machines are Easy to operate and run reliably.
Independent automatic chip conveyor,cooling system and intermittent automatic lubrication system are comprised in these machines. These machines are equipped with 8/12 tools hydraulic power rotary turrets,so they have high indexing speed and accurate reliable positioning ,wholly-enclosed protect.High rigidity,high efficiency,low noise and reliability are features of the machine

Main Specification
Max.swing over bed mm 300
Max.length of workpiece mm 250
Max.dia of workpiece mm 80/120
Travel in X/Z-axis mm 85/350
Working feed in X/Z-axis mm/min 0.01-9000/0.01-12000
Rapid feed in X/Z-axis mm/min 20000/24000
Spindle speed r/min 6000
Spindle taper bore   Morse No.5
Dia. of spindle through hole mm 38
Main motor power kW 5.5/7.5
Number of turret stations   8
Time of tool change s 0.4
Mode for tool selection   optional
Max. storke of tailstock sleeve mm 80
Tailstock taper bore   Morse No.3
Inclining angle of bed guideway to horizontal   60°
Guideway of saddle slide   Japan THK rolling guideway
CNC control system   FANUC 0i-TA
Machine spindle motor   1PH7
Dimension of main machine(Without chip conveyor L x W x H)   2060x1329x1620
Overall dimension of machine(With chip conveyor L x W x H) mm 3260x1329x1620
Net weight of machine/gross weight of machine mm 3000/3550
