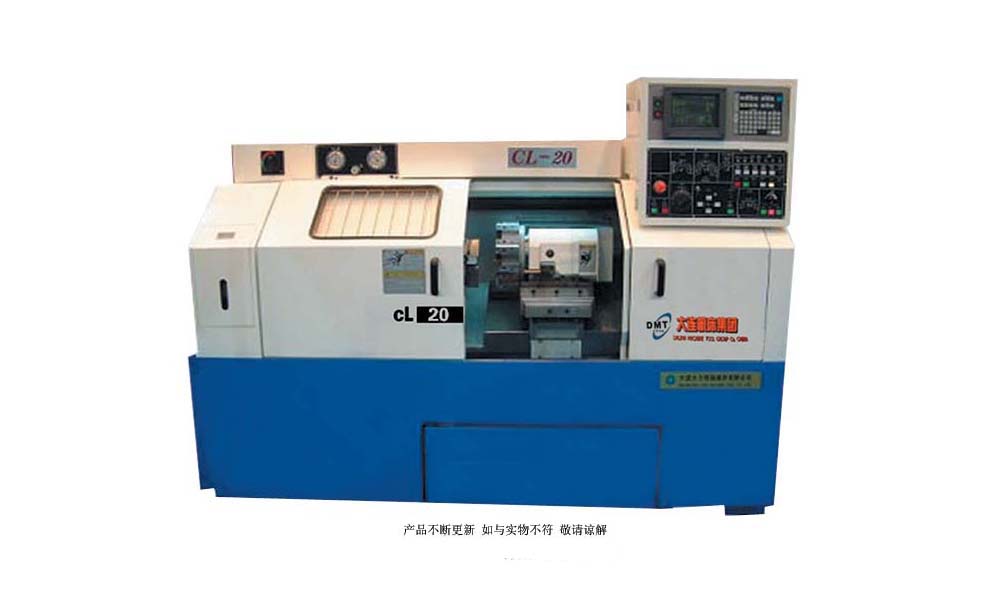

Click to magnify


Performance Introduction

The turret adopts high precision curvic coupling and set-up by the hydraulic power system,it supports both heavy duty cutting and finish light cutting,the shortest path of turret indexing will be selected automatically during tool change period,the turret is in a high speed.stable and indexing time is 0.3 sec(adjacent tool)only.

Tool can be set quitckly by slmply instailing tools in the turret and contacting the tip in the turret and contacting the tip with the probe.
The NC CRT screen off set value can be shown and performed by following the instructions as shown on the screen screen.

The tailstock sleeve iS driven by hydraulic power with high rigidity,accuracy,and adjustable pushing is easily moved and quickly locked.

Main Features

◇ Heavy duty linear guide is imported from NSK.Rapid traverse of X/Z Axis are 20/24 m/min,repetitive positioning precision is within 0.004mm。the positioning precision is within 0.01mm
◇ The Max speed is 4500rpm,sleeve spindle can be easily repaired.
◇ Time to change tool is 0.3sec(adjacent tool)only,tool measuring precision is within ±0.002mm。
◇ High rigidity whole base allows heavy cutting; s1eeve of tailstock can be driven by hydraulic; High reliable electrical equipment and hydraulic controlling sensors are selected from foreign famous brand.
◇ Mechanical and electrical parts are excellent and complete which make operation easy with either English or Chinese。
◇ Processing precision is 6 class IT,rough surface Ra0.8um,roundness O.003mm.cylinderness 0.01 mm.
◇Solid Spindle supported by double cylinder roller bearings and Hi-speed angular bearings make an ideal design for heavy duty high speed turning.The powerful spindle motor can perform full-power cutting from medium to high speed at top speed of 4500 RPM.
High speed cutting can be performed with the newest technology tooling such as ceramic or cremet.

Main Specification
CAPACITY Max.swing over bed mm 460
Max.turning dia mm 300
Max.turning length mm 500
Distance between centers   500
TRAVEL AND FEED X axis travel mm 170
Z axis travel mm 500
Rapid traverse X and Z m/min 20,24
Cutting feed X and Z axis mm/min 0-5000
X axis servo motor NM 6
Z axis servo motor NM 12
SPINDLE Spindle nose   ISOA2-6
Spindle bearing mm 100
Spindle bore mm 62
Spindle speed r/min 45-4500
Main spindle motor power kW 9/11
TURRET Number of stations   8
indexing time(one step/full step)   0.3/1.85
Tool shank size mm 25x25
Boring bar dia.
Quill dia mm 80
Quill trave mm 130
Spindle taper   MT.No.4
MACHINE SIZE & WEIGHT Machine length mm 2470
Macine width mm 1500
Machine height mm 1750
Machine weight kg 4500
PACKAGE SIZE With chip conveyor L x W x H mm 3605x1810x2175
Without chip conveyor L x W x H mm 2760x1920x2173
