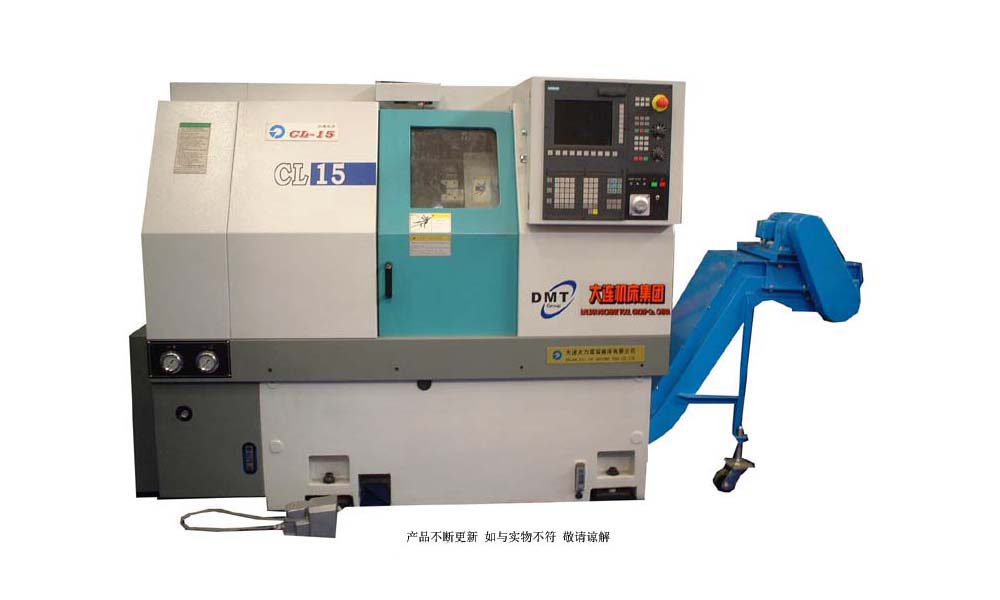

CL-15 CNC LATHE


Click to magnify



NAME:CNC Lathe

MODEL:CL-15


Performance Introduction


SLANT BED AT AN AGNLE 60
The popular slant bed at an angle of 60 covers less area.It’s easy to。convey chips and to clean.It’s also beautiful.

HIGH-PRECISION IMPORTED HYDRAILIC TURRET
We adopt the imported turret which contains 8 tools,Hydraulic system drives the tool pan, indexing\locking and disengagement device rapidly and Stably,It’s esp.suitable for heavy duty cutting.Ajacent tools can be changed easily matching with tne Close switch and logical circuit control.Tools won’t be confused.

OTHER CHOICE FOR TOOL DEVICE
You can choose tool device as shown In the picture for the lathe.It’S stable and high reliable in machinery property.Tool changing is rapid and convenient.Economic,practical and easy maintenance.

Main Features


◇ Heavy duty linear guide is imported from NSK.Rapid traverse of X/Z Axis are 1 5/1 8 m/min.repetitive positoning precision iS within 0.003mm.the positioning precision is within 0.01mm.
◇ The Max speed iS 5000rpm,sleeve spindle can be easily repaired.Dynamic balancing is less than 10gmm.
◇ Time to change tool is O.3 sec(adjacent tool)only,tool measuring precision is within ±0.002.
◇ The machine has high rigid base and slant bed at an angle of 60 allows heavy cutting; sleeve of tailstock can be driven by hydraulic;High reliable electrical equipment and hydraulic controlling sensors are selected from foreign famous brand.
◇ Mechical and electrical parts are excellent and complete whicn make operation easy with either English or Chinese.
◇ Processing precision is 6 class IT.rough surface Ra0.8um,roundness 0.003mm,Cylinderness 0.01mm.
◇Solid Spindle supported by double cylinder roller bearings and Hi-speed angular bearings make an ideal design for heavy duty high speed turning.The powerful spindle motor can perform full-power cutting from medium to high speed at top speed。Of 5000 RPM.High speed cutting can be performed with the newest technology tooling such as ceramic or cremet.

Main Specification
CAPACITY Max.swing over bed mm 400
Max.turning dia mm 200
Max.turning length mm 250
Distance between centers   350
TRAVEL AND FEED X axis travel mm 120
Z axis travel mm 260
Rapid traverse X and Z m/min 15,18
Cutting feed X and Z axis mm/min 0-5000
X axis servo motor NM 6
Z axis servo motor NM 6
SPINDLE Spindle nose   ISOA2-5
Spindle bearing mm 80
Spindle bore mm 46
Spindle speed r/min 50-5000
Main spindle motor power kW 5.5/7.5
TURRET Number of stations   8
indexing time(one step/full step)   0.3/1.6
Tool shank size mm 20x20
Boring bar dia.
TAILSTOCK Max.travel mm 210
Quill dia mm 60
Quill trave mm 80
Spindle taper   MT.No.3
MACHINE SIZE & WEIGHT Machine length mm 2170
Macine width mm 1550
Machine height mm 1680
Machine weight kg 3300
PACKAGE SIZE With chip conveyor L x W x H mm 2540x2220x2240
Without chip conveyor L x W x H mm 2540x2220x2240
