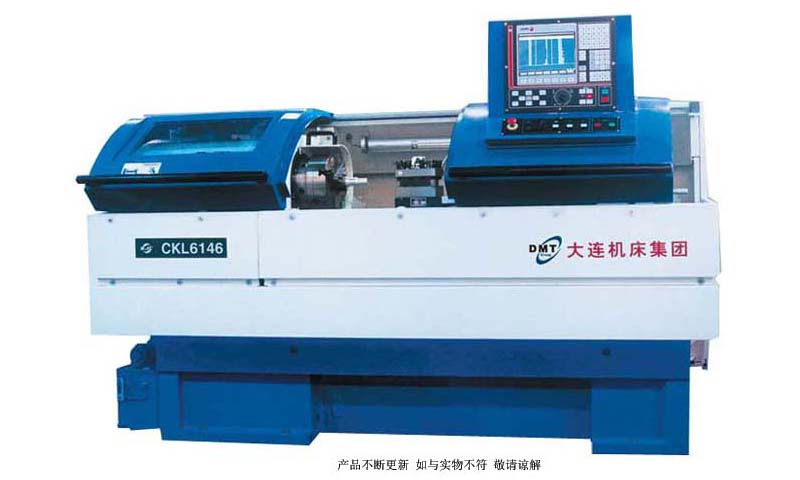

CKL6146 CNC Lathe



Click to magnify


NAME: CKL6146 CNC Lathe
MODEL:CKL6146


Performance Introduction


  CKL6146 is a two axes CNC lathe. It can accomplish machining of cylindrical, tapered, arc and end face turning, as well as metric and inch thread cutting, It is designed for multi-variaty small and medium batch production, especially for complex and high accuracy part machining.
The machine is designed with bigger spindle bore and higher spindle speed. Full power output is available in low speed cutting. Centralized lubricating system and enclosed guarding are fixed to the machine. The machine bed is of one-piece design thus offers high rigidity and good anti-vibration features.
FAGOR 8055T(C)control is provided with this machine, spindle motor, as well as motors for X and Z axes are of FAGOR servo type.
Manual hand wheels are available optional for both axes, in which mode the machine can be run manually as a teaching lathe.

Main Specification Max. swing over bed 460mm
Max.swing over carriage 255mm
Max.length of workpiece 1000mm
Width of bed 300mm
Spindle bore dia. 74mm
Spindle nose type Cam lock D8
Spindle speed 2-2500(3 groups)rpm
Max.travel of carriage X axis 205mm
Z axis 850mm
CNC controls FAGOR 8055TC
Toolpost 4-position(Electric)
Main motor power 5.5kW
Tailstock quil dia 60mm
Machine setting accuracy X axis 0.03mm
Z axis 0.04mm
Machine repeatibility X axis 0.012mm
Z axis 0.016mm
Machine accuracy IT77
Toolpost setting accuracy 0.05mm
Toolpost repeatibility 0.01mm
Packing dimensions(LxWxH) 2900x1700x2110mm
