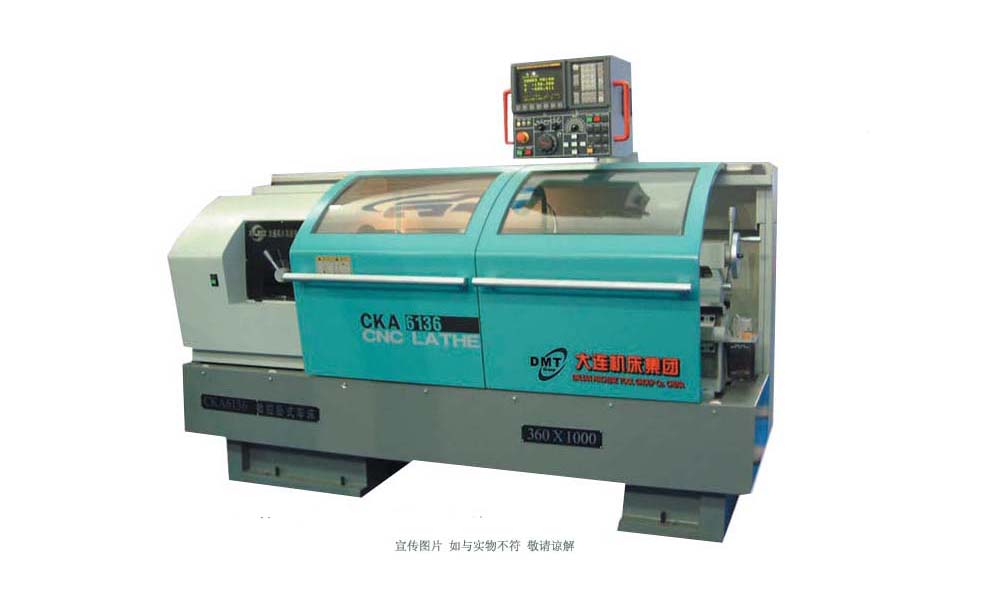

CKA6136 CNC Lathe

Click to magnify
NAME: CKA6136 CNC Lathe
Performance Introduction

  The CNC Lathe CKA6136 has a level configuration. The motions of cross (X) and longitudinal(z) axis are controlled by CNC system. The machine is suitable for such machining process as automatically turning internal and external cylindrical surface, curve, end face, slot, chamfer, metric and inch thred, thread on end face, conic thread, etc for sorts of shaft parts and disc parts. The machine can adopt FANUC-0TD,Yaskawa R2J50L CNC system as well as other CNC system required by customers, comprising corresponding servo motor respectively as drive unit, and taking pulse encoder as measuring unit to consist of semi-closed loop of CNC system. The spindle drive has three types for the buyer to choose. The first type is manual type which adopts manual shift gears. The second type is frequency conversion type which abopts frequency conversion motor to realize infinitely variable speed change (no shift gears).The third type is servo type which adopts servo motor for infinitely variable speed change. The machine comprises vertical 4-position electrical tool post, manual chuck and manual tailstock. The surfaces of saddle and slide plate coupling to the guideways are plastic coated. The makes such static and dynamic performance as rigidity and frictional damping coefficient of the feed units get the best status, makes the moveable parts get accurate minute movement, and facilitates improving machining accuracy and service life of the guideways. The braking of the spindle is realized by the braking device installed at the end of the motor shaft. After finishing auto-cycle, the magnet of the braking device at the end the motor shaft is energized and creates magnetic force to attract and engage the braking disc to realize braking .After the braking is finished, the braking device is released and the spindle can rotate again. Full cover is adopted by this machine to protect operator against the splash of the chips and the coolant.

Main Specification Max. swing over bed 360mm
Max.swing over carriage 180mm
Center distance 750mm 1000mm
Max. Turning dia. 360mm
Travel of axes
X 205
Z 550 800
CNC system Yaskawa R2J50L,FANUC 0-TD or other CNC system required by customers
Spindle speed
-manual type 32-2000
-frequency conversion type 200-3500
-servo type -4000
Spindle nose Manual type:C6;frequency conversion type:A25;servo type:A25
Spindle through hole Manual type:f48;frequency conversion type:f40;servo type:f40
Nos.of the tool position 4
Section of tool shank 20x20mm
Travel of taistock 130mm
Diameter in tailstock quill 60mm
Taper of tailstock quill M4
Main motor:rate(kW),speed(rpm)
-manual type 3/4.5,1440/720
-frequency conversion type 5.5,300-4500
-servo type For special order
Overall dimensions(LxWxH) 2450x1490x2120 2700x1490x2120
Net weight 1675kg 1700kg
