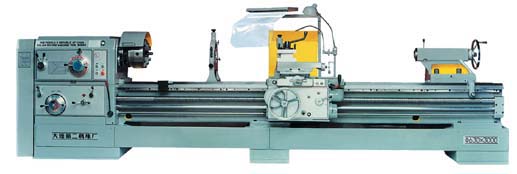

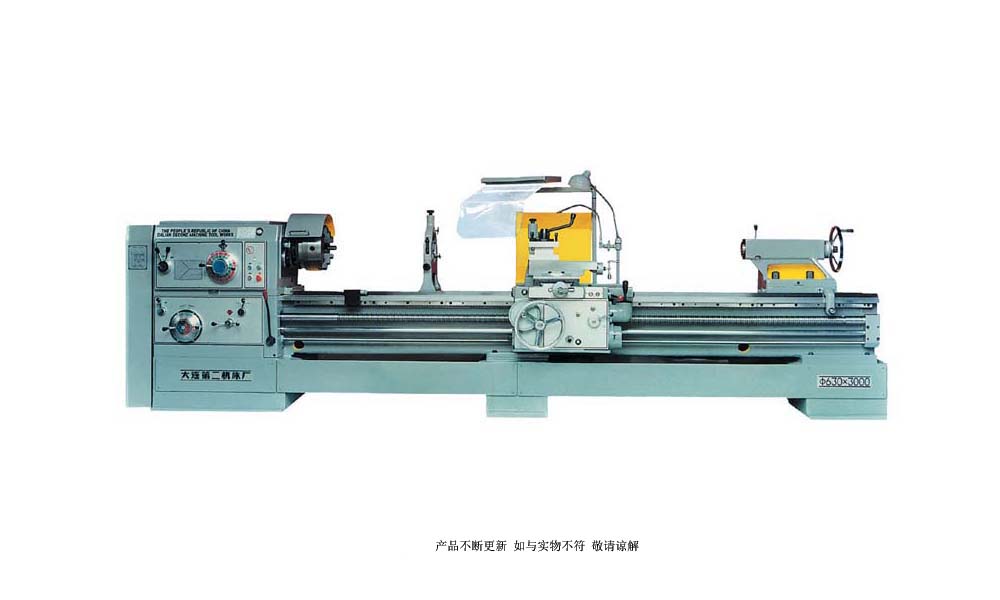

MODEL：CW6163C,CW6263C,CW6180C,CW6280C CW61100C,CW62100C
| Model | CW6163C | CW6263C | CW6180C | CW6280C | CW61100C | CW62100C | |
| Swing over bed | 430mm | 800mm | 1000mm | ||||
| Swing over carraige | 350mm | 520mm | 720mm | ||||
| Swing over gap | 800mm | 1000mm | 1200mm | ||||
| width of gap | 320mm | 320mm | 320mm | ||||
| width of guideway | 550mm | ||||||
| Spindle bore diameter | 100/105/130mm | ||||||
| spindle speed | (18 speeds)7.5--1000rpm | ||||||
| longitudinal feed | (64)0.1--24.3mm/r | ||||||
| Cross feed | (64)0.05--12.15mm/r | ||||||
| Rapid traverse speed | 3.8m/min | ||||||
| Metric thread | (39)1--249mm | ||||||
| Imperial thread | (20)14--1tpi | ||||||
| Module thread | (45)0.5--120mm | ||||||
| Diametrical pitch thread | (24)28--1 | ||||||
| Max.traverse of cross slide | 445mm | 493mm | 493mm | ||||
| Max.traverse of top slide | 200mm | ||||||
| Main motor power | 11kW | ||||||
| Rapid traverse motor power | 1.1kW | ||||||
| Coolant pump motor power | 0.09kW | ||||||
| Wooden
box/pallet packing
Net/gross weight |
750mm | 2630x1480x1890/2580x1120x1800mm | |||||
| 2150/2950kg | 2200/3000kg | 2250/3050kg | |||||
| 1000mm | 2880x1480x1890/2830x1120x1800mm | ||||||
| 2200/3000kg | 2250/3050kg | 2300/3100kg | |||||
| 1500mm | 3380x1480x1890/3330x1120x1800mm | ||||||
| 2250/3050kg | 2300/3100kg | 2350/3150kg | |||||
| 2000mm | 3380x1480x1890/3830x1120x1800mm | ||||||
| 2360/3160kg | 2410/3210kg | 2460/3260kg | |||||
| 3000mm | 4480x1480x1890/4830x1120x1800mm | ||||||
| 2560/3360kg | 2610/3410kg | 2660/3460kg | |||||
| 4000mm | 6520x1610x2100x/7310x1100x1920mm | ||||||
| 7150/5450kg | 7800/6100kg | 8200/6250kg | |||||
| 5000mm | 7600x1610x2100/7500x1100x1920mm | ||||||
| 7950/6250kg | 8500/6450kg | 8900/6750kg | |||||
