THE VERTICAL MACHINING CENTERS OF SERIES VDL



Click to magnify

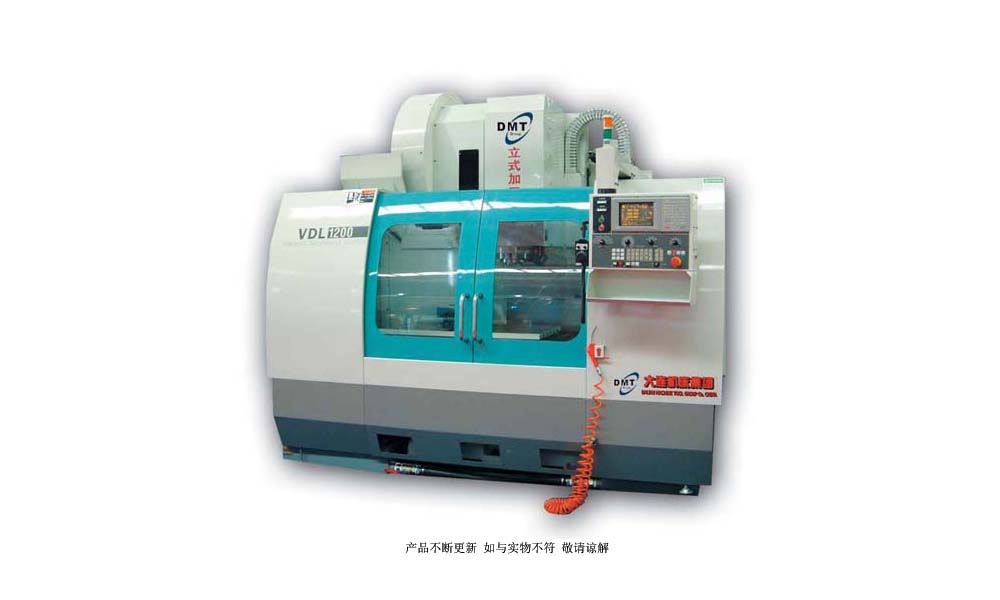

NAME:The vertical machining centers of series VDL

MODEL:VDL500 VDL600 VDL1000 VDL100A VDL1200 VDL1400



Main Specification
Model VDL500 VDL600 VDL1000A VDL1000 VDL1200 VDL1400
Table size(L x W) (mm) 700x320 800x400 1220x460 1120x560 1120x620 1600x630
T-slot(Nos x width x CD) (mm) 3x14x100 3x18x130 5x18x80 5x18x100 5x18x100 5x18x120
Max.Load on table (kg) 150 500 800 750 1200 1500
Distance from spindle center to column way surface (mm) 430 460 520 629 660 760
Distance from spindle nose to table (mm) 150-530 150-690 100-730 135-735 100-775 140-840
X/Y/Z travel (mm) 450/350/380 600/400/540 1000/500/630 1020/560/600 1200/600/675 1400/650/700
X/Y/Z guideway type (m/min) Linear way Linear way Linear way X&Y Linear way/Z box way X&Y Linear way/Z box way Linear way
X/Y/Z rapid traverse speed (mm/min) 36/36/36 20/20/15 30/30/24 24/24/18 24/24/28 24/24/24
Feedrate (mm/min) 1-10000 1-5000 1-10000 1-10000 1-10000 1-8000
X/Y/Z servo motor power (Nm) 3/3/6 12/12/22 12/12/12 12/12/12 12/12/12 22/22/22
Spindle motor power (kW) 3.7/5.5 7.5 7.5/11 7.5/11 11/15 15/18.5
Spindle speed range (r/min) 60-8000 37.5-5000(8000) 18-7500 60-8000 45-6000 45-6000
Spindle taper #40(7/24) #40(7/24) #40(7/24) #40(7/24) #50(7/24) #50(7/24)
Tool magazine capacity/type drum drum swing arm drum swing arm swing arm
Tool shank type BT40 BT40 BT40 BT40 BT50 BT50
Max.Tool weight (kg) 5 7 7 7 15 15
Max.Tool diameter/length (mm) ø89/250 ø100/250 ø75/250 ø100/305 ø127/305 ø110/350
Time of tool change(T-T) (Sec) 6-8 6-8 3 6-8 3.5 5
Way of tool change optional optional standard accessories optional standard accessories standard accessories
Positioning accuracy (mm) ±0.005 ±0.005 ±0.005 ±0.005 ±0.005 ±0.005
Repeatibility (mm) ±0.003 ±0.003 ±0.003 ±0.003 ±0.003 ±0.003
CNC control system FANUC 0i-M FANUC 0i-M FANUC 0i-M FANUC 0i-M/MELDAS M64 FANUC 0i-M/MELDAS M64 FANUC 0i-M
Required air (kg/cm2) 5 5 5 6 6 6
Power requirements (KVA) 12 20 35 25 35 50
Overall dimension(L x W x H) (mm) 2450x1700x2200 2320x2510x2770 3500x3200x3000 2530x2820x2500 2880x2815x2770 4510x3520x3640
Net weight (kg) 2000 6000 7000 7000 8500 10000
