Model |

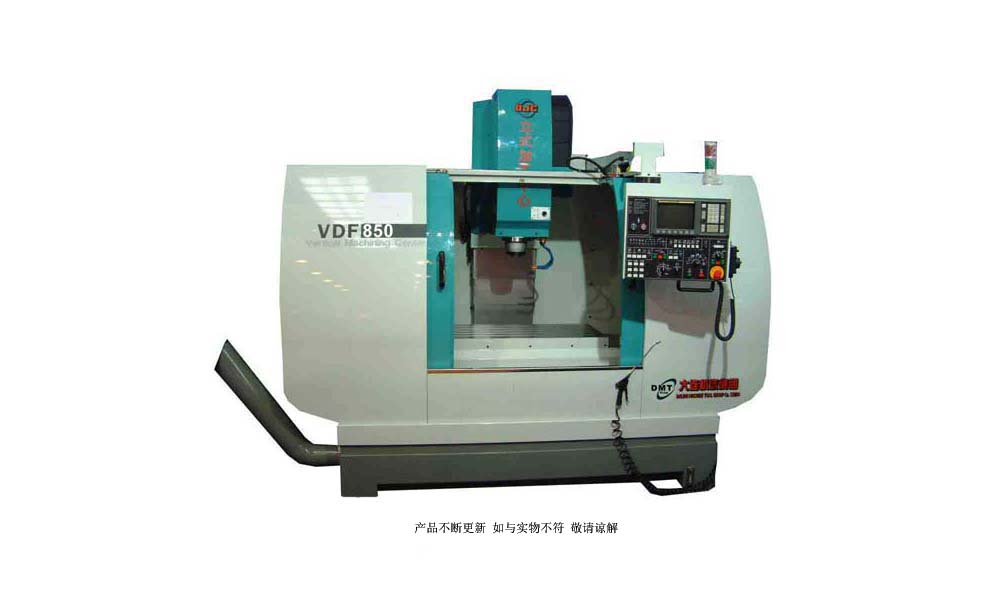

VDF850 |
VDF1000 |
VDF1200 |
VDF1500 |
VDF1650 |
VDF1800 |
Table size(L x W) (mm) |
1000x500 |
1120x560 |
1220x620 |
1700x800 |
1700x800 |
2000x800 |
T-slot(Nos x width x CD) (mm) |
5x18x75 |
5x18x100 |
5x18x100 |
6x18x125 |
6x18x125 |
6x18x125 |
Max.Load on table (kg) |
500 |
750 |
1200 |
2500 |
2000 |
2500 |
Distance from spindle center to column way surface (mm) |
550 |
629 |
660 |
850 |
940 |
850 |
Distance from spindle nose to table (mm) |
150-660 |
135-735 |
100-775 |
200-962 |
150-950 |
180-942 |
X/Y/Z travel (mm) |
850/510/510 |
1020/560/600 |
1200/600/675 |
1530/800/762 |
1650/800/800 |
1850/800/762 |
X/Y/Z guideway type (m/min) |
box way |
box way |
box way Y-axis 4 rails |
box way Y-axis 4 rails |
box way Y-axis 4 rails |
box way Y-axis 4 rails |
X/Y/Z rapid traverse speed (mm/min) |
20/20/18 |
20/20/18 |
20/20/18 |
15/15/12 |
15/15/12 |
15/15/12 |
Feedrate (mm/min) |
1-7600 |
1-10000 |
1-10000 |
1-6000 |
1-8000 |
1-6000 |
X/Y/Z servo motor power (Nm) |
12/12/12 |
12/12/12 |
12/12/12 |
22/22/30 |
22/22/22 |
22/22/30 |
Spindle motor power (kW) |
7.5/11 |
7.5/11 |
11/15 |
wide range motor 11/15 |
11/15 |
wide range motor 11/15 |
Spindle speed range (r/min) |
60-8000 |
60-8000 |
45-6000 |
45-6000 |
45-6000 |
45-6000 |
Spindle taper |
#40(7/24) |
#40(7/24) |
#50(7/24) |
#50(7/24) |
#50(7/24) |
#50(7/24) |
Tool magazine capacity/type |
drum |
drum |
swing arm |
swing arm |
swing arm |
swing arm |
Tool shank type |
BT40 |
BT40 |
BT50 |
BT50 |
BT50 |
BT50 |
Max.Tool weight (kg) |
7 |
7 |
15 |
15 |
15 |
15 |
Max.Tool diameter/length (mm) |
ø89/250 |
ø100/305 |
ø127/305 |
ø110/350 |
ø133/305 |
ø110/350 |
Time of tool change(T-T) (Sec) |
6-8 |
6-8 |
5 |
5 |
5 |
5 |
Way of tool change |
optional |
optional |
standard accessories |
standard accessories |
standard accessories |
standard accessories |
Positioning accuracy (mm) |
±0.005 |
±0.005 |
±0.005 |
±0.005 |
±0.005 |
±0.005 |
Repeatibility (mm) |
±0.003 |
±0.003 |
±0.003 |
±0.003 |
±0.003 |
±0.003 |
CNC control system |
FANUC 0i-M/MELDAS M64 |
FANUC 0i-M/MELDAS M64 |
FANUC 0i-M/MELDAS M64 |
FANUC 0i-M/MELDAS M64 |
MELDAS M64 |
FANUC 0i-M |
Required air (kg/cm2) |
5 |
6 |
6 |
5 |
6 |
5 |
Power requirements (KVA) |
15 |
25 |
35 |
40 |
40 |
40 |
Overall dimension(L x W x H) (mm) |
2480x2741x2532 |
2530x2820x2500 |
2880x2815x2770 |
4630x3477x3108 |
4410x3737x3320 |
5480x3477x3108 |
Net weight (kg) |
4500 |
7000 |
8500 |
14000 |
14000 |
14500 |
|
